Draw Latches
s/s - spring loaded

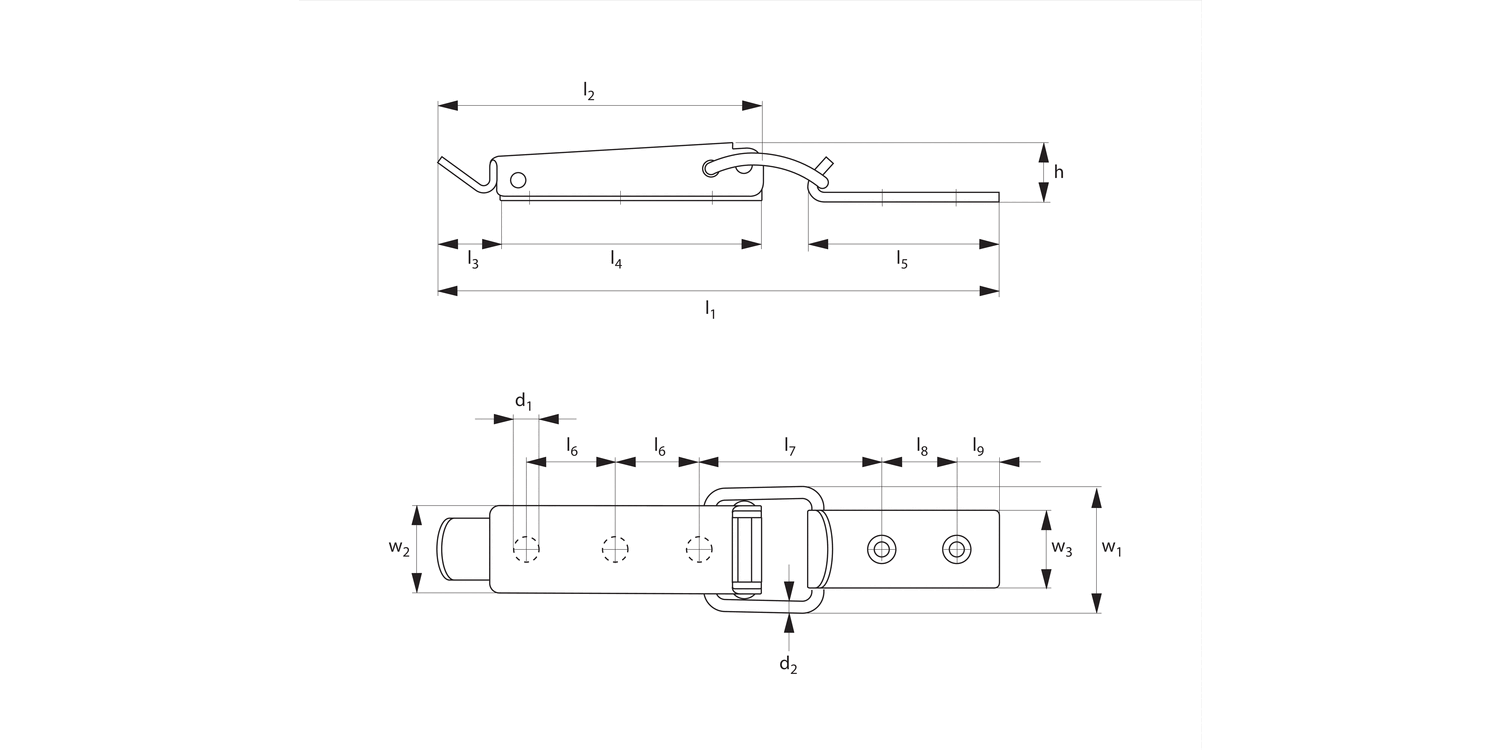

J0400 Toggle Latches
stainless steel, material: Steel or Stainless Steel
Order No.
J0400.AC0004
Finish
Zinc Plated Steel
l1
193.5
w1
±0.5
43
h
±0.5
19
Ø d1
5.3
Ø d2
4
l2
112
l3
21.5
l4
±0.5
90
Weight
g
190
l5
66
l6
31.5
l7
±0.5
58.5
l8
25.5
l9
15
w2
±0.5
30
w3
27
Load
max.
N
2000
Tension
max.
N
4000
£ 2.81 per unit (click for quantity discounts)
Ready to despatch 36
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 2.81 | 0% |
| 20-49 | £ 2.39 | 15% |
| 50-99 | £ 2.11 | 25% |
| 100-199 | £ 1.83 | 35% |
| 200-499 | £ 1.69 | 40% |
| 500+ | £ 1.41 | 50% |
Technical & Application
Material
Steel, Fe P02 + P12, UNI5866, zinc plated. Or stainless steel AISI 304, UNI x5crNi.
Technical Notes
Supplied with counter strike.
