N0460 Heavy Duty Soft-Close Stays

Name: N0460.AC0125
Brand: WC
SKU: N0460.AC0125
Price: 30.2 EUR
Availability: OutOfStock

For upward opening lid, 90° opening angle, material: Zinc alloy/steel/plastic

Article properties

Order No.

N0460.AC0125

Type

Heavy Duty

Hand

Right

Acceptable load bearing pair 90° opening angle min.|max. kg/cm

220 to 259

Acceptable load bearing pair 80° opening angle min.|max. kg/cm

250 to 299

See full product selection

£ 30.20 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 30.20	0%
10-19	£ 27.18	10%
20-49	£ 25.67	15%
50-99	£ 24.16	20%
100+	£ 22.65	25%

Download product datasheet

Technical & Application

Material

Arm: zinc alloy, steel, bright nickel finish.
Body: plastic.

Technical Notes

For use with lids which are upward opening, with concealed hinges. Designed to hold door in both closed and open position.
Designed to control speed at which a suitable lid closes, to prevent lid slamming shut. For use in pairs.
Opening angle up to 90°. Temperature range 0° to 40°C.

Important Notes

Improper application, or use on a lid not within recommended size and load bearing value, may lead to stay being overcome and slamming of lid. Application must be within both the min. and max. load bearing value, stays are for use in pairs see above table.
Order mounting plate separately.

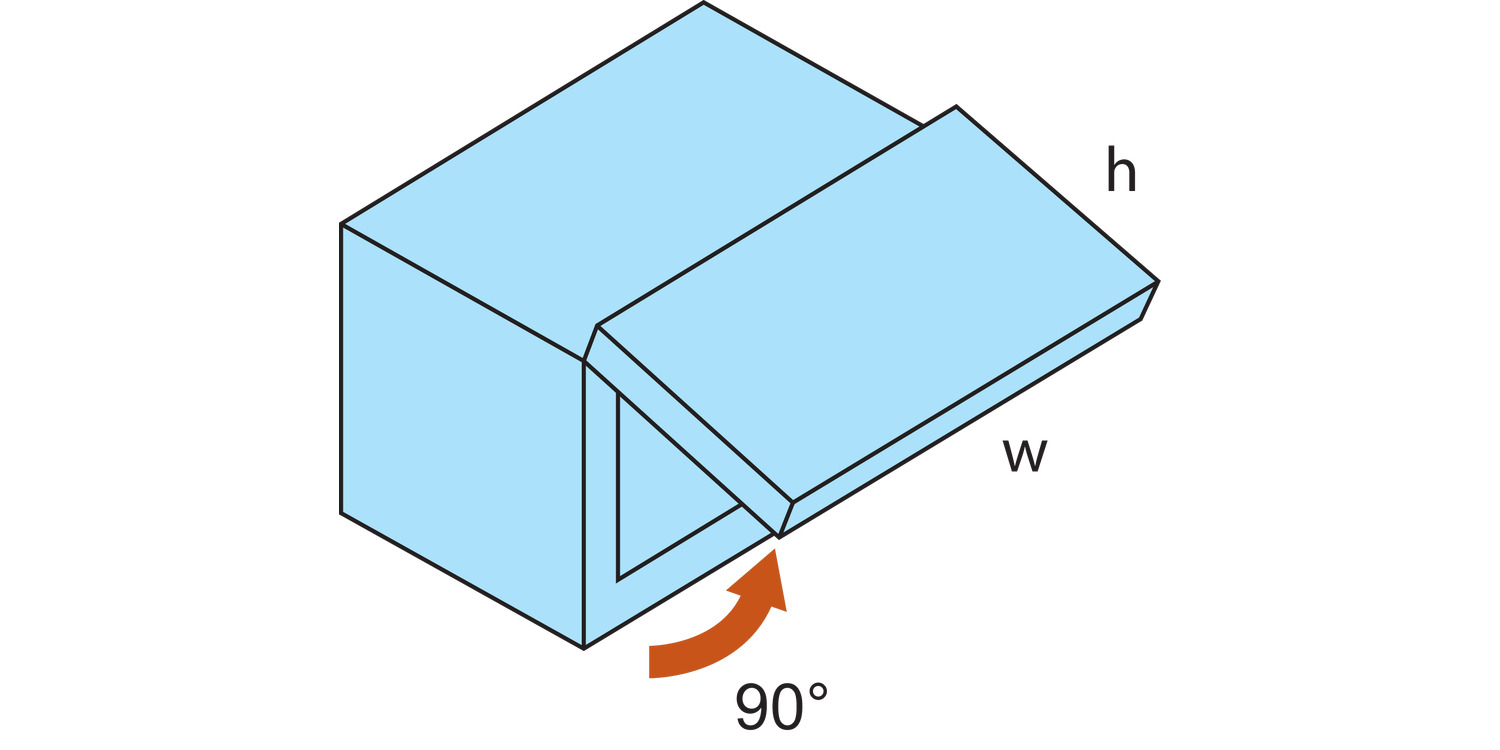

Check Load Bearing Value (T):
T (Load Bearing Value of stay Kg/cm) =
1/2 Door Height cm x Door Weight Kg
