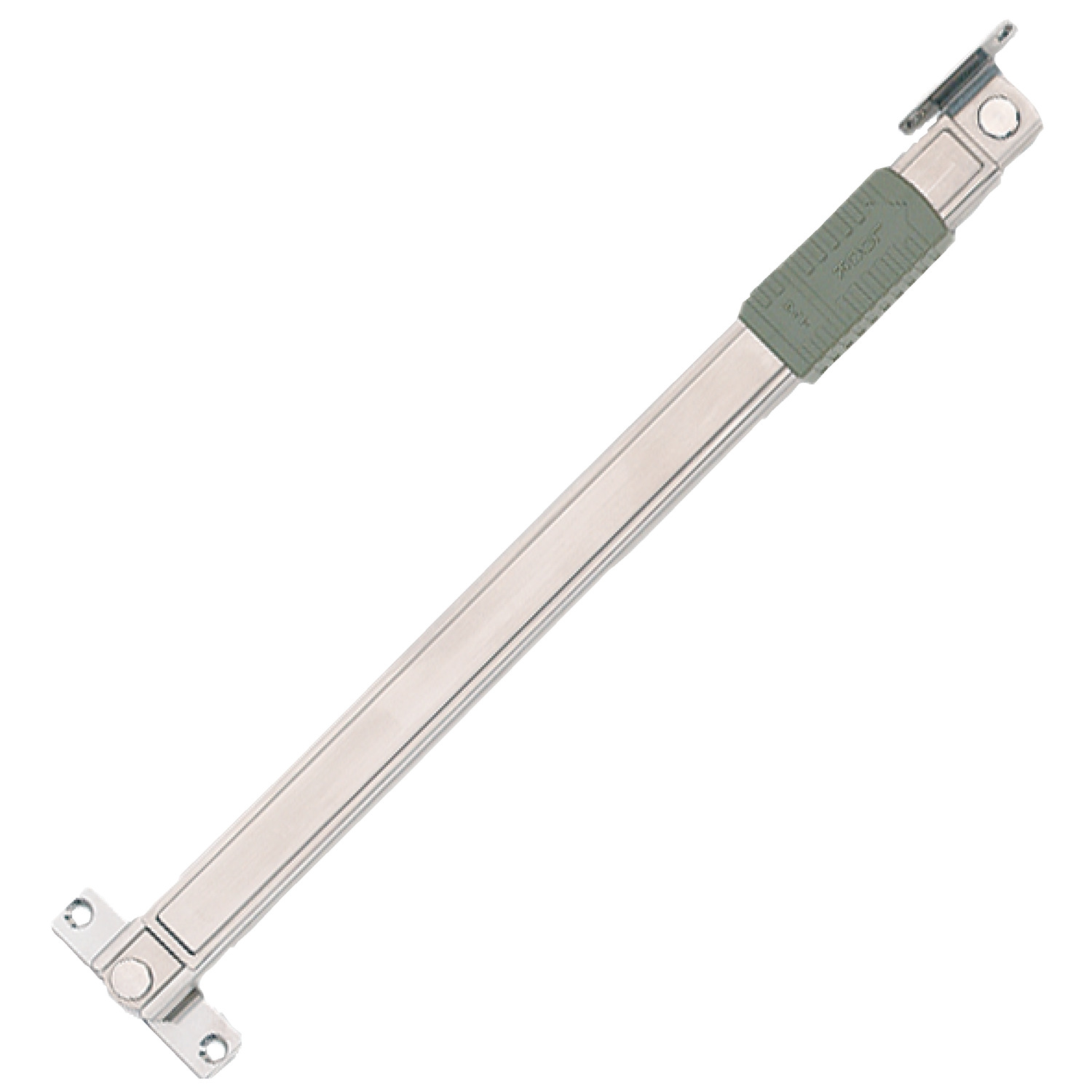

N2000 Door Stays - Multi-Stop

Name: N2000.AC0010
Brand: WC
SKU: N2000.AC0010
Price: 99.54 GBP
Availability: OutOfStock

stainless steel, material: Stainless steel

Article properties

Order No.

N2000.AC0010

Door opening angle max.

90°

Weight g

338

See full product selection

£ 99.54 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 99.54	0%
10-19	£ 89.59	10%
20-49	£ 84.61	15%
50-99	£ 79.63	20%
100+	£ 74.66	25%

Download product datasheet

Technical & Application

Material

Stainless steel, AISI 304, with polyacetal (POM) latch.

Technical Notes

Holds handle open at multiple angles. Slide lock lever to lock/unlock stay.
For outward opening doors only.
Max. door size:
h = 2000mm
w = 600 - 910mm
t = 25 - 45mm

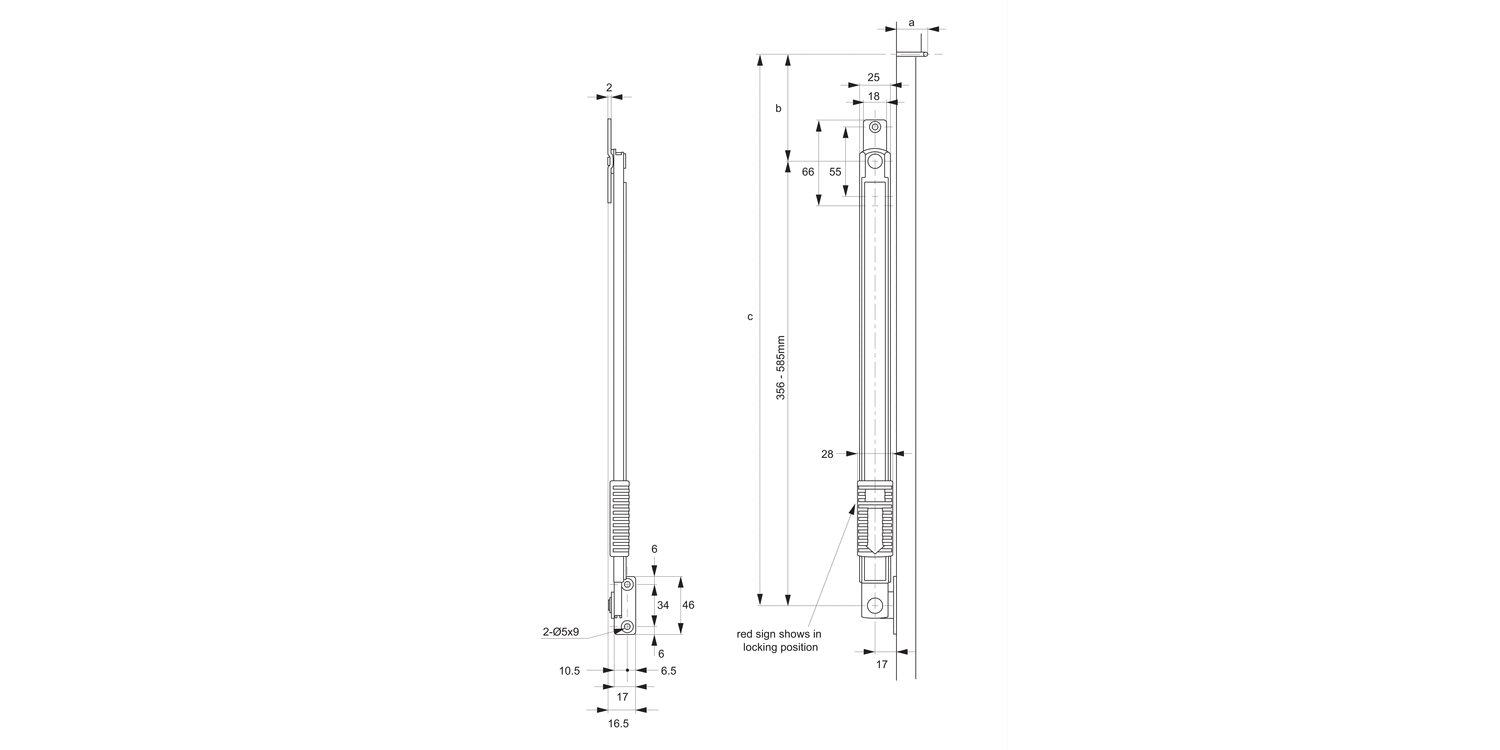

See installation table below.

Product Datasheets

N2000 Door Stays - Multi-Stop24 June 2025, 15:38 / 1.08 MB

Door Stays24 June 2025, 15:35 / 2.35 MB

Lid & Door Stays24 June 2025, 15:31 / 2.08 MB

Stays24 June 2025, 15:32 / 3.90 MB

Access Components24 June 2025, 15:32 / 32.33 MB
