Lever Catches
finger tip control
E2031 Slide Latches - Flush
snap-in installation - release catch, material: Plastic
Alternative products you may wish to consider
£ 0.77 per unit (click for quantity discounts)
£ 0.80 per unit (click for quantity discounts)
£ 0.97 per unit (click for quantity discounts)
£ 0.97 per unit (click for quantity discounts)
Colour
Type
Panel thickness
min.|max.
h grip length
l
w
| Price & Availability | Article | Colour | Type | Panel thickness min.|max. | h grip length | l | w | |||||||||||||||||||||
| E2031.AW0010 | Grey | W/o Lock | 1-2 | 6.7 | 45 | 28 | ||||||||||||||||||||||
£ 0.77 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Colour Grey Type W/o Lock Panel thickness
min.|max. 1-2 h grip length 6.7 l 45 w 28 | ||||||||||||||||||||||||||||
| E2031.AW0020 | Black | W/o Lock | 1-2 | 6.7 | 45 | 28 | ||||||||||||||||||||||
£ 0.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Colour Black Type W/o Lock Panel thickness
min.|max. 1-2 h grip length 6.7 l 45 w 28 | ||||||||||||||||||||||||||||
| E2031.AW0310 | Grey | With Lock | 1-2 | 6.7 | 45 | 28 | ||||||||||||||||||||||
£ 0.97 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Colour Grey Type With Lock Panel thickness
min.|max. 1-2 h grip length 6.7 l 45 w 28 | ||||||||||||||||||||||||||||
| E2031.AW0320 | Black | With Lock | 1-2 | 6.7 | 45 | 28 | ||||||||||||||||||||||
£ 0.97 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Colour Black Type With Lock Panel thickness
min.|max. 1-2 h grip length 6.7 l 45 w 28 | ||||||||||||||||||||||||||||
Technical & Application
Material
ABS plastic and stainless steel spring.
Technical Notes
Ideal for small metal machinery covers. Uniquely different from our standard slide latch E2021 in the addition of an internal release catch - hence this latch does not slide over surface in order to actuate.
Suitable for panel thickness 1 - 2 mm.

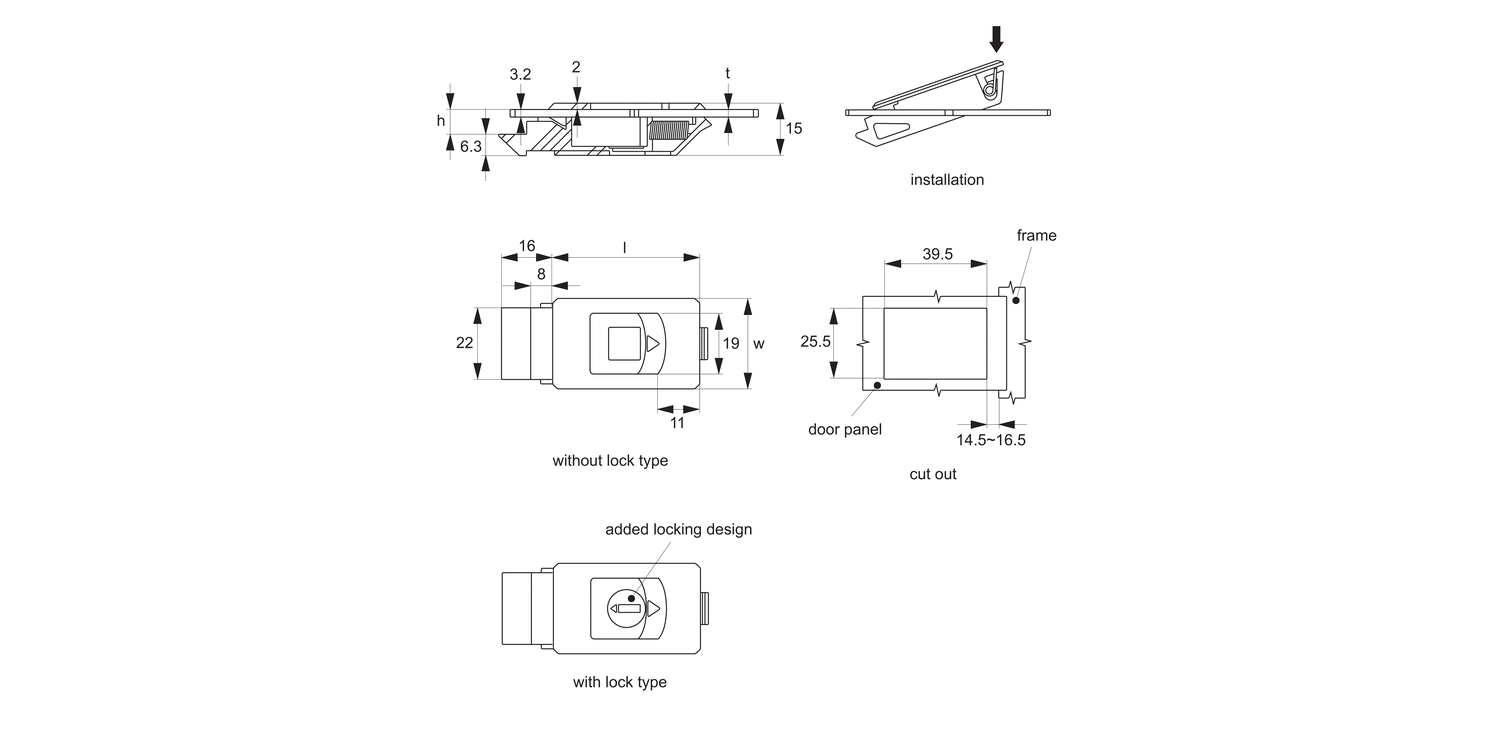

Product Datasheets
Application images
