A-V Impact Plates
Steel

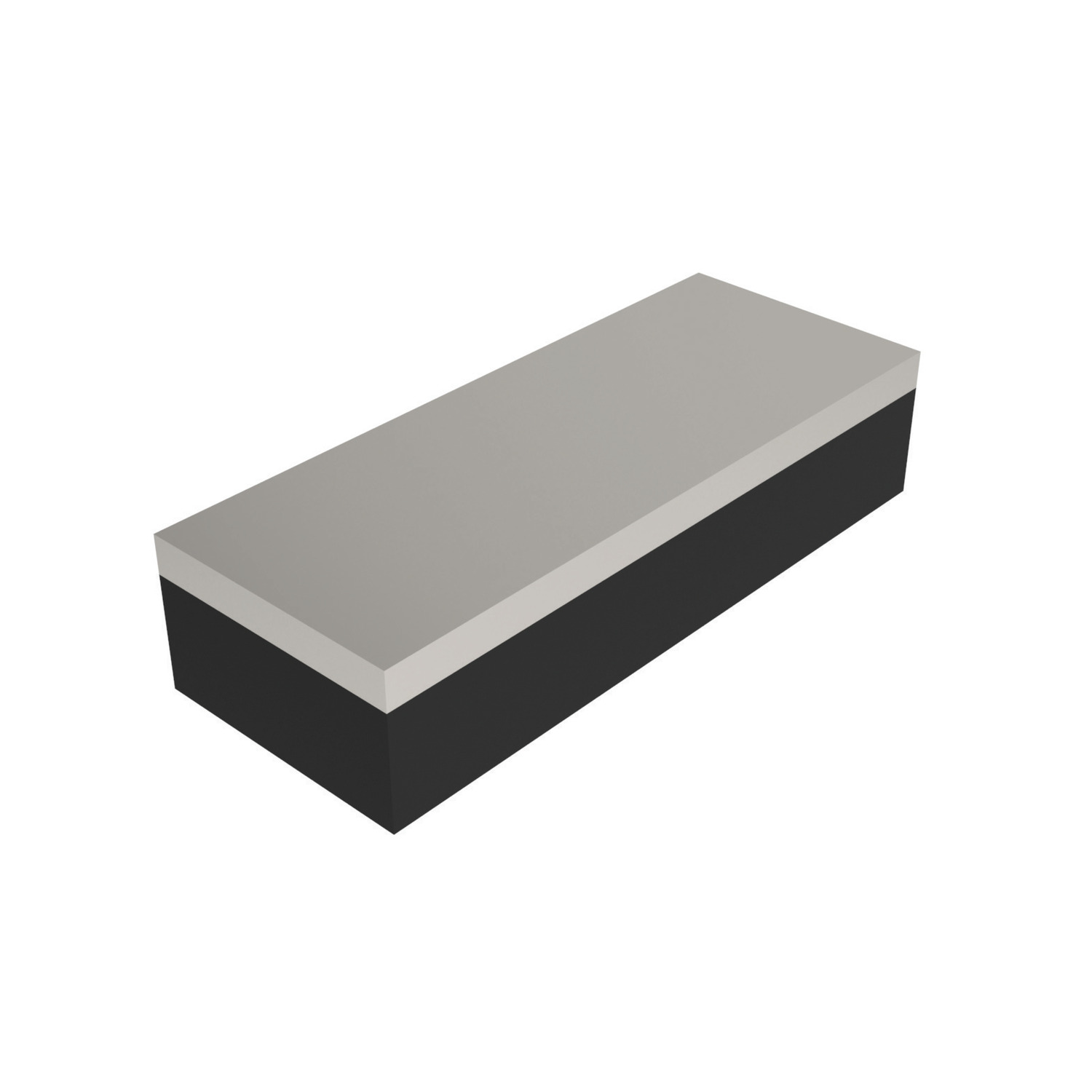

61600 Anti-vibration Impact Plates
metal-rubber, material: Steel
Alternative products you may wish to consider
£ 213.35 per unit (click for quantity discounts)
£ 55.05 per unit (click for quantity discounts)
£ 42.39 per unit (click for quantity discounts)
£ 49.74 per unit (click for quantity discounts)
£ 67.03 per unit (click for quantity discounts)
£ 84.76 per unit (click for quantity discounts)
£ 113.48 per unit (click for quantity discounts)

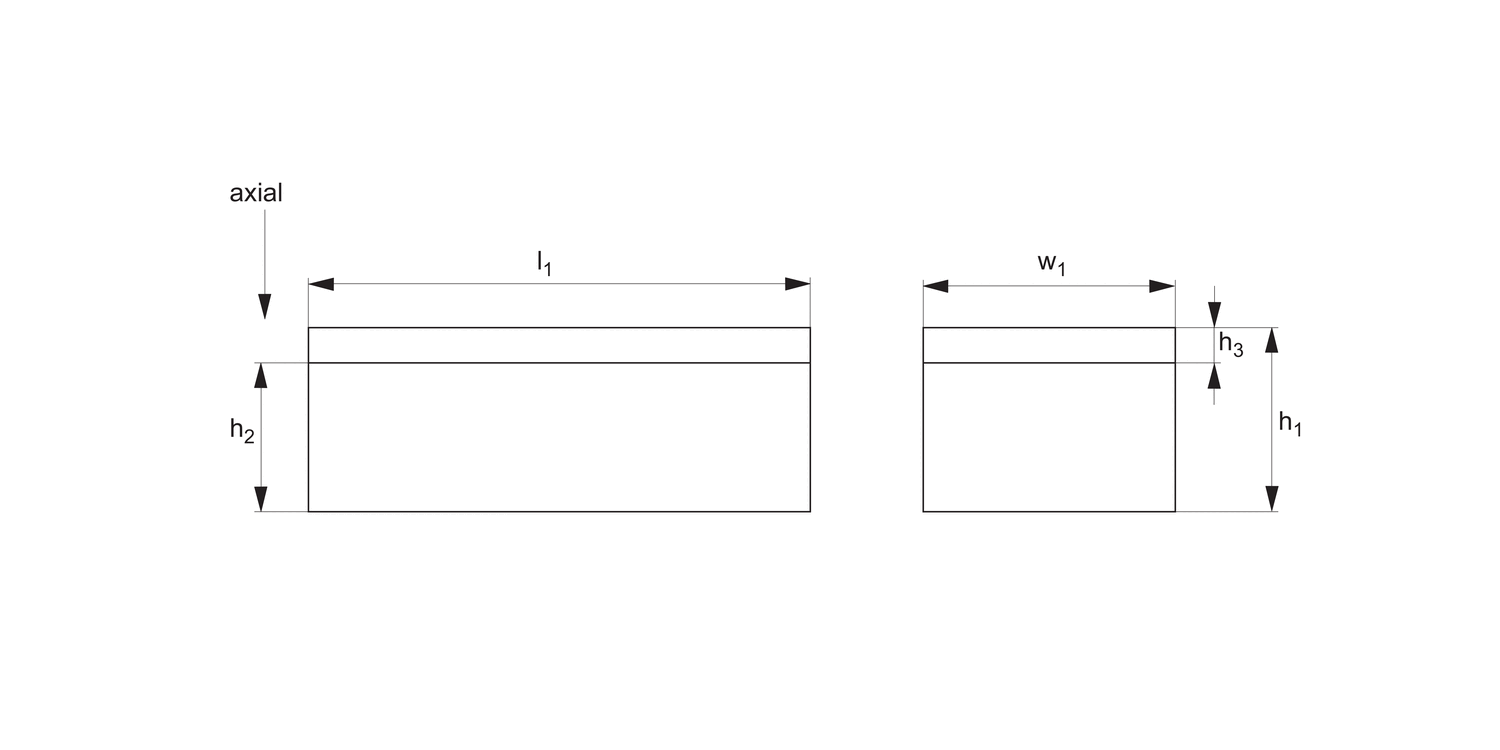

l1
w1
h1
h2
h3
Axial load
max.
kgf
Compression
max.
| Price & Availability | Article | l1 | w1 | h1 | h2 | h3 | Axial load max. kgf | Compression max. | ||||||||||||||||||
| 61600.W0035 | 1250 | 35 | 40 | 30 | 10 | 2500 | 2.0 | |||||||||||||||||||
£ 213.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
l1 1250 w1 35 h1 40 h2 30 h3 10 Axial load
max.
kgf 2500 Compression
max. 2.0 | ||||||||||||||||||||||||||
| 61600.W0070 | 180 | 70 | 40 | 30 | 10 | 1000 | 2.8 | |||||||||||||||||||
£ 55.05 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
l1 180 w1 70 h1 40 h2 30 h3 10 Axial load
max.
kgf 1000 Compression
max. 2.8 | ||||||||||||||||||||||||||
| 61600.W0071 | 245 | 70 | 40 | 30 | 10 | 1300 | 3.7 | |||||||||||||||||||
£ 42.39 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
l1 245 w1 70 h1 40 h2 30 h3 10 Axial load
max.
kgf 1300 Compression
max. 3.7 | ||||||||||||||||||||||||||
| 61600.W0072 | 285 | 70 | 40 | 30 | 10 | 2000 | 3.6 | |||||||||||||||||||
£ 49.74 per unit (click for quantity discounts) Ready to despatch 2 Need more? Please call us.
l1 285 w1 70 h1 40 h2 30 h3 10 Axial load
max.
kgf 2000 Compression
max. 3.6 | ||||||||||||||||||||||||||
| 61600.W0073 | 320 | 70 | 40 | 30 | 10 | 2700 | 3.5 | |||||||||||||||||||
£ 67.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
l1 320 w1 70 h1 40 h2 30 h3 10 Axial load
max.
kgf 2700 Compression
max. 3.5 | ||||||||||||||||||||||||||
| 61600.W0120 | 250 | 120 | 40 | 28 | 12 | 5000 | 3.3 | |||||||||||||||||||
£ 84.76 per unit (click for quantity discounts) Ready to despatch 4 Need more? Please call us.
l1 250 w1 120 h1 40 h2 28 h3 12 Axial load
max.
kgf 5000 Compression
max. 3.3 | ||||||||||||||||||||||||||
| 61600.W0125 | 500 | 125 | 30 | 15 | 15 | 10000 | 4.0 | |||||||||||||||||||
£ 113.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
l1 500 w1 125 h1 30 h2 15 h3 15 Axial load
max.
kgf 10000 Compression
max. 4.0 | ||||||||||||||||||||||||||
Technical & Application
Material
Rubber on silver zinc plated steel (rubber hardness - 60 Shore A).
Technical Notes
The metal plate is provided blank so it can be drilled to suit the number of threads, thread sizes and the pitch you require.
Part no. 61600.0500-125 has a ribbed base. Other sizes can be supplied on request.
