Spring Vibration Damper
Steel

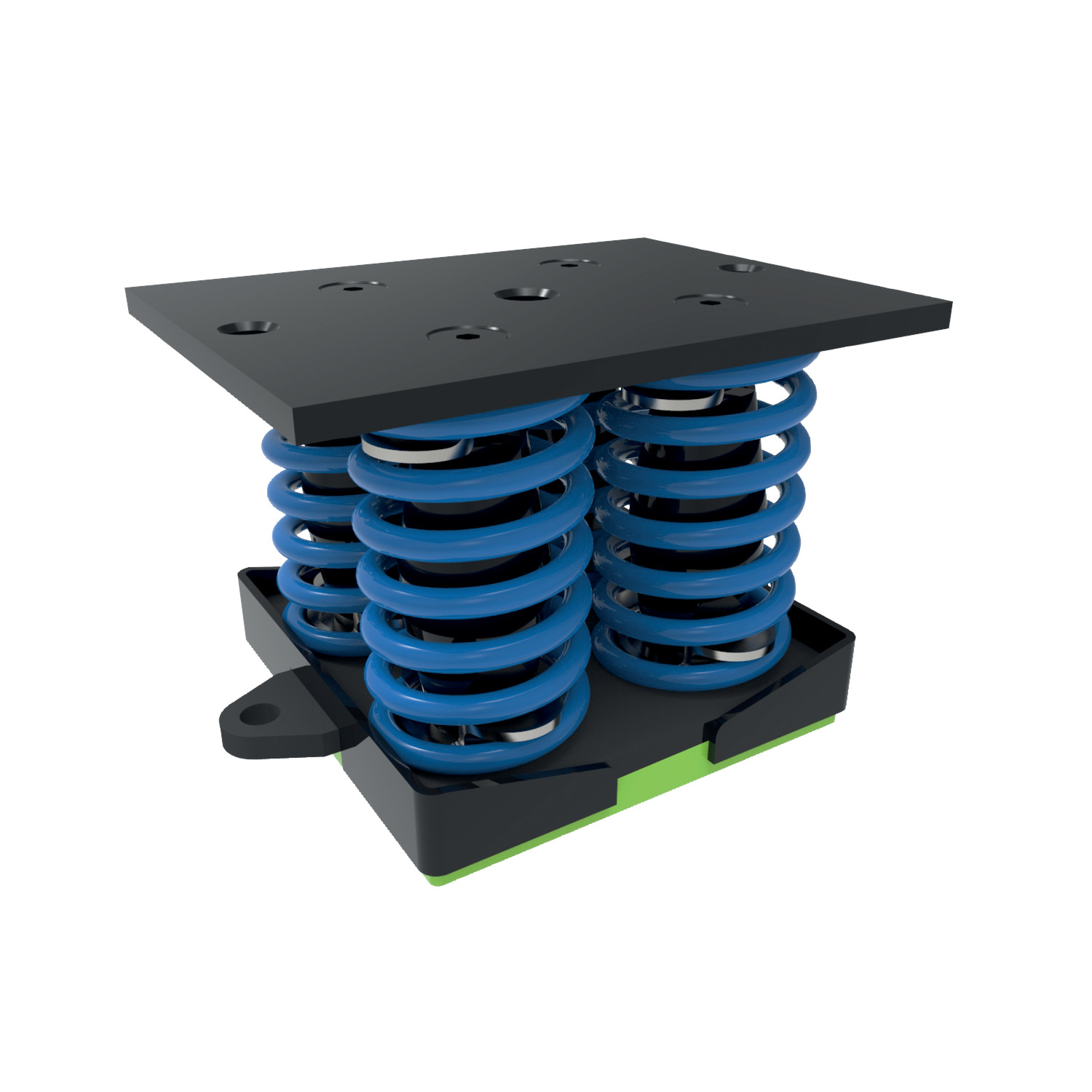

61925 Spring Vibration Damper four spring
four spring, material: Steel
Alternative products you may wish to consider
Spring colour
Blue

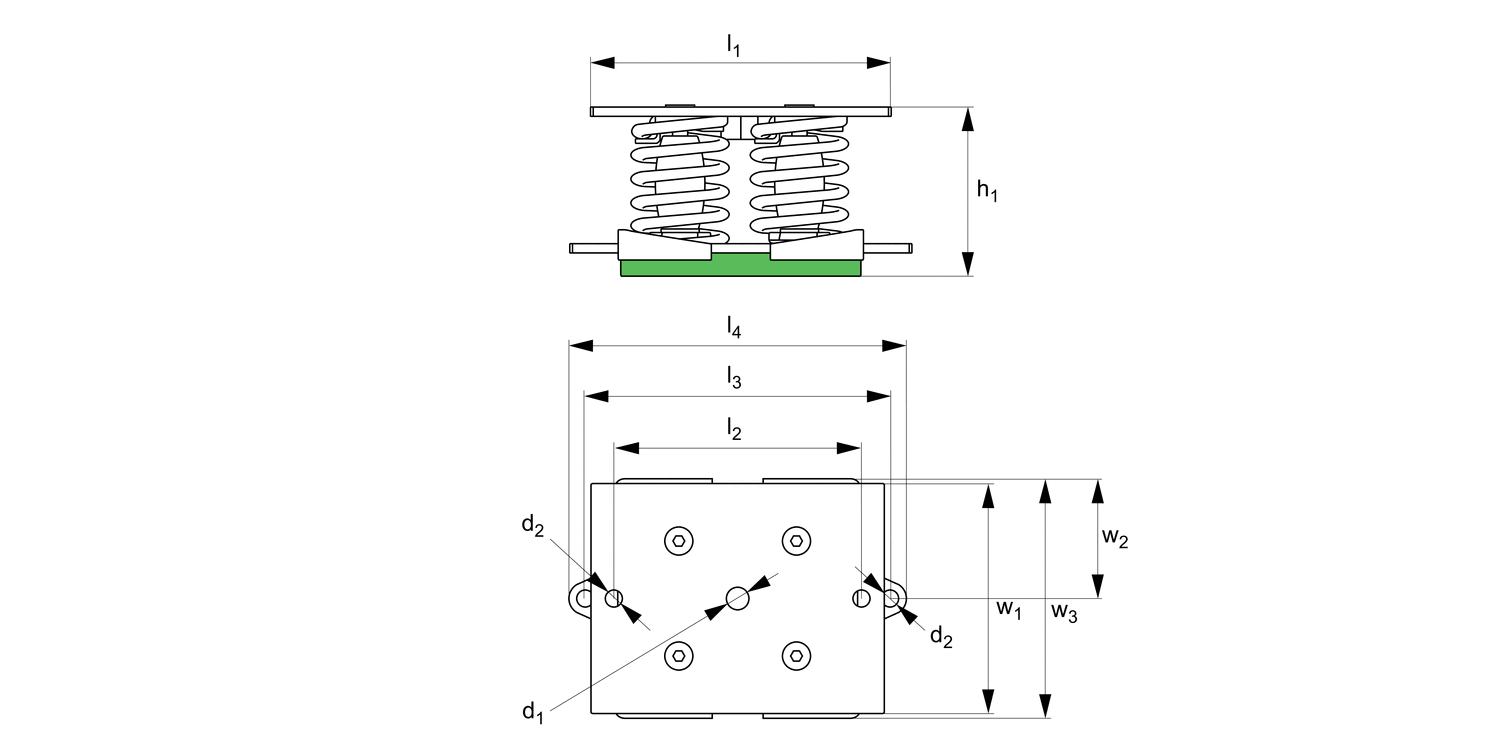

l1
200
h
136
d1
M16
w1
150
d2
12
l2
170
l3
190
l4
214
w2
75
w3
156
Compression
max.
30
Load
max.
kgf
600
Weight
kg
6.41
£ 311.08 per unit (click for quantity discounts)
Spring colour
White
l1
200
h
136
d1
M16
w1
150
d2
12
l2
170
l3
190
l4
214
w2
75
w3
156
Compression
max.
30
Load
max.
kgf
800
Weight
kg
6.57
£ 317.77 per unit (click for quantity discounts)
Spring colour
Black
l1
200
h
136
d1
M16
w1
150
d2
12
l2
170
l3
190
l4
214
w2
75
w3
156
Compression
max.
30
Load
max.
kgf
1000
Weight
kg
6.70
£ 325.11 per unit (click for quantity discounts)
Spring colour
Cream
l1
200
h
136
d1
M16
w1
150
d2
12
l2
170
l3
190
l4
214
w2
75
w3
156
Compression
max.
30
Load
max.
kgf
1400
Weight
kg
7.64
£ 350.55 per unit (click for quantity discounts)
Spring colour
Light Grey
l1
250
h
136
d1
M20
w1
200
d2
14
l2
210
l3
260
l4
288
w2
100
w3
206
Compression
max.
18
Load
max.
kgf
2000
Weight
kg
12.10
£ 667.50 per unit (click for quantity discounts)
Spring colour
Green
l1
250
h
136
d1
M20
w1
200
d2
14
l2
210
l3
260
l4
288
w2
100
w3
206
Compression
max.
18
Load
max.
kgf
3000
Weight
kg
13.96
£ 779.08 per unit (click for quantity discounts)
Spring colour
l1
h
d1
w1
d2
l2
l3
l4
w2
w3
Compression
max.
Load
max.
kgf
Weight
kg
| Price & Availability | Article | Spring colour | l1 | h | d1 | w1 | d2 | l2 | l3 | l4 | w2 | w3 | Compression max. | Load max. kgf | Weight kg | ||||||||||||||||||
| 61925.W0160 | Blue | 200 | 136 | M16 | 150 | 12 | 170 | 190 | 214 | 75 | 156 | 30 | 600 | 6.41 | |||||||||||||||||||
£ 311.08 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Spring colour Blue l1 200 h 136 d1 M16 w1 150 d2 12 l2 170 l3 190 l4 214 w2 75 w3 156 Compression
max. 30 Load
max.
kgf 600 Weight
kg 6.41 | |||||||||||||||||||||||||||||||||
| 61925.W0161 | White | 200 | 136 | M16 | 150 | 12 | 170 | 190 | 214 | 75 | 156 | 30 | 800 | 6.57 | |||||||||||||||||||
£ 317.77 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Spring colour White l1 200 h 136 d1 M16 w1 150 d2 12 l2 170 l3 190 l4 214 w2 75 w3 156 Compression
max. 30 Load
max.
kgf 800 Weight
kg 6.57 | |||||||||||||||||||||||||||||||||
| 61925.W0162 | Black | 200 | 136 | M16 | 150 | 12 | 170 | 190 | 214 | 75 | 156 | 30 | 1000 | 6.70 | |||||||||||||||||||
£ 325.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Spring colour Black l1 200 h 136 d1 M16 w1 150 d2 12 l2 170 l3 190 l4 214 w2 75 w3 156 Compression
max. 30 Load
max.
kgf 1000 Weight
kg 6.70 | |||||||||||||||||||||||||||||||||
| 61925.W0163 | Cream | 200 | 136 | M16 | 150 | 12 | 170 | 190 | 214 | 75 | 156 | 30 | 1400 | 7.64 | |||||||||||||||||||
£ 350.55 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Spring colour Cream l1 200 h 136 d1 M16 w1 150 d2 12 l2 170 l3 190 l4 214 w2 75 w3 156 Compression
max. 30 Load
max.
kgf 1400 Weight
kg 7.64 | |||||||||||||||||||||||||||||||||
| 61925.W0200 | Light Grey | 250 | 136 | M20 | 200 | 14 | 210 | 260 | 288 | 100 | 206 | 18 | 2000 | 12.10 | |||||||||||||||||||
£ 667.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Spring colour Light Grey l1 250 h 136 d1 M20 w1 200 d2 14 l2 210 l3 260 l4 288 w2 100 w3 206 Compression
max. 18 Load
max.
kgf 2000 Weight
kg 12.10 | |||||||||||||||||||||||||||||||||
| 61925.W0201 | Green | 250 | 136 | M20 | 200 | 14 | 210 | 260 | 288 | 100 | 206 | 18 | 3000 | 13.96 | |||||||||||||||||||
£ 779.08 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Spring colour Green l1 250 h 136 d1 M20 w1 200 d2 14 l2 210 l3 260 l4 288 w2 100 w3 206 Compression
max. 18 Load
max.
kgf 3000 Weight
kg 13.96 | |||||||||||||||||||||||||||||||||
Technical & Application
Material
High tensile steel with sylomer anti-slide base.
Technical Notes
The sylomer mat that these dampers incorporate, isolates the mid-high frequency vibrations which are transmitted through the coils of the metal springs.
Tips
These are used in sectors such as air compressors, pump and pumping equipment and acoustic isolation of premises.
