Double Universal Joints
steel
65160 Double Universal Joint
Steel, material: Steel
Alternative products you may wish to consider
Bore dia.
Round Bore
d1
tol. H7
10
d2
16
l1
74
l2
26
l3
22
l4
15
w1
tol. JS9
-
w2
-
Weight
g
80
£ 43.87 per unit (click for quantity discounts)
Bore dia.
Round Bore
d1
tol. H7
12
d2
22
l1
88
l2
31
l3
26
l4
18
w1
tol. JS9
-
w2
-
Weight
g
200
£ 43.87 per unit (click for quantity discounts)
Bore dia.
Round Bore
d1
tol. H7
16
d2
25
l1
104
l2
37
l3
30
l4
21
w1
tol. JS9
-
w2
-
Weight
g
300
£ 46.37 per unit (click for quantity discounts)
Bore dia.
Round Bore
d1
tol. H7
20
d2
32
l1
124
l2
43
l3
38
l4
24
w1
tol. JS9
-
w2
-
Weight
g
500
£ 60.09 per unit (click for quantity discounts)
Bore dia.
Round Bore
d1
tol. H7
25
d2
42
l1
156
l2
54
l3
48
l4
31
w1
tol. JS9
-
w2
-
Weight
g
1200
£ 83.20 per unit (click for quantity discounts)
Bore dia.
Round Bore
d1
tol. H7
30
d2
50
l1
188
l2
66
l3
56
l4
38
w1
tol. JS9
-
w2
-
Weight
g
1700
£ 125.72 per unit (click for quantity discounts)
Bore dia.
Round Bore
d1
tol. H7
40
d2
70
l1
238
l2
83
l3
72
l4
47
w1
tol. JS9
-
w2
-
Weight
g
4300
£ 359.53 per unit (click for quantity discounts)
Bore dia.
With Keyway
d1
tol. H7
10
d2
16
l1
74
l2
26
l3
22
l4
15
w1
tol. JS9
3
w2
11.4
Weight
g
80
£ 53.65 per unit (click for quantity discounts)
Bore dia.
With Keyway
d1
tol. H7
12
d2
22
l1
88
l2
31
l3
26
l4
18
w1
tol. JS9
4
w2
13.8
Weight
g
200
£ 53.65 per unit (click for quantity discounts)
Bore dia.
With Keyway
d1
tol. H7
16
d2
25
l1
104
l2
37
l3
30
l4
21
w1
tol. JS9
5
w2
18.3
Weight
g
300
£ 56.13 per unit (click for quantity discounts)
Bore dia.
With Keyway
d1
tol. H7
20
d2
32
l1
124
l2
43
l3
38
l4
24
w1
tol. JS9
6
w2
22.8
Weight
g
500
£ 71.83 per unit (click for quantity discounts)
Bore dia.
With Keyway
d1
tol. H7
25
d2
42
l1
156
l2
54
l3
48
l4
31
w1
tol. JS9
8
w2
28.3
Weight
g
1200
£ 95.87 per unit (click for quantity discounts)
Bore dia.
With Keyway
d1
tol. H7
30
d2
50
l1
188
l2
66
l3
56
l4
38
w1
tol. JS9
8
w2
33.3
Weight
g
1700
£ 137.91 per unit (click for quantity discounts)
Bore dia.
With Keyway
d1
tol. H7
40
d2
70
l1
238
l2
83
l3
72
l4
47
w1
tol. JS9
12
w2
43.3
Weight
g
4300
£ 381.27 per unit (click for quantity discounts)
Bore dia.
d1
tol. H7
d2
l1
l2
l3
l4
w1
tol. JS9
w2
Weight
g

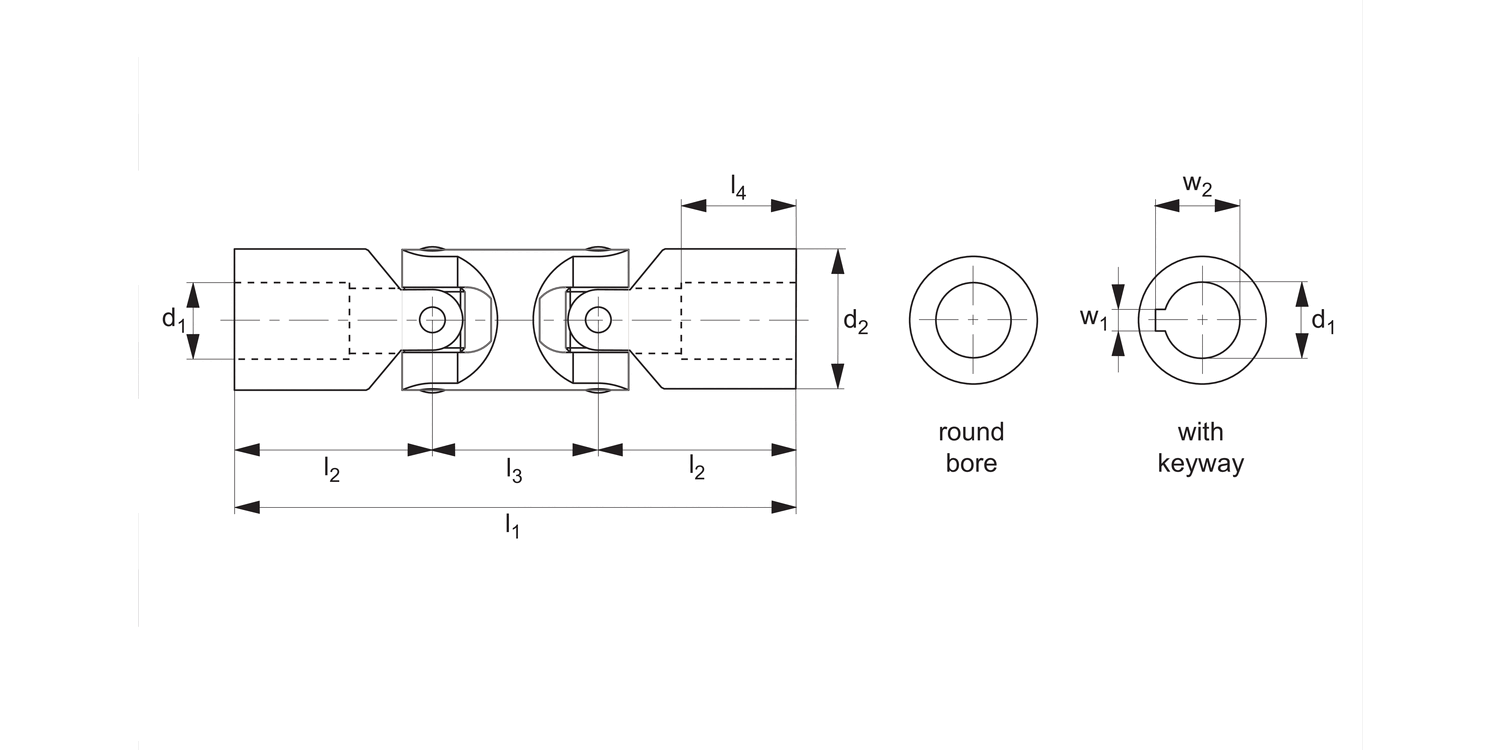

| Price & Availability | Article | Bore dia. | d1 tol. H7 | d2 | l1 | l2 | l3 | l4 | w1 tol. JS9 | w2 | Weight g | ||||||||||||||||||
| 65160.W0010 | Round Bore | 10 | 16 | 74 | 26 | 22 | 15 | - | - | 80 | |||||||||||||||||||
£ 43.87 per unit (click for quantity discounts) Ready to despatch 4 Need more? Please call us.
Bore dia. Round Bore d1
tol. H7 10 d2 16 l1 74 l2 26 l3 22 l4 15 w1
tol. JS9 - w2 - Weight
g 80 | |||||||||||||||||||||||||||||
| 65160.W0012 | Round Bore | 12 | 22 | 88 | 31 | 26 | 18 | - | - | 200 | |||||||||||||||||||
£ 43.87 per unit (click for quantity discounts) Ready to despatch 20 Need more? Please call us.
Bore dia. Round Bore d1
tol. H7 12 d2 22 l1 88 l2 31 l3 26 l4 18 w1
tol. JS9 - w2 - Weight
g 200 | |||||||||||||||||||||||||||||
| 65160.W0016 | Round Bore | 16 | 25 | 104 | 37 | 30 | 21 | - | - | 300 | |||||||||||||||||||
£ 46.37 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Bore dia. Round Bore d1
tol. H7 16 d2 25 l1 104 l2 37 l3 30 l4 21 w1
tol. JS9 - w2 - Weight
g 300 | |||||||||||||||||||||||||||||
| 65160.W0020 | Round Bore | 20 | 32 | 124 | 43 | 38 | 24 | - | - | 500 | |||||||||||||||||||
£ 60.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Bore dia. Round Bore d1
tol. H7 20 d2 32 l1 124 l2 43 l3 38 l4 24 w1
tol. JS9 - w2 - Weight
g 500 | |||||||||||||||||||||||||||||
| 65160.W0025 | Round Bore | 25 | 42 | 156 | 54 | 48 | 31 | - | - | 1200 | |||||||||||||||||||
£ 83.20 per unit (click for quantity discounts) Ready to despatch 11 Need more? Please call us.
Bore dia. Round Bore d1
tol. H7 25 d2 42 l1 156 l2 54 l3 48 l4 31 w1
tol. JS9 - w2 - Weight
g 1200 | |||||||||||||||||||||||||||||
| 65160.W0030 | Round Bore | 30 | 50 | 188 | 66 | 56 | 38 | - | - | 1700 | |||||||||||||||||||
£ 125.72 per unit (click for quantity discounts) Ready to despatch 20 Need more? Please call us.
Bore dia. Round Bore d1
tol. H7 30 d2 50 l1 188 l2 66 l3 56 l4 38 w1
tol. JS9 - w2 - Weight
g 1700 | |||||||||||||||||||||||||||||
| 65160.W0040 | Round Bore | 40 | 70 | 238 | 83 | 72 | 47 | - | - | 4300 | |||||||||||||||||||
£ 359.53 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Bore dia. Round Bore d1
tol. H7 40 d2 70 l1 238 l2 83 l3 72 l4 47 w1
tol. JS9 - w2 - Weight
g 4300 | |||||||||||||||||||||||||||||
| 65160.W0210 | With Keyway | 10 | 16 | 74 | 26 | 22 | 15 | 3 | 11.4 | 80 | |||||||||||||||||||
£ 53.65 per unit (click for quantity discounts) Ready to despatch 8 Need more? Please call us.
Bore dia. With Keyway d1
tol. H7 10 d2 16 l1 74 l2 26 l3 22 l4 15 w1
tol. JS9 3 w2 11.4 Weight
g 80 | |||||||||||||||||||||||||||||
| 65160.W0212 | With Keyway | 12 | 22 | 88 | 31 | 26 | 18 | 4 | 13.8 | 200 | |||||||||||||||||||
£ 53.65 per unit (click for quantity discounts) Ready to despatch 11 Need more? Please call us.
Bore dia. With Keyway d1
tol. H7 12 d2 22 l1 88 l2 31 l3 26 l4 18 w1
tol. JS9 4 w2 13.8 Weight
g 200 | |||||||||||||||||||||||||||||
| 65160.W0216 | With Keyway | 16 | 25 | 104 | 37 | 30 | 21 | 5 | 18.3 | 300 | |||||||||||||||||||
£ 56.13 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Bore dia. With Keyway d1
tol. H7 16 d2 25 l1 104 l2 37 l3 30 l4 21 w1
tol. JS9 5 w2 18.3 Weight
g 300 | |||||||||||||||||||||||||||||
| 65160.W0220 | With Keyway | 20 | 32 | 124 | 43 | 38 | 24 | 6 | 22.8 | 500 | |||||||||||||||||||
£ 71.83 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Bore dia. With Keyway d1
tol. H7 20 d2 32 l1 124 l2 43 l3 38 l4 24 w1
tol. JS9 6 w2 22.8 Weight
g 500 | |||||||||||||||||||||||||||||
| 65160.W0225 | With Keyway | 25 | 42 | 156 | 54 | 48 | 31 | 8 | 28.3 | 1200 | |||||||||||||||||||
£ 95.87 per unit (click for quantity discounts) Ready to despatch 10 Need more? Please call us.
Bore dia. With Keyway d1
tol. H7 25 d2 42 l1 156 l2 54 l3 48 l4 31 w1
tol. JS9 8 w2 28.3 Weight
g 1200 | |||||||||||||||||||||||||||||
| 65160.W0230 | With Keyway | 30 | 50 | 188 | 66 | 56 | 38 | 8 | 33.3 | 1700 | |||||||||||||||||||
£ 137.91 per unit (click for quantity discounts) Ready to despatch 10 Need more? Please call us.
Bore dia. With Keyway d1
tol. H7 30 d2 50 l1 188 l2 66 l3 56 l4 38 w1
tol. JS9 8 w2 33.3 Weight
g 1700 | |||||||||||||||||||||||||||||
| 65160.W0240 | With Keyway | 40 | 70 | 238 | 83 | 72 | 47 | 12 | 43.3 | 4300 | |||||||||||||||||||
£ 381.27 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us.
Bore dia. With Keyway d1
tol. H7 40 d2 70 l1 238 l2 83 l3 72 l4 47 w1
tol. JS9 12 w2 43.3 Weight
g 4300 | |||||||||||||||||||||||||||||
Technical & Application
Material
Steel (9 SMnPb28k, no. 10718).
Bearing type: Plain bearing.
Technical Notes
To DIN 808/7551, keyways aligned.
Maximum bending angle 45° per joint.
Max. drive speed of 1000 rpm.
Tips
Double universal joints are used where large bending angles are required or where two shafts offset in relation to each other.
Product variations available on request, for square bores change the suffix to SQ for square bores or HX for hex bores.
For stainless steel see 65166.
