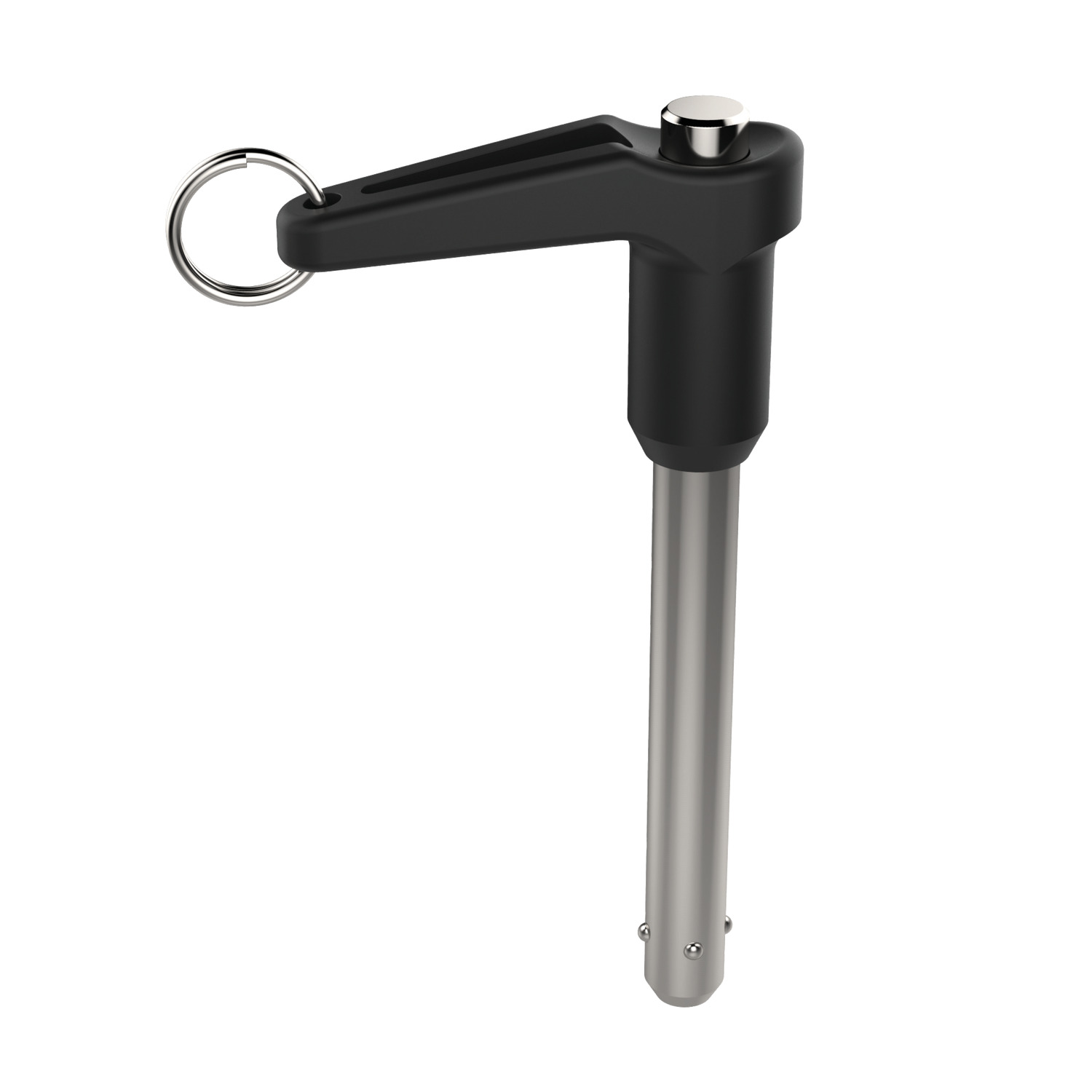

33620 Aviation Pip-Pin, Standard LA Handle

single acting, quick release pins - according to NASM 17986, material: Stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Aviation Pip-Pins
NASM 17984, imperial

Aviation Pip-Pins
NASM 17985, imperial

Aviation Pip-Pins
NASM 17986, imperial

Aviation Pip-Pins
NASM 17987, imperial



Select all

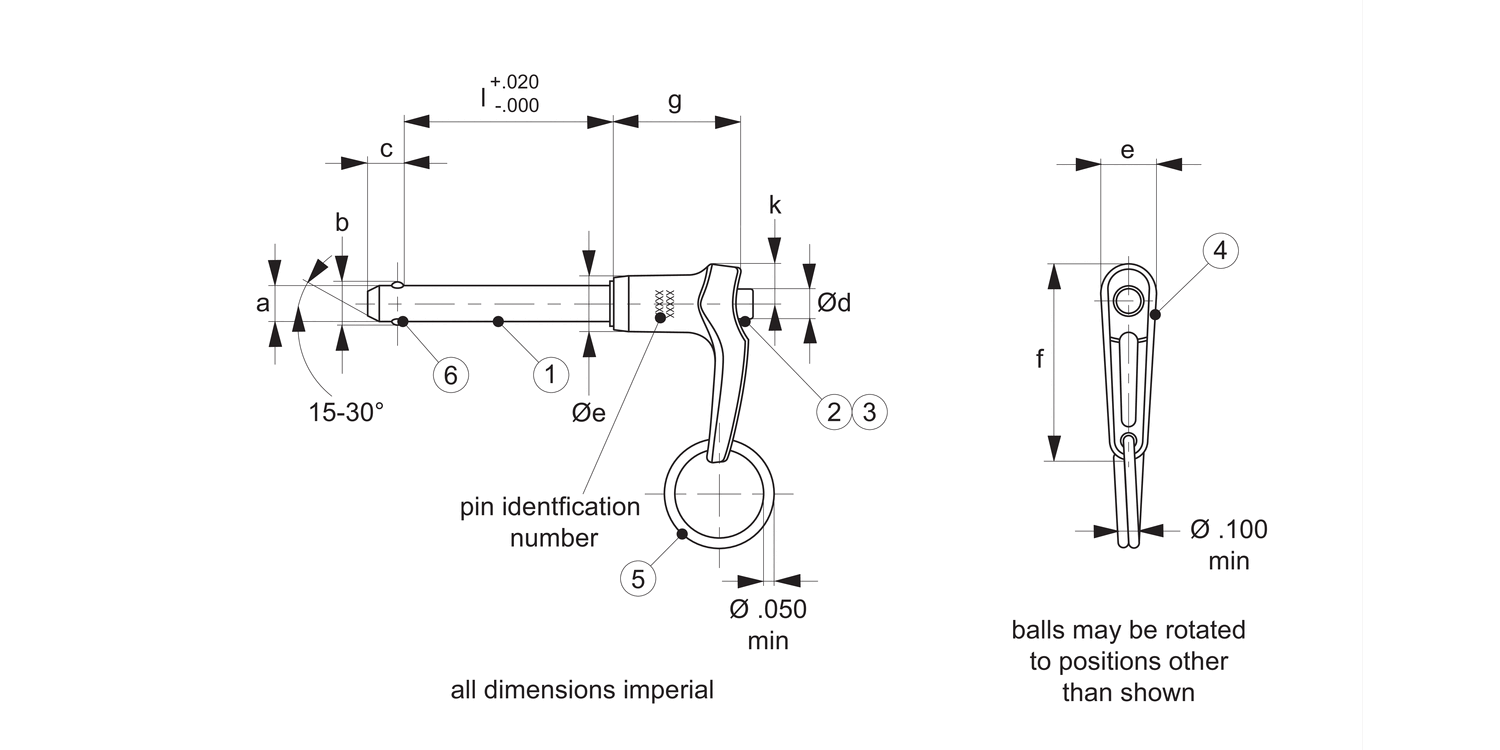

Dia. Ø nom.

Grip l

b

c

Ø d max.

Ø e max.

Ø f max.

Price & Availability	Article	Dia. Ø nom.	Grip l	b	c	Ø d max.	Ø e max.	Ø f max.
	33620.A005	3/16	0.5	0.220	0.260	0.310	0.500	1.80
£ 49.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 49.64 0% 5-14 £ 44.68 10% 15-24 £ 42.19 15% 25+ £ 39.71 20% Dia. Ø nom. 3/16 Grip l 0.5 b 0.220 c 0.260 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.A008	3/16	0.8	0.220	0.260	0.310	0.500	1.80
£ 49.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 49.64 0% 5-14 £ 44.68 10% 15-24 £ 42.19 15% 25+ £ 39.71 20% Dia. Ø nom. 3/16 Grip l 0.8 b 0.220 c 0.260 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.A010	3/16	1.0	0.220	0.260	0.310	0.500	1.80
£ 49.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 49.64 0% 5-14 £ 44.68 10% 15-24 £ 42.19 15% 25+ £ 39.71 20% Dia. Ø nom. 3/16 Grip l 1.0 b 0.220 c 0.260 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.A013	3/16	1.3	0.220	0.260	0.310	0.500	1.80
£ 51.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 51.87 0% 5-14 £ 46.68 10% 15-24 £ 44.09 15% 25+ £ 41.50 20% Dia. Ø nom. 3/16 Grip l 1.3 b 0.220 c 0.260 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.A014	3/16	1.4	0.220	0.260	0.310	0.500	1.80
£ 49.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 49.64 0% 5-14 £ 44.68 10% 15-24 £ 42.19 15% 25+ £ 39.71 20% Dia. Ø nom. 3/16 Grip l 1.4 b 0.220 c 0.260 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.A017	3/16	1.7	0.220	0.260	0.310	0.500	1.80
£ 49.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 49.64 0% 5-14 £ 44.68 10% 15-24 £ 42.19 15% 25+ £ 39.71 20% Dia. Ø nom. 3/16 Grip l 1.7 b 0.220 c 0.260 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.B012	1/4	1.2	0.289	0.290	0.310	0.500	1.80
£ 50.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 50.95 0% 5-14 £ 45.86 10% 15-24 £ 43.31 15% 25+ £ 40.76 20% Dia. Ø nom. 1/4 Grip l 1.2 b 0.289 c 0.290 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.B015	1/4	1.5	0.289	0.290	0.310	0.500	1.80
£ 50.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 50.95 0% 5-14 £ 45.86 10% 15-24 £ 43.31 15% 25+ £ 40.76 20% Dia. Ø nom. 1/4 Grip l 1.5 b 0.289 c 0.290 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.B017	1/4	1.7	0.289	0.290	0.310	0.500	1.80
£ 50.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 50.95 0% 5-14 £ 45.86 10% 15-24 £ 43.31 15% 25+ £ 40.76 20% Dia. Ø nom. 1/4 Grip l 1.7 b 0.289 c 0.290 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.B016	1/4	1.6	0.289	0.290	0.310	0.500	1.80
£ 53.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 53.24 0% 5-14 £ 47.92 10% 15-24 £ 45.25 15% 25+ £ 42.59 20% Dia. Ø nom. 1/4 Grip l 1.6 b 0.289 c 0.290 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.B021	1/4	2.1	0.289	0.290	0.310	0.500	1.80
£ 54.26 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 54.26 0% 5-14 £ 48.83 10% 15-24 £ 46.12 15% 25+ £ 43.41 20% Dia. Ø nom. 1/4 Grip l 2.1 b 0.289 c 0.290 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.C004	5/16	0.4	0.375	0.330	0.310	0.500	1.80
£ 60.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 60.65 0% 5-14 £ 54.59 10% 15-24 £ 51.55 15% 25+ £ 48.52 20% Dia. Ø nom. 5/16 Grip l 0.4 b 0.375 c 0.330 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.C006	5/16	0.6	0.375	0.330	0.310	0.500	1.80
£ 60.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 60.65 0% 5-14 £ 54.59 10% 15-24 £ 51.55 15% 25+ £ 48.52 20% Dia. Ø nom. 5/16 Grip l 0.6 b 0.375 c 0.330 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.C010	5/16	1.0	0.375	0.330	0.310	0.500	1.80
£ 60.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 60.65 0% 5-14 £ 54.59 10% 15-24 £ 51.55 15% 25+ £ 48.52 20% Dia. Ø nom. 5/16 Grip l 1.0 b 0.375 c 0.330 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.C013	5/16	1.3	0.375	0.330	0.310	0.500	1.80
£ 60.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 60.65 0% 5-14 £ 54.59 10% 15-24 £ 51.55 15% 25+ £ 48.52 20% Dia. Ø nom. 5/16 Grip l 1.3 b 0.375 c 0.330 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.C016	5/16	1.6	0.375	0.330	0.310	0.500	1.80
£ 60.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 60.65 0% 5-14 £ 54.59 10% 15-24 £ 51.55 15% 25+ £ 48.52 20% Dia. Ø nom. 5/16 Grip l 1.6 b 0.375 c 0.330 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.C018	5/16	1.8	0.375	0.330	0.310	0.500	1.80
£ 60.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 60.65 0% 5-14 £ 54.59 10% 15-24 £ 51.55 15% 25+ £ 48.52 20% Dia. Ø nom. 5/16 Grip l 1.8 b 0.375 c 0.330 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.C020	5/16	2.0	0.375	0.330	0.310	0.500	1.80
£ 62.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 62.00 0% 5-14 £ 55.80 10% 15-24 £ 52.70 15% 25+ £ 49.60 20% Dia. Ø nom. 5/16 Grip l 2.0 b 0.375 c 0.330 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.C023	5/16	2.3	0.375	0.330	0.310	0.500	1.80
£ 62.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 62.00 0% 5-14 £ 55.80 10% 15-24 £ 52.70 15% 25+ £ 49.60 20% Dia. Ø nom. 5/16 Grip l 2.3 b 0.375 c 0.330 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.C029	5/16	2.9	0.375	0.330	0.310	0.500	1.80
£ 62.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 62.00 0% 5-14 £ 55.80 10% 15-24 £ 52.70 15% 25+ £ 49.60 20% Dia. Ø nom. 5/16 Grip l 2.9 b 0.375 c 0.330 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.C030	5/16	3.0	0.375	0.330	0.310	0.500	1.80
£ 66.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 66.66 0% 5-14 £ 59.99 10% 15-24 £ 56.66 15% 25+ £ 53.33 20% Dia. Ø nom. 5/16 Grip l 3.0 b 0.375 c 0.330 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.C033	5/16	3.3	0.375	0.330	0.310	0.500	1.80
£ 66.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 66.66 0% 5-14 £ 59.99 10% 15-24 £ 56.66 15% 25+ £ 53.33 20% Dia. Ø nom. 5/16 Grip l 3.3 b 0.375 c 0.330 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.C036	5/16	3.6	0.375	0.330	0.310	0.500	1.80
£ 66.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 66.66 0% 5-14 £ 59.99 10% 15-24 £ 56.66 15% 25+ £ 53.33 20% Dia. Ø nom. 5/16 Grip l 3.6 b 0.375 c 0.330 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.C040	5/16	4.0	0.375	0.330	0.310	0.500	1.80
£ 66.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 66.66 0% 5-14 £ 59.99 10% 15-24 £ 56.66 15% 25+ £ 53.33 20% Dia. Ø nom. 5/16 Grip l 4.0 b 0.375 c 0.330 Ø d max. 0.310 Ø e max. 0.500 Ø f max. 1.80 more info »
	33620.D010	3/8	1.0	0.440	0.365	0.390	0.625	2.03
£ 63.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 63.56 0% 5-14 £ 57.20 10% 15-24 £ 54.03 15% 25+ £ 50.85 20% Dia. Ø nom. 3/8 Grip l 1.0 b 0.440 c 0.365 Ø d max. 0.390 Ø e max. 0.625 Ø f max. 2.03 more info »
	33620.D015	3/8	1.5	0.440	0.365	0.390	0.625	2.03
£ 63.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 63.56 0% 5-14 £ 57.20 10% 15-24 £ 54.03 15% 25+ £ 50.85 20% Dia. Ø nom. 3/8 Grip l 1.5 b 0.440 c 0.365 Ø d max. 0.390 Ø e max. 0.625 Ø f max. 2.03 more info »
	33620.D020	3/8	2.0	0.440	0.365	0.390	0.625	2.03
£ 64.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 64.72 0% 5-14 £ 58.25 10% 15-24 £ 55.01 15% 25+ £ 51.78 20% Dia. Ø nom. 3/8 Grip l 2.0 b 0.440 c 0.365 Ø d max. 0.390 Ø e max. 0.625 Ø f max. 2.03 more info »
	33620.D024	3/8	2.4	0.440	0.365	0.390	0.625	2.03
£ 64.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 64.72 0% 5-14 £ 58.25 10% 15-24 £ 55.01 15% 25+ £ 51.78 20% Dia. Ø nom. 3/8 Grip l 2.4 b 0.440 c 0.365 Ø d max. 0.390 Ø e max. 0.625 Ø f max. 2.03 more info »
	33620.D026	3/8	2.6	0.440	0.365	0.390	0.625	2.03
£ 67.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 67.63 0% 5-14 £ 60.87 10% 15-24 £ 57.49 15% 25+ £ 54.10 20% Dia. Ø nom. 3/8 Grip l 2.6 b 0.440 c 0.365 Ø d max. 0.390 Ø e max. 0.625 Ø f max. 2.03 more info »
	33620.D030	3/8	3.0	0.440	0.365	0.390	0.625	2.03
£ 69.96 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 69.96 0% 5-14 £ 62.96 10% 15-24 £ 59.47 15% 25+ £ 55.97 20% Dia. Ø nom. 3/8 Grip l 3.0 b 0.440 c 0.365 Ø d max. 0.390 Ø e max. 0.625 Ø f max. 2.03 more info »
	33620.D060	3/8	6.0	0.440	0.365	0.390	0.625	2.03
£ 82.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 82.55 0% 5-14 £ 74.30 10% 15-24 £ 70.17 15% 25+ £ 66.04 20% Dia. Ø nom. 3/8 Grip l 6.0 b 0.440 c 0.365 Ø d max. 0.390 Ø e max. 0.625 Ø f max. 2.03 more info »
	33620.E012	7/16	1.2	0.509	0.380	0.390	0.625	2.03
£ 60.83 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 60.83 0% 5-14 £ 54.75 10% 15-24 £ 51.71 15% 25+ £ 48.66 20% Dia. Ø nom. 7/16 Grip l 1.2 b 0.509 c 0.380 Ø d max. 0.390 Ø e max. 0.625 Ø f max. 2.03 more info »
	33620.E035	7/16	3.5	0.509	0.380	0.390	0.625	2.03
£ 66.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 66.75 0% 5-14 £ 60.08 10% 15-24 £ 56.74 15% 25+ £ 53.40 20% Dia. Ø nom. 7/16 Grip l 3.5 b 0.509 c 0.380 Ø d max. 0.390 Ø e max. 0.625 Ø f max. 2.03 more info »
	33620.E040	7/16	4.0	0.509	0.380	0.390	0.625	2.03
£ 66.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 66.75 0% 5-14 £ 60.08 10% 15-24 £ 56.74 15% 25+ £ 53.40 20% Dia. Ø nom. 7/16 Grip l 4.0 b 0.509 c 0.380 Ø d max. 0.390 Ø e max. 0.625 Ø f max. 2.03 more info »
	33620.E055	7/16	5.5	0.509	0.380	0.390	0.625	2.03
£ 68.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 68.42 0% 5-14 £ 61.58 10% 15-24 £ 58.16 15% 25+ £ 54.74 20% Dia. Ø nom. 7/16 Grip l 5.5 b 0.509 c 0.380 Ø d max. 0.390 Ø e max. 0.625 Ø f max. 2.03 more info »
	33620.F010	1/2	1.0	0.594	0.460	0.565	0.800	2.36
£ 74.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 74.52 0% 5-14 £ 67.07 10% 15-24 £ 63.34 15% 25+ £ 59.62 20% Dia. Ø nom. 1/2 Grip l 1.0 b 0.594 c 0.460 Ø d max. 0.565 Ø e max. 0.800 Ø f max. 2.36 more info »
	33620.F015	1/2	1.5	0.594	0.460	0.565	0.800	2.36
£ 74.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 74.52 0% 5-14 £ 67.07 10% 15-24 £ 63.34 15% 25+ £ 59.62 20% Dia. Ø nom. 1/2 Grip l 1.5 b 0.594 c 0.460 Ø d max. 0.565 Ø e max. 0.800 Ø f max. 2.36 more info »
	33620.F019	1/2	1.9	0.594	0.460	0.565	0.800	2.36
£ 74.52 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 74.52 0% 5-14 £ 67.07 10% 15-24 £ 63.34 15% 25+ £ 59.62 20% Dia. Ø nom. 1/2 Grip l 1.9 b 0.594 c 0.460 Ø d max. 0.565 Ø e max. 0.800 Ø f max. 2.36 more info »
	33620.F034	1/2	3.4	0.594	0.460	0.565	0.800	2.36
£ 81.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 81.79 0% 5-14 £ 73.61 10% 15-24 £ 69.52 15% 25+ £ 65.43 20% Dia. Ø nom. 1/2 Grip l 3.4 b 0.594 c 0.460 Ø d max. 0.565 Ø e max. 0.800 Ø f max. 2.36 more info »
	33620.F042	1/2	4.2	0.594	0.460	0.565	0.800	2.36
£ 81.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 81.79 0% 5-14 £ 73.61 10% 15-24 £ 69.52 15% 25+ £ 65.43 20% Dia. Ø nom. 1/2 Grip l 4.2 b 0.594 c 0.460 Ø d max. 0.565 Ø e max. 0.800 Ø f max. 2.36 more info »
	33620.F045	1/2	4.5	0.594	0.460	0.565	0.800	2.36
£ 81.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 81.79 0% 5-14 £ 73.61 10% 15-24 £ 69.52 15% 25+ £ 65.43 20% Dia. Ø nom. 1/2 Grip l 4.5 b 0.594 c 0.460 Ø d max. 0.565 Ø e max. 0.800 Ø f max. 2.36 more info »
	33620.G017	9/16	1.7	0.666	0.510	0.565	0.800	2.36
£ 88.39 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 88.39 0% 5-14 £ 79.55 10% 15-24 £ 75.13 15% 25+ £ 70.71 20% Dia. Ø nom. 9/16 Grip l 1.7 b 0.666 c 0.510 Ø d max. 0.565 Ø e max. 0.800 Ø f max. 2.36 more info »
	33620.G025	9/16	2.5	0.666	0.510	0.565	0.800	2.36
£ 90.15 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 90.15 0% 5-14 £ 81.14 10% 15-24 £ 76.63 15% 25+ £ 72.12 20% Dia. Ø nom. 9/16 Grip l 2.5 b 0.666 c 0.510 Ø d max. 0.565 Ø e max. 0.800 Ø f max. 2.36 more info »
	33620.G040	9/16	4.0	0.666	0.510	0.565	0.800	2.36
£ 97.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 97.03 0% 5-14 £ 87.33 10% 15-24 £ 82.48 15% 25+ £ 77.62 20% Dia. Ø nom. 9/16 Grip l 4.0 b 0.666 c 0.510 Ø d max. 0.565 Ø e max. 0.800 Ø f max. 2.36 more info »
	33620.G050	9/16	5.0	0.666	0.510	0.565	0.800	2.36
£ 106.73 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 106.73 0% 5-14 £ 96.06 10% 15-24 £ 90.72 15% 25+ £ 85.38 20% Dia. Ø nom. 9/16 Grip l 5.0 b 0.666 c 0.510 Ø d max. 0.565 Ø e max. 0.800 Ø f max. 2.36 more info »
	33620.G060	9/16	6.0	0.666	0.510	0.565	0.800	2.36
£ 113.44 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 113.44 0% 5-14 £ 102.10 10% 15-24 £ 96.42 15% 25+ £ 90.75 20% Dia. Ø nom. 9/16 Grip l 6.0 b 0.666 c 0.510 Ø d max. 0.565 Ø e max. 0.800 Ø f max. 2.36 more info »
	33620.G075	9/16	7.5	0.666	0.510	0.565	0.800	2.36
£ 113.61 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 113.61 0% 5-14 £ 102.25 10% 15-24 £ 96.57 15% 25+ £ 90.89 20% Dia. Ø nom. 9/16 Grip l 7.5 b 0.666 c 0.510 Ø d max. 0.565 Ø e max. 0.800 Ø f max. 2.36 more info »



Select all

Weight g

g max.

h min.

k max.

Shearing resistance, double min. lb

Location hole dia. max.

MS Part No.

Price & Availability	Article	Weight g	g max.	h min.	k max.	Shearing resistance, double min. lb	Location hole dia. max.	MS Part No.
	33620.A005	23	1.27	0.76	0.34	5.150	0.1940	MS17986C305
£ 49.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 49.64 0% 5-14 £ 44.68 10% 15-24 £ 42.19 15% 25+ £ 39.71 20% Weight g 23 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 5.150 Location hole dia. max. 0.1940 MS Part No. MS17986C305 more info »
	33620.A008	26	1.27	0.76	0.34	5.150	0.1940	MS17986C308
£ 49.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 49.64 0% 5-14 £ 44.68 10% 15-24 £ 42.19 15% 25+ £ 39.71 20% Weight g 26 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 5.150 Location hole dia. max. 0.1940 MS Part No. MS17986C308 more info »
	33620.A010	26	1.27	0.76	0.34	5.150	0.1940	MS17986C310
£ 49.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 49.64 0% 5-14 £ 44.68 10% 15-24 £ 42.19 15% 25+ £ 39.71 20% Weight g 26 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 5.150 Location hole dia. max. 0.1940 MS Part No. MS17986C310 more info »
	33620.A013	28	1.27	0.76	0.34	5.150	0.1940	MS17986C313
£ 51.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 51.87 0% 5-14 £ 46.68 10% 15-24 £ 44.09 15% 25+ £ 41.50 20% Weight g 28 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 5.150 Location hole dia. max. 0.1940 MS Part No. MS17986C313 more info »
	33620.A014	28	1.27	0.76	0.34	5.150	0.1940	MS17986C314
£ 49.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 49.64 0% 5-14 £ 44.68 10% 15-24 £ 42.19 15% 25+ £ 39.71 20% Weight g 28 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 5.150 Location hole dia. max. 0.1940 MS Part No. MS17986C314 more info »
	33620.A017	27	1.27	0.76	0.34	5.150	0.1940	MS17986C317
£ 49.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 49.64 0% 5-14 £ 44.68 10% 15-24 £ 42.19 15% 25+ £ 39.71 20% Weight g 27 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 5.150 Location hole dia. max. 0.1940 MS Part No. MS17986C317 more info »
	33620.B012	32	1.27	0.76	0.34	9.200	0.2540	MS17986C412
£ 50.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 50.95 0% 5-14 £ 45.86 10% 15-24 £ 43.31 15% 25+ £ 40.76 20% Weight g 32 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 9.200 Location hole dia. max. 0.2540 MS Part No. MS17986C412 more info »
	33620.B015	33	1.27	0.76	0.34	9.200	0.2540	MS17986C415
£ 50.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 50.95 0% 5-14 £ 45.86 10% 15-24 £ 43.31 15% 25+ £ 40.76 20% Weight g 33 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 9.200 Location hole dia. max. 0.2540 MS Part No. MS17986C415 more info »
	33620.B017	34	1.27	0.76	0.34	9.200	0.2540	MS17986C417
£ 50.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 50.95 0% 5-14 £ 45.86 10% 15-24 £ 43.31 15% 25+ £ 40.76 20% Weight g 34 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 9.200 Location hole dia. max. 0.2540 MS Part No. MS17986C417 more info »
	33620.B016	33	1.27	0.76	0.34	9.200	0.2540	MS17986C416
£ 53.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 53.24 0% 5-14 £ 47.92 10% 15-24 £ 45.25 15% 25+ £ 42.59 20% Weight g 33 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 9.200 Location hole dia. max. 0.2540 MS Part No. MS17986C416 more info »
	33620.B021	36	1.27	0.76	0.34	9.200	0.2540	MS17986C421
£ 54.26 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 54.26 0% 5-14 £ 48.83 10% 15-24 £ 46.12 15% 25+ £ 43.41 20% Weight g 36 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 9.200 Location hole dia. max. 0.2540 MS Part No. MS17986C421 more info »
	33620.C004	29	1.27	0.76	0.34	14.400	0.3165	MS17986C504
£ 60.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 60.65 0% 5-14 £ 54.59 10% 15-24 £ 51.55 15% 25+ £ 48.52 20% Weight g 29 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 14.400 Location hole dia. max. 0.3165 MS Part No. MS17986C504 more info »
	33620.C006	30	1.27	0.76	0.34	14.400	0.3165	MS17986C506
£ 60.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 60.65 0% 5-14 £ 54.59 10% 15-24 £ 51.55 15% 25+ £ 48.52 20% Weight g 30 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 14.400 Location hole dia. max. 0.3165 MS Part No. MS17986C506 more info »
	33620.C010	34	1.27	0.76	0.34	14.400	0.3165	MS17986C510
£ 60.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 60.65 0% 5-14 £ 54.59 10% 15-24 £ 51.55 15% 25+ £ 48.52 20% Weight g 34 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 14.400 Location hole dia. max. 0.3165 MS Part No. MS17986C510 more info »
	33620.C013	37	1.27	0.76	0.34	14.400	0.3165	MS17986C513
£ 60.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 60.65 0% 5-14 £ 54.59 10% 15-24 £ 51.55 15% 25+ £ 48.52 20% Weight g 37 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 14.400 Location hole dia. max. 0.3165 MS Part No. MS17986C513 more info »
	33620.C016	40	1.27	0.76	0.34	14.400	0.3165	MS17986C516
£ 60.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 60.65 0% 5-14 £ 54.59 10% 15-24 £ 51.55 15% 25+ £ 48.52 20% Weight g 40 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 14.400 Location hole dia. max. 0.3165 MS Part No. MS17986C516 more info »
	33620.C018	43	1.27	0.76	0.34	14.400	0.3165	MS17986C518
£ 60.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 60.65 0% 5-14 £ 54.59 10% 15-24 £ 51.55 15% 25+ £ 48.52 20% Weight g 43 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 14.400 Location hole dia. max. 0.3165 MS Part No. MS17986C518 more info »
	33620.C020	41	1.27	0.76	0.34	14.400	0.3165	MS17986C520
£ 62.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 62.00 0% 5-14 £ 55.80 10% 15-24 £ 52.70 15% 25+ £ 49.60 20% Weight g 41 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 14.400 Location hole dia. max. 0.3165 MS Part No. MS17986C520 more info »
	33620.C023	46	1.27	0.76	0.34	14.400	0.3165	MS17986C523
£ 62.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 62.00 0% 5-14 £ 55.80 10% 15-24 £ 52.70 15% 25+ £ 49.60 20% Weight g 46 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 14.400 Location hole dia. max. 0.3165 MS Part No. MS17986C523 more info »
	33620.C029	54	1.27	0.76	0.34	14.400	0.3165	MS17986C529
£ 62.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 62.00 0% 5-14 £ 55.80 10% 15-24 £ 52.70 15% 25+ £ 49.60 20% Weight g 54 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 14.400 Location hole dia. max. 0.3165 MS Part No. MS17986C529 more info »
	33620.C030	53	1.27	0.76	0.34	14.400	0.3165	MS17986C530
£ 66.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 66.66 0% 5-14 £ 59.99 10% 15-24 £ 56.66 15% 25+ £ 53.33 20% Weight g 53 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 14.400 Location hole dia. max. 0.3165 MS Part No. MS17986C530 more info »
	33620.C033	57	1.27	0.76	0.34	14.400	0.3165	MS17986C533
£ 66.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 66.66 0% 5-14 £ 59.99 10% 15-24 £ 56.66 15% 25+ £ 53.33 20% Weight g 57 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 14.400 Location hole dia. max. 0.3165 MS Part No. MS17986C533 more info »
	33620.C036	60	1.27	0.76	0.34	14.400	0.3165	MS17986C536
£ 66.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 66.66 0% 5-14 £ 59.99 10% 15-24 £ 56.66 15% 25+ £ 53.33 20% Weight g 60 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 14.400 Location hole dia. max. 0.3165 MS Part No. MS17986C536 more info »
	33620.C040	64	1.27	0.76	0.34	14.400	0.3165	MS17986C540
£ 66.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 66.66 0% 5-14 £ 59.99 10% 15-24 £ 56.66 15% 25+ £ 53.33 20% Weight g 64 g max. 1.27 h min. 0.76 k max. 0.34 Shearing resistance, double min. lb 14.400 Location hole dia. max. 0.3165 MS Part No. MS17986C540 more info »
	33620.D010	49	1.45	0.85	0.39	20700	0.3790	MS17986C610
£ 63.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 63.56 0% 5-14 £ 57.20 10% 15-24 £ 54.03 15% 25+ £ 50.85 20% Weight g 49 g max. 1.45 h min. 0.85 k max. 0.39 Shearing resistance, double min. lb 20700 Location hole dia. max. 0.3790 MS Part No. MS17986C610 more info »
	33620.D015	59	1.45	0.85	0.39	20.700	0.3790	MS17986C615
£ 63.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 63.56 0% 5-14 £ 57.20 10% 15-24 £ 54.03 15% 25+ £ 50.85 20% Weight g 59 g max. 1.45 h min. 0.85 k max. 0.39 Shearing resistance, double min. lb 20.700 Location hole dia. max. 0.3790 MS Part No. MS17986C615 more info »
	33620.D020	65	1.45	0.85	0.39	20.700	0.3790	MS17986C620
£ 64.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 64.72 0% 5-14 £ 58.25 10% 15-24 £ 55.01 15% 25+ £ 51.78 20% Weight g 65 g max. 1.45 h min. 0.85 k max. 0.39 Shearing resistance, double min. lb 20.700 Location hole dia. max. 0.3790 MS Part No. MS17986C620 more info »
	33620.D024	71	1.45	0.85	0.39	20.700	0.3790	MS17986C624
£ 64.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 64.72 0% 5-14 £ 58.25 10% 15-24 £ 55.01 15% 25+ £ 51.78 20% Weight g 71 g max. 1.45 h min. 0.85 k max. 0.39 Shearing resistance, double min. lb 20.700 Location hole dia. max. 0.3790 MS Part No. MS17986C624 more info »
	33620.D026	73	1.45	0.85	0.39	20.700	0.3790	MS17986C626
£ 67.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 67.63 0% 5-14 £ 60.87 10% 15-24 £ 57.49 15% 25+ £ 54.10 20% Weight g 73 g max. 1.45 h min. 0.85 k max. 0.39 Shearing resistance, double min. lb 20.700 Location hole dia. max. 0.3790 MS Part No. MS17986C626 more info »
	33620.D030	72	1.45	0.85	0.39	20.700	0.3790	MS17986C630
£ 69.96 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 69.96 0% 5-14 £ 62.96 10% 15-24 £ 59.47 15% 25+ £ 55.97 20% Weight g 72 g max. 1.45 h min. 0.85 k max. 0.39 Shearing resistance, double min. lb 20.700 Location hole dia. max. 0.3790 MS Part No. MS17986C630 more info »
	33620.D060	122	1.45	0.85	0.39	20.700	0.3790	MS17986C660
£ 82.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 82.55 0% 5-14 £ 74.30 10% 15-24 £ 70.17 15% 25+ £ 66.04 20% Weight g 122 g max. 1.45 h min. 0.85 k max. 0.39 Shearing resistance, double min. lb 20.700 Location hole dia. max. 0.3790 MS Part No. MS17986C660 more info »
	33620.E012	61	1.47	0.85	0.39	28.500	0.4425	MS17986C712
£ 60.83 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 60.83 0% 5-14 £ 54.75 10% 15-24 £ 51.71 15% 25+ £ 48.66 20% Weight g 61 g max. 1.47 h min. 0.85 k max. 0.39 Shearing resistance, double min. lb 28.500 Location hole dia. max. 0.4425 MS Part No. MS17986C712 more info »
	33620.E035	–	1.47	0.85	0.39	28.500	0.4425	MS17986C735
£ 66.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 66.75 0% 5-14 £ 60.08 10% 15-24 £ 56.74 15% 25+ £ 53.40 20% Weight g – g max. 1.47 h min. 0.85 k max. 0.39 Shearing resistance, double min. lb 28.500 Location hole dia. max. 0.4425 MS Part No. MS17986C735 more info »
	33620.E040	115	1.47	0.85	0.39	28.500	0.4425	MS17986C740
£ 66.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 66.75 0% 5-14 £ 60.08 10% 15-24 £ 56.74 15% 25+ £ 53.40 20% Weight g 115 g max. 1.47 h min. 0.85 k max. 0.39 Shearing resistance, double min. lb 28.500 Location hole dia. max. 0.4425 MS Part No. MS17986C740 more info »
	33620.E055	146	1.47	0.85	0.39	28.500	0.4425	MS17986C755
£ 68.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 68.42 0% 5-14 £ 61.58 10% 15-24 £ 58.16 15% 25+ £ 54.74 20% Weight g 146 g max. 1.47 h min. 0.85 k max. 0.39 Shearing resistance, double min. lb 28.500 Location hole dia. max. 0.4425 MS Part No. MS17986C755 more info »
	33620.F010	83	1.60	0.85	0.50	36.900	0.5050	MS17986C810
£ 74.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 74.52 0% 5-14 £ 67.07 10% 15-24 £ 63.34 15% 25+ £ 59.62 20% Weight g 83 g max. 1.60 h min. 0.85 k max. 0.50 Shearing resistance, double min. lb 36.900 Location hole dia. max. 0.5050 MS Part No. MS17986C810 more info »
	33620.F015	95	1.60	0.85	0.50	36.900	0.5050	MS17986C815
£ 74.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 74.52 0% 5-14 £ 67.07 10% 15-24 £ 63.34 15% 25+ £ 59.62 20% Weight g 95 g max. 1.60 h min. 0.85 k max. 0.50 Shearing resistance, double min. lb 36.900 Location hole dia. max. 0.5050 MS Part No. MS17986C815 more info »
	33620.F019	103	1.60	0.85	0.50	36.900	0.5050	MS17986C819
£ 74.52 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 74.52 0% 5-14 £ 67.07 10% 15-24 £ 63.34 15% 25+ £ 59.62 20% Weight g 103 g max. 1.60 h min. 0.85 k max. 0.50 Shearing resistance, double min. lb 36.900 Location hole dia. max. 0.5050 MS Part No. MS17986C819 more info »
	33620.F034	143	1.60	0.85	0.50	36.900	0.5050	MS17986C834
£ 81.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 81.79 0% 5-14 £ 73.61 10% 15-24 £ 69.52 15% 25+ £ 65.43 20% Weight g 143 g max. 1.60 h min. 0.85 k max. 0.50 Shearing resistance, double min. lb 36.900 Location hole dia. max. 0.5050 MS Part No. MS17986C834 more info »
	33620.F042	160	1.60	0.85	0.50	36.900	0.5050	MS17986C842
£ 81.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 81.79 0% 5-14 £ 73.61 10% 15-24 £ 69.52 15% 25+ £ 65.43 20% Weight g 160 g max. 1.60 h min. 0.85 k max. 0.50 Shearing resistance, double min. lb 36.900 Location hole dia. max. 0.5050 MS Part No. MS17986C842 more info »
	33620.F045	172	1.60	0.85	0.50	36.900	0.5050	MS17986C845
£ 81.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 81.79 0% 5-14 £ 73.61 10% 15-24 £ 69.52 15% 25+ £ 65.43 20% Weight g 172 g max. 1.60 h min. 0.85 k max. 0.50 Shearing resistance, double min. lb 36.900 Location hole dia. max. 0.5050 MS Part No. MS17986C845 more info »
	33620.G017	116	1.60	0.85	0.50	46.700	0.5675	MS17986C917
£ 88.39 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 88.39 0% 5-14 £ 79.55 10% 15-24 £ 75.13 15% 25+ £ 70.71 20% Weight g 116 g max. 1.60 h min. 0.85 k max. 0.50 Shearing resistance, double min. lb 46.700 Location hole dia. max. 0.5675 MS Part No. MS17986C917 more info »
	33620.G025	140	1.60	0.85	0.50	46.700	0.5675	MS17986C925
£ 90.15 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 90.15 0% 5-14 £ 81.14 10% 15-24 £ 76.63 15% 25+ £ 72.12 20% Weight g 140 g max. 1.60 h min. 0.85 k max. 0.50 Shearing resistance, double min. lb 46.700 Location hole dia. max. 0.5675 MS Part No. MS17986C925 more info »
	33620.G040	189	1.60	0.85	0.50	46.700	0.5675	MS17986C940
£ 97.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 97.03 0% 5-14 £ 87.33 10% 15-24 £ 82.48 15% 25+ £ 77.62 20% Weight g 189 g max. 1.60 h min. 0.85 k max. 0.50 Shearing resistance, double min. lb 46.700 Location hole dia. max. 0.5675 MS Part No. MS17986C940 more info »
	33620.G050	–	1.60	0.85	0.50	46.700	0.5675	MS17986C950
£ 106.73 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 106.73 0% 5-14 £ 96.06 10% 15-24 £ 90.72 15% 25+ £ 85.38 20% Weight g – g max. 1.60 h min. 0.85 k max. 0.50 Shearing resistance, double min. lb 46.700 Location hole dia. max. 0.5675 MS Part No. MS17986C950 more info »
	33620.G060	249	1.60	0.85	0.50	46.700	0.5675	MS17986C960
£ 113.44 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 113.44 0% 5-14 £ 102.10 10% 15-24 £ 96.42 15% 25+ £ 90.75 20% Weight g 249 g max. 1.60 h min. 0.85 k max. 0.50 Shearing resistance, double min. lb 46.700 Location hole dia. max. 0.5675 MS Part No. MS17986C960 more info »
	33620.G075	298	1.60	0.85	0.50	46.700	0.5675	MS17986C975
£ 113.61 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 113.61 0% 5-14 £ 102.25 10% 15-24 £ 96.57 15% 25+ £ 90.89 20% Weight g 298 g max. 1.60 h min. 0.85 k max. 0.50 Shearing resistance, double min. lb 46.700 Location hole dia. max. 0.5675 MS Part No. MS17986C975 more info »
