Vice Jaw Set
for Talongrip clamps

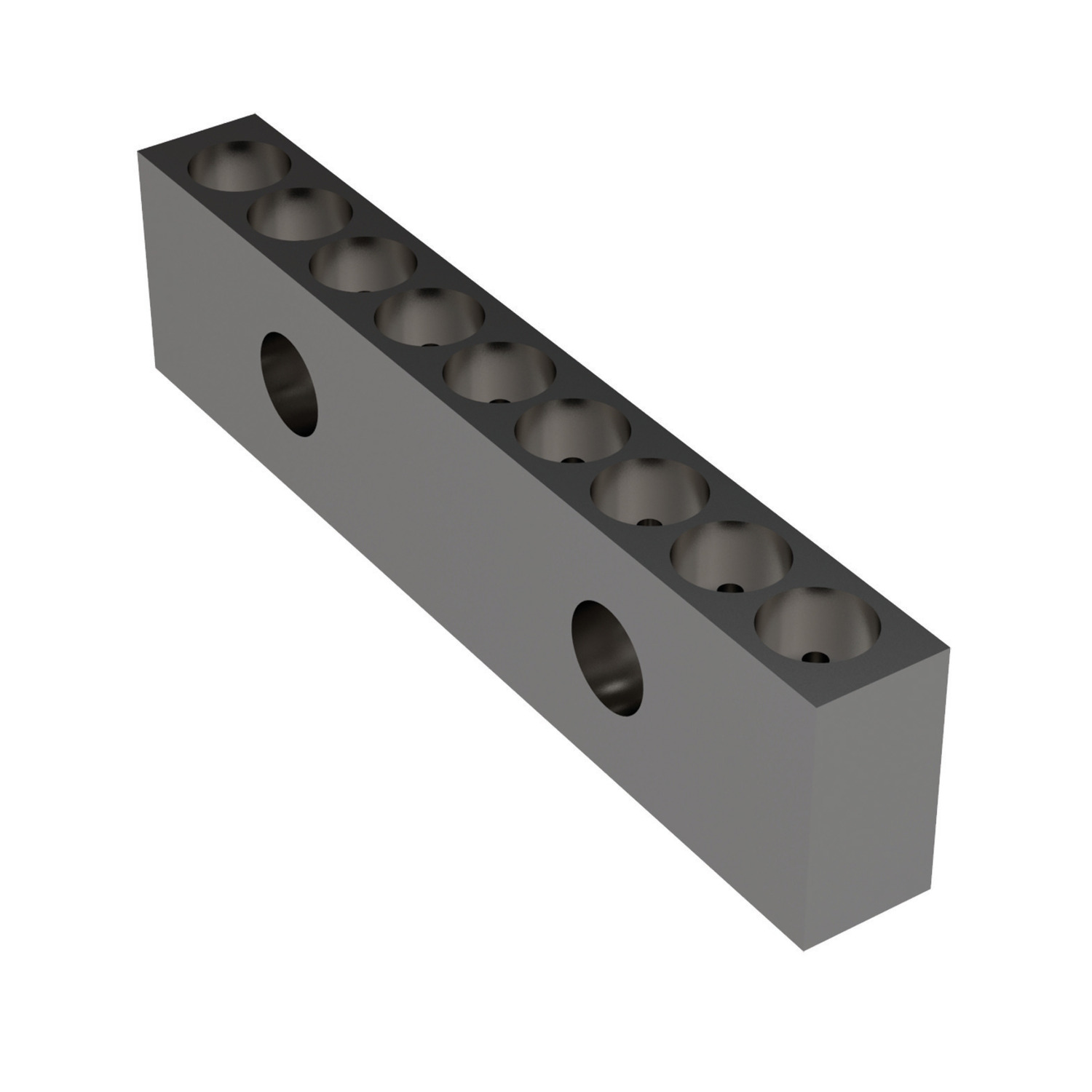

12037 Vice Jaw Set for Versagrip Clamps
material: Steel
Alternative products you may wish to consider
For vice size
4"/6"
Type
Vice jaw set
Jaw type
With holes
Vice jaw
2 off
Versagrip clamps
4 pc 12036.W0175

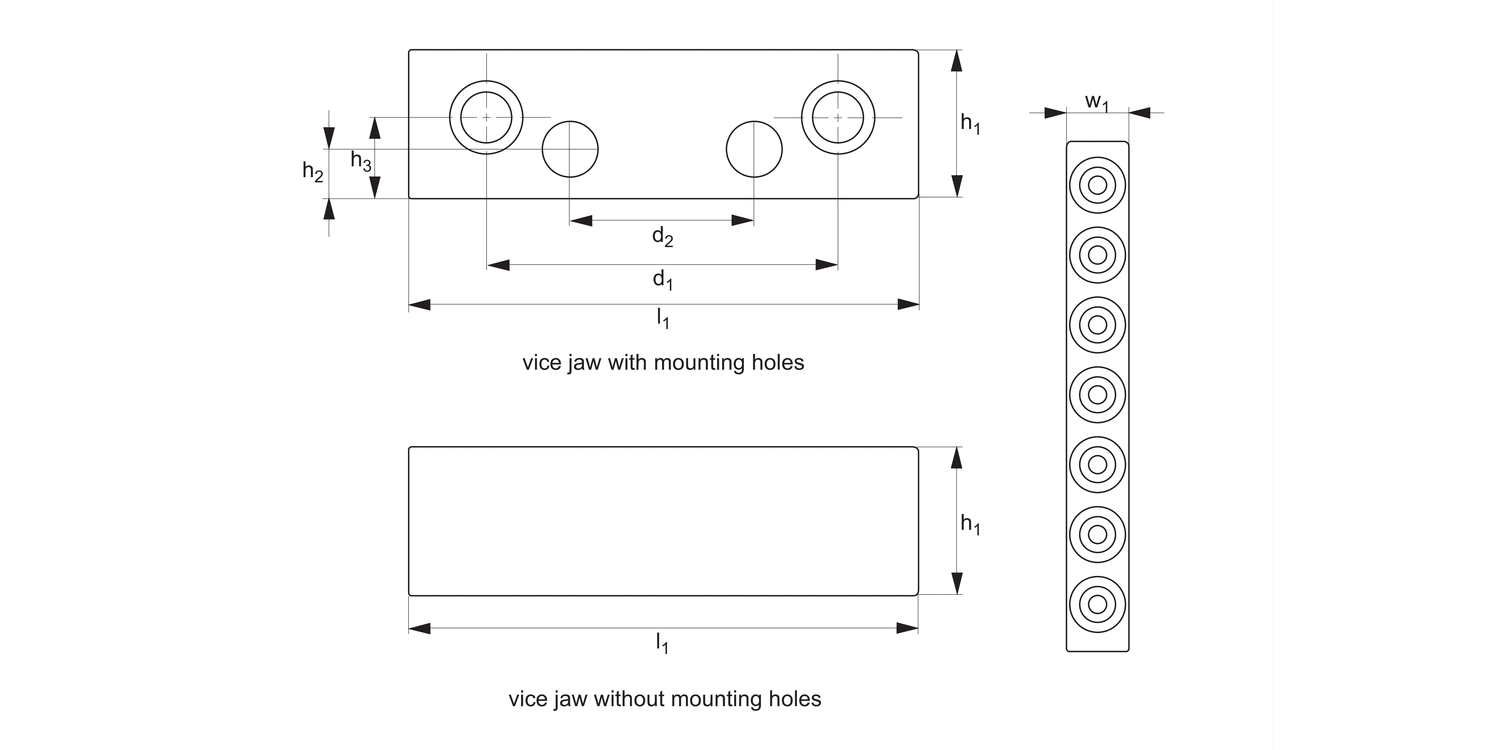

d1
98.55
d2
63.5
h1
47.75
h2
23.87
h3
17.47
l1
150
w1
25.4
Number of holes
7
Weight
g
2460
£ 246.22 per unit (click for quantity discounts)
For vice size
6"
Type
Vice jaw set
Jaw type
With holes
Vice jaw
2 off
Versagrip clamps
4 pc 12036.W0175
d1
98.55
d2
-
h1
47.75
h2
23.87
h3
-
l1
200
w1
25.4
Number of holes
9
Weight
g
3470
£ 266.12 per unit (click for quantity discounts)
For vice size
-
Type
Vice jaw set
Jaw type
W/o holes
Vice jaw
2 off
Versagrip clamps
4 pc 12036.W0175
d1
-
d2
-
h1
47.75
h2
-
h3
-
l1
150
w1
25.4
Number of holes
7
Weight
g
2780
£ 246.22 per unit (click for quantity discounts)
For vice size
-
Type
Vice jaw set
Jaw type
W/o holes
Vice jaw
2 off
Versagrip clamps
4 pc 12036.W0175
d1
-
d2
-
h1
47.75
h2
-
h3
-
l1
200
w1
25.4
Number of holes
9
Weight
g
3640
£ 266.12 per unit (click for quantity discounts)
For vice size
Type
Jaw type
Vice jaw
Versagrip clamps
d1
d2
h1
h2
h3
l1
w1
Number of holes
Weight
g
| Price & Availability | Article | For vice size | Type | Jaw type | Vice jaw | Versagrip clamps | d1 | d2 | h1 | h2 | h3 | l1 | w1 | Number of holes | Weight g | ||||||||||||||||||
| 12037.W0015 | 4"/6" | Vice jaw set | With holes | 2 off | 4 pc 12036.W0175 | 98.55 | 63.5 | 47.75 | 23.87 | 17.47 | 150 | 25.4 | 7 | 2460 | |||||||||||||||||||
£ 246.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For vice size 4"/6" Type Vice jaw set Jaw type With holes Vice jaw 2 off Versagrip clamps 4 pc 12036.W0175 d1 98.55 d2 63.5 h1 47.75 h2 23.87 h3 17.47 l1 150 w1 25.4 Number of holes 7 Weight
g 2460 | |||||||||||||||||||||||||||||||||
| 12037.W0020 | 6" | Vice jaw set | With holes | 2 off | 4 pc 12036.W0175 | 98.55 | - | 47.75 | 23.87 | - | 200 | 25.4 | 9 | 3470 | |||||||||||||||||||
£ 266.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For vice size 6" Type Vice jaw set Jaw type With holes Vice jaw 2 off Versagrip clamps 4 pc 12036.W0175 d1 98.55 d2 - h1 47.75 h2 23.87 h3 - l1 200 w1 25.4 Number of holes 9 Weight
g 3470 | |||||||||||||||||||||||||||||||||
| 12037.W0115 | - | Vice jaw set | W/o holes | 2 off | 4 pc 12036.W0175 | - | - | 47.75 | - | - | 150 | 25.4 | 7 | 2780 | |||||||||||||||||||
£ 246.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For vice size - Type Vice jaw set Jaw type W/o holes Vice jaw 2 off Versagrip clamps 4 pc 12036.W0175 d1 - d2 - h1 47.75 h2 - h3 - l1 150 w1 25.4 Number of holes 7 Weight
g 2780 | |||||||||||||||||||||||||||||||||
| 12037.W0120 | - | Vice jaw set | W/o holes | 2 off | 4 pc 12036.W0175 | - | - | 47.75 | - | - | 200 | 25.4 | 9 | 3640 | |||||||||||||||||||
£ 266.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For vice size - Type Vice jaw set Jaw type W/o holes Vice jaw 2 off Versagrip clamps 4 pc 12036.W0175 d1 - d2 - h1 47.75 h2 - h3 - l1 200 w1 25.4 Number of holes 9 Weight
g 3640 | |||||||||||||||||||||||||||||||||
Technical & Application
Material
Steel, hardened (52-54 HRc).
Technical Notes
The Versagrip jaws increase the functionality of your 100 and 150mm vices. This is a simple bolt-on system that allows you to perform aggressive machining operations whilst clamping on as little as 1,5mm for irregular shaped parts.
Ideal for small batch sizes or when building a fixture is not economical.
Tips
Has penetrating teeth designed to bite into your workpiece to prevent lateral and horizontal movement. They will hold flame cut parts, castings and even parts with negative draft.
Important Notes
Set includes a pair of vice jaws, and four Versagrip clamps, part no. 12036.W0175.
Product Datasheets
CAD files
Application images
