Fast Nut With Collar
rapid assembly nut
24504 Fast Nut - Without Collar
rapid assembly nut, material: Steel, heat treated
Alternative products you may wish to consider
£ 41.86 per unit (click for quantity discounts)
£ 50.82 per unit (click for quantity discounts)
£ 70.19 per unit (click for quantity discounts)
£ 70.83 per unit (click for quantity discounts)
£ 73.44 per unit (click for quantity discounts)
£ 103.99 per unit (click for quantity discounts)
£ 118.92 per unit (click for quantity discounts)
d1
w1
h1
A/F
Weight
g
| Price & Availability | Article | d1 | w1 | h1 | A/F | Weight g | ||||||||||||||||||
| 24504.W0106 | M 6 | 11 | 6 | 10 | 3 | |||||||||||||||||||
£ 41.86 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M 6 w1 11 h1 6 A/F 10 Weight
g 3 | ||||||||||||||||||||||||
| 24504.W0108 | M 8 | 14 | 8 | 13 | 6 | |||||||||||||||||||
£ 50.82 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M 8 w1 14 h1 8 A/F 13 Weight
g 6 | ||||||||||||||||||||||||
| 24504.W0110 | M10 | 19 | 10 | 17 | 14 | |||||||||||||||||||
£ 70.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M10 w1 19 h1 10 A/F 17 Weight
g 14 | ||||||||||||||||||||||||
| 24504.W0112 | M12 | 21 | 12 | 19 | 20 | |||||||||||||||||||
£ 70.83 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M12 w1 21 h1 12 A/F 19 Weight
g 20 | ||||||||||||||||||||||||
| 24504.W0116 | M16 | 27 | 16 | 24 | 39 | |||||||||||||||||||
£ 73.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M16 w1 27 h1 16 A/F 24 Weight
g 39 | ||||||||||||||||||||||||
| 24504.W0120 | M20 | 33 | 20 | 30 | 75 | |||||||||||||||||||
£ 103.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M20 w1 33 h1 20 A/F 30 Weight
g 75 | ||||||||||||||||||||||||
| 24504.W0124 | M24 | 40 | 24 | 36 | 131 | |||||||||||||||||||
£ 118.92 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M24 w1 40 h1 24 A/F 36 Weight
g 131 | ||||||||||||||||||||||||
Technical & Application
Material
Steel, heat treated, zinc plated.
Strength class 10.
Technical Notes

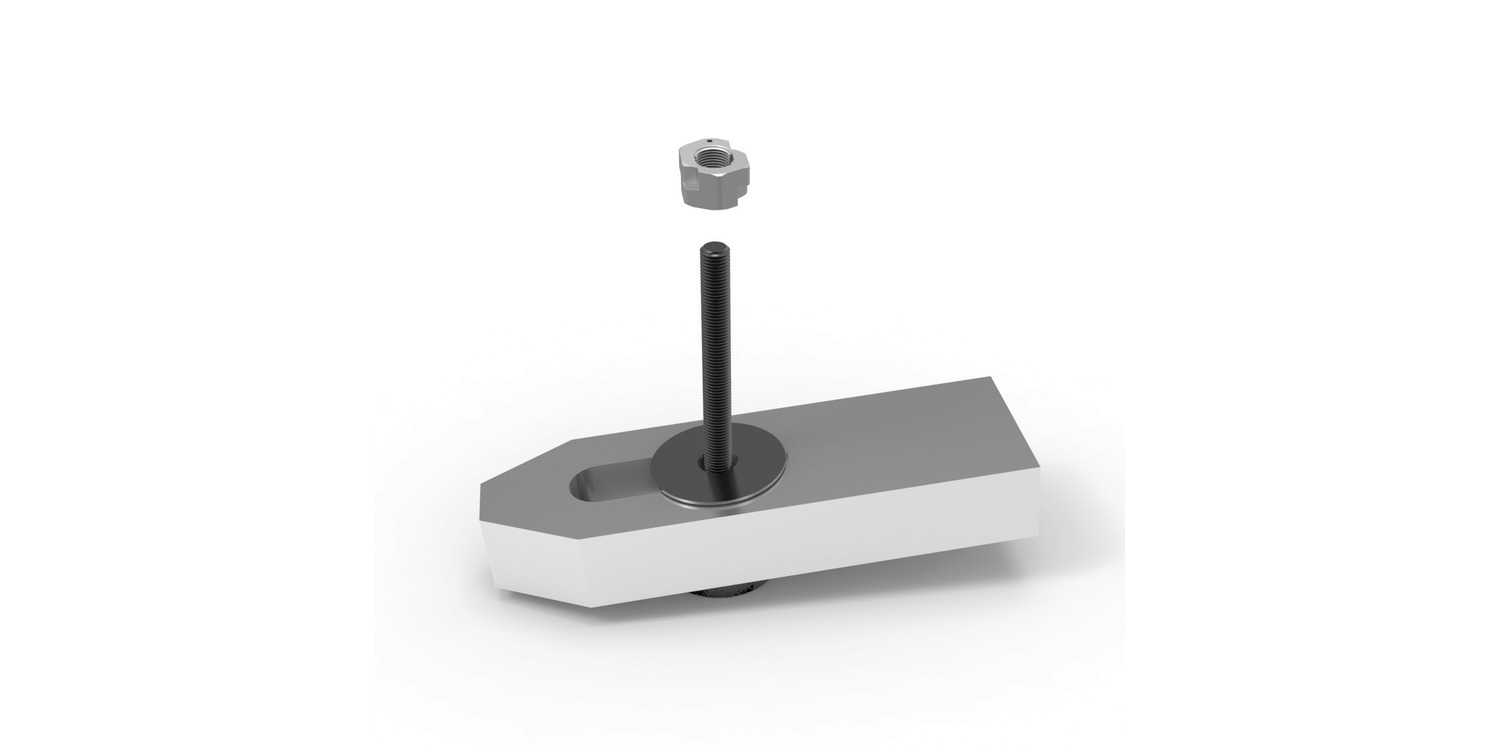

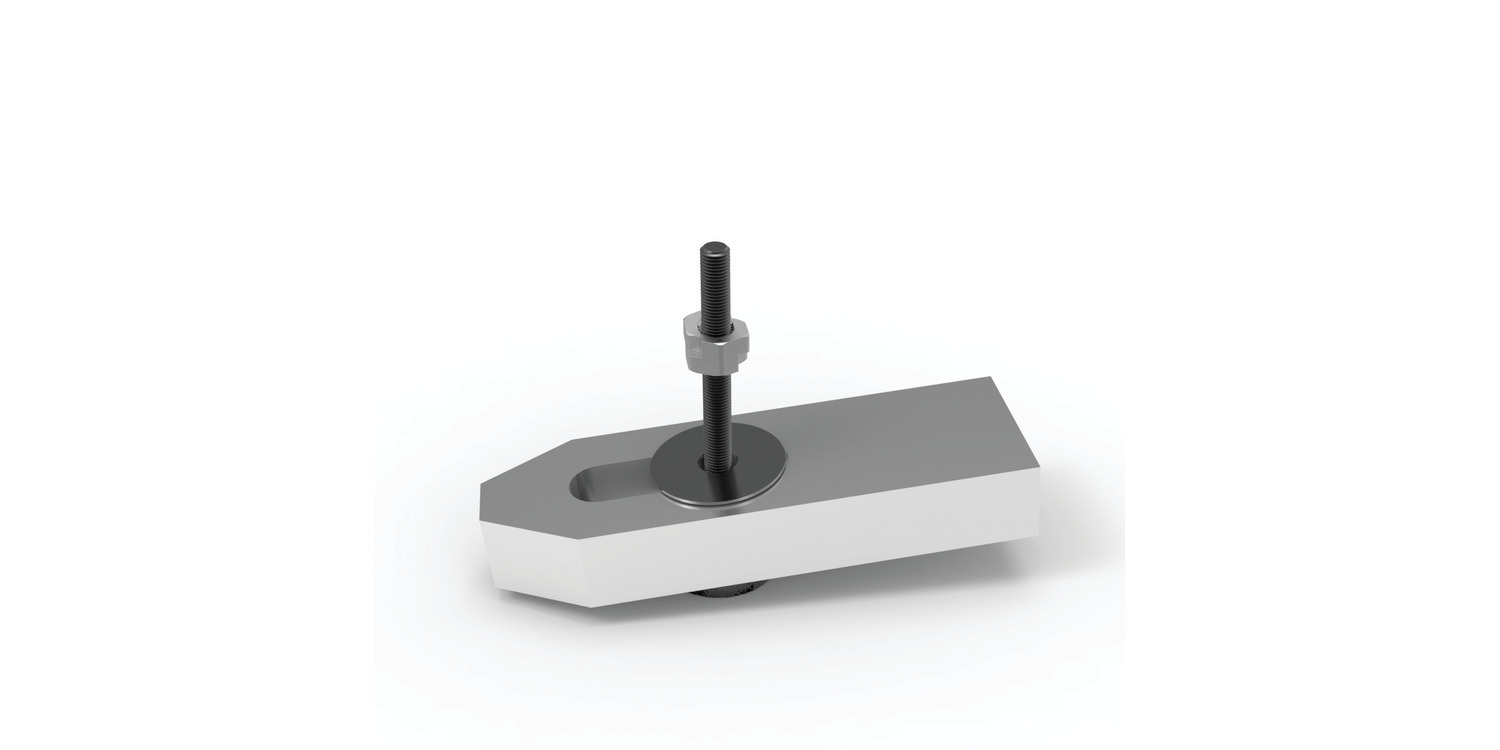

For rapid mounting and dismounting of nuts over long or damaged studding, and even a studding bent by up to 20°.
Where nut components are held together and are unattachable - simply push over thread, engage and a quarter or half turn is adequate for locking.
Provides clamping similar to solid nuts of the same thread size.
Time saving when dealing with long or damaged studding.
Product Datasheets
Application images
