Fast Nut With Collar
rapid assembly nut
24520 Lock Nuts - Slip-On
rapid assembly nut, material: Steel
Alternative products you may wish to consider
d1
M 6
w1
18.2
h1
9.5
A/F
16
Load
max.
kN
2.9
Torque to
max.
Nm
8-11
Weight
g
9
£ 4.84 per unit (click for quantity discounts)
d1
M 8
w1
22.0
h1
9.5
A/F
19
Load
max.
kN
-
Torque to
max.
Nm
18-25
Weight
g
15
£ 5.75 per unit (click for quantity discounts)
d1
M10
w1
25.7
h1
12.4
A/F
22
Load
max.
kN
8.9
Torque to
max.
Nm
26-34
Weight
g
25
£ 6.33 per unit (click for quantity discounts)
d1
M12
w1
31.1
h1
15.9
A/F
27
Load
max.
kN
17.8
Torque to
max.
Nm
68-81
Weight
g
45
£ 19.53 per unit (click for quantity discounts)
d1
M14
w1
31.1
h1
15.9
A/F
27
Load
max.
kN
17.8
Torque to
max.
Nm
68-81
Weight
g
45
£ 7.14 per unit (click for quantity discounts)
d1
M16
w1
38.5
h1
16.5
A/F
33
Load
max.
kN
22.2
Torque to
max.
Nm
136-271
Weight
g
71
£ 30.10 per unit (click for quantity discounts)
d1
M18
w1
38.5
h1
16.5
A/F
33
Load
max.
kN
22.2
Torque to
max.
Nm
136-271
Weight
g
71
£ 20.48 per unit (click for quantity discounts)
d1
M20
w1
47.7
h1
20.3
A/F
41
Load
max.
kN
35.6
Torque to
max.
Nm
244-271
Weight
g
141
£ 31.61 per unit (click for quantity discounts)
d1
M22
w1
58.6
h1
25.4
A/F
51
Load
max.
kN
-
Torque to
max.
Nm
-
Weight
g
259
£ 42.28 per unit (click for quantity discounts)
d1
M24
w1
58.6
h1
25.4
A/F
51
Load
max.
kN
-
Torque to
max.
Nm
-
Weight
g
249
£ 46.84 per unit (click for quantity discounts)
d1
w1
h1
A/F
Load
max.
kN
Torque to
max.
Nm
Weight
g
| Price & Availability | Article | d1 | w1 | h1 | A/F | Load max. kN | Torque to max. Nm | Weight g | ||||||||||||||||||
| 24520.W0106 | M 6 | 18.2 | 9.5 | 16 | 2.9 | 8-11 | 9 | |||||||||||||||||||
£ 4.84 per unit (click for quantity discounts) Ready to despatch 11 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M 6 w1 18.2 h1 9.5 A/F 16 Load
max.
kN 2.9 Torque to
max.
Nm 8-11 Weight
g 9 | ||||||||||||||||||||||||||
| 24520.W0108 | M 8 | 22.0 | 9.5 | 19 | - | 18-25 | 15 | |||||||||||||||||||
£ 5.75 per unit (click for quantity discounts) Ready to despatch 471 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M 8 w1 22.0 h1 9.5 A/F 19 Load
max.
kN - Torque to
max.
Nm 18-25 Weight
g 15 | ||||||||||||||||||||||||||
| 24520.W0110 | M10 | 25.7 | 12.4 | 22 | 8.9 | 26-34 | 25 | |||||||||||||||||||
£ 6.33 per unit (click for quantity discounts) Ready to despatch 30 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M10 w1 25.7 h1 12.4 A/F 22 Load
max.
kN 8.9 Torque to
max.
Nm 26-34 Weight
g 25 | ||||||||||||||||||||||||||
| 24520.W0112 | M12 | 31.1 | 15.9 | 27 | 17.8 | 68-81 | 45 | |||||||||||||||||||
£ 19.53 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 4 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M12 w1 31.1 h1 15.9 A/F 27 Load
max.
kN 17.8 Torque to
max.
Nm 68-81 Weight
g 45 | ||||||||||||||||||||||||||
| 24520.W0114 | M14 | 31.1 | 15.9 | 27 | 17.8 | 68-81 | 45 | |||||||||||||||||||
£ 7.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M14 w1 31.1 h1 15.9 A/F 27 Load
max.
kN 17.8 Torque to
max.
Nm 68-81 Weight
g 45 | ||||||||||||||||||||||||||
| 24520.W0116 | M16 | 38.5 | 16.5 | 33 | 22.2 | 136-271 | 71 | |||||||||||||||||||
£ 30.10 per unit (click for quantity discounts) Ready to despatch 215 Need more? Manufactured within 4 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M16 w1 38.5 h1 16.5 A/F 33 Load
max.
kN 22.2 Torque to
max.
Nm 136-271 Weight
g 71 | ||||||||||||||||||||||||||
| 24520.W0118 | M18 | 38.5 | 16.5 | 33 | 22.2 | 136-271 | 71 | |||||||||||||||||||
£ 20.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M18 w1 38.5 h1 16.5 A/F 33 Load
max.
kN 22.2 Torque to
max.
Nm 136-271 Weight
g 71 | ||||||||||||||||||||||||||
| 24520.W0120 | M20 | 47.7 | 20.3 | 41 | 35.6 | 244-271 | 141 | |||||||||||||||||||
£ 31.61 per unit (click for quantity discounts) Ready to despatch 12 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M20 w1 47.7 h1 20.3 A/F 41 Load
max.
kN 35.6 Torque to
max.
Nm 244-271 Weight
g 141 | ||||||||||||||||||||||||||
| 24520.W0122 | M22 | 58.6 | 25.4 | 51 | - | - | 259 | |||||||||||||||||||
£ 42.28 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M22 w1 58.6 h1 25.4 A/F 51 Load
max.
kN - Torque to
max.
Nm - Weight
g 259 | ||||||||||||||||||||||||||
| 24520.W0124 | M24 | 58.6 | 25.4 | 51 | - | - | 249 | |||||||||||||||||||
£ 46.84 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M24 w1 58.6 h1 25.4 A/F 51 Load
max.
kN - Torque to
max.
Nm - Weight
g 249 | ||||||||||||||||||||||||||
Technical & Application
Material
Steel, strength class 6, hardened and zinc plated.
Coarse thread.
Technical Notes

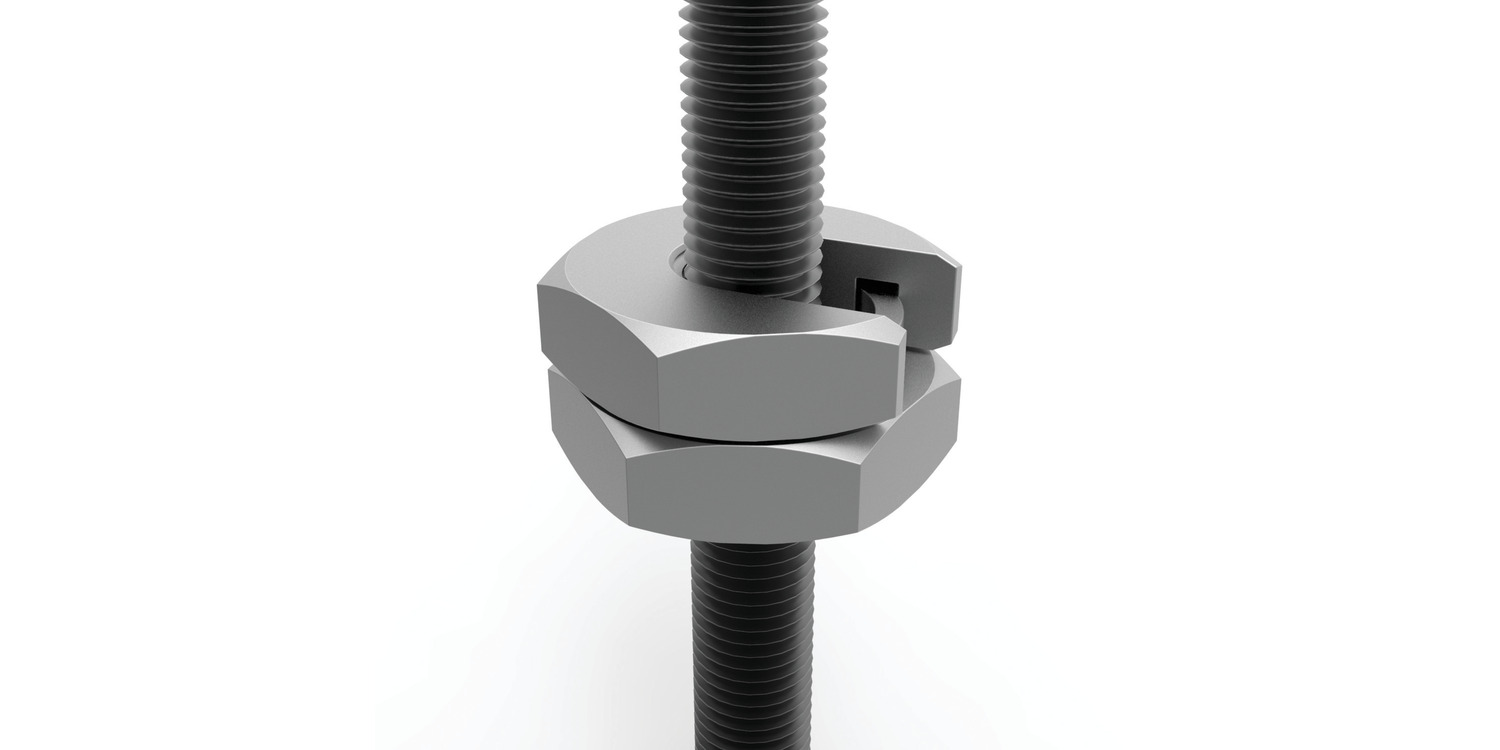

Avoid time consuming winding & unwinding on long threads and overcome issues of damaging threads. The slip-on lock nut is easy to position at any point on a thread. Just open the lock nut, position where required, twist the lock nut closed and tighten with a spanner. Still with high load forces. Safety factor of 2.5 times in load recommendations. Tested from 5 to 2000 Hz over a 10 minute period with no evidence of loosening.
