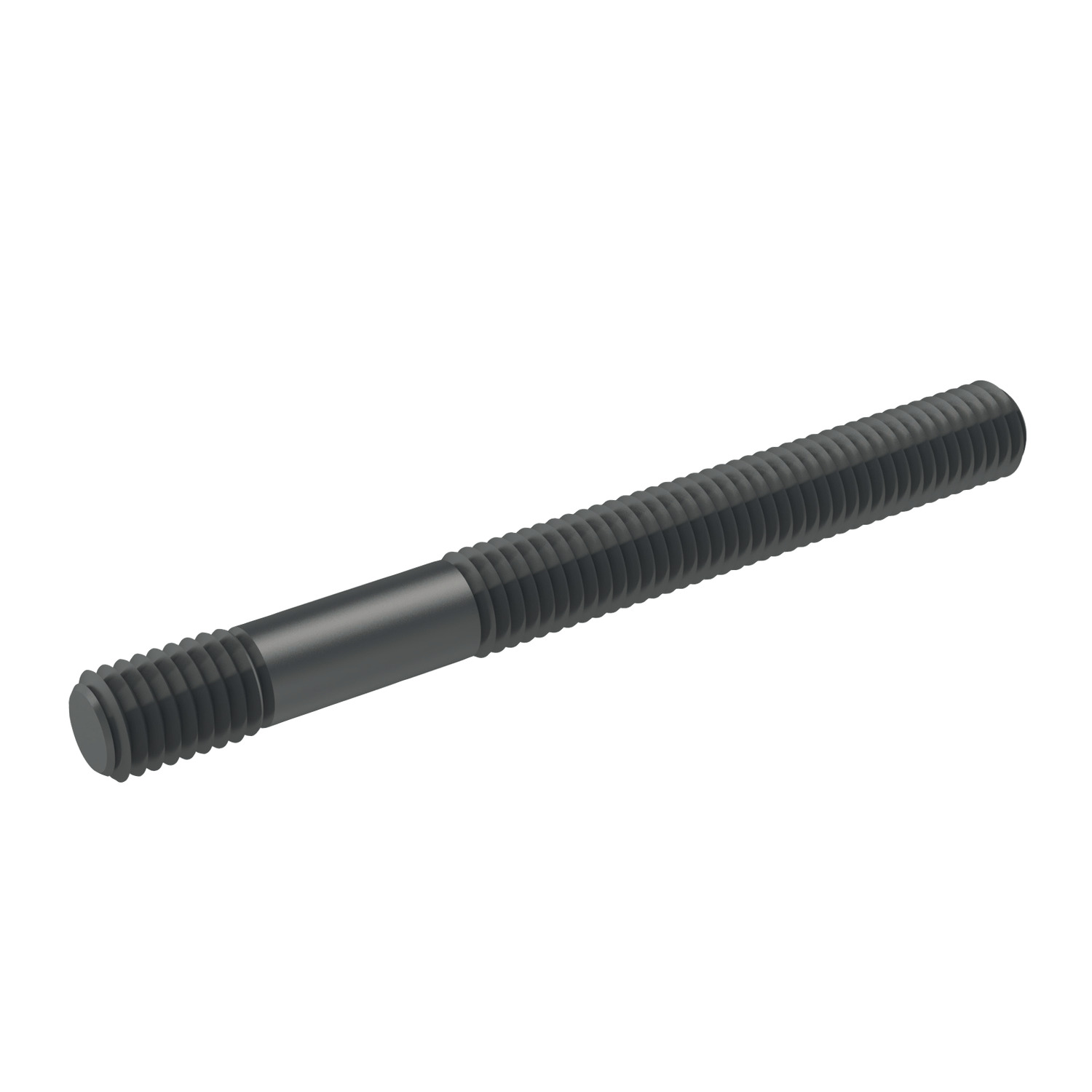

21100 Studs
strength class 8,8/10,9, material: Forged steel
Alternative products you may wish to consider
£ 1.85 per unit (click for quantity discounts)
£ 2.05 per unit (click for quantity discounts)
£ 2.35 per unit (click for quantity discounts)
£ 2.49 per unit (click for quantity discounts)
£ 2.72 per unit (click for quantity discounts)
£ 3.36 per unit (click for quantity discounts)
£ 3.52 per unit (click for quantity discounts)
£ 3.79 per unit (click for quantity discounts)
£ 4.43 per unit (click for quantity discounts)
£ 10.60 per unit (click for quantity discounts)
£ 10.20 per unit (click for quantity discounts)
£ 3.72 per unit (click for quantity discounts)
£ 4.52 per unit (click for quantity discounts)
£ 5.04 per unit (click for quantity discounts)
£ 5.57 per unit (click for quantity discounts)
£ 6.72 per unit (click for quantity discounts)
£ 7.36 per unit (click for quantity discounts)
£ 4.20 per unit (click for quantity discounts)
£ 4.52 per unit (click for quantity discounts)
£ 4.84 per unit (click for quantity discounts)
£ 4.97 per unit (click for quantity discounts)
£ 6.24 per unit (click for quantity discounts)
£ 7.15 per unit (click for quantity discounts)
£ 7.48 per unit (click for quantity discounts)
£ 5.40 per unit (click for quantity discounts)
£ 6.88 per unit (click for quantity discounts)
£ 8.08 per unit (click for quantity discounts)
£ 10.00 per unit (click for quantity discounts)
£ 12.52 per unit (click for quantity discounts)
£ 7.24 per unit (click for quantity discounts)
£ 7.65 per unit (click for quantity discounts)
£ 6.78 per unit (click for quantity discounts)
£ 7.01 per unit (click for quantity discounts)
£ 7.24 per unit (click for quantity discounts)
£ 8.12 per unit (click for quantity discounts)
£ 10.40 per unit (click for quantity discounts)
£ 12.72 per unit (click for quantity discounts)
£ 14.18 per unit (click for quantity discounts)
£ 18.31 per unit (click for quantity discounts)
£ 32.60 per unit (click for quantity discounts)
£ 14.40 per unit (click for quantity discounts)
£ 15.10 per unit (click for quantity discounts)
£ 15.20 per unit (click for quantity discounts)
£ 19.28 per unit (click for quantity discounts)
£ 24.99 per unit (click for quantity discounts)
£ 29.79 per unit (click for quantity discounts)
£ 10.91 per unit (click for quantity discounts)
£ 13.89 per unit (click for quantity discounts)
£ 16.81 per unit (click for quantity discounts)
£ 19.28 per unit (click for quantity discounts)
£ 23.41 per unit (click for quantity discounts)
£ 28.41 per unit (click for quantity discounts)
£ 37.39 per unit (click for quantity discounts)
£ 42.60 per unit (click for quantity discounts)
£ 22.40 per unit (click for quantity discounts)
£ 22.60 per unit (click for quantity discounts)
£ 27.41 per unit (click for quantity discounts)
£ 33.81 per unit (click for quantity discounts)
£ 43.61 per unit (click for quantity discounts)
£ 43.81 per unit (click for quantity discounts)
£ 18.48 per unit (click for quantity discounts)
£ 19.69 per unit (click for quantity discounts)
£ 21.60 per unit (click for quantity discounts)
£ 25.99 per unit (click for quantity discounts)
£ 30.99 per unit (click for quantity discounts)
£ 36.99 per unit (click for quantity discounts)
£ 45.98 per unit (click for quantity discounts)
£ 60.78 per unit (click for quantity discounts)
£ 79.79 per unit (click for quantity discounts)
£ 53.39 per unit (click for quantity discounts)
£ 53.59 per unit (click for quantity discounts)
£ 60.57 per unit (click for quantity discounts)
£ 76.57 per unit (click for quantity discounts)
£ 93.57 per unit (click for quantity discounts)
£ 53.19 per unit (click for quantity discounts)
£ 56.79 per unit (click for quantity discounts)
£ 79.98 per unit (click for quantity discounts)
£ 112.99 per unit (click for quantity discounts)
£ 152.97 per unit (click for quantity discounts)
£ 280.94 per unit (click for quantity discounts)
£ 78.78 per unit (click for quantity discounts)
£ 95.99 per unit (click for quantity discounts)
£ 97.77 per unit (click for quantity discounts)
£ 118.95 per unit (click for quantity discounts)
£ 139.96 per unit (click for quantity discounts)
£ 154.97 per unit (click for quantity discounts)
£ 207.93 per unit (click for quantity discounts)
£ 126.98 per unit (click for quantity discounts)
£ 151.96 per unit (click for quantity discounts)
£ 172.95 per unit (click for quantity discounts)

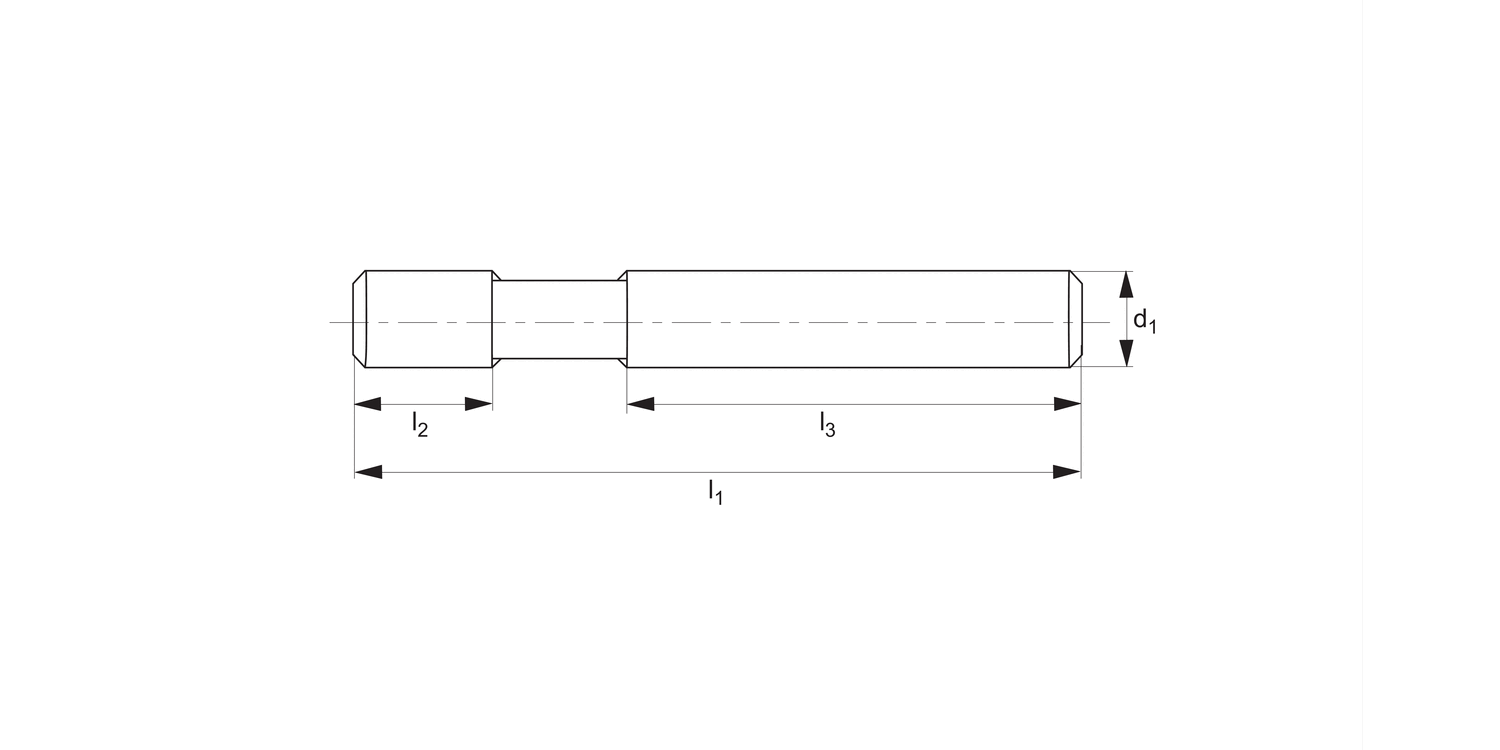

d1 x l1
l2
l3
Weight
g
| Price & Availability | Article | d1 x l1 | l2 | l3 | Weight g | ||||||||||||||||||
| 21100.W0061 | M 6x32 | 9 | 16 | 8 | |||||||||||||||||||
£ 1.85 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M 6x32 l2 9 l3 16 Weight
g 8 | |||||||||||||||||||||||
| 21100.W0062 | M 6x40 | 9 | 20 | 9 | |||||||||||||||||||
£ 2.05 per unit (click for quantity discounts) Ready to despatch 32 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M 6x40 l2 9 l3 20 Weight
g 9 | |||||||||||||||||||||||
| 21100.W0063 | M 6x50 | 9 | 30 | 11 | |||||||||||||||||||
£ 2.35 per unit (click for quantity discounts) Ready to despatch 11 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M 6x50 l2 9 l3 30 Weight
g 11 | |||||||||||||||||||||||
| 21100.W0064 | M 6x63 | 9 | 40 | 14 | |||||||||||||||||||
£ 2.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M 6x63 l2 9 l3 40 Weight
g 14 | |||||||||||||||||||||||
| 21100.W0065 | M 6x80 | 9 | 50 | 18 | |||||||||||||||||||
£ 2.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M 6x80 l2 9 l3 50 Weight
g 18 | |||||||||||||||||||||||
| 21100.W0081 | M 8x40 | 11 | 20 | 10 | |||||||||||||||||||
£ 3.36 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M 8x40 l2 11 l3 20 Weight
g 10 | |||||||||||||||||||||||
| 21100.W0082 | M 8x63 | 11 | 40 | 20 | |||||||||||||||||||
£ 3.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M 8x63 l2 11 l3 40 Weight
g 20 | |||||||||||||||||||||||
| 21100.W0083 | M 8x80 | 11 | 50 | 25 | |||||||||||||||||||
£ 3.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M 8x80 l2 11 l3 50 Weight
g 25 | |||||||||||||||||||||||
| 21100.W0084 | M 8x100 | 11 | 63 | 30 | |||||||||||||||||||
£ 4.43 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M 8x100 l2 11 l3 63 Weight
g 30 | |||||||||||||||||||||||
| 21100.W0085 | M 8x160 | 11 | 100 | 45 | |||||||||||||||||||
£ 10.60 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M 8x160 l2 11 l3 100 Weight
g 45 | |||||||||||||||||||||||
| 21100.W0086 | M 8x125 | 11 | 75 | 36 | |||||||||||||||||||
£ 10.20 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M 8x125 l2 11 l3 75 Weight
g 36 | |||||||||||||||||||||||
| 21100.W0101 | M10x50 | 13 | 25 | 25 | |||||||||||||||||||
£ 3.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M10x50 l2 13 l3 25 Weight
g 25 | |||||||||||||||||||||||
| 21100.W0102 | M10x80 | 13 | 50 | 40 | |||||||||||||||||||
£ 4.52 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M10x80 l2 13 l3 50 Weight
g 40 | |||||||||||||||||||||||
| 21100.W0103 | M10x100 | 13 | 75 | 50 | |||||||||||||||||||
£ 5.04 per unit (click for quantity discounts) Ready to despatch 18 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M10x100 l2 13 l3 75 Weight
g 50 | |||||||||||||||||||||||
| 21100.W0104 | M10x125 | 13 | 75 | 62 | |||||||||||||||||||
£ 5.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M10x125 l2 13 l3 75 Weight
g 62 | |||||||||||||||||||||||
| 21100.W0105 | M10x160 | 13 | 100 | 80 | |||||||||||||||||||
£ 6.72 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M10x160 l2 13 l3 100 Weight
g 80 | |||||||||||||||||||||||
| 21100.W0106 | M10x200 | 13 | 125 | 100 | |||||||||||||||||||
£ 7.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M10x200 l2 13 l3 125 Weight
g 100 | |||||||||||||||||||||||
| 21100.W0121 | M12x50 | 15 | 25 | 37 | |||||||||||||||||||
£ 4.20 per unit (click for quantity discounts) Ready to despatch 44 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M12x50 l2 15 l3 25 Weight
g 37 | |||||||||||||||||||||||
| 21100.W0122 | M12x63 | 15 | 32 | 45 | |||||||||||||||||||
£ 4.52 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M12x63 l2 15 l3 32 Weight
g 45 | |||||||||||||||||||||||
| 21100.W0123 | M12x80 | 15 | 50 | 55 | |||||||||||||||||||
£ 4.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M12x80 l2 15 l3 50 Weight
g 55 | |||||||||||||||||||||||
| 21100.W0124 | M12x100 | 15 | 63 | 70 | |||||||||||||||||||
£ 4.97 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M12x100 l2 15 l3 63 Weight
g 70 | |||||||||||||||||||||||
| 21100.W0125 | M12x125 | 15 | 75 | 90 | |||||||||||||||||||
£ 6.24 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M12x125 l2 15 l3 75 Weight
g 90 | |||||||||||||||||||||||
| 21100.W0126 | M12x160 | 15 | 100 | 113 | |||||||||||||||||||
£ 7.15 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M12x160 l2 15 l3 100 Weight
g 113 | |||||||||||||||||||||||
| 21100.W0127 | M12x200 | 15 | 125 | 140 | |||||||||||||||||||
£ 7.48 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M12x200 l2 15 l3 125 Weight
g 140 | |||||||||||||||||||||||
| 21100.W0141 | M14x63 | 17 | 32 | 80 | |||||||||||||||||||
£ 5.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M14x63 l2 17 l3 32 Weight
g 80 | |||||||||||||||||||||||
| 21100.W0142 | M14x100 | 17 | 63 | 90 | |||||||||||||||||||
£ 6.88 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M14x100 l2 17 l3 63 Weight
g 90 | |||||||||||||||||||||||
| 21100.W0143 | M14x160 | 17 | 100 | 150 | |||||||||||||||||||
£ 8.08 per unit (click for quantity discounts) Ready to despatch 142 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M14x160 l2 17 l3 100 Weight
g 150 | |||||||||||||||||||||||
| 21100.W0144 | M14x200 | 17 | 125 | 195 | |||||||||||||||||||
£ 10.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M14x200 l2 17 l3 125 Weight
g 195 | |||||||||||||||||||||||
| 21100.W0145 | M14x250 | 17 | 160 | 240 | |||||||||||||||||||
£ 12.52 per unit (click for quantity discounts) Ready to despatch 234 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M14x250 l2 17 l3 160 Weight
g 240 | |||||||||||||||||||||||
| 21100.W0146 | M14x80 | 17 | 50 | 85 | |||||||||||||||||||
£ 7.24 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M14x80 l2 17 l3 50 Weight
g 85 | |||||||||||||||||||||||
| 21100.W0147 | M14x125 | 17 | 75 | 120 | |||||||||||||||||||
£ 7.65 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M14x125 l2 17 l3 75 Weight
g 120 | |||||||||||||||||||||||
| 21100.W0161 | M16x63 | 19 | 32 | 85 | |||||||||||||||||||
£ 6.78 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M16x63 l2 19 l3 32 Weight
g 85 | |||||||||||||||||||||||
| 21100.W0162 | M16x80 | 19 | 50 | 105 | |||||||||||||||||||
£ 7.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M16x80 l2 19 l3 50 Weight
g 105 | |||||||||||||||||||||||
| 21100.W0163 | M16x100 | 19 | 63 | 130 | |||||||||||||||||||
£ 7.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M16x100 l2 19 l3 63 Weight
g 130 | |||||||||||||||||||||||
| 21100.W0164 | M16x125 | 19 | 75 | 160 | |||||||||||||||||||
£ 8.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M16x125 l2 19 l3 75 Weight
g 160 | |||||||||||||||||||||||
| 21100.W0165 | M16x160 | 19 | 100 | 218 | |||||||||||||||||||
£ 10.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M16x160 l2 19 l3 100 Weight
g 218 | |||||||||||||||||||||||
| 21100.W0166 | M16x200 | 19 | 125 | 280 | |||||||||||||||||||
£ 12.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M16x200 l2 19 l3 125 Weight
g 280 | |||||||||||||||||||||||
| 21100.W0167 | M16x250 | 19 | 160 | 325 | |||||||||||||||||||
£ 14.18 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M16x250 l2 19 l3 160 Weight
g 325 | |||||||||||||||||||||||
| 21100.W0168 | M16x315 | 19 | 180 | 425 | |||||||||||||||||||
£ 18.31 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M16x315 l2 19 l3 180 Weight
g 425 | |||||||||||||||||||||||
| 21100.W0169 | M16x500 | 19 | 315 | 650 | |||||||||||||||||||
£ 32.60 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M16x500 l2 19 l3 315 Weight
g 650 | |||||||||||||||||||||||
| 21100.W0181 | M18x80 | 23 | 50 | 130 | |||||||||||||||||||
£ 14.40 per unit (click for quantity discounts) Ready to despatch 49 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M18x80 l2 23 l3 50 Weight
g 130 | |||||||||||||||||||||||
| 21100.W0182 | M18x125 | 23 | 75 | 200 | |||||||||||||||||||
£ 15.10 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M18x125 l2 23 l3 75 Weight
g 200 | |||||||||||||||||||||||
| 21100.W0183 | M18x160 | 23 | 100 | 255 | |||||||||||||||||||
£ 15.20 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M18x160 l2 23 l3 100 Weight
g 255 | |||||||||||||||||||||||
| 21100.W0184 | M18x200 | 23 | 125 | 320 | |||||||||||||||||||
£ 19.28 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M18x200 l2 23 l3 125 Weight
g 320 | |||||||||||||||||||||||
| 21100.W0185 | M18x250 | 23 | 150 | 400 | |||||||||||||||||||
£ 24.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M18x250 l2 23 l3 150 Weight
g 400 | |||||||||||||||||||||||
| 21100.W0186 | M18x315 | 23 | 180 | 500 | |||||||||||||||||||
£ 29.79 per unit (click for quantity discounts) Ready to despatch 15 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M18x315 l2 23 l3 180 Weight
g 500 | |||||||||||||||||||||||
| 21100.W0201 | M20x80 | 27 | 32 | 185 | |||||||||||||||||||
£ 10.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M20x80 l2 27 l3 32 Weight
g 185 | |||||||||||||||||||||||
| 21100.W0202 | M20x125 | 27 | 70 | 255 | |||||||||||||||||||
£ 13.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M20x125 l2 27 l3 70 Weight
g 255 | |||||||||||||||||||||||
| 21100.W0203 | M20x160 | 27 | 100 | 330 | |||||||||||||||||||
£ 16.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M20x160 l2 27 l3 100 Weight
g 330 | |||||||||||||||||||||||
| 21100.W0204 | M20x200 | 27 | 125 | 410 | |||||||||||||||||||
£ 19.28 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M20x200 l2 27 l3 125 Weight
g 410 | |||||||||||||||||||||||
| 21100.W0205 | M20x250 | 27 | 160 | 510 | |||||||||||||||||||
£ 23.41 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M20x250 l2 27 l3 160 Weight
g 510 | |||||||||||||||||||||||
| 21100.W0206 | M20x315 | 27 | 200 | 640 | |||||||||||||||||||
£ 28.41 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M20x315 l2 27 l3 200 Weight
g 640 | |||||||||||||||||||||||
| 21100.W0207 | M20x400 | 27 | 250 | 815 | |||||||||||||||||||
£ 37.39 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M20x400 l2 27 l3 250 Weight
g 815 | |||||||||||||||||||||||
| 21100.W0208 | M20x500 | 27 | 315 | 1020 | |||||||||||||||||||
£ 42.60 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M20x500 l2 27 l3 315 Weight
g 1020 | |||||||||||||||||||||||
| 21100.W0221 | M22x100 | 31 | 45 | 270 | |||||||||||||||||||
£ 22.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M22x100 l2 31 l3 45 Weight
g 270 | |||||||||||||||||||||||
| 21100.W0222 | M22x160 | 31 | 100 | 430 | |||||||||||||||||||
£ 22.60 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M22x160 l2 31 l3 100 Weight
g 430 | |||||||||||||||||||||||
| 21100.W0223 | M22x200 | 31 | 125 | 500 | |||||||||||||||||||
£ 27.41 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M22x200 l2 31 l3 125 Weight
g 500 | |||||||||||||||||||||||
| 21100.W0224 | M22x250 | 31 | 160 | 670 | |||||||||||||||||||
£ 33.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M22x250 l2 31 l3 160 Weight
g 670 | |||||||||||||||||||||||
| 21100.W0225 | M22x315 | 31 | 180 | 790 | |||||||||||||||||||
£ 43.61 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M22x315 l2 31 l3 180 Weight
g 790 | |||||||||||||||||||||||
| 21100.W0226 | M22x400 | 31 | 250 | 1070 | |||||||||||||||||||
£ 43.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M22x400 l2 31 l3 250 Weight
g 1070 | |||||||||||||||||||||||
| 21100.W0241 | M24x100 | 35 | 45 | 290 | |||||||||||||||||||
£ 18.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M24x100 l2 35 l3 45 Weight
g 290 | |||||||||||||||||||||||
| 21100.W0242 | M24x125 | 35 | 70 | 380 | |||||||||||||||||||
£ 19.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M24x125 l2 35 l3 70 Weight
g 380 | |||||||||||||||||||||||
| 21100.W0243 | M24x160 | 35 | 100 | 470 | |||||||||||||||||||
£ 21.60 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M24x160 l2 35 l3 100 Weight
g 470 | |||||||||||||||||||||||
| 21100.W0244 | M24x200 | 35 | 125 | 580 | |||||||||||||||||||
£ 25.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M24x200 l2 35 l3 125 Weight
g 580 | |||||||||||||||||||||||
| 21100.W0245 | M24x250 | 35 | 160 | 730 | |||||||||||||||||||
£ 30.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M24x250 l2 35 l3 160 Weight
g 730 | |||||||||||||||||||||||
| 21100.W0246 | M24x315 | 35 | 200 | 920 | |||||||||||||||||||
£ 36.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M24x315 l2 35 l3 200 Weight
g 920 | |||||||||||||||||||||||
| 21100.W0247 | M24x400 | 35 | 250 | 1160 | |||||||||||||||||||
£ 45.98 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M24x400 l2 35 l3 250 Weight
g 1160 | |||||||||||||||||||||||
| 21100.W0248 | M24x500 | 35 | 315 | 1460 | |||||||||||||||||||
£ 60.78 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M24x500 l2 35 l3 315 Weight
g 1460 | |||||||||||||||||||||||
| 21100.W0249 | M24x630 | 35 | 315 | 1850 | |||||||||||||||||||
£ 79.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M24x630 l2 35 l3 315 Weight
g 1850 | |||||||||||||||||||||||
| 21100.W0271 | M27x125 | 39 | 56 | 485 | |||||||||||||||||||
£ 53.39 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M27x125 l2 39 l3 56 Weight
g 485 | |||||||||||||||||||||||
| 21100.W0272 | M27x200 | 39 | 125 | 770 | |||||||||||||||||||
£ 53.59 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M27x200 l2 39 l3 125 Weight
g 770 | |||||||||||||||||||||||
| 21100.W0273 | M27x315 | 39 | 200 | 1110 | |||||||||||||||||||
£ 60.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M27x315 l2 39 l3 200 Weight
g 1110 | |||||||||||||||||||||||
| 21100.W0274 | M27x400 | 39 | 250 | 1535 | |||||||||||||||||||
£ 76.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M27x400 l2 39 l3 250 Weight
g 1535 | |||||||||||||||||||||||
| 21100.W0275 | M27x500 | 39 | 315 | 1930 | |||||||||||||||||||
£ 93.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M27x500 l2 39 l3 315 Weight
g 1930 | |||||||||||||||||||||||
| 21100.W0301 | M30x125 | 43 | 56 | 590 | |||||||||||||||||||
£ 53.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M30x125 l2 43 l3 56 Weight
g 590 | |||||||||||||||||||||||
| 21100.W0302 | M30x200 | 43 | 125 | 950 | |||||||||||||||||||
£ 56.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M30x200 l2 43 l3 125 Weight
g 950 | |||||||||||||||||||||||
| 21100.W0303 | M30x315 | 43 | 200 | 1490 | |||||||||||||||||||
£ 79.98 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M30x315 l2 43 l3 200 Weight
g 1490 | |||||||||||||||||||||||
| 21100.W0304 | M30x500 | 43 | 315 | 2360 | |||||||||||||||||||
£ 112.99 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M30x500 l2 43 l3 315 Weight
g 2360 | |||||||||||||||||||||||
| 21100.W0305 | M30x700 | 43 | 400 | 3300 | |||||||||||||||||||
£ 152.97 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M30x700 l2 43 l3 400 Weight
g 3300 | |||||||||||||||||||||||
| 21100.W0306 | M30x1000 | 43 | 400 | 4700 | |||||||||||||||||||
£ 280.94 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M30x1000 l2 43 l3 400 Weight
g 4700 | |||||||||||||||||||||||
| 21100.W0361 | M36x160 | 51 | 80 | 1100 | |||||||||||||||||||
£ 78.78 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M36x160 l2 51 l3 80 Weight
g 1100 | |||||||||||||||||||||||
| 21100.W0362 | M36x200 | 51 | 125 | 1340 | |||||||||||||||||||
£ 95.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M36x200 l2 51 l3 125 Weight
g 1340 | |||||||||||||||||||||||
| 21100.W0363 | M36x250 | 51 | 160 | 1710 | |||||||||||||||||||
£ 97.77 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M36x250 l2 51 l3 160 Weight
g 1710 | |||||||||||||||||||||||
| 21100.W0364 | M36x315 | 51 | 200 | 2150 | |||||||||||||||||||
£ 118.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M36x315 l2 51 l3 200 Weight
g 2150 | |||||||||||||||||||||||
| 21100.W0365 | M36x400 | 51 | 250 | 2700 | |||||||||||||||||||
£ 139.96 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M36x400 l2 51 l3 250 Weight
g 2700 | |||||||||||||||||||||||
| 21100.W0366 | M36x500 | 51 | 315 | 3450 | |||||||||||||||||||
£ 154.97 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M36x500 l2 51 l3 315 Weight
g 3450 | |||||||||||||||||||||||
| 21100.W0367 | M36x700 | 51 | 400 | 4750 | |||||||||||||||||||
£ 207.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M36x700 l2 51 l3 400 Weight
g 4750 | |||||||||||||||||||||||
| 21100.W0421 | M42x315 | 59 | 200 | 2950 | |||||||||||||||||||
£ 126.98 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M42x315 l2 59 l3 200 Weight
g 2950 | |||||||||||||||||||||||
| 21100.W0422 | M42x400 | 59 | 250 | 3750 | |||||||||||||||||||
£ 151.96 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M42x400 l2 59 l3 250 Weight
g 3750 | |||||||||||||||||||||||
| 21100.W0423 | M42x500 | 59 | 315 | 4690 | |||||||||||||||||||
£ 172.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M42x500 l2 59 l3 315 Weight
g 4690 | |||||||||||||||||||||||
Technical & Application
Material
Forged steel, rolled thread, heat-treated.
Technical Notes
Produced to DIN 6379.
M 6-M12 - tensile strength class 10,9.
M14-M42 tensile strength class 8,8.
Tips
Please refer to nos. 24000, 24300, 24400 and 25000 for appropriate T-nuts, fixture nuts, collar nuts and washers.
Product Datasheets
CAD files
Application images
This content is not visible because of your cookie settings.
Wixroyd Group Ltd
Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 4497
sales@wixroyd.com
Route via Google Maps
Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 4497
sales@wixroyd.com
Route via Google Maps
Company registration no: 00496138
Company VAT number GB 408154022
