92121 Collet Spanner

for use with torque wrench, material: Special steel

Download product datasheet

Alternative products you may wish to consider

Spanner
for shell and mill arbors

Collet Spanners
for nuts to DIN 6499

Collet Spanner
for use with torque wrench

Open Ended Spanner
for use with torque wrench

Drill Drifts
Steel

Drill Drifts
semi-automatic

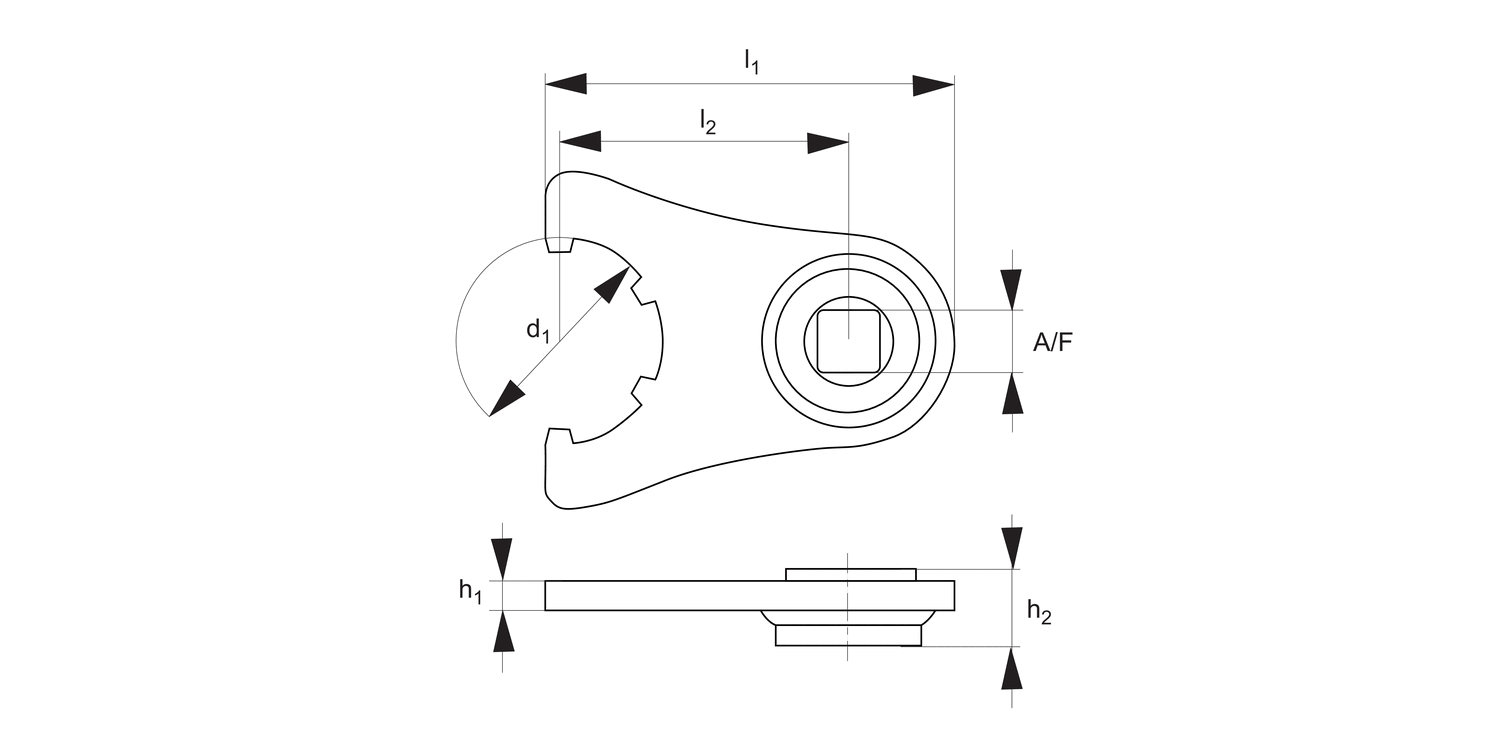

Collet Spanner 16 - 32 - 69 - 5

92121.W0016

Size

16

A/F

1/2"

d₁

32

h₁

5

h₂

16

l₁

69

l₂

45

Weight g

140

£ 85.42 per unit (click for quantity discounts)

Key for Collet Chuck with Torque Wrench (Size 25)With torque-wrench socket

92121.W0025

Size

25

A/F

1/2"

d₁

42

h₁

6

h₂

16

l₁

85

l₂

60

Weight g

200

£ 88.32 per unit (click for quantity discounts)

Key for collet chuck - torque wrench for chuck nuts (ER) to DIN 6499. Drive 1/2" square socket with ball-engagement groove. Special steel, hardened and zinc-plated.

92121.W0032

Size

32

A/F

1/2"

d₁

50

h₁

6

h₂

16

l₁

85

l₂

60

Weight g

215

£ 103.01 per unit (click for quantity discounts)

Key for collet chuck - torque wrench for chuck nuts (ER) to DIN 6499. Drive 1/2" square socket with ball-engagement groove. Special steel, hardened and zinc-plated.

92121.W0040

Size

40

A/F

1/2"

d₁

63

h₁

6

h₂

16

l₁

85

l₂

60

Weight g

220

£ 109.93 per unit (click for quantity discounts)

Collet Spanner 16 - 32 - 69 - 5

92121.W0016

Size

16

A/F

1/2"

d₁

32

h₁

5

h₂

16

l₁

69

l₂

45

Weight g

140

£ 85.42 per unit (click for quantity discounts)

Key for Collet Chuck with Torque Wrench (Size 25)With torque-wrench socket

92121.W0025

Size

25

A/F

1/2"

d₁

42

h₁

6

h₂

16

l₁

85

l₂

60

Weight g

200

£ 88.32 per unit (click for quantity discounts)

Key for collet chuck - torque wrench for chuck nuts (ER) to DIN 6499. Drive 1/2" square socket with ball-engagement groove. Special steel, hardened and zinc-plated.

92121.W0032

Size

32

A/F

1/2"

d₁

50

h₁

6

h₂

16

l₁

85

l₂

60

Weight g

215

£ 103.01 per unit (click for quantity discounts)

Key for collet chuck - torque wrench for chuck nuts (ER) to DIN 6499. Drive 1/2" square socket with ball-engagement groove. Special steel, hardened and zinc-plated.

92121.W0040

Size

40

A/F

1/2"

d₁

63

h₁

6

h₂

16

l₁

85

l₂

60

Weight g

220

£ 109.93 per unit (click for quantity discounts)



Select all

Size

A/F

d₁

h₁

h₂

l₁

l₂

Weight g

Price & Availability	Article	Size	A/F	d1	h1	h2	l1	l2	Weight g
	92121.W0016	16	1/2"	32	5	16	69	45	140
£ 85.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 85.42 0% 5-9 £ 81.15 5% 10-19 £ 76.88 10% 20+ £ 72.61 15% Size 16 A/F 1/2" d1 32 h1 5 h2 16 l1 69 l2 45 Weight g 140 more info »
	92121.W0025	25	1/2"	42	6	16	85	60	200
£ 88.32 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 88.32 0% 5-9 £ 83.90 5% 10-19 £ 79.49 10% 20+ £ 75.07 15% Size 25 A/F 1/2" d1 42 h1 6 h2 16 l1 85 l2 60 Weight g 200 more info »
	92121.W0032	32	1/2"	50	6	16	85	60	215
£ 103.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 103.01 0% 5-9 £ 97.86 5% 10-19 £ 92.71 10% 20+ £ 87.56 15% Size 32 A/F 1/2" d1 50 h1 6 h2 16 l1 85 l2 60 Weight g 215 more info »
	92121.W0040	40	1/2"	63	6	16	85	60	220
£ 109.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 109.93 0% 5-9 £ 104.43 5% 10-19 £ 98.94 10% 20+ £ 93.44 15% Size 40 A/F 1/2" d1 63 h1 6 h2 16 l1 85 l2 60 Weight g 220 more info »
