12605 Height Adjusting Cylinders
for down thrust clamps 12603, material: Case Hardened steel
Alternative products you may wish to consider
£ 64.38 per unit (click for quantity discounts)
£ 74.89 per unit (click for quantity discounts)
£ 84.82 per unit (click for quantity discounts)
£ 91.09 per unit (click for quantity discounts)
£ 105.38 per unit (click for quantity discounts)
£ 162.23 per unit (click for quantity discounts)
£ 84.40 per unit (click for quantity discounts)
£ 99.41 per unit (click for quantity discounts)
Type
One
d1
tol. h9
40
d2
M 12
h1
±0.01
140
h2
20
h3
-
A/F
36
Weight
g
1325
£ 157.57 per unit (click for quantity discounts)
£ 87.36 per unit (click for quantity discounts)
£ 103.42 per unit (click for quantity discounts)
Type
One
d1
tol. h9
40
d2
M 16
h1
±0.01
140
h2
20
h3
-
A/F
36
Weight
g
1307
£ 161.43 per unit (click for quantity discounts)
£ 137.80 per unit (click for quantity discounts)
£ 165.67 per unit (click for quantity discounts)
Type
One
d1
tol. h9
60
d2
M 12
h1
±0.01
140
h2
20
h3
-
A/F
55
Weight
g
3034
£ 272.96 per unit (click for quantity discounts)
£ 146.66 per unit (click for quantity discounts)
£ 168.31 per unit (click for quantity discounts)
Type
One
d1
tol. h9
60
d2
M 16
h1
±0.01
140
h2
20
h3
-
A/F
55
Weight
g
3016
£ 277.05 per unit (click for quantity discounts)
£ 194.22 per unit (click for quantity discounts)
£ 259.49 per unit (click for quantity discounts)
£ 382.22 per unit (click for quantity discounts)
£ 482.21 per unit (click for quantity discounts)
£ 699.46 per unit (click for quantity discounts)
£ 935.33 per unit (click for quantity discounts)
£ 1,020.82 per unit (click for quantity discounts)
Type
d1
tol. h9
d2
h1
±0.01
h2
h3
A/F
Weight
g

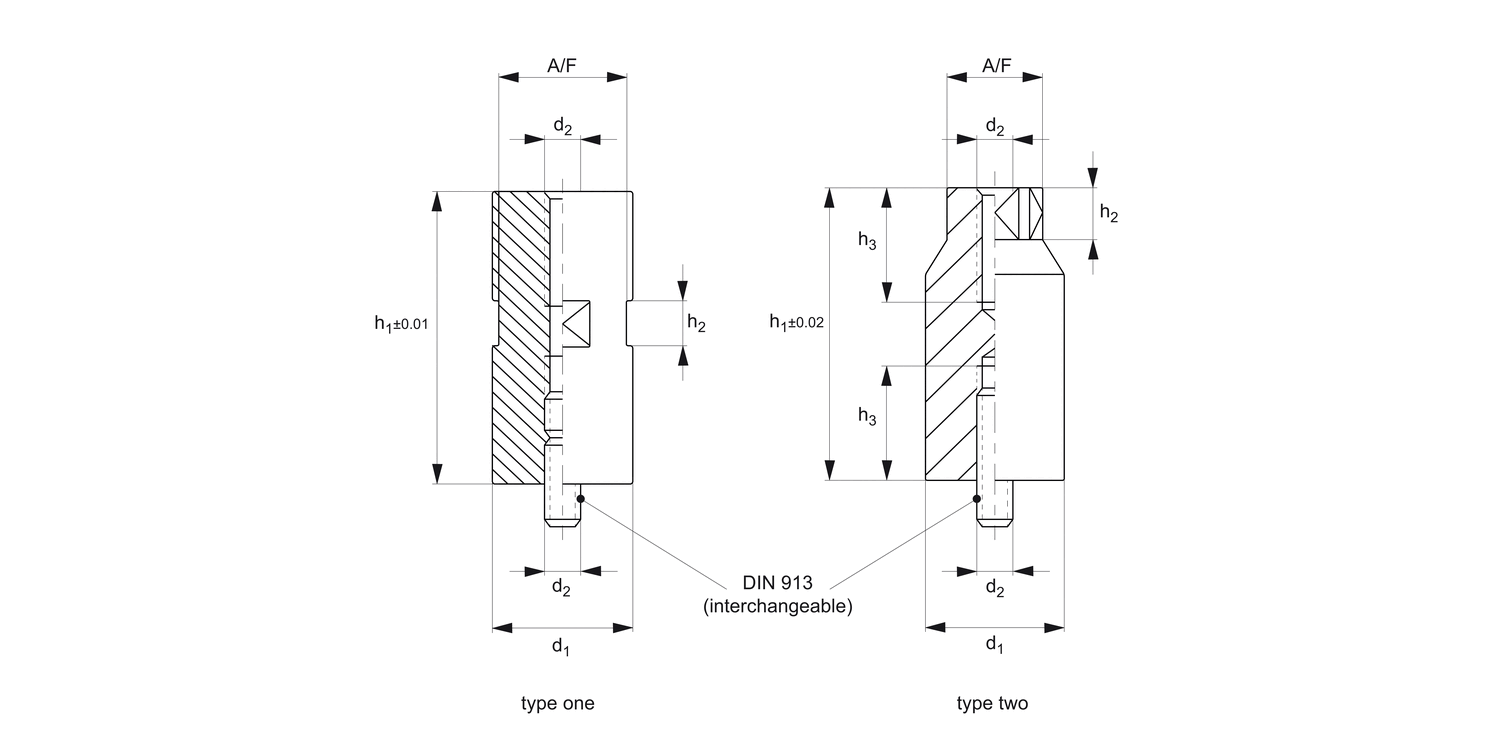

| Price & Availability | Article | Type | d1 tol. h9 | d2 | h1 ±0.01 | h2 | h3 | A/F | Weight g | ||||||||||||||||||
| 12605.W0125 | One | 25 | M 8 | 20 | 10 | - | 22 | 71 | |||||||||||||||||||
£ 64.38 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 25 d2 M 8 h1
±0.01 20 h2 10 h3 - A/F 22 Weight
g 71 | |||||||||||||||||||||||||||
| 12605.W0126 | One | 25 | M 8 | 40 | 20 | - | 22 | 139 | |||||||||||||||||||
£ 74.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 25 d2 M 8 h1
±0.01 40 h2 20 h3 - A/F 22 Weight
g 139 | |||||||||||||||||||||||||||
| 12605.W0127 | One | 25 | M 8 | 80 | 20 | - | 22 | 292 | |||||||||||||||||||
£ 84.82 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 25 d2 M 8 h1
±0.01 80 h2 20 h3 - A/F 22 Weight
g 292 | |||||||||||||||||||||||||||
| 12605.W0130 | One | 32 | M 10 | 35 | 20 | - | 27 | 202 | |||||||||||||||||||
£ 91.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 32 d2 M 10 h1
±0.01 35 h2 20 h3 - A/F 27 Weight
g 202 | |||||||||||||||||||||||||||
| 12605.W0132 | One | 32 | M 10 | 70 | 20 | - | 27 | 411 | |||||||||||||||||||
£ 105.38 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 32 d2 M 10 h1
±0.01 70 h2 20 h3 - A/F 27 Weight
g 411 | |||||||||||||||||||||||||||
| 12605.W0134 | One | 32 | M 10 | 140 | 20 | - | 27 | 848 | |||||||||||||||||||
£ 162.23 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 32 d2 M 10 h1
±0.01 140 h2 20 h3 - A/F 27 Weight
g 848 | |||||||||||||||||||||||||||
| 12605.W0140 | One | 40 | M 12 | 35 | 20 | - | 36 | 319 | |||||||||||||||||||
£ 84.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 40 d2 M 12 h1
±0.01 35 h2 20 h3 - A/F 36 Weight
g 319 | |||||||||||||||||||||||||||
| 12605.W0141 | One | 40 | M 12 | 70 | 20 | - | 36 | 644 | |||||||||||||||||||
£ 99.41 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 40 d2 M 12 h1
±0.01 70 h2 20 h3 - A/F 36 Weight
g 644 | |||||||||||||||||||||||||||
| 12605.W0142 | One | 40 | M 12 | 140 | 20 | - | 36 | 1325 | |||||||||||||||||||
£ 157.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 40 d2 M 12 h1
±0.01 140 h2 20 h3 - A/F 36 Weight
g 1325 | |||||||||||||||||||||||||||
| 12605.W0145 | One | 40 | M 16 | 35 | 20 | - | 36 | 318 | |||||||||||||||||||
£ 87.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 40 d2 M 16 h1
±0.01 35 h2 20 h3 - A/F 36 Weight
g 318 | |||||||||||||||||||||||||||
| 12605.W0146 | One | 40 | M 16 | 70 | 20 | - | 36 | 634 | |||||||||||||||||||
£ 103.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 40 d2 M 16 h1
±0.01 70 h2 20 h3 - A/F 36 Weight
g 634 | |||||||||||||||||||||||||||
| 12605.W0147 | One | 40 | M 16 | 140 | 20 | - | 36 | 1307 | |||||||||||||||||||
£ 161.43 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 40 d2 M 16 h1
±0.01 140 h2 20 h3 - A/F 36 Weight
g 1307 | |||||||||||||||||||||||||||
| 12605.W0160 | One | 60 | M 12 | 35 | 20 | - | 55 | 755 | |||||||||||||||||||
£ 137.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 60 d2 M 12 h1
±0.01 35 h2 20 h3 - A/F 55 Weight
g 755 | |||||||||||||||||||||||||||
| 12605.W0161 | One | 60 | M 12 | 70 | 20 | - | 55 | 1460 | |||||||||||||||||||
£ 165.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 60 d2 M 12 h1
±0.01 70 h2 20 h3 - A/F 55 Weight
g 1460 | |||||||||||||||||||||||||||
| 12605.W0162 | One | 60 | M 12 | 140 | 20 | - | 55 | 3034 | |||||||||||||||||||
£ 272.96 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 60 d2 M 12 h1
±0.01 140 h2 20 h3 - A/F 55 Weight
g 3034 | |||||||||||||||||||||||||||
| 12605.W0165 | One | 60 | M 16 | 35 | 20 | - | 55 | 438 | |||||||||||||||||||
£ 146.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 60 d2 M 16 h1
±0.01 35 h2 20 h3 - A/F 55 Weight
g 438 | |||||||||||||||||||||||||||
| 12605.W0166 | One | 60 | M 16 | 70 | 20 | - | 55 | 1493 | |||||||||||||||||||
£ 168.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 60 d2 M 16 h1
±0.01 70 h2 20 h3 - A/F 55 Weight
g 1493 | |||||||||||||||||||||||||||
| 12605.W0167 | One | 60 | M 16 | 140 | 20 | - | 55 | 3016 | |||||||||||||||||||
£ 277.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 60 d2 M 16 h1
±0.01 140 h2 20 h3 - A/F 55 Weight
g 3016 | |||||||||||||||||||||||||||
| 12605.W0170 | One | 60 | M 20 | 50 | 20 | - | 55 | 1087 | |||||||||||||||||||
£ 194.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 60 d2 M 20 h1
±0.01 50 h2 20 h3 - A/F 55 Weight
g 1087 | |||||||||||||||||||||||||||
| 12605.W0171 | One | 60 | M 20 | 100 | 20 | - | 55 | 2130 | |||||||||||||||||||
£ 259.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 60 d2 M 20 h1
±0.01 100 h2 20 h3 - A/F 55 Weight
g 2130 | |||||||||||||||||||||||||||
| 12605.W0172 | One | 60 | M 20 | 200 | 20 | - | 55 | 4335 | |||||||||||||||||||
£ 382.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 60 d2 M 20 h1
±0.01 200 h2 20 h3 - A/F 55 Weight
g 4335 | |||||||||||||||||||||||||||
| 12605.W0241 | One | 70 | M 24 | 50 | 25 | - | 65 | 1310 | |||||||||||||||||||
£ 482.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 70 d2 M 24 h1
±0.01 50 h2 25 h3 - A/F 65 Weight
g 1310 | |||||||||||||||||||||||||||
| 12605.W0242 | One | 70 | M 24 | 100 | 25 | - | 65 | 2682 | |||||||||||||||||||
£ 699.46 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One d1
tol. h9 70 d2 M 24 h1
±0.01 100 h2 25 h3 - A/F 65 Weight
g 2682 | |||||||||||||||||||||||||||
| 12605.W0243 | Two | 90 | M 24 | 200 | 35 | 50 | 65 | 8655 | |||||||||||||||||||
£ 935.33 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Two d1
tol. h9 90 d2 M 24 h1
±0.01 200 h2 35 h3 50 A/F 65 Weight
g 8655 | |||||||||||||||||||||||||||
| 12605.W0244 | Two | 90 | M 24 | 300 | 35 | 50 | 65 | 13617 | |||||||||||||||||||
£ 1,020.82 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Two d1
tol. h9 90 d2 M 24 h1
±0.01 300 h2 35 h3 50 A/F 65 Weight
g 13617 | |||||||||||||||||||||||||||
Technical & Application
Material
Steel case-hardened, blackened and ground.
Technical Notes

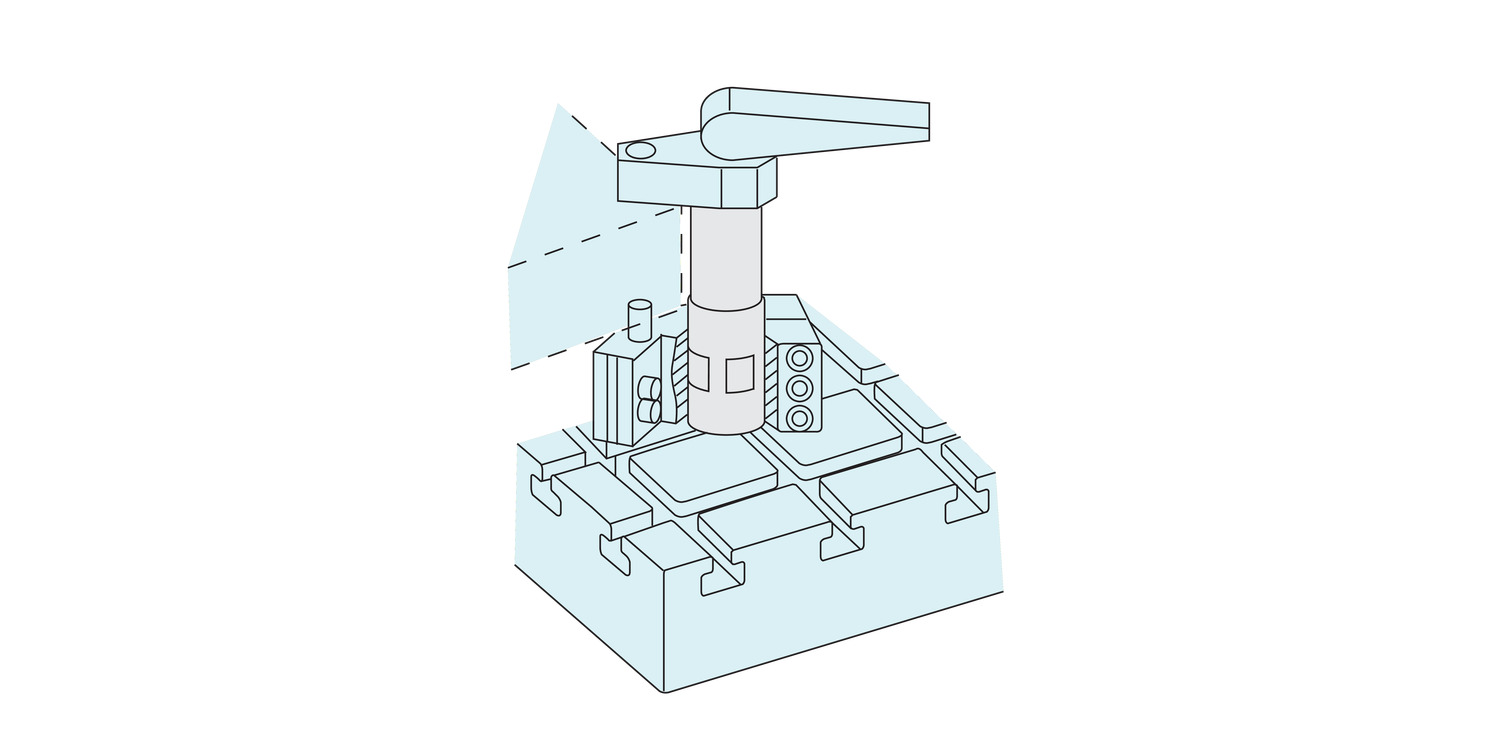

Increase clamping height for down-thrust clamps, alternatively can be used as general height setting and supporting elements.
