Miniature Down Thrust Clamps
swivelling

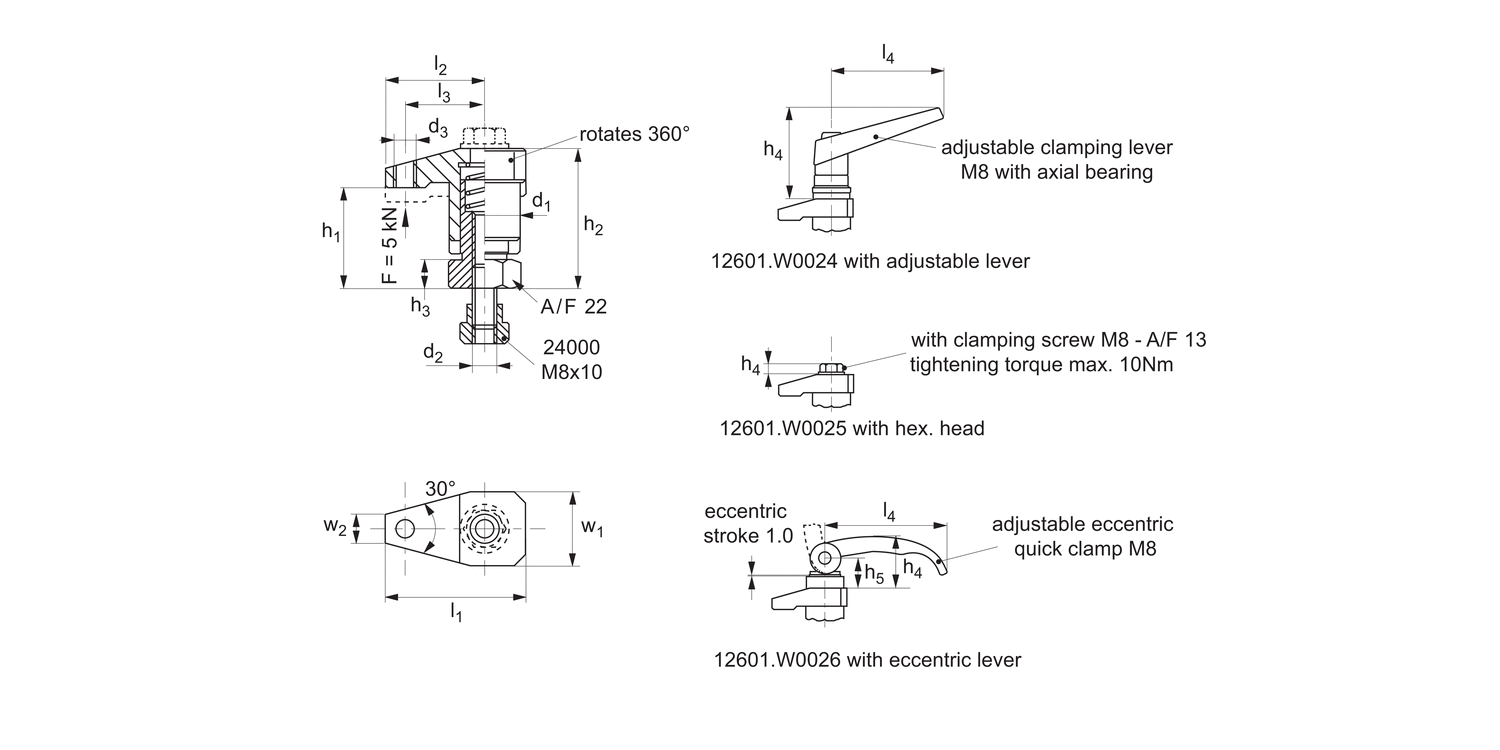

12601 Miniature Down Thrust Clamps
swivelling, material: Case Hardened steel

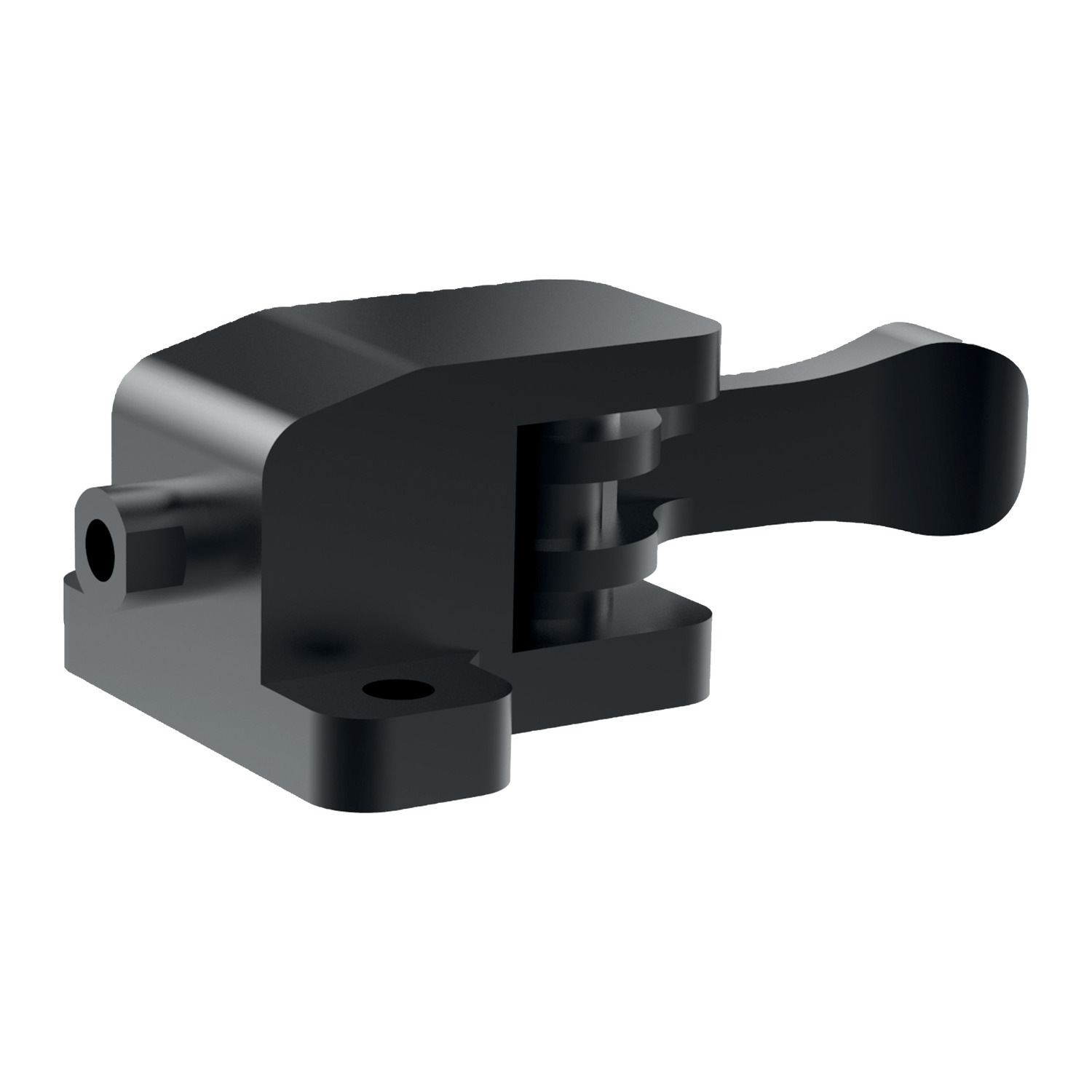

Alternative products you may wish to consider
Type
with adj. clamping lever
Clamping height h1
max.
35
Clamping height h1
min.
30
Stroke
5
d1
25
d2
M8
w1
26
w2
10
h2
min.
44
h2
max.
49
h3
10
h4
60.0
h5
-
l1
49.5
l2
35
l3
28
l4
74
Weight
g
363
£ 247.19 per unit (click for quantity discounts)
Type
with hex. head
Clamping height h1
max.
35
Clamping height h1
min.
30
Stroke
5
d1
25
d2
M8
w1
26
w2
10
h2
min.
44
h2
max.
49
h3
10
h4
6.9
h5
-
l1
49.5
l2
35
l3
28
l4
-
Weight
g
215
£ 228.69 per unit (click for quantity discounts)
Type
with ecc. clamping lever
Clamping height h1
max.
35
Clamping height h1
min.
30
Stroke
5
d1
25
d2
M8
w1
26
w2
10
h2
min.
44
h2
max.
49
h3
10
h4
35.0
h5
20.5
l1
49.5
l2
35
l3
28
l4
82
Weight
g
340
£ 240.95 per unit (click for quantity discounts)
Type
Clamping height h1
max.
Clamping height h1
min.
Stroke
d1
d2
w1
w2
h2
min.
h2
max.
h3
h4
h5
l1
l2
l3
l4
Weight
g
| Price & Availability | Article | Type | Clamping height h1 max. | Clamping height h1 min. | Stroke | d1 | d2 | w1 | w2 | h2 min. | h2 max. | h3 | h4 | h5 | l1 | l2 | l3 | l4 | Weight g | ||||||||||||||||||
| 12601.W0024 | with adj. clamping lever | 35 | 30 | 5 | 25 | M8 | 26 | 10 | 44 | 49 | 10 | 60.0 | - | 49.5 | 35 | 28 | 74 | 363 | |||||||||||||||||||
£ 247.19 per unit (click for quantity discounts) Ready to despatch 12 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type with adj. clamping lever Clamping height h1
max. 35 Clamping height h1
min. 30 Stroke 5 d1 25 d2 M8 w1 26 w2 10 h2
min. 44 h2
max. 49 h3 10 h4 60.0 h5 - l1 49.5 l2 35 l3 28 l4 74 Weight
g 363 | |||||||||||||||||||||||||||||||||||||
| 12601.W0025 | with hex. head | 35 | 30 | 5 | 25 | M8 | 26 | 10 | 44 | 49 | 10 | 6.9 | - | 49.5 | 35 | 28 | - | 215 | |||||||||||||||||||
£ 228.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type with hex. head Clamping height h1
max. 35 Clamping height h1
min. 30 Stroke 5 d1 25 d2 M8 w1 26 w2 10 h2
min. 44 h2
max. 49 h3 10 h4 6.9 h5 - l1 49.5 l2 35 l3 28 l4 - Weight
g 215 | |||||||||||||||||||||||||||||||||||||
| 12601.W0026 | with ecc. clamping lever | 35 | 30 | 5 | 25 | M8 | 26 | 10 | 44 | 49 | 10 | 35.0 | 20.5 | 49.5 | 35 | 28 | 82 | 340 | |||||||||||||||||||
£ 240.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type with ecc. clamping lever Clamping height h1
max. 35 Clamping height h1
min. 30 Stroke 5 d1 25 d2 M8 w1 26 w2 10 h2
min. 44 h2
max. 49 h3 10 h4 35.0 h5 20.5 l1 49.5 l2 35 l3 28 l4 82 Weight
g 340 | |||||||||||||||||||||||||||||||||||||
Technical & Application
Material
Steel case-hardened, blackened and ground.
Technical Notes

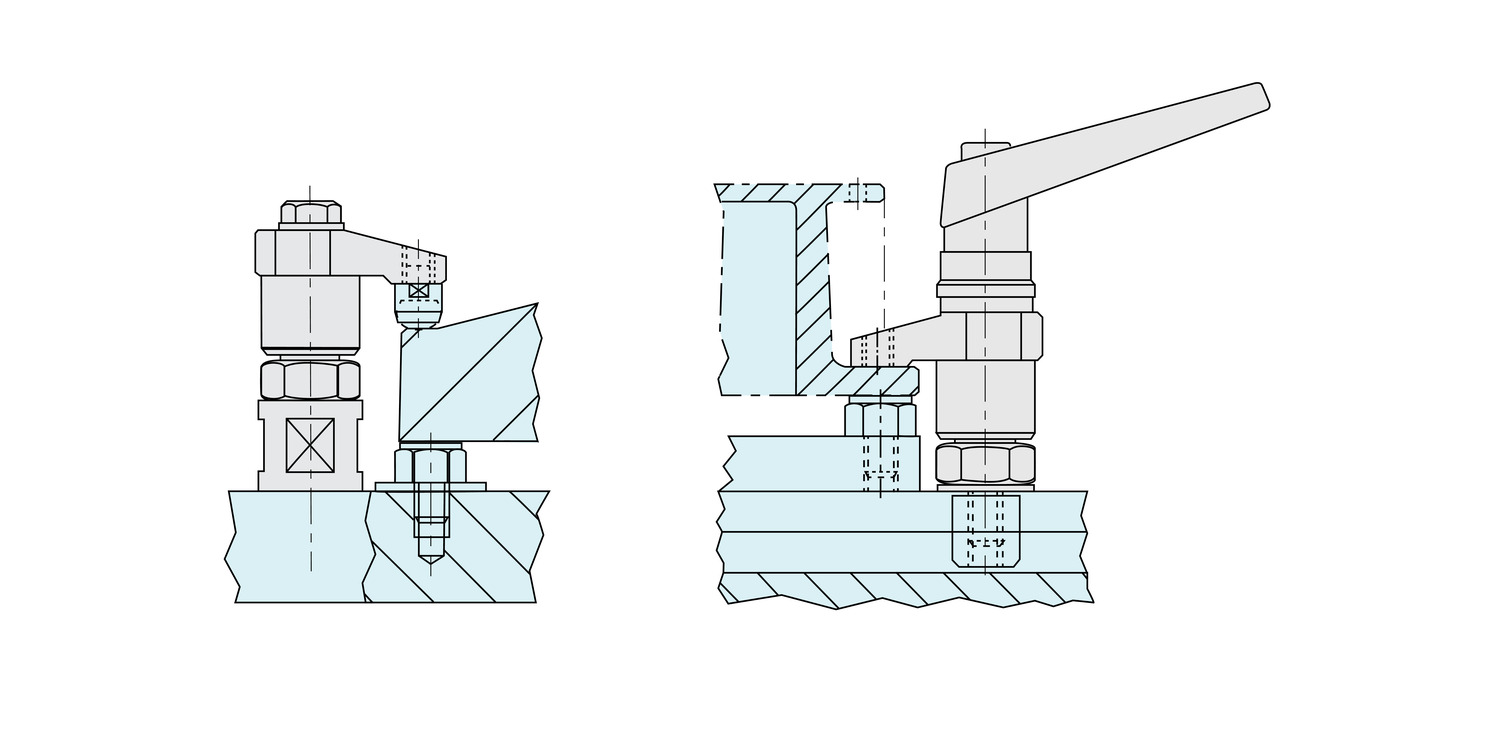

Ideally suited for clamping small components. The 10mm wide nose allows a very small clamping footprint. For suitable self-aligning pads (if required) see no. 34100.
Tips
T-nuts can be supplied in any M8 sizes, see no. 24000.
