Miniature Down Thrust Clamps
swivelling

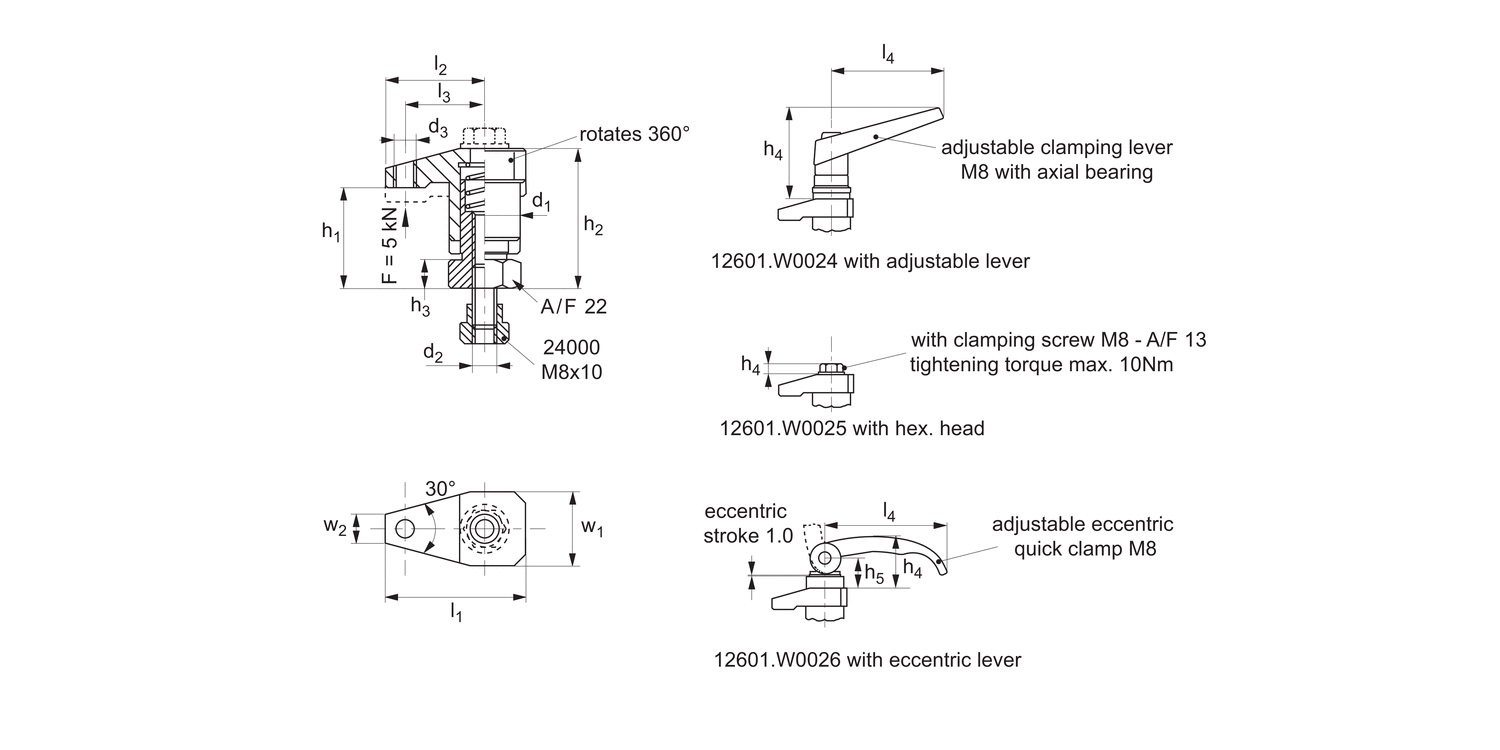

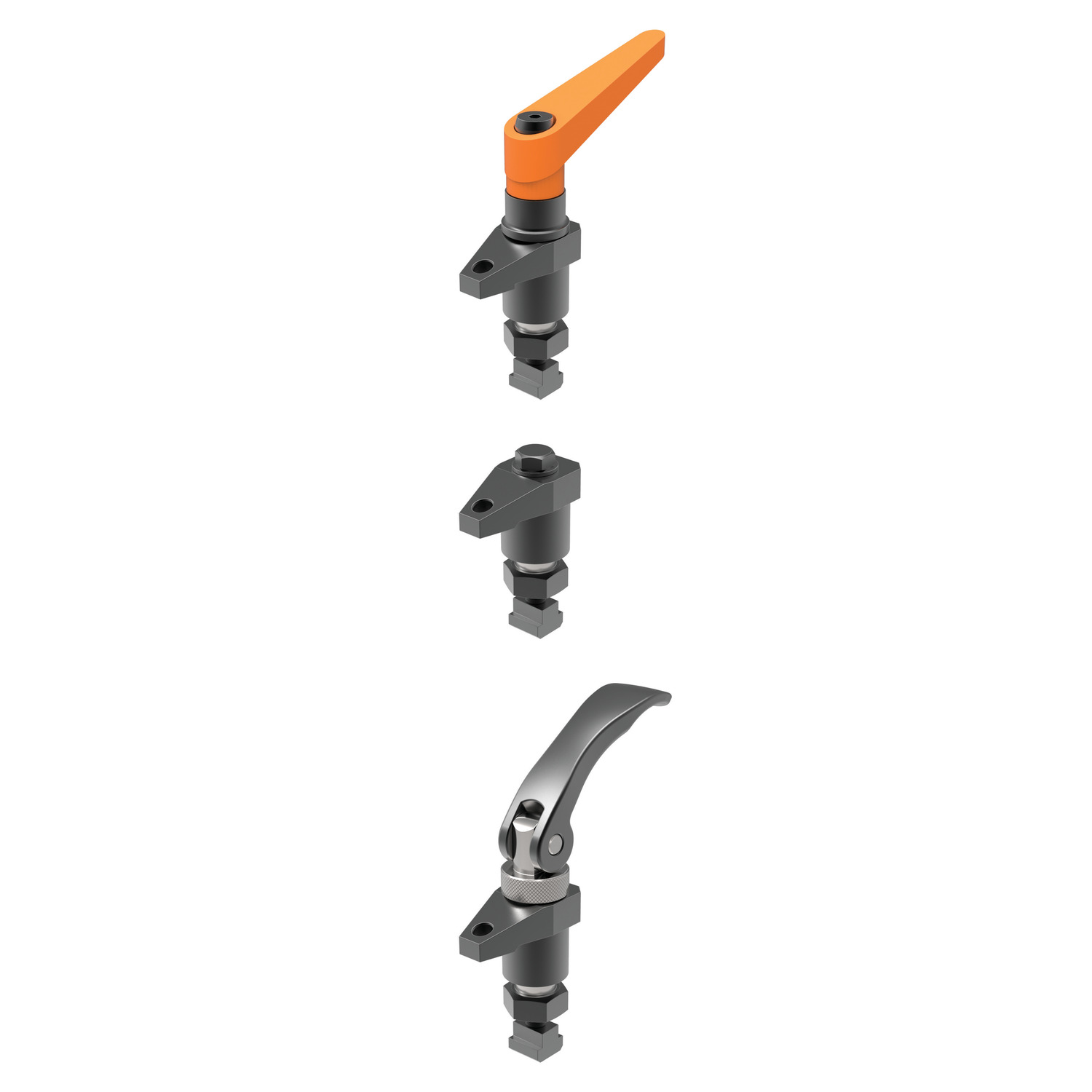

12601 Miniature Down Thrust Clamps
swivelling, material: Case Hardened steel
Order No.
12601.W0026
Type
with ecc. clamping lever
Clamping height h1
max.
35
Clamping height h1
min.
30
Stroke
5
d1
25
d2
M8
w1
26
w2
10
h2
min.
44
h2
max.
49
h3
10
h4
35.0
h5
20.5
l1
49.5
l2
35
l3
28
l4
82
Weight
g
340
£ 240.95 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 240.95 | 0% |
| 3-4 | £ 216.86 | 10% |
| 5-9 | £ 204.81 | 15% |
| 10-19 | £ 192.76 | 20% |
| 20+ | £ 180.71 | 25% |
Technical & Application
Material
Steel case-hardened, blackened and ground.
Technical Notes
Ideally suited for clamping small components. The 10mm wide nose allows a very small clamping footprint. For suitable self-aligning pads (if required) see no. 34100.
Tips
T-nuts can be supplied in any M8 sizes, see no. 24000.
