Floating Clamps
clamping and locking

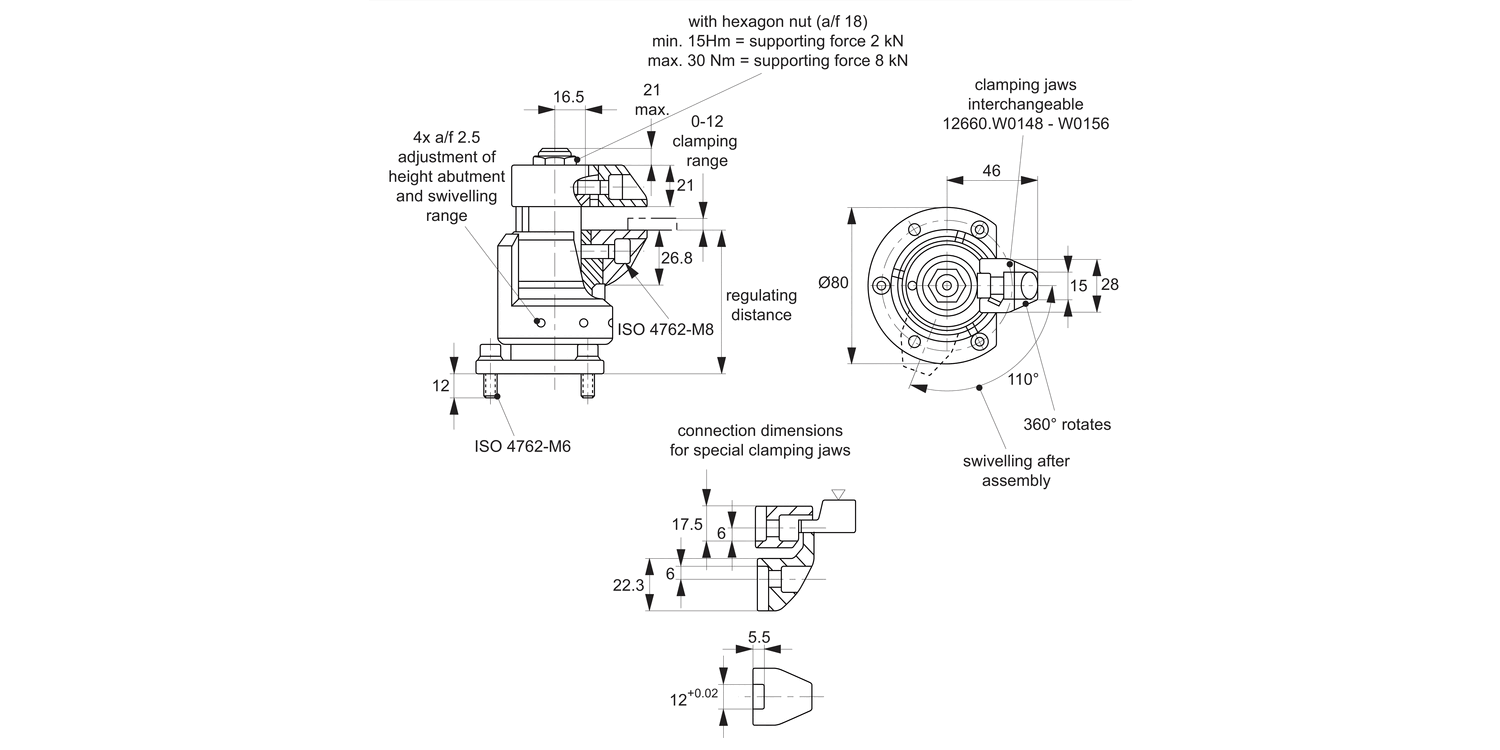

12661 Floating Clamps - Compact
combined clamping and locking, material: Case Hardened steel
Alternative products you may wish to consider
Description
Clamping & Support
Clamping & support force
max.
kN
8
Clamping stroke
0-12
Weight
g
1450
Description
Clamping & support force
max.
kN
Clamping stroke
Weight
g
| Price & Availability | Article | Description | Clamping & support force max. kN | Clamping stroke | Weight g | ||||||
| 12661.W0008 | Clamping & Support | 8 | 0-12 | 1450 | |||||||
Ready to despatch 0 Need more? Please call us.
Description Clamping & Support Clamping & support force
max.
kN 8 Clamping stroke 0-12 Weight
g 1450 | |||||||||||
Technical & Application
Material
Body: case hardened steel, nitrided, manganese phosphate treated and ground.
Clamping jaws: case hardened steel, nitrided, manganese phosphate treated.
Housing: aluminium, red anodised.
Technical Notes
Used to clamp and support additional clamping points on components, whilst minimising distortion in the clamping of components. It also serves to reduce vibration during machining.
Tips
The benefits of the floating clamp are:
- avoids vibration during the processing
- clamps ribs, beads and shackles to reinforce clamped components
- distortion-free clamping of raw parts.
Compact version with reduced height.
Used with:
24000 T-Nuts
12660 Clamp Jaws - upper & lower
