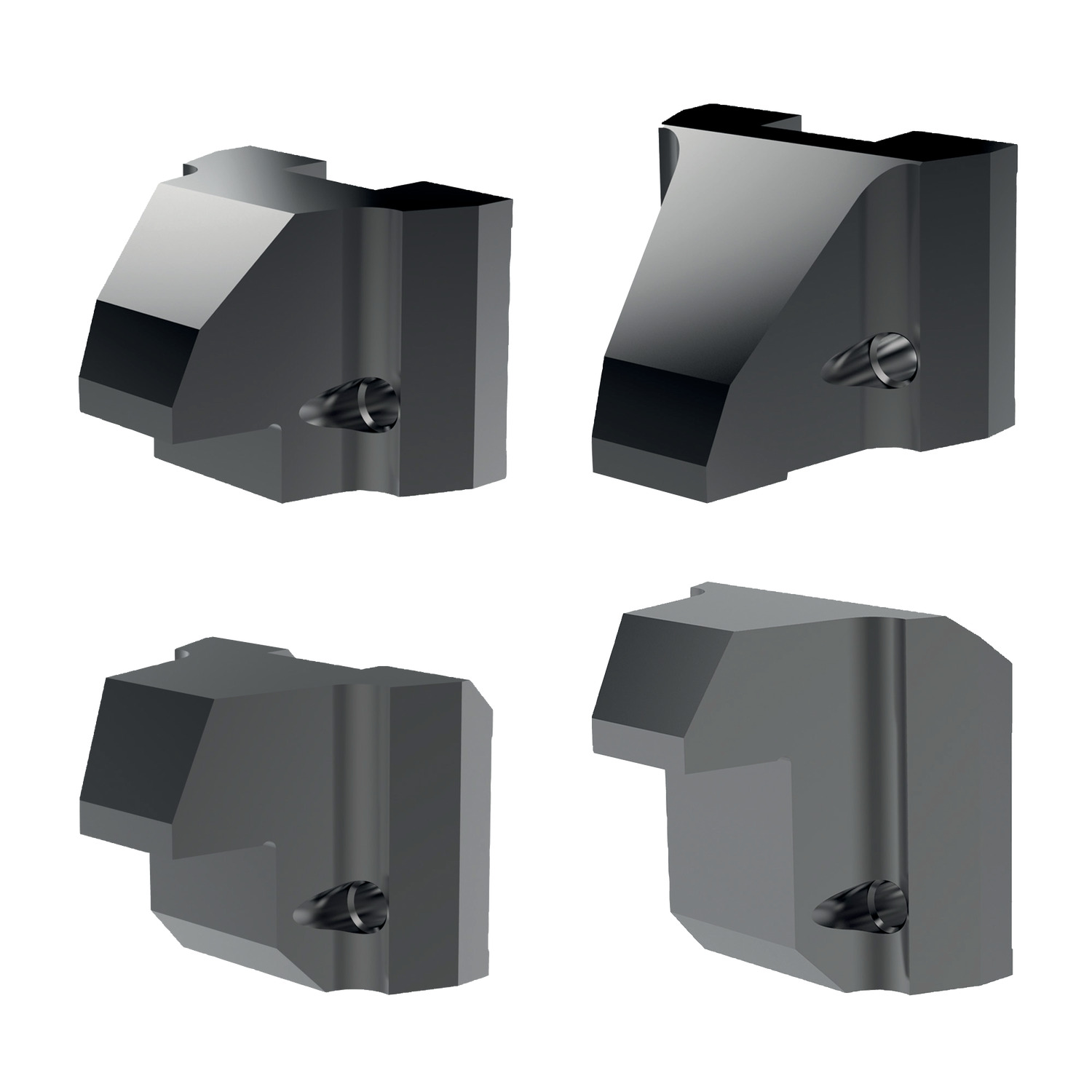

12664.2 Clamping Jaws M16

for floating clamp, material: Steel

Download product datasheet

Alternative products you may wish to consider

Floating Clamps
clamping and locking

Compact Floating
Clamps M12

Jaws for Floating Clamps
M12

Clamping Jaws
floating clamp M12

Floating Clamps
combi. clamping and locking

Floating Clamps
clamping and locking

Compact Floating Clamps
separate clamping and locking

Floating Clamps - compact
separate clamping and locking

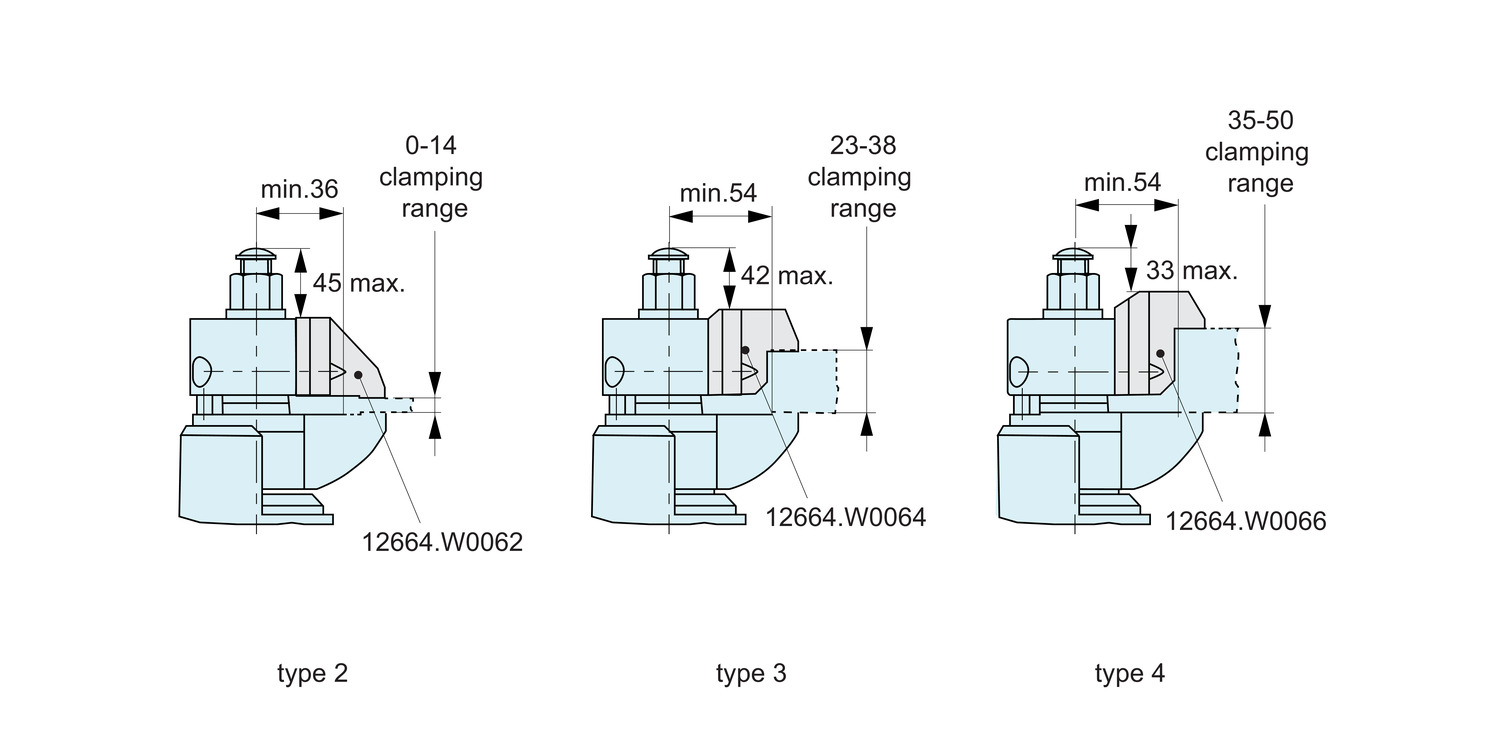

Floating Clamps M16
clamping and locking

Clamping Jaws
for floating clamp

Clamping Jaws M16 - 10-25 -29

12664.W0060

Type

1

Clamping range

10-25

h₁

29.0

h₂

40

h₃

33.3

h₄

27.6

Weight g

402

£ 161.02 per unit (click for quantity discounts)

Clamping Jaws M16 - 0-14 - 41

12664.W0062

Type

2

Clamping range

0-14

h₁

41.0

h₂

40

h₃

33.3

h₄

27.6

Weight g

380

£ 260.47 per unit (click for quantity discounts)

Clamping Jaws M16 - 23-28 - 21,6

12664.W0064

Type

3

Clamping range

23-28

h₁

21.6

h₂

45

h₃

38.3

h₄

32.6

Weight g

435

£ 260.47 per unit (click for quantity discounts)

Clamping Jaws M16 - 35-50 - 18,6

12664.W0066

Type

4

Clamping range

35-50

h₁

18.6

h₂

54

h₃

47.3

h₄

41.6

Weight g

490

£ 267.54 per unit (click for quantity discounts)

Clamping Jaws M16 - 10-25 -29

12664.W0060

Type

1

Clamping range

10-25

h₁

29.0

h₂

40

h₃

33.3

h₄

27.6

Weight g

402

£ 161.02 per unit (click for quantity discounts)

Clamping Jaws M16 - 0-14 - 41

12664.W0062

Type

2

Clamping range

0-14

h₁

41.0

h₂

40

h₃

33.3

h₄

27.6

Weight g

380

£ 260.47 per unit (click for quantity discounts)

Clamping Jaws M16 - 23-28 - 21,6

12664.W0064

Type

3

Clamping range

23-28

h₁

21.6

h₂

45

h₃

38.3

h₄

32.6

Weight g

435

£ 260.47 per unit (click for quantity discounts)

Clamping Jaws M16 - 35-50 - 18,6

12664.W0066

Type

4

Clamping range

35-50

h₁

18.6

h₂

54

h₃

47.3

h₄

41.6

Weight g

490

£ 267.54 per unit (click for quantity discounts)



Select all

Type

Clamping range

h₁

h₂

h₃

h₄

Weight g

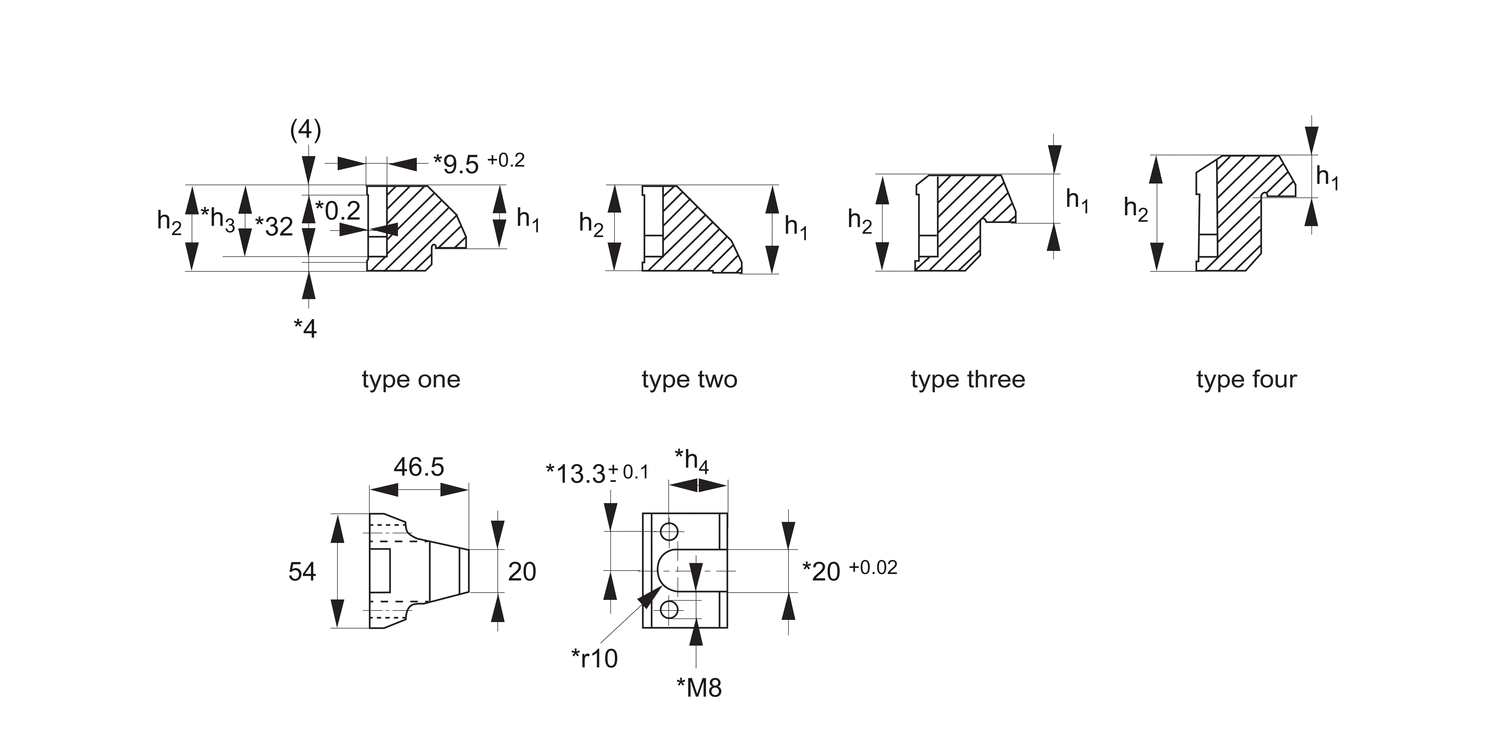

Price & Availability	Article	Type	Clamping range	h1	h2	h3	h4	Weight g
	12664.W0060	1	10-25	29.0	40	33.3	27.6	402
£ 161.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 161.02 0% 10-19 £ 144.92 10% 20-49 £ 136.87 15% 50-99 £ 128.82 20% 100+ £ 112.71 30% Type 1 Clamping range 10-25 h1 29.0 h2 40 h3 33.3 h4 27.6 Weight g 402 more info »
	12664.W0062	2	0-14	41.0	40	33.3	27.6	380
£ 260.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 260.47 0% 10-19 £ 234.42 10% 20-49 £ 221.40 15% 50-99 £ 208.38 20% 100+ £ 182.33 30% Type 2 Clamping range 0-14 h1 41.0 h2 40 h3 33.3 h4 27.6 Weight g 380 more info »
	12664.W0064	3	23-28	21.6	45	38.3	32.6	435
£ 260.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 260.47 0% 10-19 £ 234.42 10% 20-49 £ 221.40 15% 50-99 £ 208.38 20% 100+ £ 182.33 30% Type 3 Clamping range 23-28 h1 21.6 h2 45 h3 38.3 h4 32.6 Weight g 435 more info »
	12664.W0066	4	35-50	18.6	54	47.3	41.6	490
£ 267.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 267.54 0% 10-19 £ 240.79 10% 20-49 £ 227.41 15% 50-99 £ 214.03 20% 100+ £ 187.28 30% Type 4 Clamping range 35-50 h1 18.6 h2 54 h3 47.3 h4 41.6 Weight g 490 more info »
