Toggle Clamps
heavy duty - horizontal

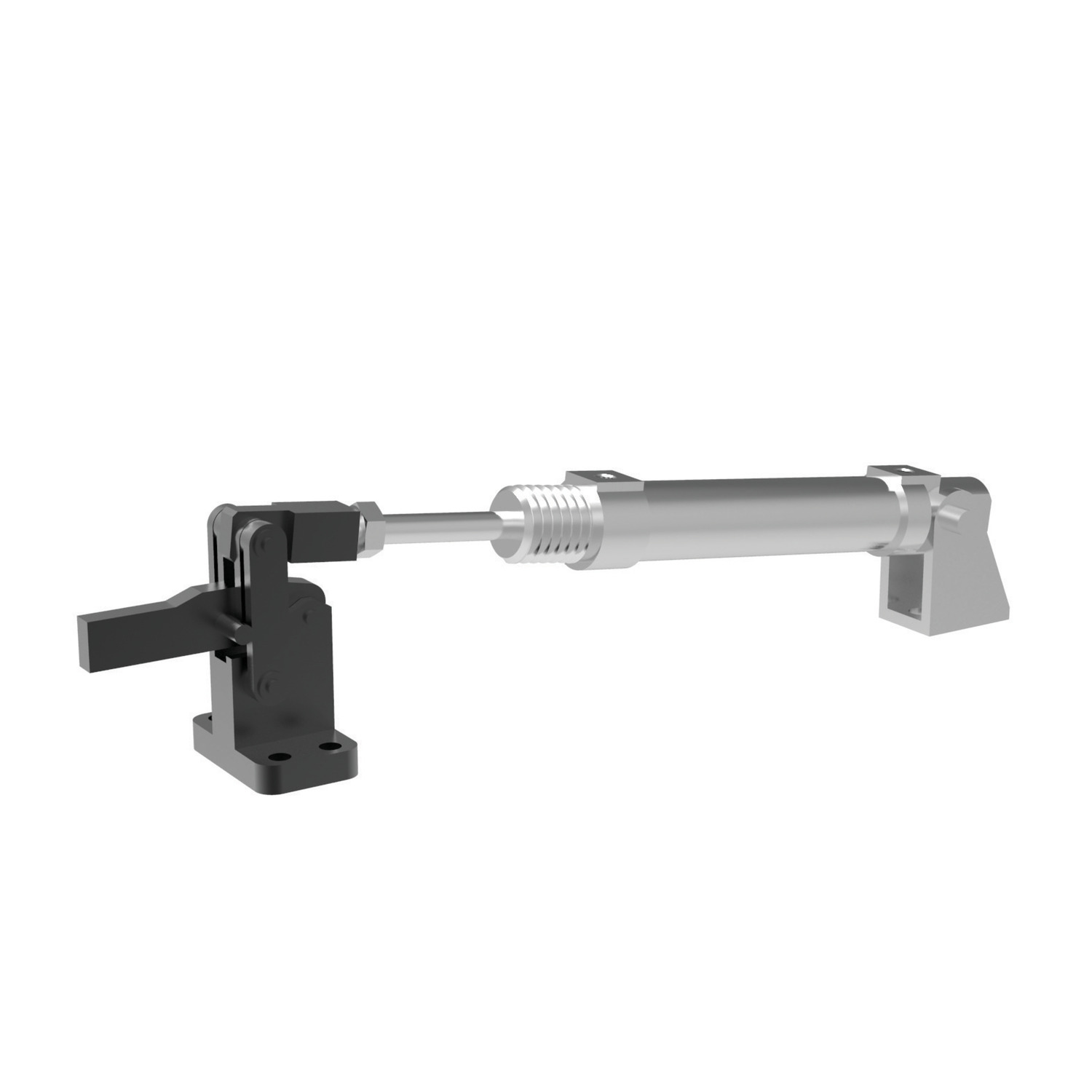

47480 Pneumatic Toggle Clamps
heavy duty - horizontal, material: Steel
Alternative products you may wish to consider

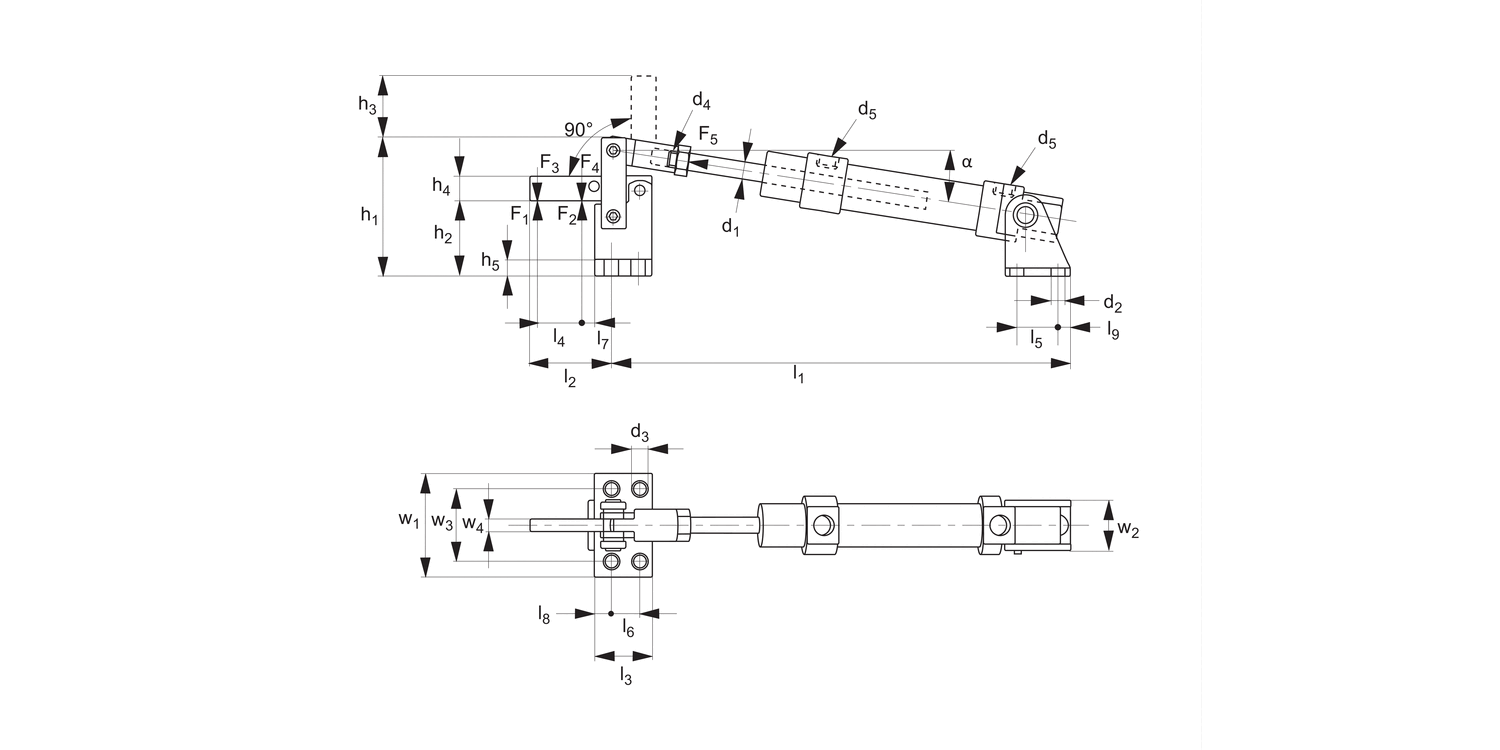

Size
F1
kN
F2
kN
F3
kN
F4
kN
F5
kN
Piston stroke s1
h1
h2
h3
h4
h5
l1
l2
l3
l4
| Price & Availability | Article | Size | F1 kN | F2 kN | F3 kN | F4 kN | F5 kN | Piston stroke s1 | h1 | h2 | h3 | h4 | h5 | l1 | l2 | l3 | l4 | |||||||||||||||
| 47480.W0000 | 0 | 0.6 | 1.0 | 0.2 | 0.4 | 0.1 | 40 | 53 | 26 | 23 | 10 | 6 | 195 | 34 | 22 | 14 | ||||||||||||||||
£ 424.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 0 F1
kN 0.6 F2
kN 1.0 F3
kN 0.2 F4
kN 0.4 F5
kN 0.1 Piston stroke s1 40 h1 53 h2 26 h3 23 h4 10 h5 6 l1 195 l2 34 l3 22 l4 14 | ||||||||||||||||||||||||||||||||
| 47480.W0001 | 1 | 0.8 | 1.2 | 0.6 | 0.8 | 0.2 | 40 | 68 | 37 | 28 | 12 | 8 | 238 | 41 | 28 | 17 | ||||||||||||||||
£ 639.28 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 1 F1
kN 0.8 F2
kN 1.2 F3
kN 0.6 F4
kN 0.8 F5
kN 0.2 Piston stroke s1 40 h1 68 h2 37 h3 28 h4 12 h5 8 l1 238 l2 41 l3 28 l4 17 | ||||||||||||||||||||||||||||||||
Weight
g
l5
l6
l7
l8
l9
w1
w2
w3
w4
d1
d2
d3
d4
d5
Piston dia.
Vn dm3
α
| Price & Availability | Article | Weight g | l5 | l6 | l7 | l8 | l9 | w1 | w2 | w3 | w4 | d1 | d2 | d3 | d4 | d5 | Piston dia. | Vn dm3 | α | |||||||||||||||
| 47480.W0000 | 260 | 15 | 11 | 7 | 5.5 | 5 | 35 | 27 | 27.5 | 5 | 6 | 5.5 | 4.5 | M 6 | M 5 | 16 | 0.1 | 6,6° | ||||||||||||||||
£ 424.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 260 l5 15 l6 11 l7 7 l8 5.5 l9 5 w1 35 w2 27 w3 27.5 w4 5 d1 6 d2 5.5 d3 4.5 d4 M 6 d5 M 5 Piston dia. 16 Vn dm3 0.1 α 6,6° | ||||||||||||||||||||||||||||||||||
| 47480.W0001 | 500 | 20 | 14 | 9 | 8.0 | 6 | 50 | 35 | 34.0 | 6 | 8 | 6.5 | 7.0 | M 8 | G1/8 | 20 | 0.2 | 9,0° | ||||||||||||||||
£ 639.28 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 500 l5 20 l6 14 l7 9 l8 8.0 l9 6 w1 50 w2 35 w3 34.0 w4 6 d1 8 d2 6.5 d3 7.0 d4 M 8 d5 G1/8 Piston dia. 20 Vn dm3 0.2 α 9,0° | ||||||||||||||||||||||||||||||||||
Technical & Application
Material
Tempered steel, blued.
The axle bolts run in bronze bushes and are tempered, ground and locked with circlips.
Technical Notes
Clamp ready for installation and consists of:
- heavy duty vertical toggle clamp no. 46100
- FESTO-pneumatic cylinder, double acting.
- Bearing block.
F3 and F4 = max. clamping force at 6 bar.
*Vn = air consumption per double stroke in dm3 at 6 bar.
Cylinders are to DIN ISO 6432.
Tips
Ideal for installation in material handling lines and special purpose machines.
Opening and closing of clamp can be controlled electronically, allowing integration into automated processes.
See also no. 46100 (not found) - clamp only.
Important Notes
Magnetic piston for end-position sensoring.
Please order proximity switch separately from FESTO, see table for details.
