10100 Forked Clamps

Name: 10100.W0015
Brand: WC
SKU: 10100.W0015
Price: 23.51 EUR
Availability: OutOfStock

material: Heat treated steel

Article properties

Order No.

10100.W0015

For bolt

M12, M14

For bolt inch

1/2"

l₁

160

w₁

w₂

14.0

w₃

h₁

h₂

Weight g

730

See full product selection

£ 23.51 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 23.51	0%
5-14	£ 21.16	10%
15-24	£ 19.98	15%
25+	£ 18.81	20%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel, heat-treated and enamelled.

Technical Notes

To DIN 6315B.
( )= Not to DIN standard.

Tips

Used with:
26000 clamp support, 21000 T-slot bolts, 24000 T-nuts, 24400 collar nuts,
25000 plain washer.

Product Datasheets

10100 Forked ClampsJune 24, 2025, 3:52 PM / 471.51 kB

Standard Over ClampsJune 24, 2025, 3:30 PM / 1.30 MB

Standard Manual ClampingJune 24, 2025, 3:31 PM / 4.00 MB

Manual Clamping & Height SettingJune 24, 2025, 3:32 PM / 31.08 MB

Work HoldingJune 24, 2025, 3:33 PM / 61.81 MB

CAD files

10100 AcisApril 17, 2024, 9:02 AM / 82.14 kB

10100 IGESApril 17, 2024, 9:02 AM / 224.65 kB

10100 ParasolidApril 17, 2024, 9:02 AM / 114.43 kB

10100 ProEApril 17, 2024, 9:02 AM / 462.92 kB

10100 SolidWorksApril 17, 2024, 9:02 AM / 3.41 MB

10100 StepApril 17, 2024, 9:02 AM / 134.93 kB

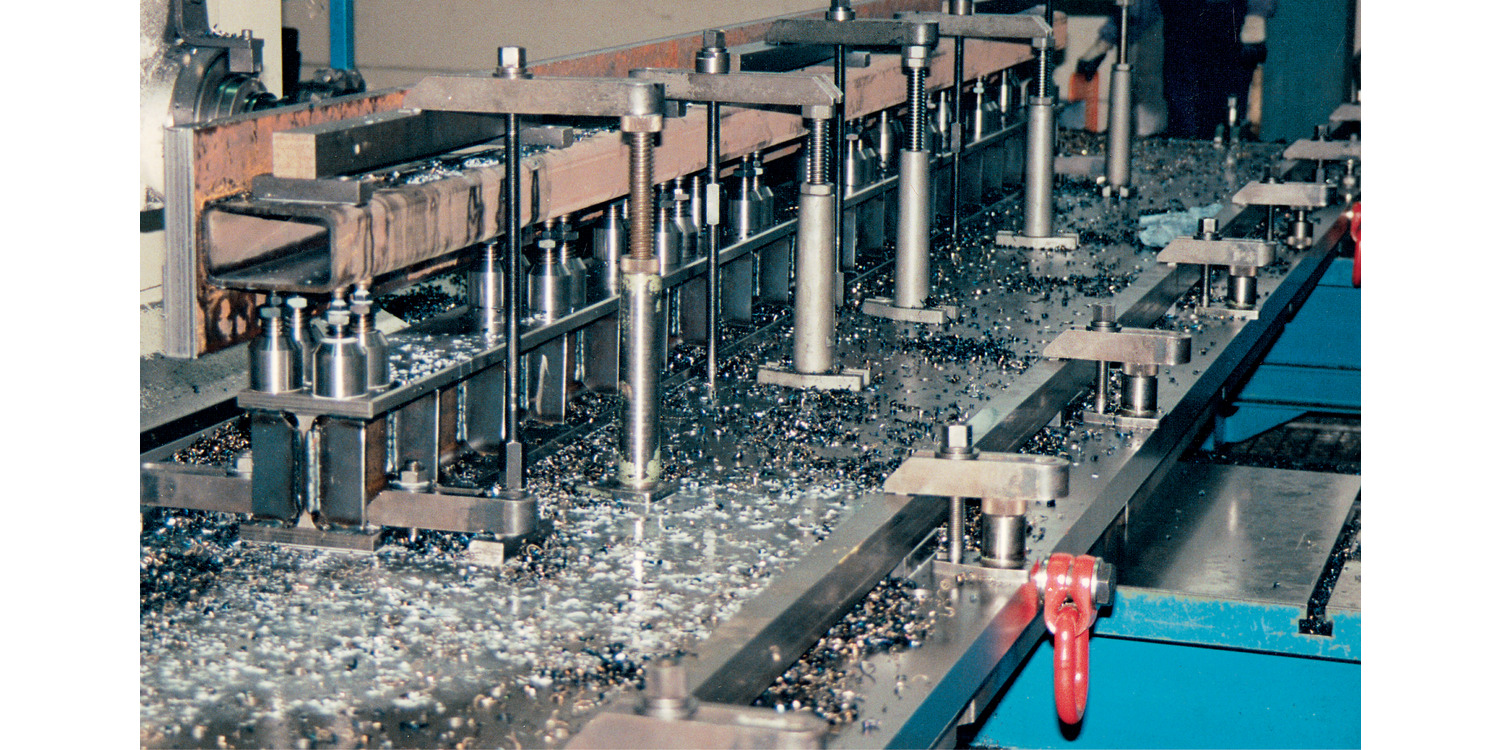

Application images
