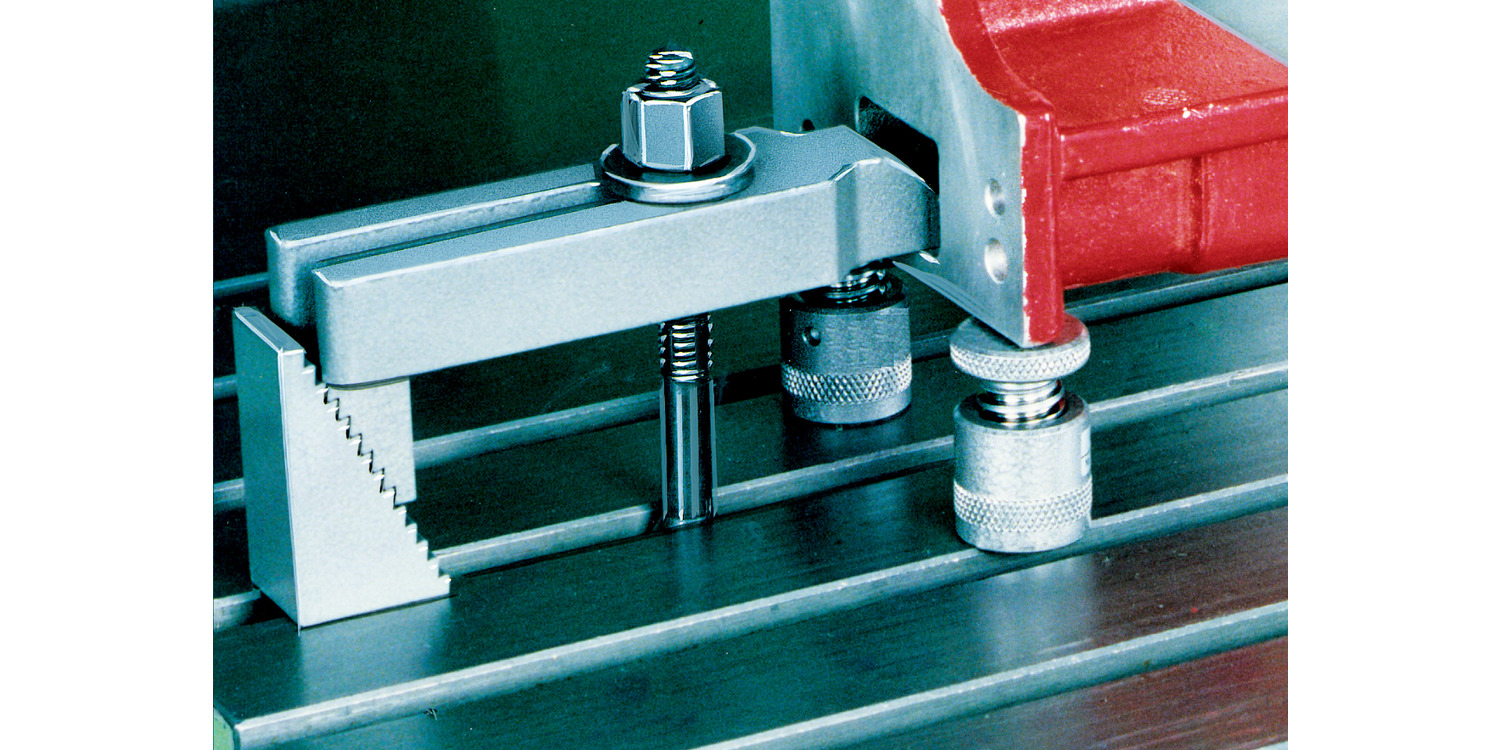

10140 Forked Clamps

with shoe, material: Tempered steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Plain Clamps

Step Clamps

Forked Clamps

Forked Clamps
with pin end

Forked Clamps
with shoe

Narrow Nose Clamps

Finger Clamps

Goose-Neck Clamps

Stepped Clamps
long slot

Double Goose Neck

Stepped Clamp
with adjusting support screw

Stepped Clamp
with adjusting support screw

Plain Clamps
with self-aligning support

Straight Clamps

Straight Clamp
long slot

Clamp With Stop Pin

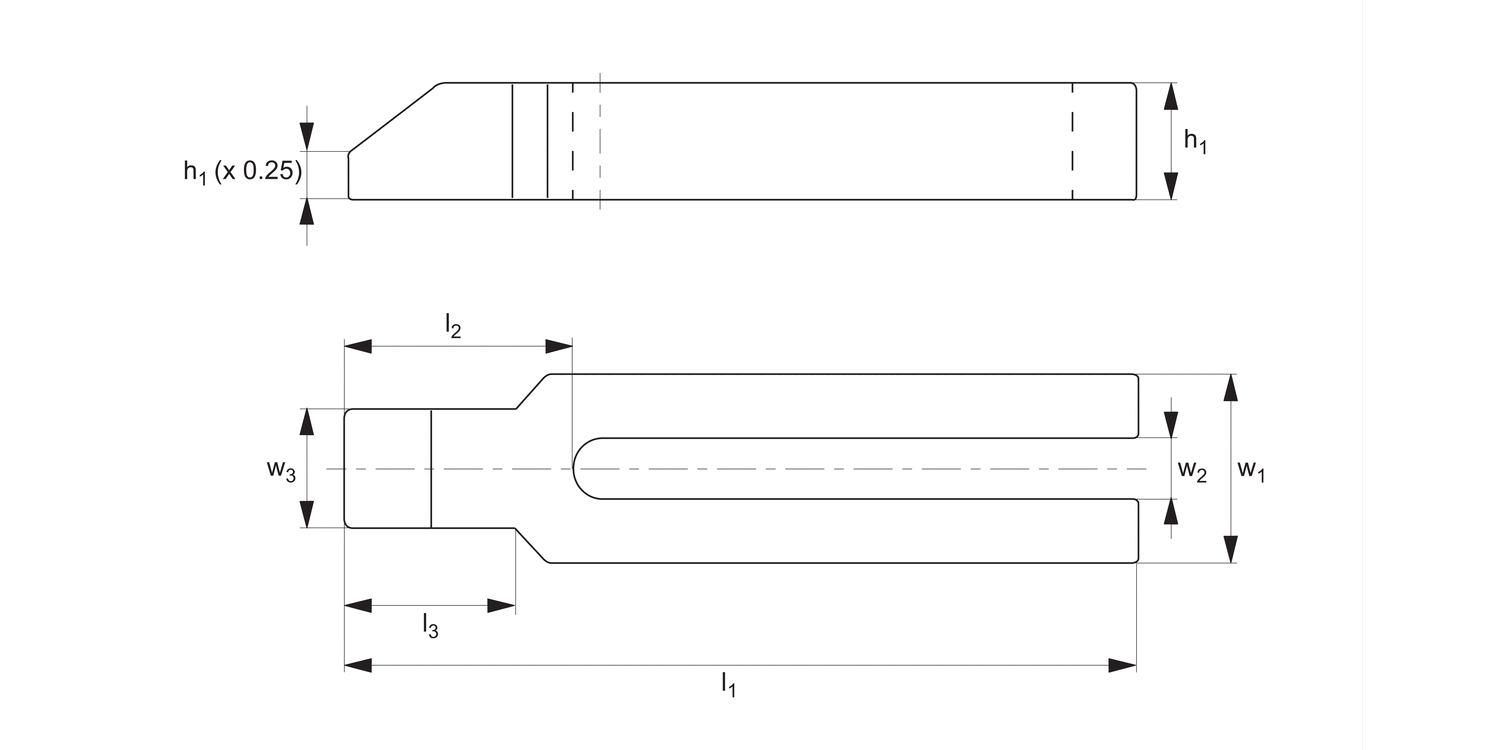

Forked Clamps - Tempered Steel 9 - 100 - M 8 - 5/16

10140.W0009

For bolt

M 8

For bolt inch

5/16"

l₁

100

l₂

32

l₃

18

w₁

30

w₂

9

w₃

16

h₁

15

Weight g

240

£ 44.38 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 11 - 125 - M10 - 3/8

10140.W0011

For bolt

M10

For bolt inch

3/8"

l₁

125

l₂

38

l₃

24

w₁

30

w₂

11

w₃

20

h₁

20

Weight g

380

£ 56.09 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 14 - 160 - M12, M14 - 1/2

10140.W0014

For bolt

M12, M14

For bolt inch

1/2"

l₁

160

l₂

47

l₃

30

w₁

40

w₂

14

w₃

24

h₁

25

Weight g

800

£ 44.69 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 14 - 200 - M12, M14 - 1/2

10140.W0015

For bolt

M12, M14

For bolt inch

1/2"

l₁

200

l₂

47

l₃

30

w₁

40

w₂

14

w₃

24

h₁

25

Weight g

950

£ 52.58 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 18 - 200 - M16, M18 - 5/8

10140.W0018

For bolt

M16, M18

For bolt inch

5/8"

l₁

200

l₂

57

l₃

36

w₁

50

w₂

18

w₃

28

h₁

30

Weight g

1500

£ 59.69 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 18 - 250 - M16, M18 - 5/8

10140.W0019

For bolt

M16, M18

For bolt inch

5/8"

l₁

250

l₂

57

l₃

36

w₁

50

w₂

18

w₃

28

h₁

30

Weight g

1850

£ 75.17 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 22 - 250 - M20, M22 - 3/4

10140.W0022

For bolt

M20, M22

For bolt inch

3/4"

l₁

250

l₂

68

l₃

45

w₁

60

w₂

22

w₃

35

h₁

40

Weight g

2900

£ 108.61 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 22 - 315 - M20, M22 - 3/4

10140.W0023

For bolt

M20, M22

For bolt inch

3/4"

l₁

315

l₂

68

l₃

45

w₁

60

w₂

22

w₃

35

h₁

40

Weight g

3600

£ 133.62 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 26 - 250 - M24 - 1

10140.W0026

For bolt

M24

For bolt inch

1"

l₁

250

l₂

83

l₃

56

w₁

70

w₂

26

w₃

43

h₁

40

Weight g

3400

£ 116.42 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 26 - 315 - M24 - 1

10140.W0027

For bolt

M24

For bolt inch

1"

l₁

315

l₂

83

l₃

56

w₁

70

w₂

26

w₃

43

h₁

40

Weight g

4300

£ 133.62 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 33 - 315 - M30 - 1-1/4

10140.W0034

For bolt

M30

For bolt inch

1-1/4"

l₁

315

l₂

88

l₃

56

w₁

80

w₂

33

w₃

50

h₁

50

Weight g

6000

£ 226.58 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 33 - 400 - M30 - 1-1/4

10140.W0035

For bolt

M30

For bolt inch

1-1/4"

l₁

400

l₂

88

l₃

56

w₁

80

w₂

33

w₃

50

h₁

50

Weight g

7300

£ 261.72 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 9 - 100 - M 8 - 5/16

10140.W0009

For bolt

M 8

For bolt inch

5/16"

l₁

100

l₂

32

l₃

18

w₁

30

w₂

9

w₃

16

h₁

15

Weight g

240

£ 44.38 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 11 - 125 - M10 - 3/8

10140.W0011

For bolt

M10

For bolt inch

3/8"

l₁

125

l₂

38

l₃

24

w₁

30

w₂

11

w₃

20

h₁

20

Weight g

380

£ 56.09 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 14 - 160 - M12, M14 - 1/2

10140.W0014

For bolt

M12, M14

For bolt inch

1/2"

l₁

160

l₂

47

l₃

30

w₁

40

w₂

14

w₃

24

h₁

25

Weight g

800

£ 44.69 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 14 - 200 - M12, M14 - 1/2

10140.W0015

For bolt

M12, M14

For bolt inch

1/2"

l₁

200

l₂

47

l₃

30

w₁

40

w₂

14

w₃

24

h₁

25

Weight g

950

£ 52.58 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 18 - 200 - M16, M18 - 5/8

10140.W0018

For bolt

M16, M18

For bolt inch

5/8"

l₁

200

l₂

57

l₃

36

w₁

50

w₂

18

w₃

28

h₁

30

Weight g

1500

£ 59.69 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 18 - 250 - M16, M18 - 5/8

10140.W0019

For bolt

M16, M18

For bolt inch

5/8"

l₁

250

l₂

57

l₃

36

w₁

50

w₂

18

w₃

28

h₁

30

Weight g

1850

£ 75.17 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 22 - 250 - M20, M22 - 3/4

10140.W0022

For bolt

M20, M22

For bolt inch

3/4"

l₁

250

l₂

68

l₃

45

w₁

60

w₂

22

w₃

35

h₁

40

Weight g

2900

£ 108.61 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 22 - 315 - M20, M22 - 3/4

10140.W0023

For bolt

M20, M22

For bolt inch

3/4"

l₁

315

l₂

68

l₃

45

w₁

60

w₂

22

w₃

35

h₁

40

Weight g

3600

£ 133.62 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 26 - 250 - M24 - 1

10140.W0026

For bolt

M24

For bolt inch

1"

l₁

250

l₂

83

l₃

56

w₁

70

w₂

26

w₃

43

h₁

40

Weight g

3400

£ 116.42 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 26 - 315 - M24 - 1

10140.W0027

For bolt

M24

For bolt inch

1"

l₁

315

l₂

83

l₃

56

w₁

70

w₂

26

w₃

43

h₁

40

Weight g

4300

£ 133.62 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 33 - 315 - M30 - 1-1/4

10140.W0034

For bolt

M30

For bolt inch

1-1/4"

l₁

315

l₂

88

l₃

56

w₁

80

w₂

33

w₃

50

h₁

50

Weight g

6000

£ 226.58 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 33 - 400 - M30 - 1-1/4

10140.W0035

For bolt

M30

For bolt inch

1-1/4"

l₁

400

l₂

88

l₃

56

w₁

80

w₂

33

w₃

50

h₁

50

Weight g

7300

£ 261.72 per unit (click for quantity discounts)



Select all

For bolt

For bolt inch

l₁

l₂

l₃

w₁

w₂

w₃

h₁

Weight g

Price & Availability	Article	For bolt	For bolt inch	l1	l2	l3	w1	w2	w3	h1	Weight g
	10140.W0009	M 8	5/16"	100	32	18	30	9	16	15	240
£ 44.38 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 44.38 0% 5-14 £ 39.94 10% 15-24 £ 37.72 15% 25+ £ 35.50 20% For bolt M 8 For bolt inch 5/16" l1 100 l2 32 l3 18 w1 30 w2 9 w3 16 h1 15 Weight g 240 more info »
	10140.W0011	M10	3/8"	125	38	24	30	11	20	20	380
£ 56.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 56.09 0% 5-14 £ 50.48 10% 15-24 £ 47.68 15% 25+ £ 44.87 20% For bolt M10 For bolt inch 3/8" l1 125 l2 38 l3 24 w1 30 w2 11 w3 20 h1 20 Weight g 380 more info »
	10140.W0014	M12, M14	1/2"	160	47	30	40	14	24	25	800
£ 44.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 44.69 0% 5-14 £ 40.22 10% 15-24 £ 37.99 15% 25+ £ 35.75 20% For bolt M12, M14 For bolt inch 1/2" l1 160 l2 47 l3 30 w1 40 w2 14 w3 24 h1 25 Weight g 800 more info »
	10140.W0015	M12, M14	1/2"	200	47	30	40	14	24	25	950
£ 52.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 52.58 0% 5-14 £ 47.32 10% 15-24 £ 44.69 15% 25+ £ 42.06 20% For bolt M12, M14 For bolt inch 1/2" l1 200 l2 47 l3 30 w1 40 w2 14 w3 24 h1 25 Weight g 950 more info »
	10140.W0018	M16, M18	5/8"	200	57	36	50	18	28	30	1500
£ 59.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 59.69 0% 5-14 £ 53.72 10% 15-24 £ 50.74 15% 25+ £ 47.75 20% For bolt M16, M18 For bolt inch 5/8" l1 200 l2 57 l3 36 w1 50 w2 18 w3 28 h1 30 Weight g 1500 more info »
	10140.W0019	M16, M18	5/8"	250	57	36	50	18	28	30	1850
£ 75.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 75.17 0% 5-14 £ 67.65 10% 15-24 £ 63.89 15% 25+ £ 60.14 20% For bolt M16, M18 For bolt inch 5/8" l1 250 l2 57 l3 36 w1 50 w2 18 w3 28 h1 30 Weight g 1850 more info »
	10140.W0022	M20, M22	3/4"	250	68	45	60	22	35	40	2900
£ 108.61 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 108.61 0% 5-14 £ 97.75 10% 15-24 £ 92.32 15% 25+ £ 86.89 20% For bolt M20, M22 For bolt inch 3/4" l1 250 l2 68 l3 45 w1 60 w2 22 w3 35 h1 40 Weight g 2900 more info »
	10140.W0023	M20, M22	3/4"	315	68	45	60	22	35	40	3600
£ 133.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 133.62 0% 5-14 £ 120.26 10% 15-24 £ 113.58 15% 25+ £ 106.90 20% For bolt M20, M22 For bolt inch 3/4" l1 315 l2 68 l3 45 w1 60 w2 22 w3 35 h1 40 Weight g 3600 more info »
	10140.W0026	M24	1"	250	83	56	70	26	43	40	3400
£ 116.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 116.42 0% 5-14 £ 104.78 10% 15-24 £ 98.96 15% 25+ £ 93.14 20% For bolt M24 For bolt inch 1" l1 250 l2 83 l3 56 w1 70 w2 26 w3 43 h1 40 Weight g 3400 more info »
	10140.W0027	M24	1"	315	83	56	70	26	43	40	4300
£ 133.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 133.62 0% 5-14 £ 120.26 10% 15-24 £ 113.58 15% 25+ £ 106.90 20% For bolt M24 For bolt inch 1" l1 315 l2 83 l3 56 w1 70 w2 26 w3 43 h1 40 Weight g 4300 more info »
	10140.W0034	M30	1-1/4"	315	88	56	80	33	50	50	6000
£ 226.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 226.58 0% 5-14 £ 203.92 10% 15-24 £ 192.59 15% 25+ £ 181.26 20% For bolt M30 For bolt inch 1-1/4" l1 315 l2 88 l3 56 w1 80 w2 33 w3 50 h1 50 Weight g 6000 more info »
	10140.W0035	M30	1-1/4"	400	88	56	80	33	50	50	7300
£ 261.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 261.72 0% 5-14 £ 235.55 10% 15-24 £ 222.46 15% 25+ £ 209.38 20% For bolt M30 For bolt inch 1-1/4" l1 400 l2 88 l3 56 w1 80 w2 33 w3 50 h1 50 Weight g 7300 more info »
