Plain Clamps
10164 Finger Clamps
material: Stainless steel
Alternative products you may wish to consider

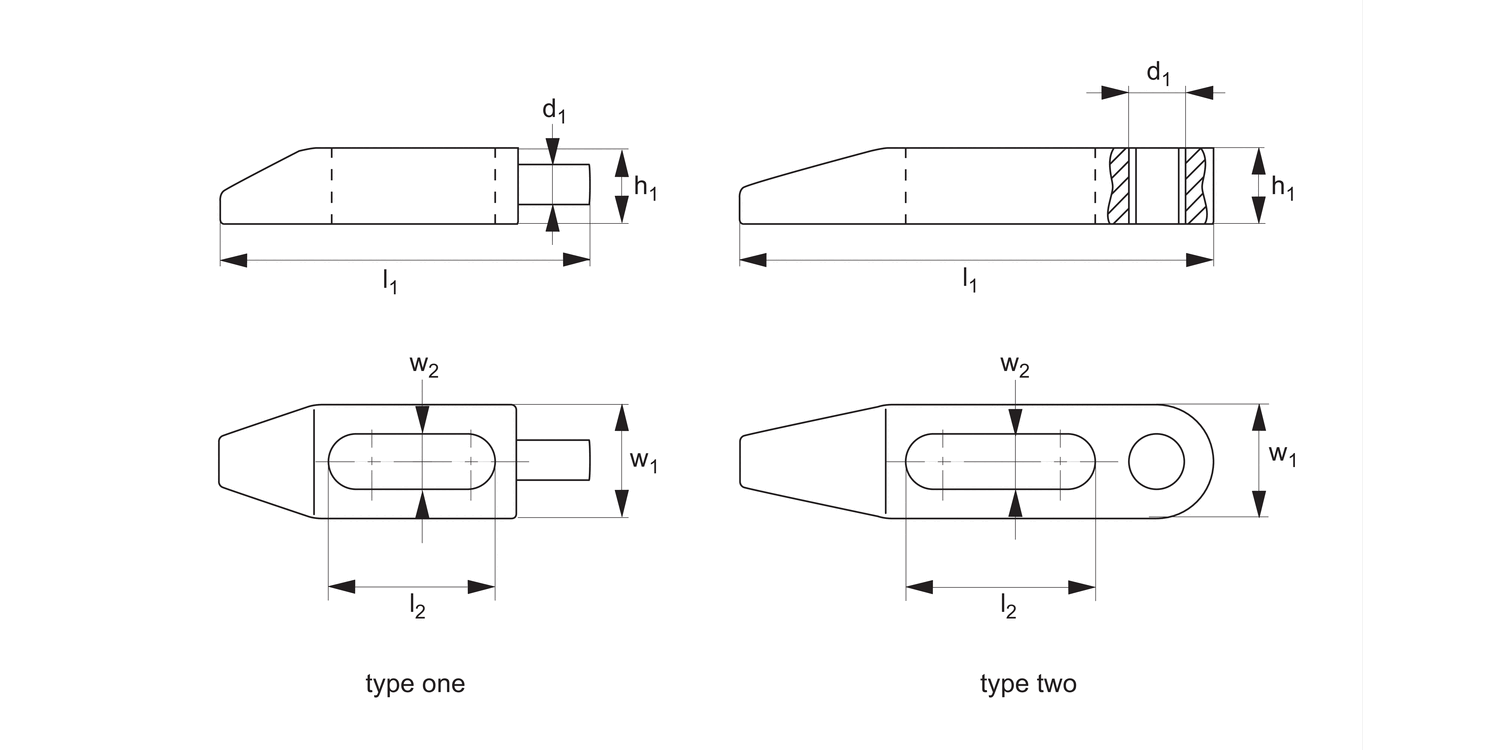

Type
One
Holding force
kN
14.2
l1
92
l2
22.0
w1
22.6
w2
10.4
h1
11
d1
9,5 Ø
Weight
g
150
£ 34.09 per unit (click for quantity discounts)
Type
Two
Holding force
kN
26.7
l1
127
l2
34.5
w1
25.4
w2
13.4
h1
19
d1
M12
Weight
g
340
£ 62.35 per unit (click for quantity discounts)
Type
Two
Holding force
kN
38.2
l1
152
l2
38.1
w1
30.5
w2
16.5
h1
22
d1
M16
Weight
g
600
£ 69.45 per unit (click for quantity discounts)
Type
Two
Holding force
kN
69.8
l1
178
l2
38.1
w1
35.6
w2
19.8
h1
27
d1
M20
Weight
g
1130
£ 80.35 per unit (click for quantity discounts)
Type
Holding force
kN
l1
l2
w1
w2
h1
d1
Weight
g
| Price & Availability | Article | Type | Holding force kN | l1 | l2 | w1 | w2 | h1 | d1 | Weight g | ||||||||||||||||||
| 10164.W0092 | One | 14.2 | 92 | 22.0 | 22.6 | 10.4 | 11 | 9,5 Ø | 150 | |||||||||||||||||||
£ 34.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type One Holding force
kN 14.2 l1 92 l2 22.0 w1 22.6 w2 10.4 h1 11 d1 9,5 Ø Weight
g 150 | ||||||||||||||||||||||||||||
| 10164.W0127 | Two | 26.7 | 127 | 34.5 | 25.4 | 13.4 | 19 | M12 | 340 | |||||||||||||||||||
£ 62.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Two Holding force
kN 26.7 l1 127 l2 34.5 w1 25.4 w2 13.4 h1 19 d1 M12 Weight
g 340 | ||||||||||||||||||||||||||||
| 10164.W0152 | Two | 38.2 | 152 | 38.1 | 30.5 | 16.5 | 22 | M16 | 600 | |||||||||||||||||||
£ 69.45 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Two Holding force
kN 38.2 l1 152 l2 38.1 w1 30.5 w2 16.5 h1 22 d1 M16 Weight
g 600 | ||||||||||||||||||||||||||||
| 10164.W0178 | Two | 69.8 | 178 | 38.1 | 35.6 | 19.8 | 27 | M20 | 1130 | |||||||||||||||||||
£ 80.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Two Holding force
kN 69.8 l1 178 l2 38.1 w1 35.6 w2 19.8 h1 27 d1 M20 Weight
g 1130 | ||||||||||||||||||||||||||||
Technical & Application
Material
Stainless steel (AISI 630,17-4 PH), heat-treated.
Technical Notes
This is a low profile slotted clamp for use in both normal and restricted areas with minimum tooling interference.
Tips
Used with:
21000 T-slot bolts, 24000 T-nuts, 24400 collar nuts, 25000 plain washer.
