Plain Clamps
10200 Goose Neck Clamps
material: Heat treated steel
Order No.
10200.W0043
For bolt
M36, M42
For bolt
inch
1-1/2"- 1-5/8"

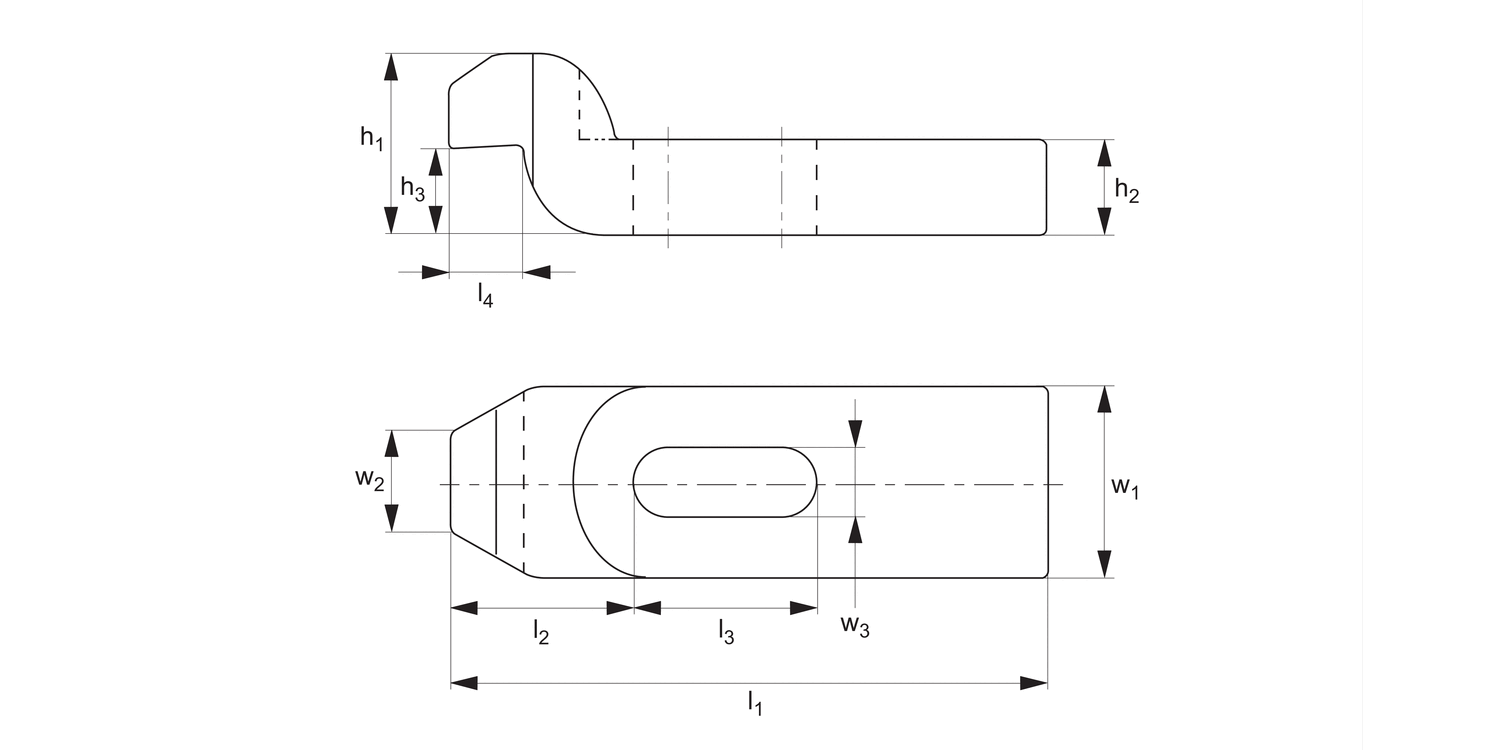

l1
400
l2
105.0
l3
120
l4
50
w1
100
w2
50
w3
(43.0)
h1
120
h2
60
h3
55
Weight
g
17078
£ 693.13 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 693.13 | 0% |
| 5-14 | £ 623.82 | 10% |
| 15-24 | £ 589.16 | 15% |
| 25+ | £ 554.50 | 20% |
Technical & Application
Material
Steel, heat-treated and enamelled.
Technical Notes
To DIN 6316.
( ) = not to DIN standard.
Tips
Used with:
21000 T-slot bolts, 24000 T-nuts, 24400 collar nuts, 25000 plain washer.
Product Datasheets
CAD files

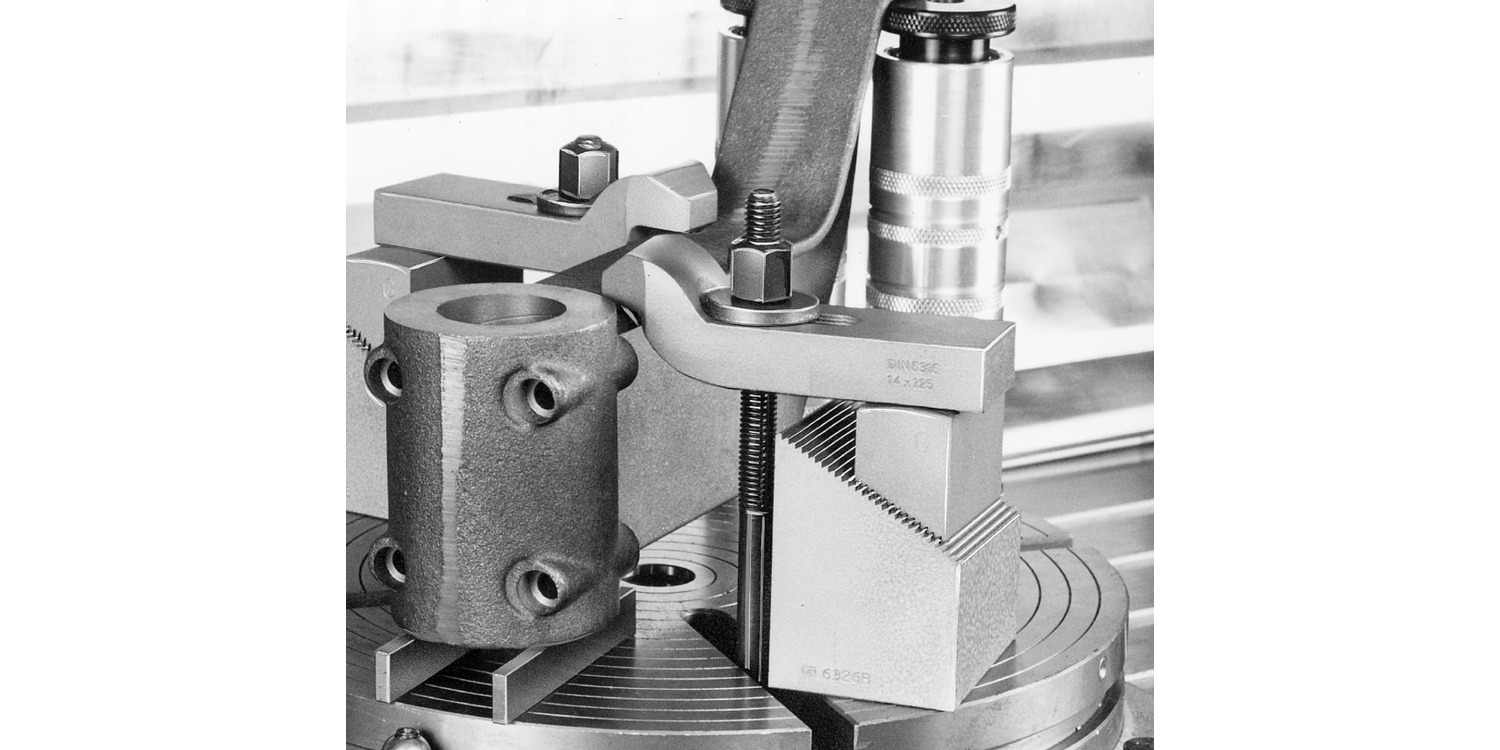

Application images
