Pull-Down Clamps
solid clamping jaws - flat design

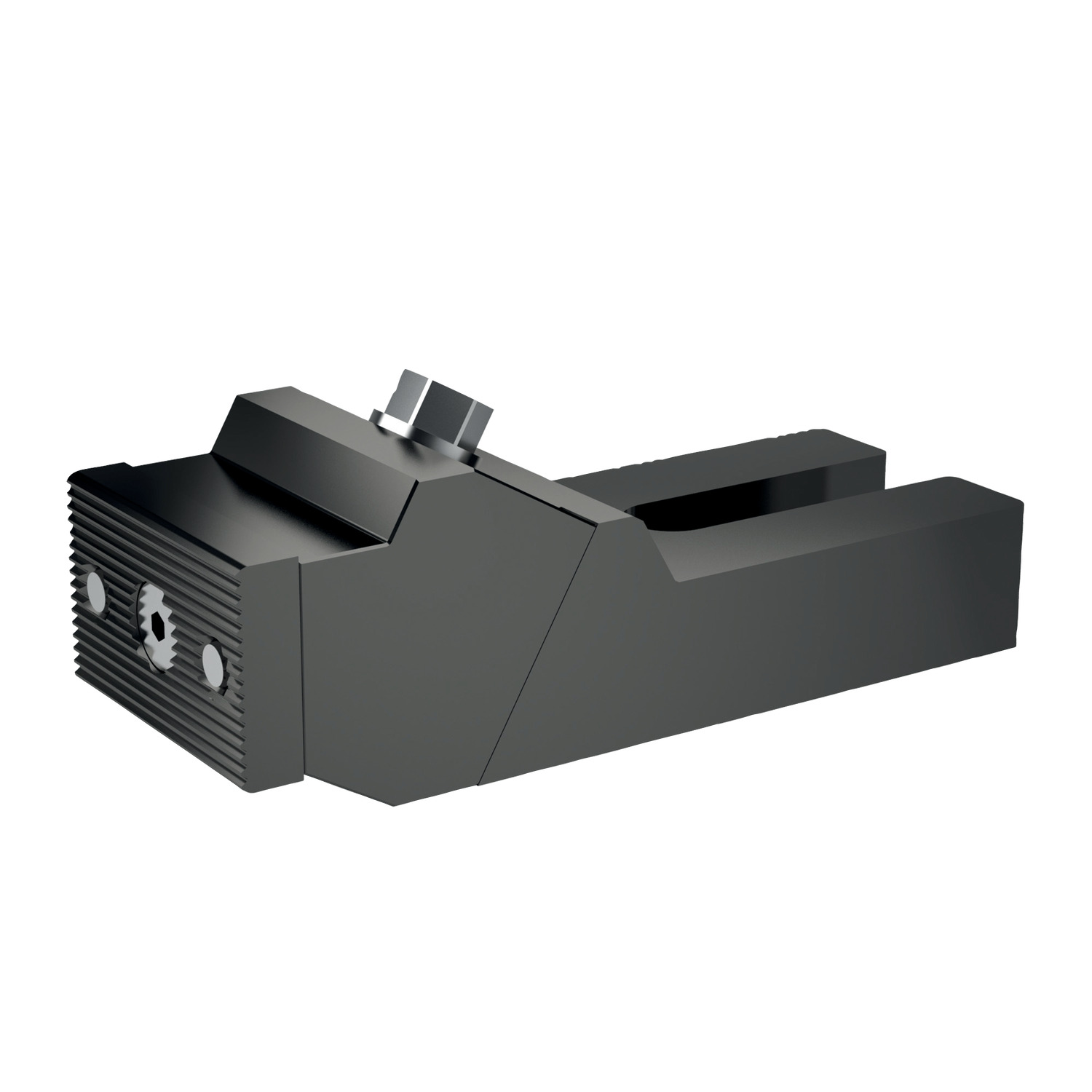

12318 Pull-Down Clamps
solid clamping jaws, material: Steel
Order No.
12318.W0012
For T-slot
12-14
w1
40
w2
13
h1
min.
3
h1
max.
33.5
h2
25.4
h3
20
l1
max.
128
l2
82
l3
8
l4
19

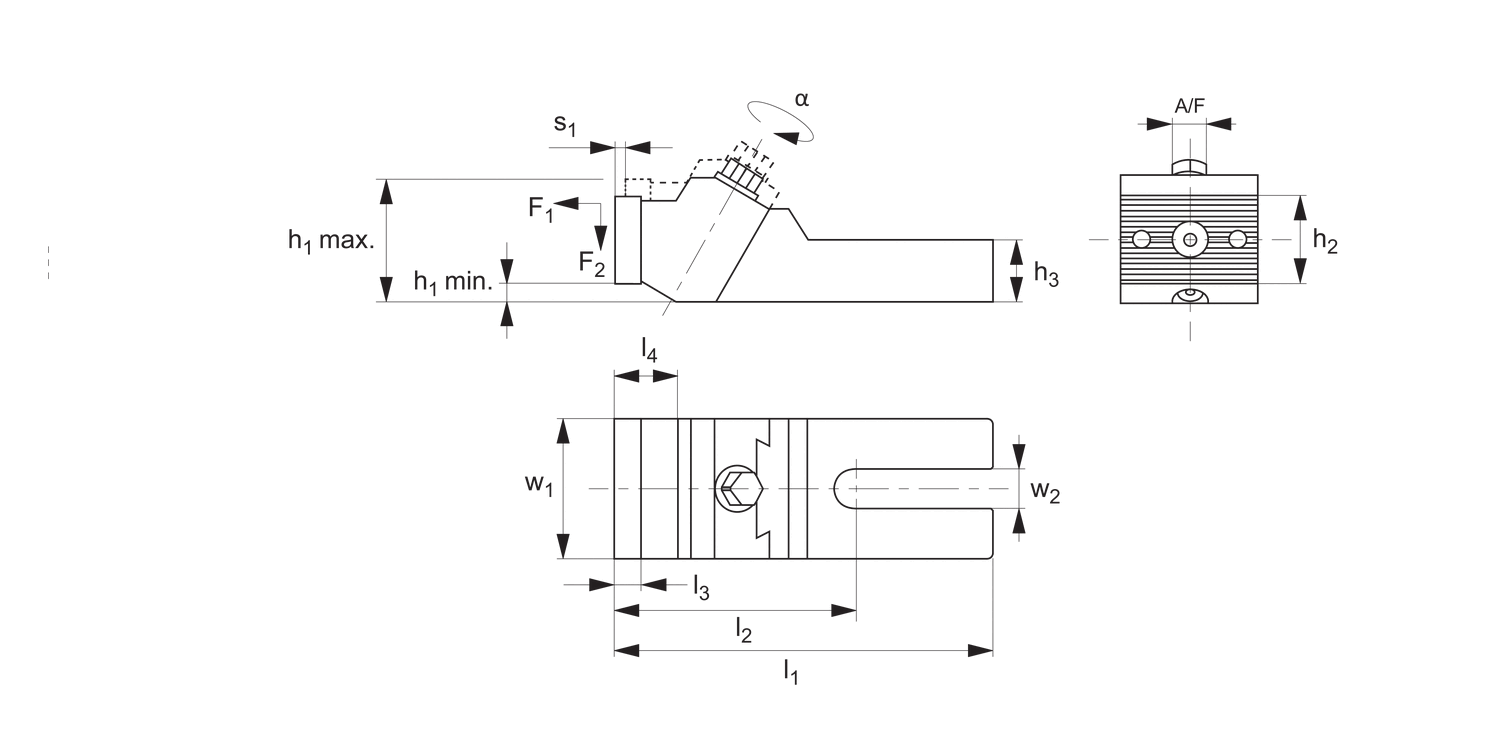

Stroke s1
3.0
A/F
13
Weight
g
840
£ 497.49 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 497.49 | 0% |
| 10-19 | £ 447.74 | 10% |
| 20-49 | £ 422.87 | 15% |
| 50-99 | £ 397.99 | 20% |
| 100+ | £ 348.24 | 30% |
Technical & Application
Material
Body: steel, tempered.
Clamping jaws: steel, case hardened.
Technical Notes
Reversible clamping jaws with smooth side for machined workpieces and serrated side for rough clamping surfaces.
Tips
The large clamping surface makes these solid clamping jaws suitable for laterally clamping workpieces. We recommend using two clamping studs for fastening the solid clamping jaw on the machine table. Screws for T-slots No. 21000 - two screws per clamping jaw - should be ordered separately as a fastening bolt depending on the width of the machine T-slot.
Important Notes
*Clamping forces F1 and F2 depend on the T-slot size.
