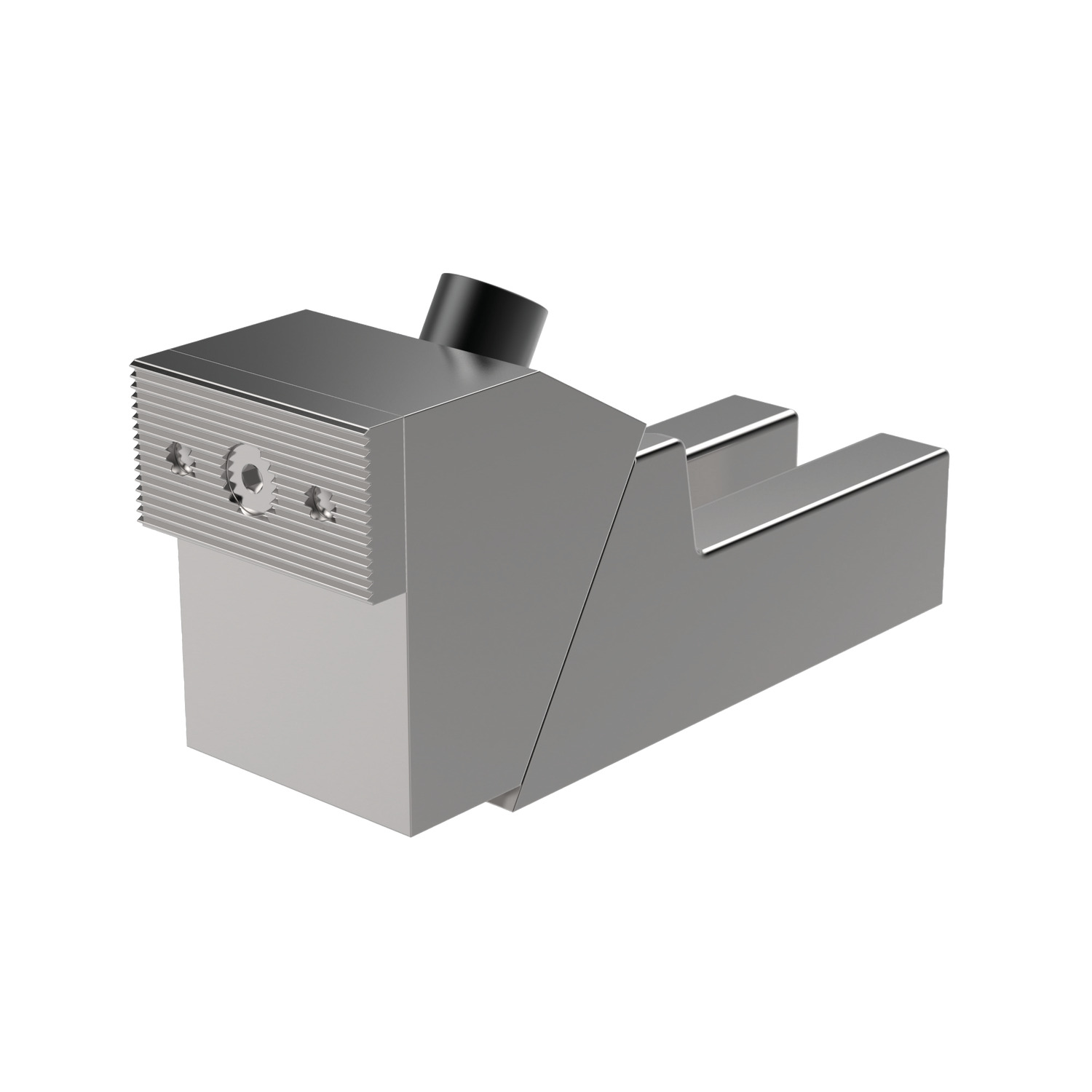

12320 Clamping Jaws - Extra Strong

Name: 12320.W0036
Brand: WC
SKU: 12320.W0036
Price: 911.23 EUR
Availability: InStock

downhold action, material: Cast iron

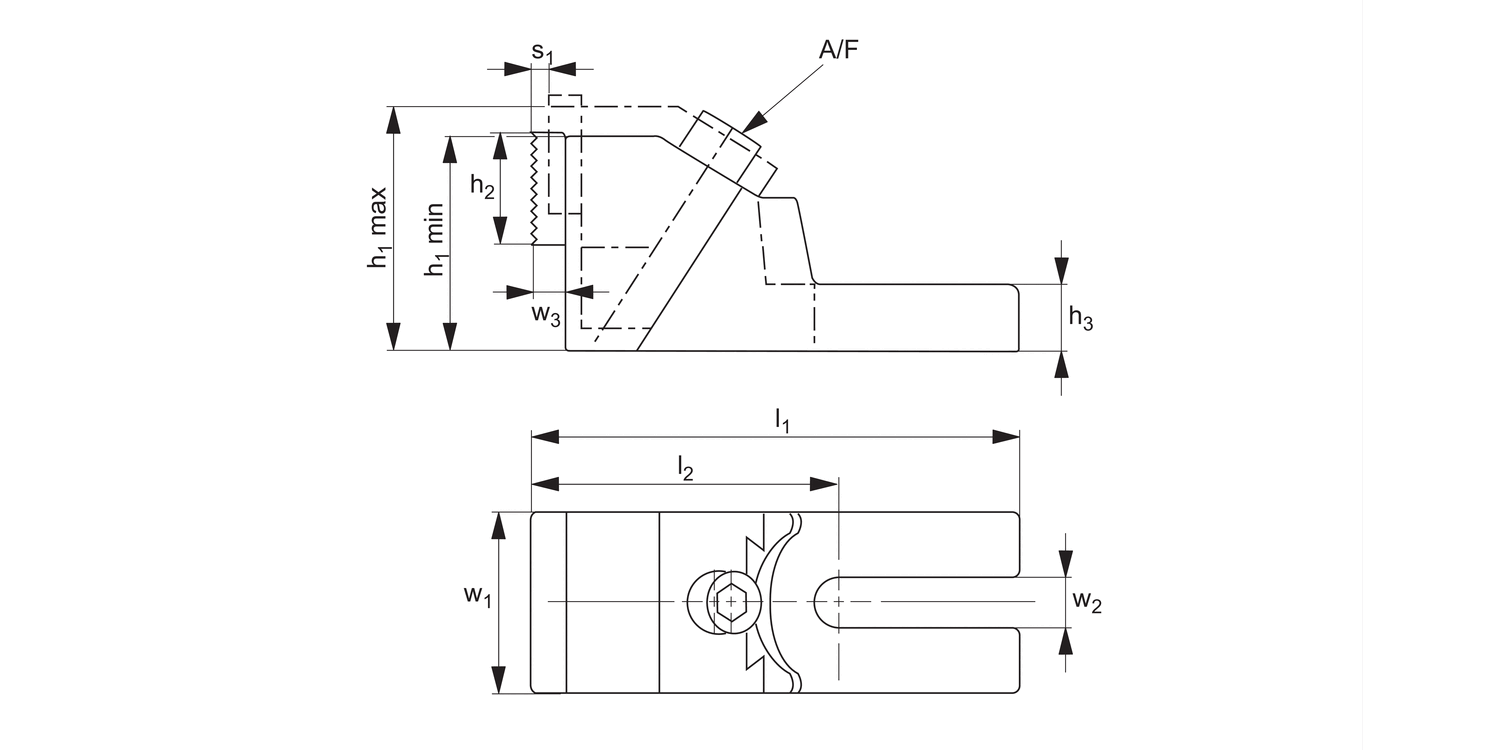

Article properties

Order No.

12320.W0036

For T-slot

32-42

w₁

w₂

w₃

h₁ min.

120

h₁ max.

145

h₂

h₃

l₁

265

l₂

158.0

Stroke s₁

A/F

Weight g

7900

See full product selection

£ 911.23 per unit (click for quantity discounts)

Ready to despatch 1
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-2	£ 911.23	0%
3-4	£ 820.11	10%
5+	£ 774.55	15%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Body: cast iron.
Jaws: steel, hardened.

Technical Notes

Jaw plates are reversible (ribbed/smooth). Clamping action is forwards and downwards into the workpiece.

Tips

Extremely powerful clamps for use where high clamping forces are required. Due to the high clamping forces we recommend the use of 2 clamping bolts (no. 21000), for each clamp.
