Floating Clamps
clamping and locking

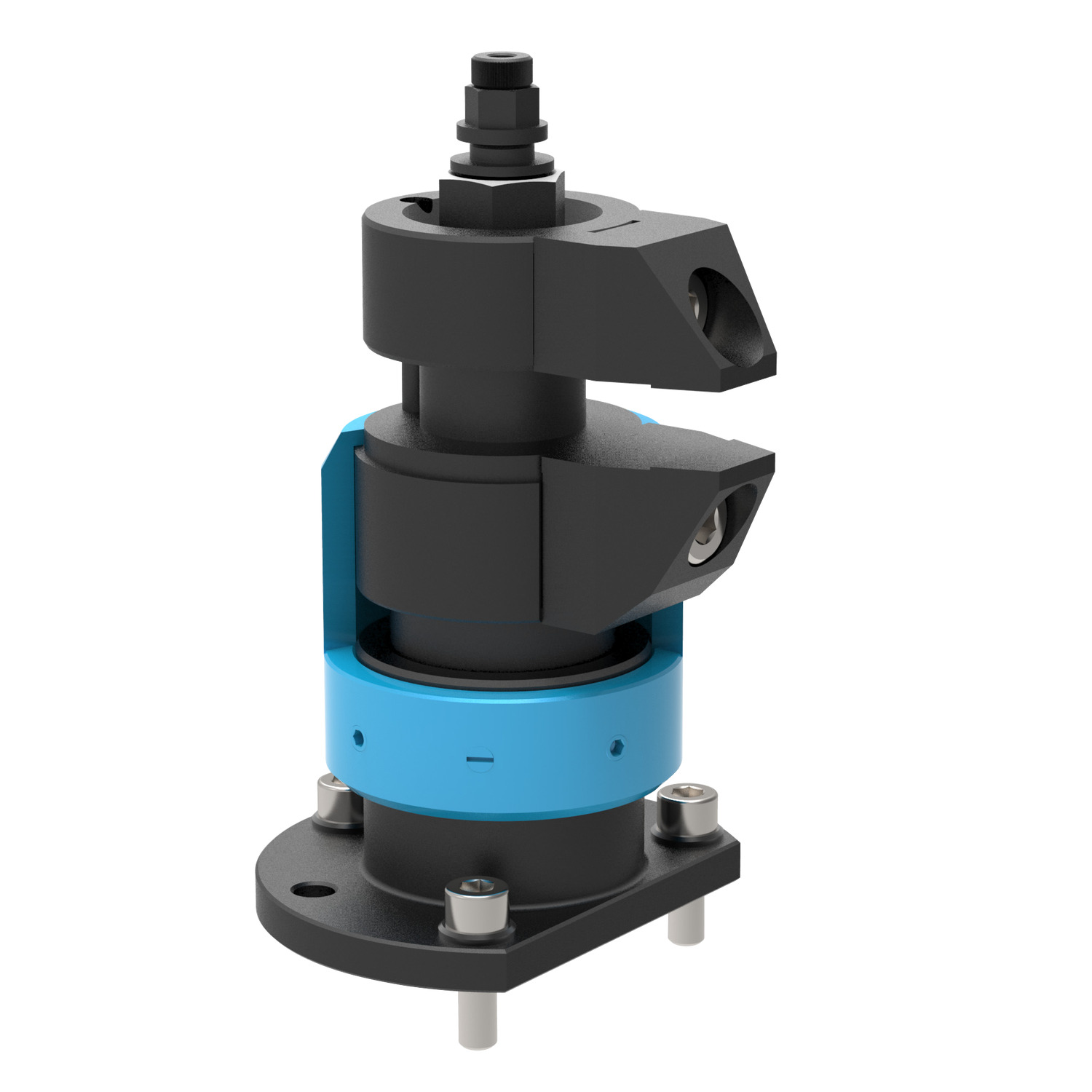

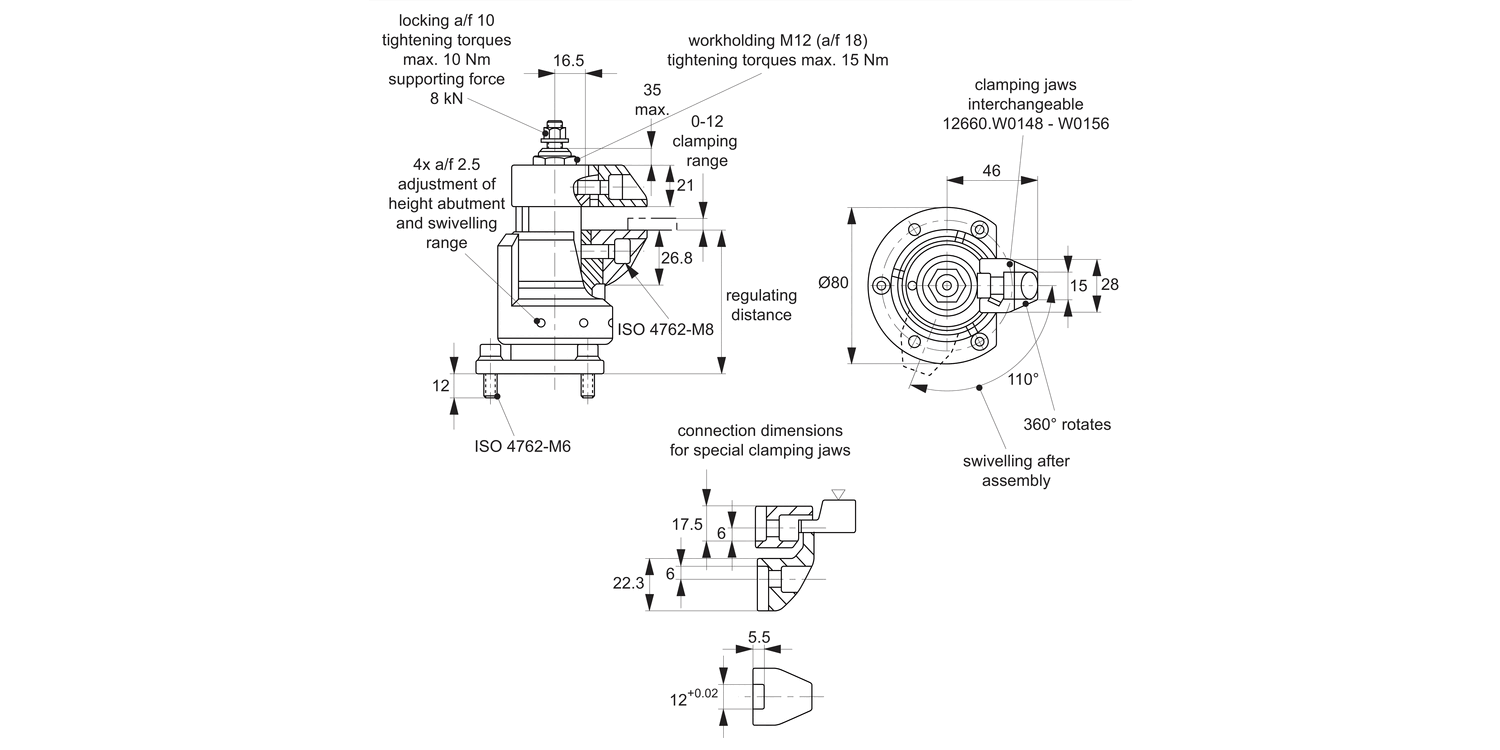

12663 Floating Clamps - Compact
separate clamping and locking, material: Case Hardened steel
Order No.
12663.W0010
Description
Clamping and locking
Clamping & support force
max.
kN
8
Clamping stroke
0-12
Weight
g
1650
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1+ | - |
Technical & Application
Material
Body: case hardened steel, nitrided, maganese phosphate treated and ground.
Clamping jaws: case hardened steel, nitrided, maganese phosphate treated.
Housing: aluminium, blue anodised.
Technical Notes
Used to clamp and support additional clamping points on extremely pliable work pieces, whilst minimising deformation of component. It also serves to reduce vibration during machining.
Tips
The benefits of the floating clamp are:
- avoids vibration during the processing
- clamps ribs, beads and shackles to reinforce clamped components
- distortion-free clamping of raw parts.
Used with:
24000 T-Nuts

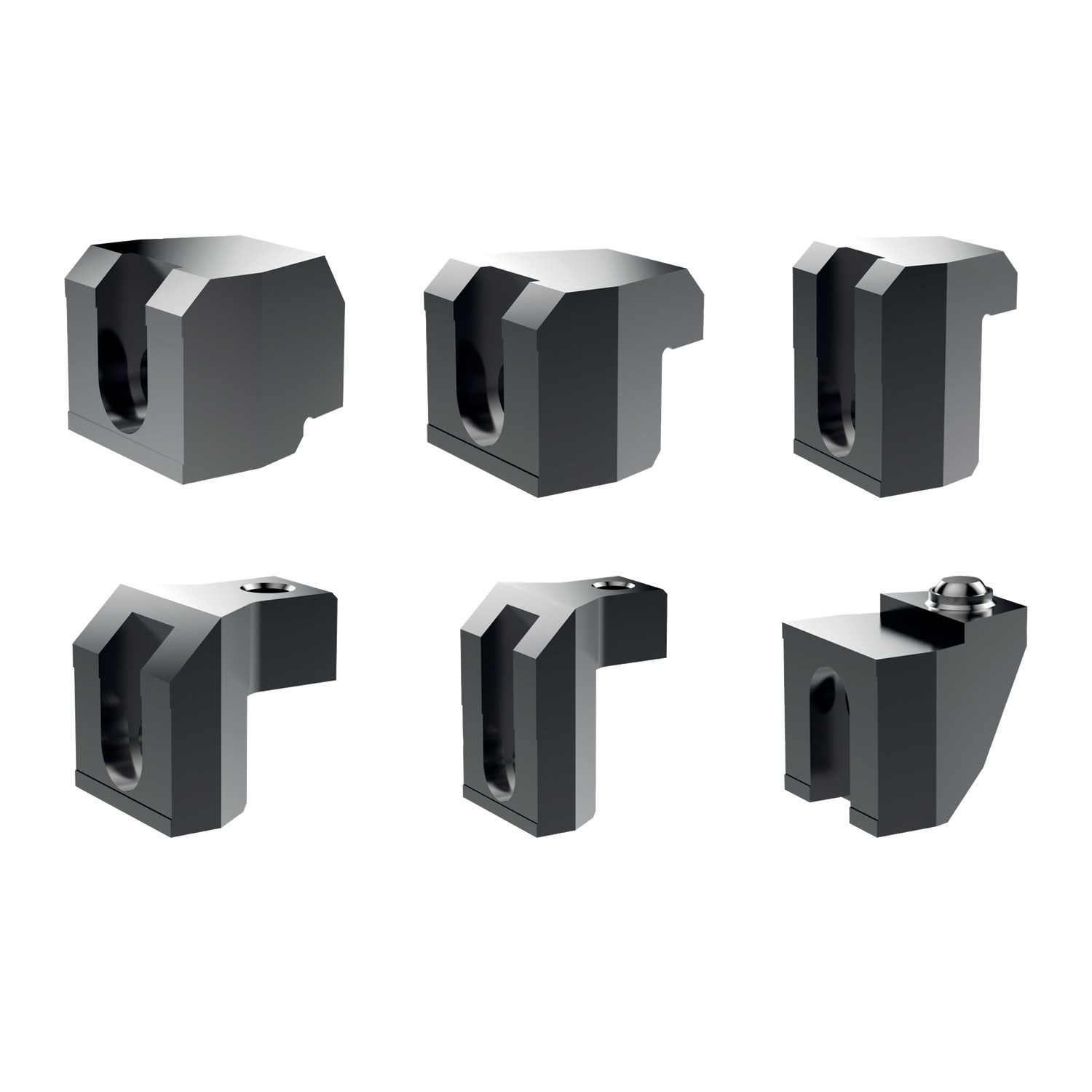

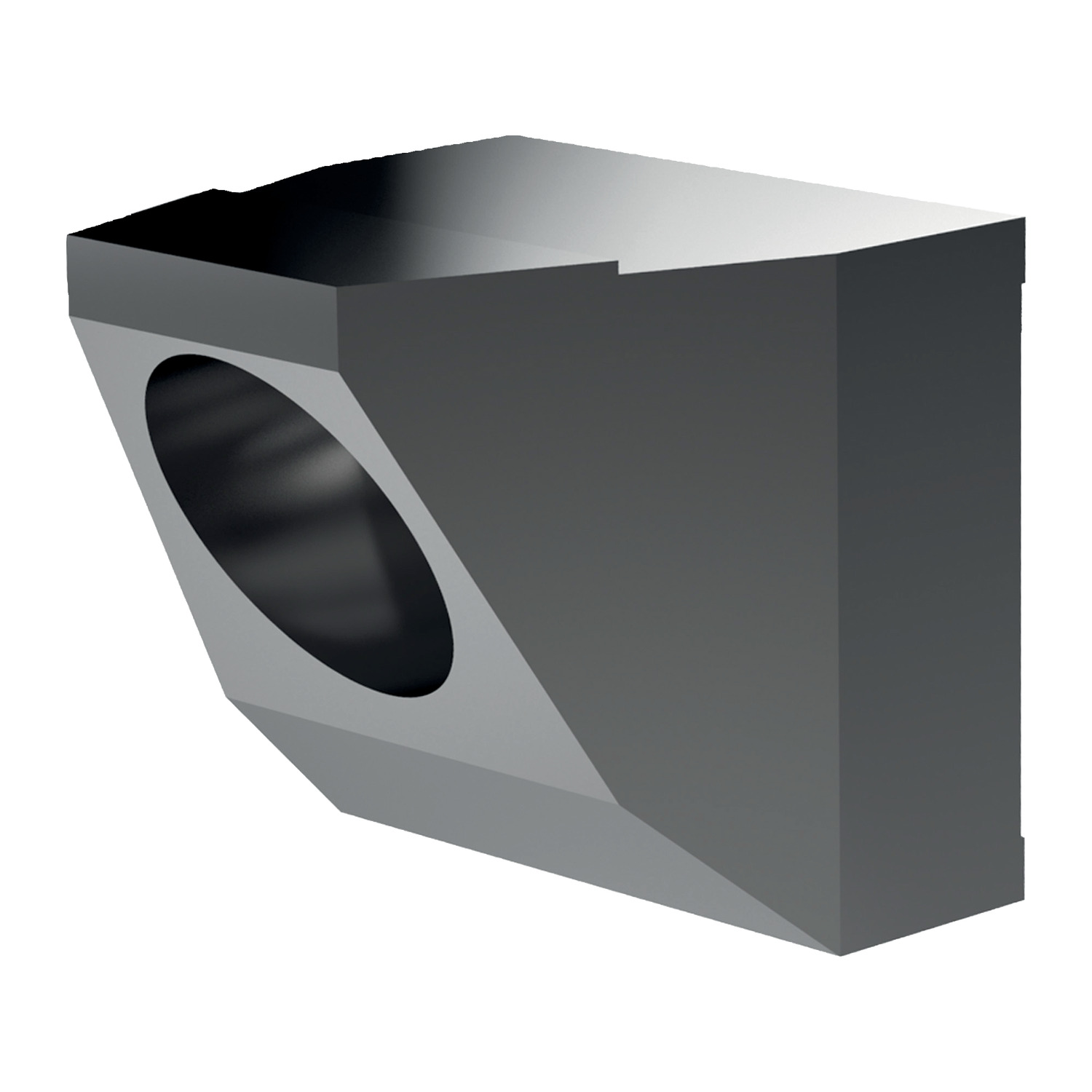

12660 Clamp Jaws - upper & lower
