Modular Screw Jack

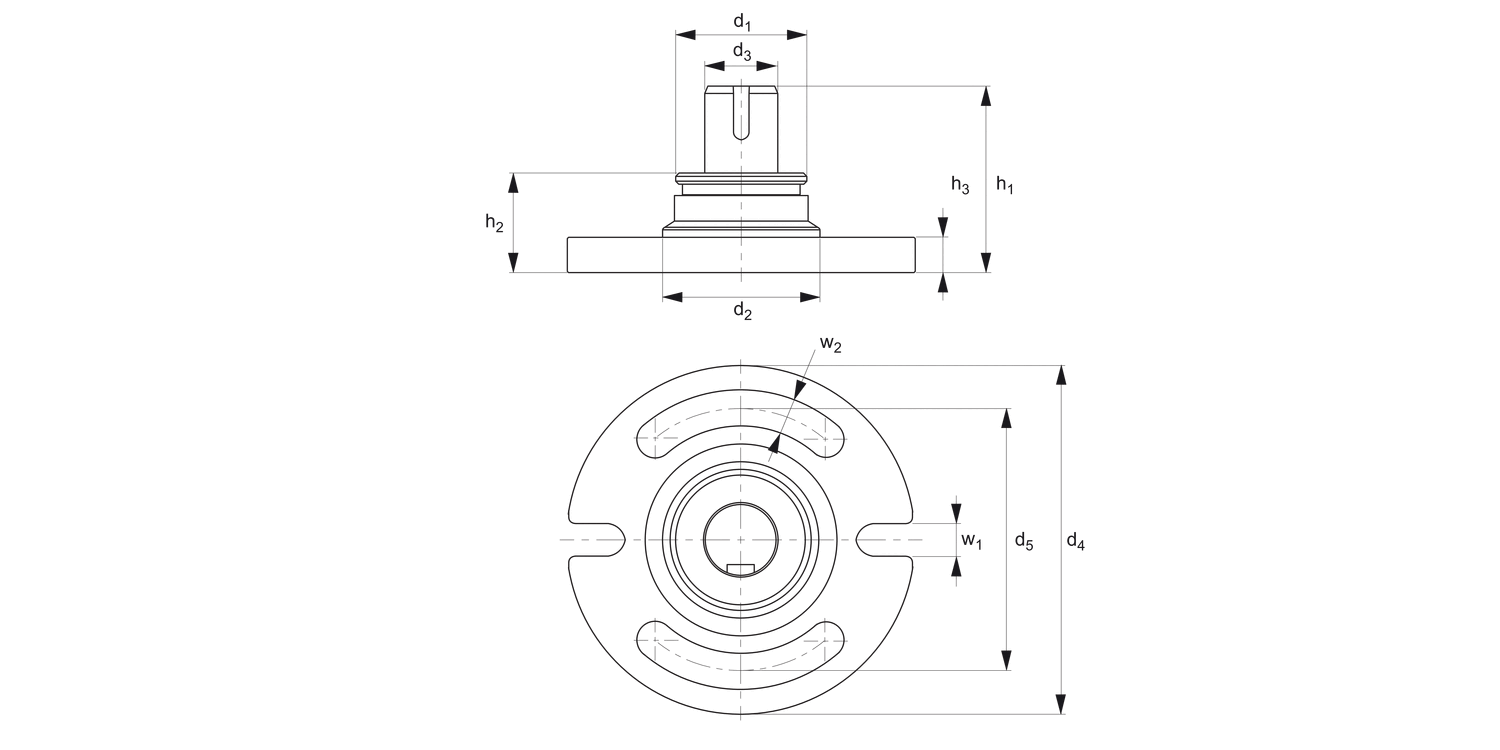

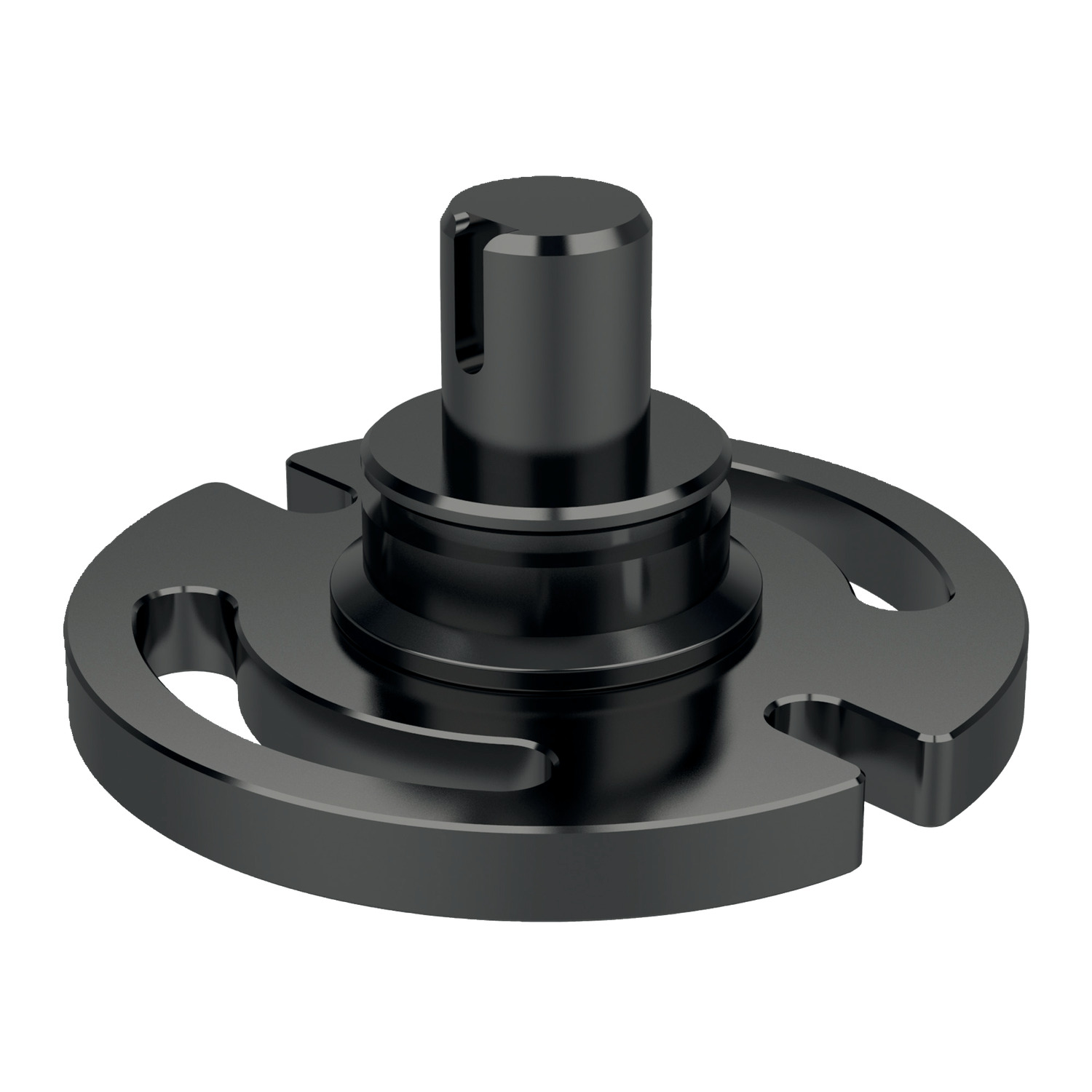

15370.4 Modular Screw Jack Base
adjustable, material: Steel
Order No.
15370.W0356
h1
106
h2
56
h3
20
w1
17
w2
20
d1
M76x3
d2
90
d3
42.5
d4
200
d5
150
Weight
g
5717
£ 1,185.96 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 1,185.96 | 0% |
| 10-19 | £ 1,067.36 | 10% |
| 20-49 | £ 1,008.07 | 15% |
| 50-99 | £ 948.77 | 20% |
| 100+ | £ 830.17 | 30% |
Technical & Application
Material
Steel, tempered, burnished.
Technical Notes
Can be used on T-slots and grid plates. The individual elements are easily joined together.
Enables easy positioning on a machine table.
