Modular Screw Jack

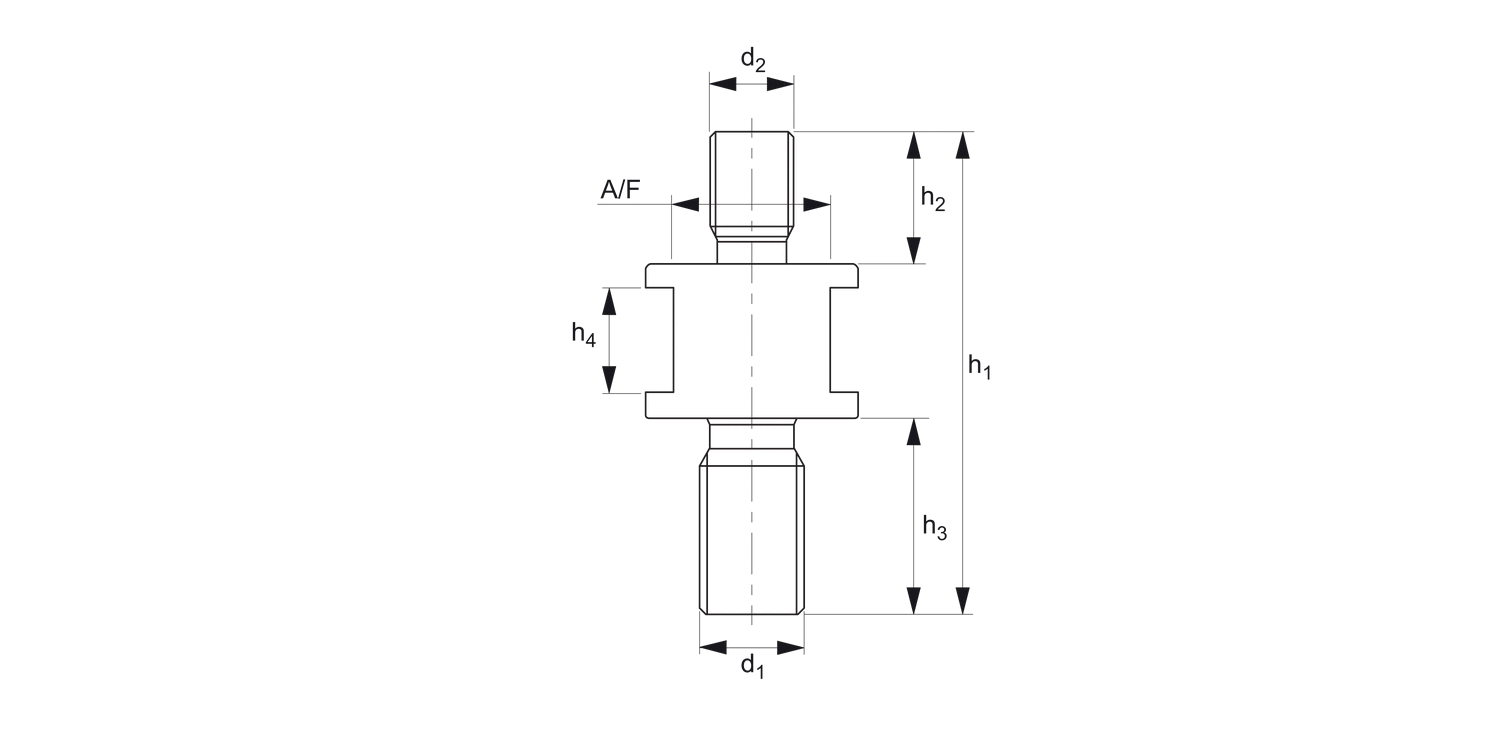

15374.2 Threaded Adapters
for modular screw jacks, material: Steel
Order No.
15374.W0024
h1
101.5
h2
25
h3
47
h4
20
d1
M24
d2
M16
A/F
30
Weight
g
452
£ 78.82 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 78.82 | 0% |
| 10-19 | £ 70.94 | 10% |
| 20-49 | £ 67.00 | 15% |
| 50-99 | £ 63.06 | 20% |
| 100+ | £ 55.17 | 30% |
Technical & Application
Material
Steel, tempered and burnished.
Technical Notes
The thread adapters are screwed in the base element allowing easy fixing to T-slots and grid plates.
