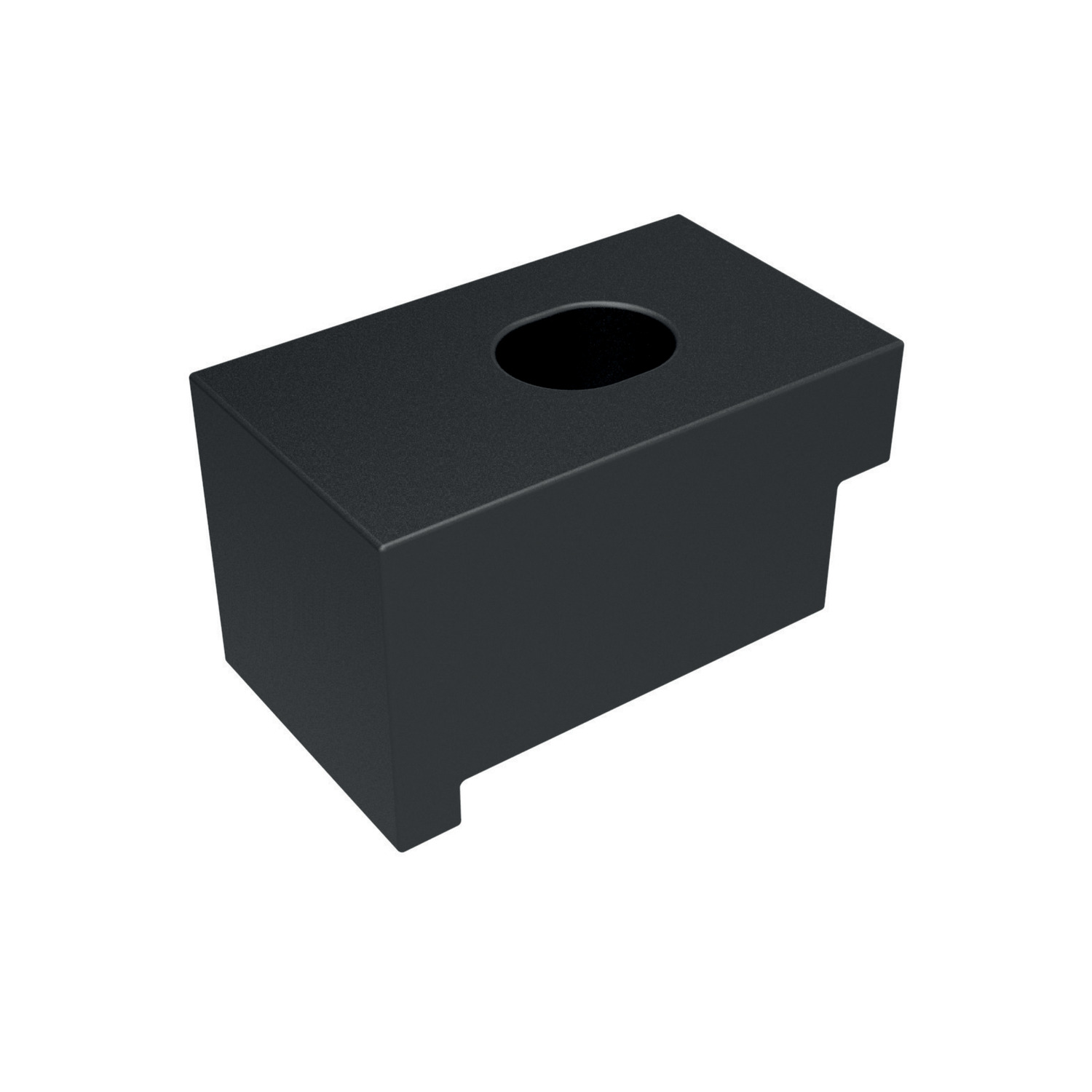

19896 Vice Clamps

Name: 19896.W0041
Brand: WC
SKU: 19896.W0041
Price: 34.17 EUR
Availability: OutOfStock

material: Hardened steel

Article properties

Order No.

19896.W0041

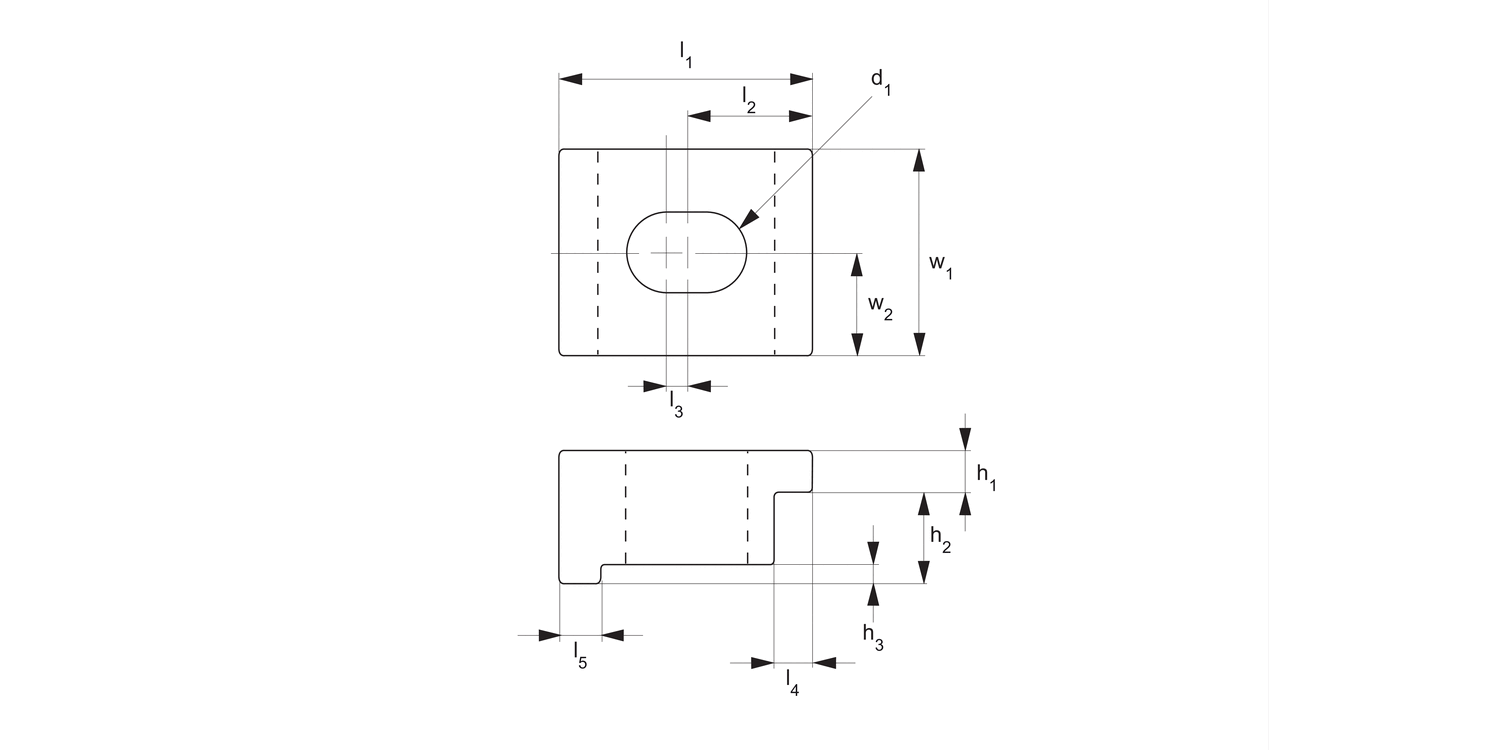

For thread d₁

1/2

For vice size

h₁

0.25

h₂

0.50

h₃

0.13

l₁

1.50

l₂

0.63

l₃

0.13

l₄

0.19

l₅

0.25

w₁

1.25

w₂

0.625

See full product selection

£ 34.17 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	£ 34.17

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel (1018), case hardened, black oxide finish.

Technical Notes

Used to secure vice to fixture of machine table. Fits into side groove on side of clamp - suitable for most industry standard vices.

Important Notes

All dimensions are in inches.

Product Datasheets

19896 Vice ClampsJune 24, 2025, 3:49 PM / 198.01 kB

Vice Set AcessoriesJune 24, 2025, 3:30 PM / 1.20 MB

Vice ClampingJune 24, 2025, 3:31 PM / 3.83 MB

Clamping Systems & Base PlatesJune 24, 2025, 3:32 PM / 7.44 MB

Work HoldingJune 24, 2025, 3:33 PM / 61.81 MB

CAD files

19896 AcisApril 17, 2024, 9:08 AM / 81.75 kB

19896 IGESApril 17, 2024, 9:08 AM / 219.32 kB

19896 ParasolidApril 17, 2024, 9:08 AM / 97.84 kB

19896 ProEApril 17, 2024, 9:08 AM / 136.83 kB

19896 SolidWorksApril 17, 2024, 9:08 AM / 1.60 MB

19896 StepApril 17, 2024, 9:08 AM / 109.72 kB
