32512 Mounting Blocks

Name: 32512.W0410
Brand: WC
SKU: 32512.W0410
Price: 8.06 EUR
Availability: OutOfStock

for index plungers - fine thread, material: Steel or Stainless Steel

Article properties

Order No.

32512.W0410

Type

Vertical

d₁

M10x1,0

d₂

4.3

d₃

M 4

l₁

l₂

l₃ -0.2

11.5

l₄

Weight g

See full product selection

£ 8.06 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 7 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 8.06	0%
10-19	£ 7.25	10%
20-49	£ 6.85	15%
50-99	£ 6.45	20%
100+	£ 6.05	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Body: die-cast zinc, black plastic coated.
Grub screw: M8 with brass tip.

Technical Notes

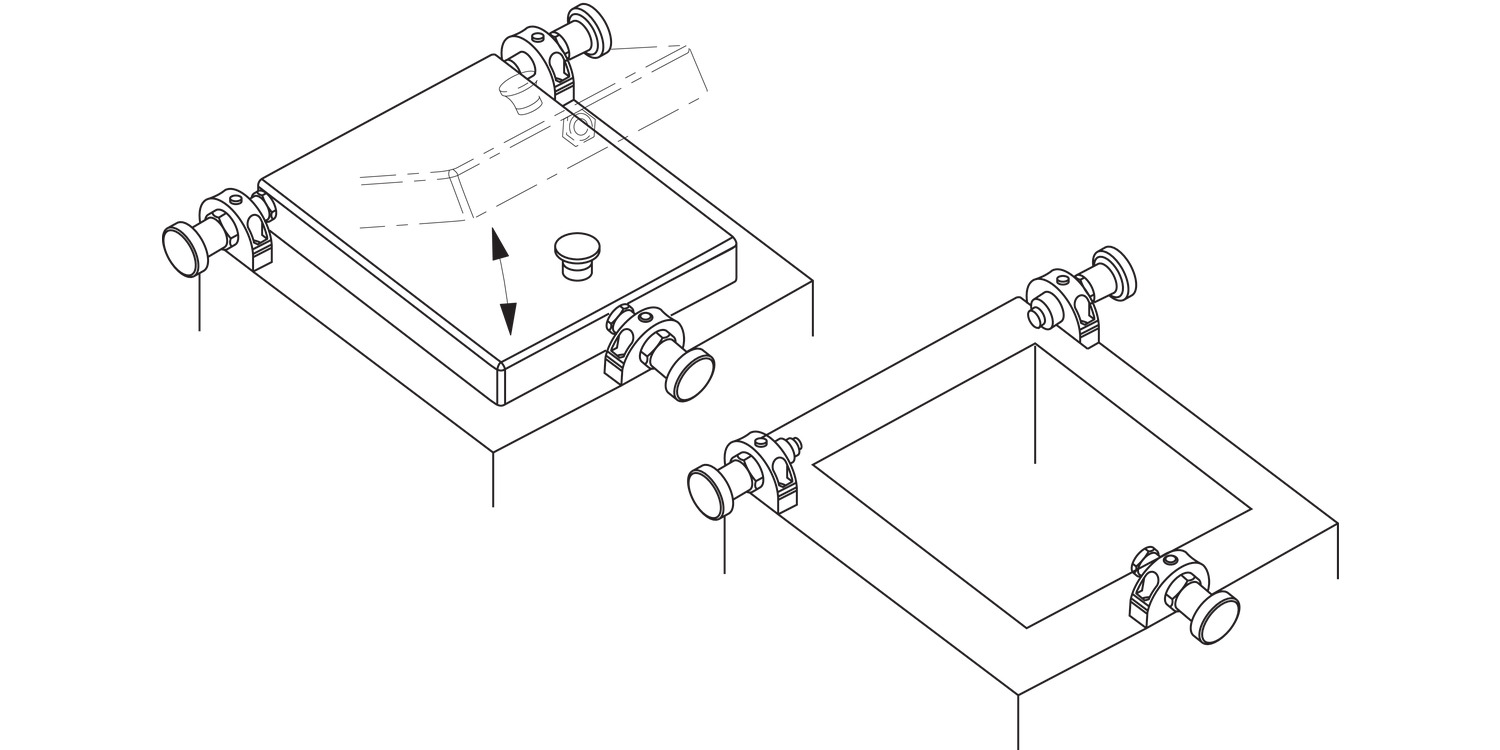

Mounting blocks provide assembly support for mounting of index plungers. (Not suitable for index plungers with coarse thread).

Index plunger must be assembled in hole d1 on countersunk side.

Product Datasheets

32512 Mounting BlocksJune 24, 2025, 3:47 PM / 996.94 kB

Mounting Collars, Blocks & BushesJune 24, 2025, 3:29 PM / 603.90 kB

Index Plunger & PinsJune 24, 2025, 3:31 PM / 2.98 MB

Spring & Index Plungers & Ball Lock PinsJune 24, 2025, 3:32 PM / 17.99 MB

Design ElementsJune 24, 2025, 3:33 PM / 69.38 MB
