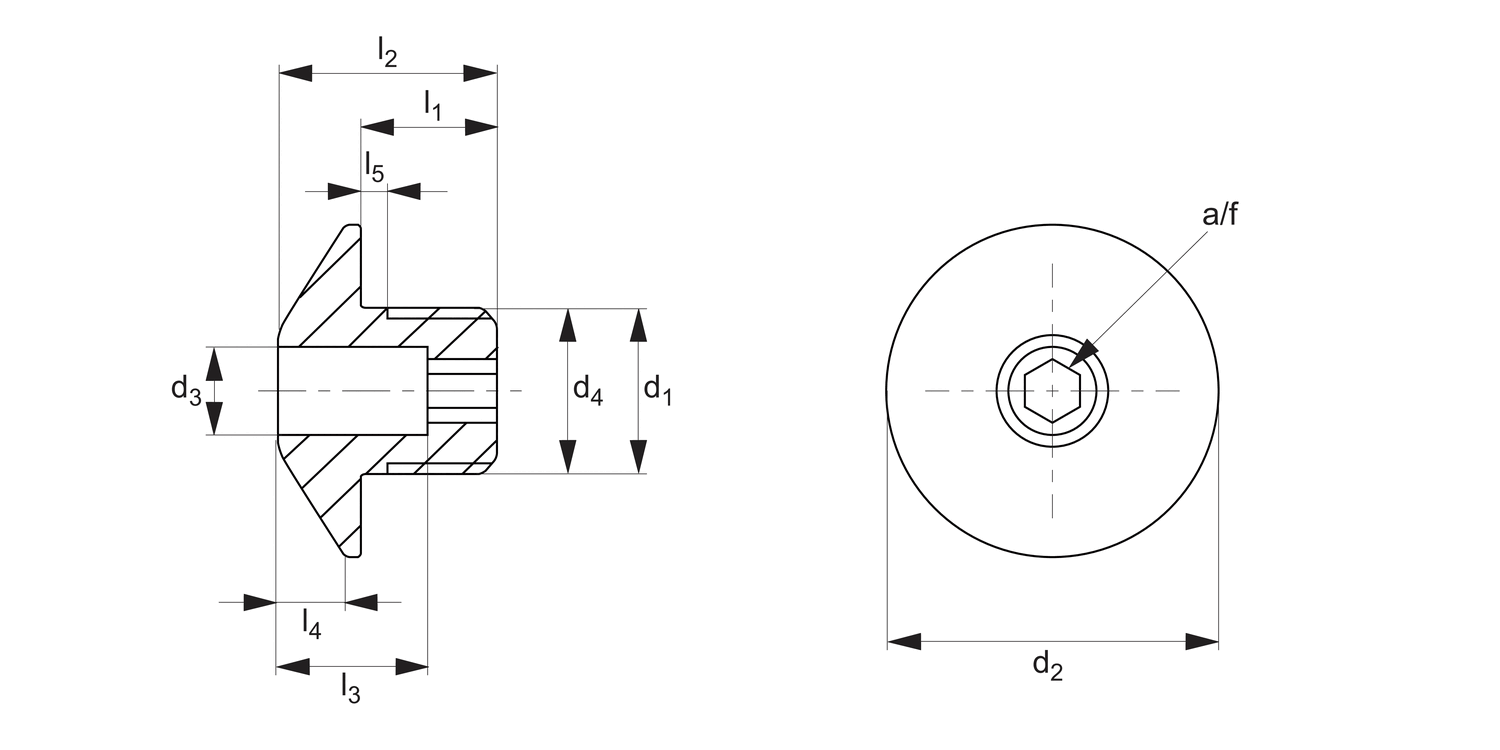

32753 Locating Bushes - Hardened
for index plungers
Alternative products you may wish to consider
Type
Steel
d1
M12x1,5
d2
24
d3
+0,1
4.2
d4
-0.05
12
l1
10
l2
16
l3
11
l4
5
l5
+0,5
1.5
For pin
4
A/F
4
Weight
g
17
£ 10.71 per unit (click for quantity discounts)
Type
Steel
d1
M12x1,5
d2
24
d3
+0,1
5.2
d4
-0.05
12
l1
10
l2
16
l3
11
l4
5
l5
+0,5
1.5
For pin
5
A/F
4
Weight
g
16
£ 10.81 per unit (click for quantity discounts)
Type
Steel
d1
M12x1,5
d2
24
d3
+0,1
6.2
d4
-0.05
12
l1
10
l2
16
l3
11
l4
5
l5
+0,5
1.5
For pin
6
A/F
4
Weight
g
16
£ 10.81 per unit (click for quantity discounts)
Type
Steel
d1
M16x1,5
d2
32
d3
+0,1
8.2
d4
-0.05
16
l1
12
l2
20
l3
13
l4
7
l5
+0,5
1.5
For pin
8
A/F
6
Weight
g
36
£ 12.97 per unit (click for quantity discounts)
Type
Steel
d1
M16x1,5
d2
32
d3
+0,1
10.2
d4
-0.05
16
l1
12
l2
20
l3
13
l4
7
l5
+0,5
1.5
For pin
10
A/F
6
Weight
g
33
£ 12.77 per unit (click for quantity discounts)
Type
Steel
d1
M16x1,5
d2
32
d3
+0,1
12.2
d4
-0.05
16
l1
12
l2
20
l3
13
l4
7
l5
+0,5
1.5
For pin
12
A/F
6
Weight
g
33
£ 12.97 per unit (click for quantity discounts)
Type
Stainless
d1
M12x1,5
d2
24
d3
+0,1
4.2
d4
-0.05
12
l1
10
l2
16
l3
11
l4
5
l5
+0,5
1.5
For pin
4
A/F
4
Weight
g
17
£ 14.25 per unit (click for quantity discounts)
Type
Stainless
d1
M12x1,5
d2
24
d3
+0,1
5.2
d4
-0.05
12
l1
10
l2
16
l3
11
l4
5
l5
+0,5
1.5
For pin
5
A/F
4
Weight
g
16
£ 14.25 per unit (click for quantity discounts)
Type
Stainless
d1
M12x1,5
d2
24
d3
+0,1
6.2
d4
-0.05
12
l1
10
l2
16
l3
11
l4
5
l5
+0,5
1.5
For pin
6
A/F
4
Weight
g
16
£ 14.94 per unit (click for quantity discounts)
Type
Stainless
d1
M16x1,5
d2
32
d3
+0,1
8.2
d4
-0.05
16
l1
12
l2
20
l3
13
l4
7
l5
+0,5
1.5
For pin
8
A/F
6
Weight
g
36
£ 20.63 per unit (click for quantity discounts)
Type
Stainless
d1
M16x1,5
d2
32
d3
+0,1
10.2
d4
-0.05
16
l1
12
l2
20
l3
13
l4
7
l5
+0,5
1.5
For pin
10
A/F
6
Weight
g
33
£ 20.63 per unit (click for quantity discounts)
Type
Stainless
d1
M16x1,5
d2
32
d3
+0,1
12.2
d4
-0.05
16
l1
12
l2
20
l3
13
l4
7
l5
+0,5
1.5
For pin
12
A/F
6
Weight
g
33
£ 20.63 per unit (click for quantity discounts)
Type
d1
d2
d3
+0,1
d4
-0.05
l1
l2
l3
l4
l5
+0,5
For pin
A/F
Weight
g
| Price & Availability | Article | Type | d1 | d2 | d3 +0,1 | d4 -0.05 | l1 | l2 | l3 | l4 | l5 +0,5 | For pin | A/F | Weight g | ||||||||||||||||||
| 32753.W0464 | Steel | M12x1,5 | 24 | 4.2 | 12 | 10 | 16 | 11 | 5 | 1.5 | 4 | 4 | 17 | |||||||||||||||||||
£ 10.71 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Steel d1 M12x1,5 d2 24 d3
+0,1 4.2 d4
-0.05 12 l1 10 l2 16 l3 11 l4 5 l5
+0,5 1.5 For pin 4 A/F 4 Weight
g 17 | ||||||||||||||||||||||||||||||||
| 32753.W0465 | Steel | M12x1,5 | 24 | 5.2 | 12 | 10 | 16 | 11 | 5 | 1.5 | 5 | 4 | 16 | |||||||||||||||||||
£ 10.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Steel d1 M12x1,5 d2 24 d3
+0,1 5.2 d4
-0.05 12 l1 10 l2 16 l3 11 l4 5 l5
+0,5 1.5 For pin 5 A/F 4 Weight
g 16 | ||||||||||||||||||||||||||||||||
| 32753.W0466 | Steel | M12x1,5 | 24 | 6.2 | 12 | 10 | 16 | 11 | 5 | 1.5 | 6 | 4 | 16 | |||||||||||||||||||
£ 10.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Steel d1 M12x1,5 d2 24 d3
+0,1 6.2 d4
-0.05 12 l1 10 l2 16 l3 11 l4 5 l5
+0,5 1.5 For pin 6 A/F 4 Weight
g 16 | ||||||||||||||||||||||||||||||||
| 32753.W0468 | Steel | M16x1,5 | 32 | 8.2 | 16 | 12 | 20 | 13 | 7 | 1.5 | 8 | 6 | 36 | |||||||||||||||||||
£ 12.97 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Steel d1 M16x1,5 d2 32 d3
+0,1 8.2 d4
-0.05 16 l1 12 l2 20 l3 13 l4 7 l5
+0,5 1.5 For pin 8 A/F 6 Weight
g 36 | ||||||||||||||||||||||||||||||||
| 32753.W0470 | Steel | M16x1,5 | 32 | 10.2 | 16 | 12 | 20 | 13 | 7 | 1.5 | 10 | 6 | 33 | |||||||||||||||||||
£ 12.77 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Steel d1 M16x1,5 d2 32 d3
+0,1 10.2 d4
-0.05 16 l1 12 l2 20 l3 13 l4 7 l5
+0,5 1.5 For pin 10 A/F 6 Weight
g 33 | ||||||||||||||||||||||||||||||||
| 32753.W0472 | Steel | M16x1,5 | 32 | 12.2 | 16 | 12 | 20 | 13 | 7 | 1.5 | 12 | 6 | 33 | |||||||||||||||||||
£ 12.97 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Steel d1 M16x1,5 d2 32 d3
+0,1 12.2 d4
-0.05 16 l1 12 l2 20 l3 13 l4 7 l5
+0,5 1.5 For pin 12 A/F 6 Weight
g 33 | ||||||||||||||||||||||||||||||||
| 32753.W0474 | Stainless | M12x1,5 | 24 | 4.2 | 12 | 10 | 16 | 11 | 5 | 1.5 | 4 | 4 | 17 | |||||||||||||||||||
£ 14.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stainless d1 M12x1,5 d2 24 d3
+0,1 4.2 d4
-0.05 12 l1 10 l2 16 l3 11 l4 5 l5
+0,5 1.5 For pin 4 A/F 4 Weight
g 17 | ||||||||||||||||||||||||||||||||
| 32753.W0475 | Stainless | M12x1,5 | 24 | 5.2 | 12 | 10 | 16 | 11 | 5 | 1.5 | 5 | 4 | 16 | |||||||||||||||||||
£ 14.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stainless d1 M12x1,5 d2 24 d3
+0,1 5.2 d4
-0.05 12 l1 10 l2 16 l3 11 l4 5 l5
+0,5 1.5 For pin 5 A/F 4 Weight
g 16 | ||||||||||||||||||||||||||||||||
| 32753.W0476 | Stainless | M12x1,5 | 24 | 6.2 | 12 | 10 | 16 | 11 | 5 | 1.5 | 6 | 4 | 16 | |||||||||||||||||||
£ 14.94 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stainless d1 M12x1,5 d2 24 d3
+0,1 6.2 d4
-0.05 12 l1 10 l2 16 l3 11 l4 5 l5
+0,5 1.5 For pin 6 A/F 4 Weight
g 16 | ||||||||||||||||||||||||||||||||
| 32753.W0478 | Stainless | M16x1,5 | 32 | 8.2 | 16 | 12 | 20 | 13 | 7 | 1.5 | 8 | 6 | 36 | |||||||||||||||||||
£ 20.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stainless d1 M16x1,5 d2 32 d3
+0,1 8.2 d4
-0.05 16 l1 12 l2 20 l3 13 l4 7 l5
+0,5 1.5 For pin 8 A/F 6 Weight
g 36 | ||||||||||||||||||||||||||||||||
| 32753.W0480 | Stainless | M16x1,5 | 32 | 10.2 | 16 | 12 | 20 | 13 | 7 | 1.5 | 10 | 6 | 33 | |||||||||||||||||||
£ 20.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stainless d1 M16x1,5 d2 32 d3
+0,1 10.2 d4
-0.05 16 l1 12 l2 20 l3 13 l4 7 l5
+0,5 1.5 For pin 10 A/F 6 Weight
g 33 | ||||||||||||||||||||||||||||||||
| 32753.W0482 | Stainless | M16x1,5 | 32 | 12.2 | 16 | 12 | 20 | 13 | 7 | 1.5 | 12 | 6 | 33 | |||||||||||||||||||
£ 20.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stainless d1 M16x1,5 d2 32 d3
+0,1 12.2 d4
-0.05 16 l1 12 l2 20 l3 13 l4 7 l5
+0,5 1.5 For pin 12 A/F 6 Weight
g 33 | ||||||||||||||||||||||||||||||||
Technical & Application
Material
Body:
Steel: Hardened, blackened
Stainless: Stainless steel hardened
Technical Notes
For use with our wide range of index bolts and plungers. Provide a durable location bush for index plunger pins of diameter d3, refer to individual index plunger production information for matching pin diameters.
Tips
Low wear option due to hardened material.
