Grub Screws
slot end

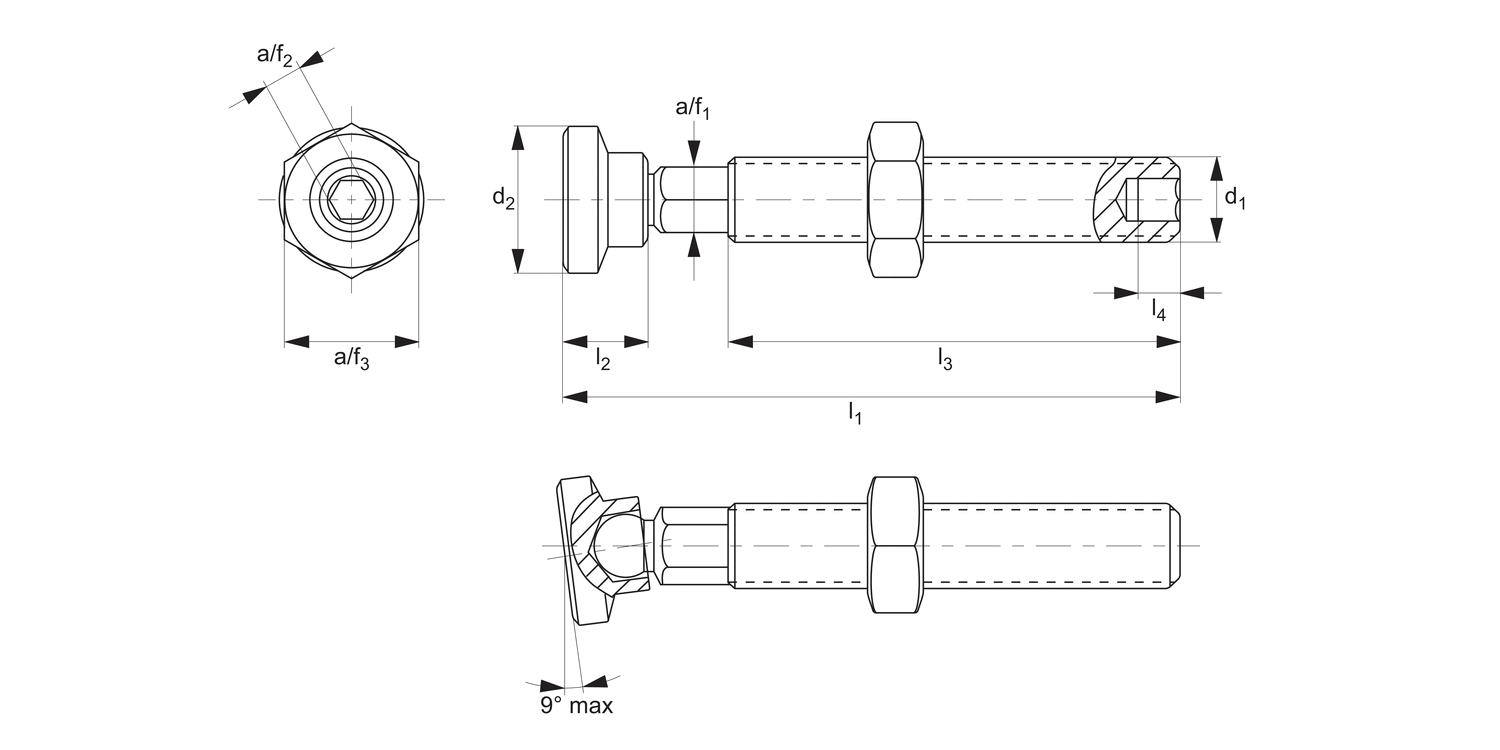

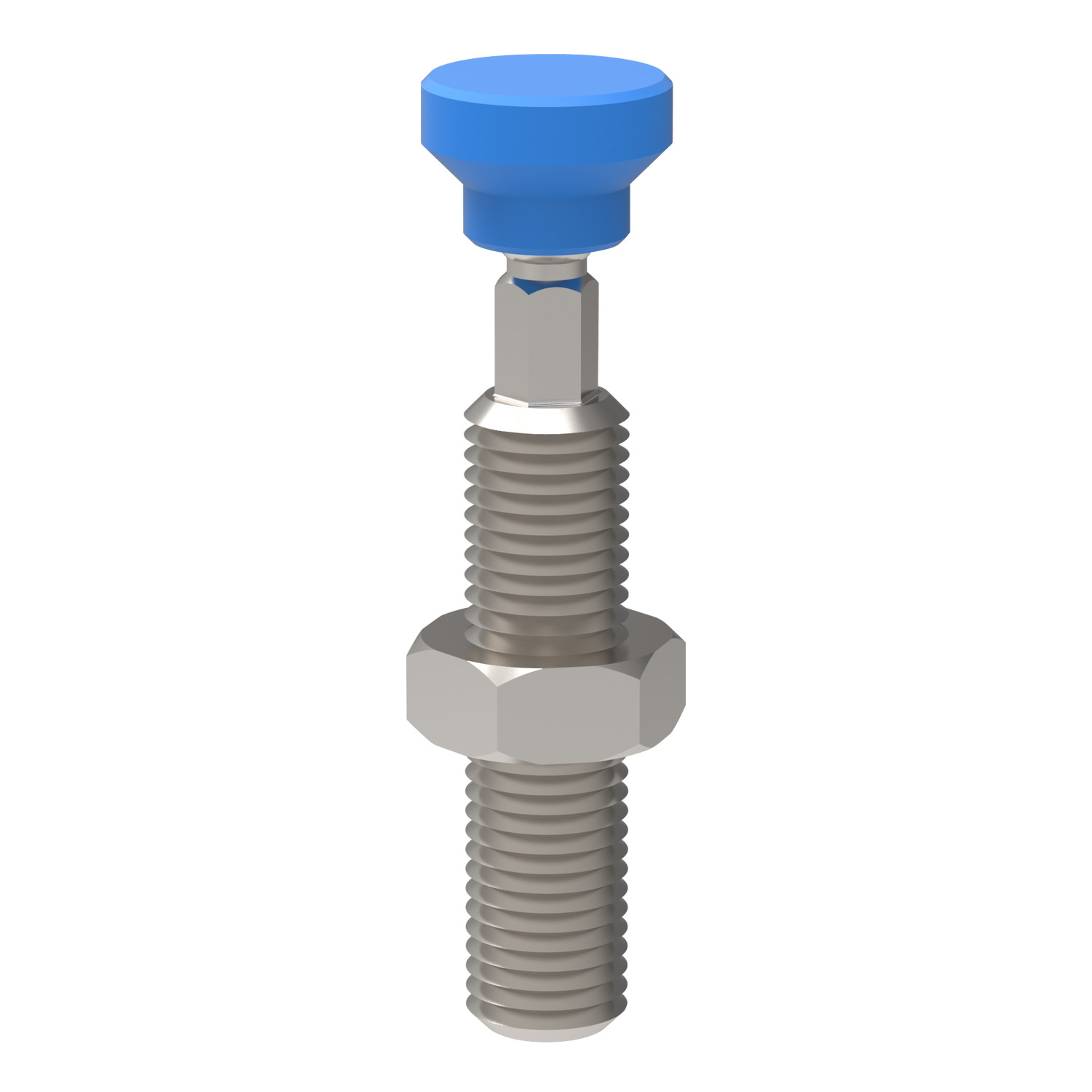

34544 Thrust Pads - Self Levelling
plastic, material: Thermoplastic.
Order No.
34544.W0010
d1
M10
d2
12.5
l1
73.3
l2
8.7
l3
68.9
l4
5.0
A/F1
8.0
A/F2
5.0
A/F3
17
Weight
g
48
£ 45.15 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-49 | £ 45.15 | 0% |
| 50-99 | £ 40.64 | 10% |
| 100-249 | £ 38.38 | 15% |
| 250-499 | £ 36.12 | 20% |
| 500+ | £ 33.86 | 25% |
Technical & Application
Material
Ball: stainless steel 1.4305
Nut: stainless steel A2
Pad: Plastic (PEEK), blue
Tips
For use on high quality surfaces, design is suitable for non-parallel surfaces.
