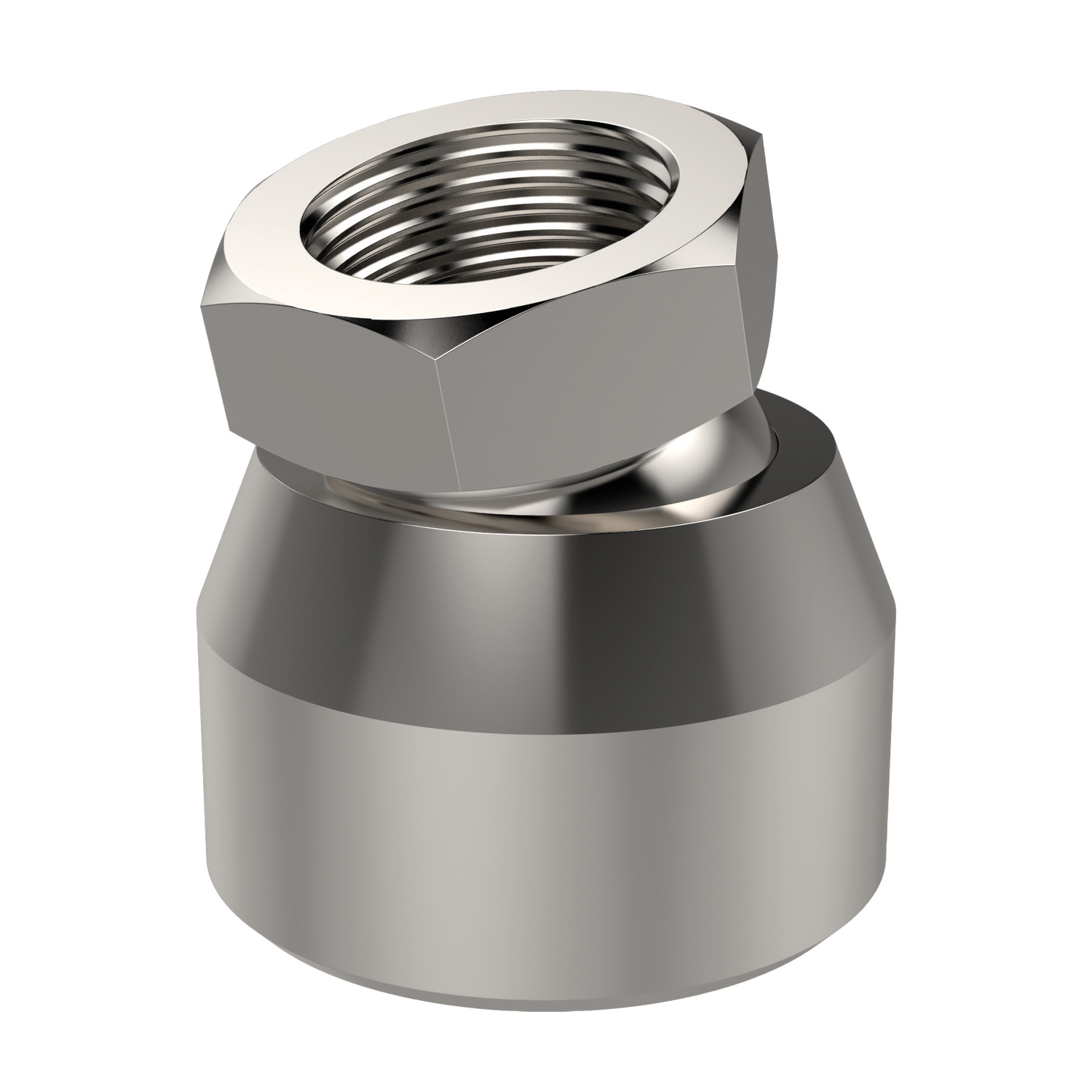

34600 Thrust Pad - Self-levelling

material: Steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Grub Screws
slot end

Thrust Pads
plastic

Grub Screws
slot or hex end

Thrust Pads
Steel

Grub Screws
ball headed, s/s

Thrust Pads
plastic

Thrust Pad
self-levelling

Fulcrum Screw
compact levelling

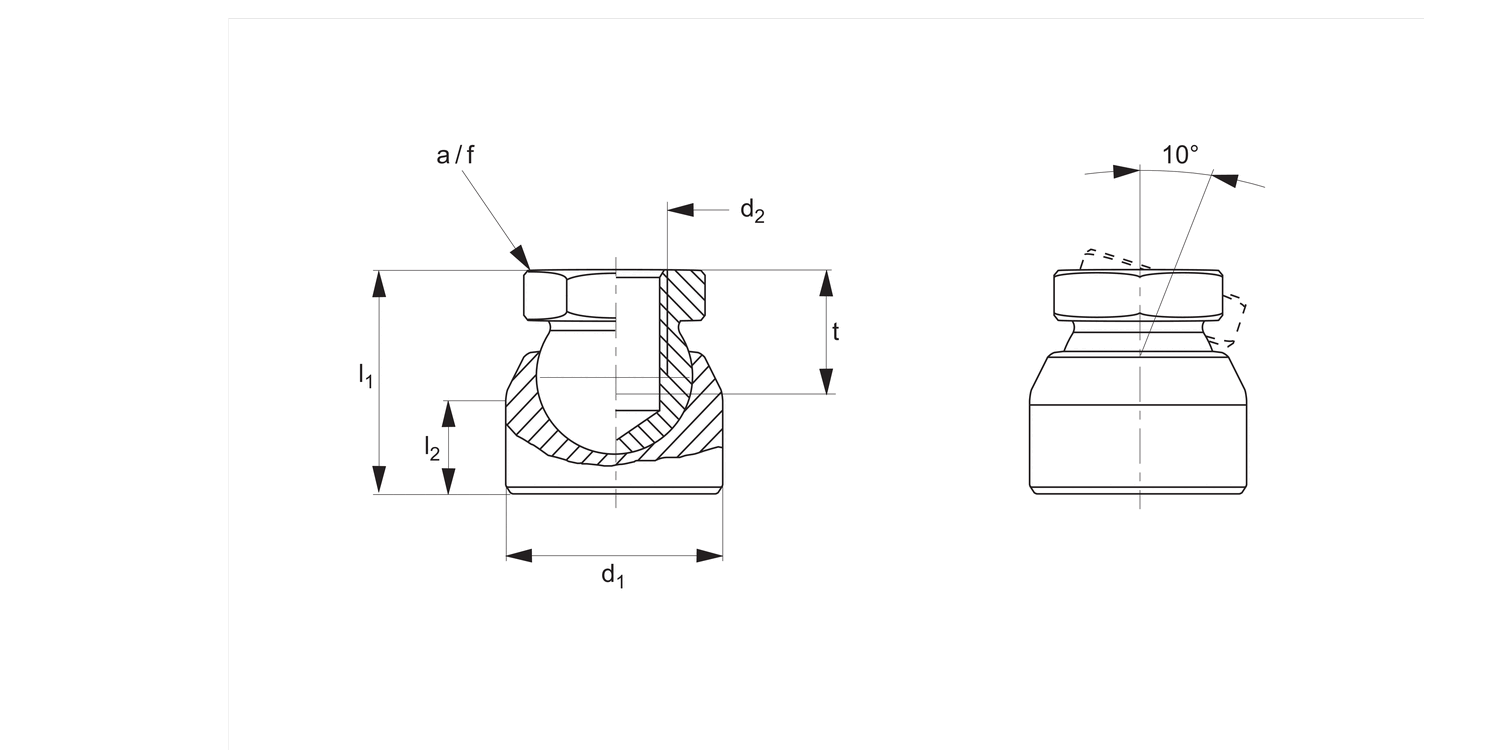

Thrust Pad - Self-levelling 16 - M 8 - 19 - 7

34600.W0016

d₁

16

d₂

M 8

l₁ ≈

19

l₂

7

t min.

9

Static load N

5000

A/F

12

£ 10.01 per unit (click for quantity discounts)

Thrust Pad - Self-levelling 20 - M10 - 22 - 8

34600.W0020

d₁

20

d₂

M10

l₁ ≈

22

l₂

8

t min.

11

Static load N

7500

A/F

15

£ 11.10 per unit (click for quantity discounts)

Thrust Pad - Self-levelling 24 - M12 - 25 - 10

34600.W0024

d₁

24

d₂

M12

l₁ ≈

25

l₂

10

t min.

12

Static load N

10000

A/F

17

£ 12.70 per unit (click for quantity discounts)

Thrust Pad - Self-levelling 30 - M16 - 34 - 13

34600.W0030

d₁

30

d₂

M16

l₁ ≈

34

l₂

13

t min.

16

Static load N

15000

A/F

24

£ 16.42 per unit (click for quantity discounts)

Thrust Pad - Self-levelling 16 - M 8 - 19 - 7

34600.W0016

d₁

16

d₂

M 8

l₁ ≈

19

l₂

7

t min.

9

Static load N

5000

A/F

12

£ 10.01 per unit (click for quantity discounts)

Thrust Pad - Self-levelling 20 - M10 - 22 - 8

34600.W0020

d₁

20

d₂

M10

l₁ ≈

22

l₂

8

t min.

11

Static load N

7500

A/F

15

£ 11.10 per unit (click for quantity discounts)

Thrust Pad - Self-levelling 24 - M12 - 25 - 10

34600.W0024

d₁

24

d₂

M12

l₁ ≈

25

l₂

10

t min.

12

Static load N

10000

A/F

17

£ 12.70 per unit (click for quantity discounts)

Thrust Pad - Self-levelling 30 - M16 - 34 - 13

34600.W0030

d₁

30

d₂

M16

l₁ ≈

34

l₂

13

t min.

16

Static load N

15000

A/F

24

£ 16.42 per unit (click for quantity discounts)



Select all

d₁

d₂

l₁ ≈

l₂

t min.

Static load N

A/F

Price & Availability	Article	d1	d2	l1 ≈	l2	t min.	Static load N	A/F
	34600.W0016	16	M 8	19	7	9	5000	12
£ 10.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 10.01 0% 10-19 £ 9.01 10% 20-49 £ 8.51 15% 50-99 £ 8.01 20% 100+ £ 7.51 25% d1 16 d2 M 8 l1 ≈ 19 l2 7 t min. 9 Static load N 5000 A/F 12 more info »
	34600.W0020	20	M10	22	8	11	7500	15
£ 11.10 per unit (click for quantity discounts) Ready to despatch 12 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 11.10 0% 10-19 £ 9.99 10% 20-49 £ 9.44 15% 50-99 £ 8.88 20% 100+ £ 8.33 25% d1 20 d2 M10 l1 ≈ 22 l2 8 t min. 11 Static load N 7500 A/F 15 more info »
	34600.W0024	24	M12	25	10	12	10000	17
£ 12.70 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 12.70 0% 10-19 £ 11.43 10% 20-49 £ 10.80 15% 50-99 £ 10.16 20% 100+ £ 9.53 25% d1 24 d2 M12 l1 ≈ 25 l2 10 t min. 12 Static load N 10000 A/F 17 more info »
	34600.W0030	30	M16	34	13	16	15000	24
£ 16.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 16.42 0% 10-19 £ 14.78 10% 20-49 £ 13.96 15% 50-99 £ 13.14 20% 100+ £ 12.32 25% d1 30 d2 M16 l1 ≈ 34 l2 13 t min. 16 Static load N 15000 A/F 24 more info »
