Rest Pads
round - rear fixing
35982 Rest Pads - Stainless Steel
round - rear fixing, material: Stainless steel
Order No.
35982.W0250
d1
+0.00|-0.13
25
d2
M 6x1,0
h1
±0.03
10
l1
5.0
£ 18.48 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 18.48 | 0% |
| 10-14 | £ 16.63 | 10% |
| 15-24 | £ 15.71 | 15% |
| 25-49 | £ 14.78 | 20% |
| 50+ | £ 12.94 | 30% |
Technical & Application
Material
Stainless steel (AISI 630), hardened to HRc 43-46.
Technical Notes
Can be used as rest pads, stops, supports etc in jigs and fixtures.
Tips

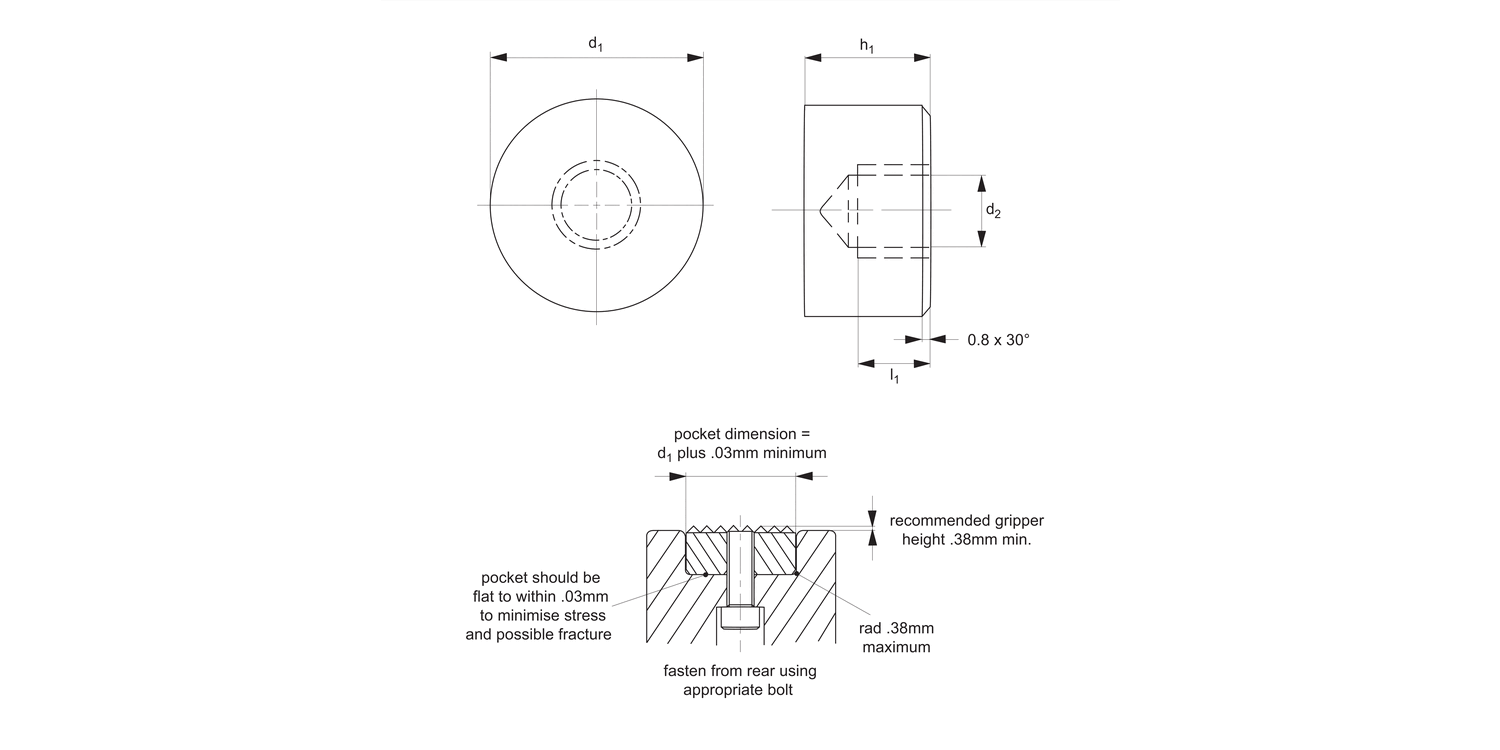

Can be fastened from rear using appropriate bolt, or alternatively via use of a differential screw. Note installation recommendations in technical diagram.
