Rest Pads
round - rear fixing

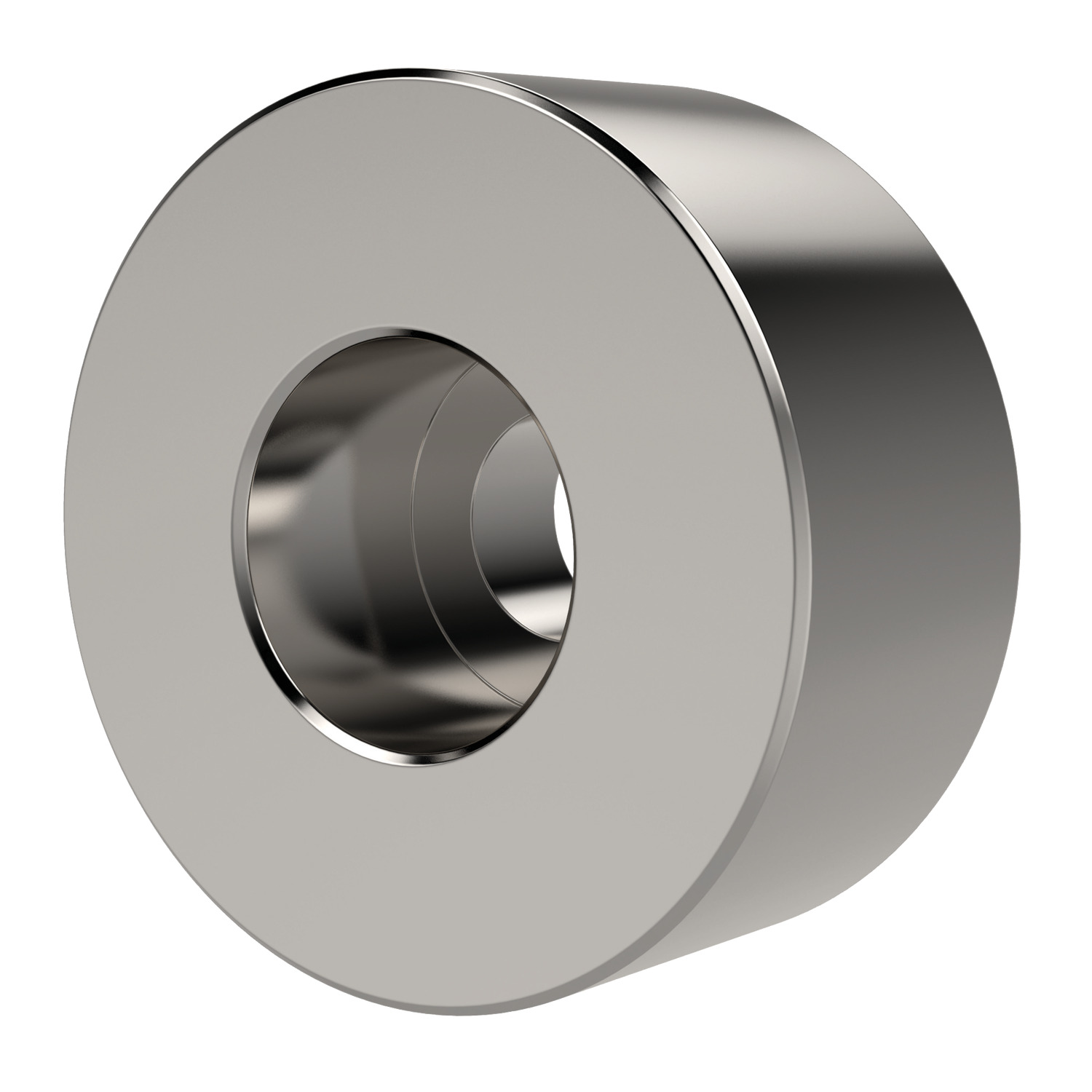

35986 Rest Pads - Stainless Steel
round - front fixing, material: Stainless steel
Order No.
35986.W0102
d1
+0.00|-0.13
10
d2 to fit DIN 912
M 3
h1
±0.03
12
l1
5.0
£ 11.90 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 11.90 | 0% |
| 10-14 | £ 10.71 | 10% |
| 15-24 | £ 10.12 | 15% |
| 25-49 | £ 9.52 | 20% |
| 50+ | £ 8.33 | 30% |
Technical & Application
Material
Stainless steel (AISI 630), hardened to RHc 43-46.
Technical Notes
Stainless steel provides high strength as well as protection against chemical and environmental corrosion.
Tips

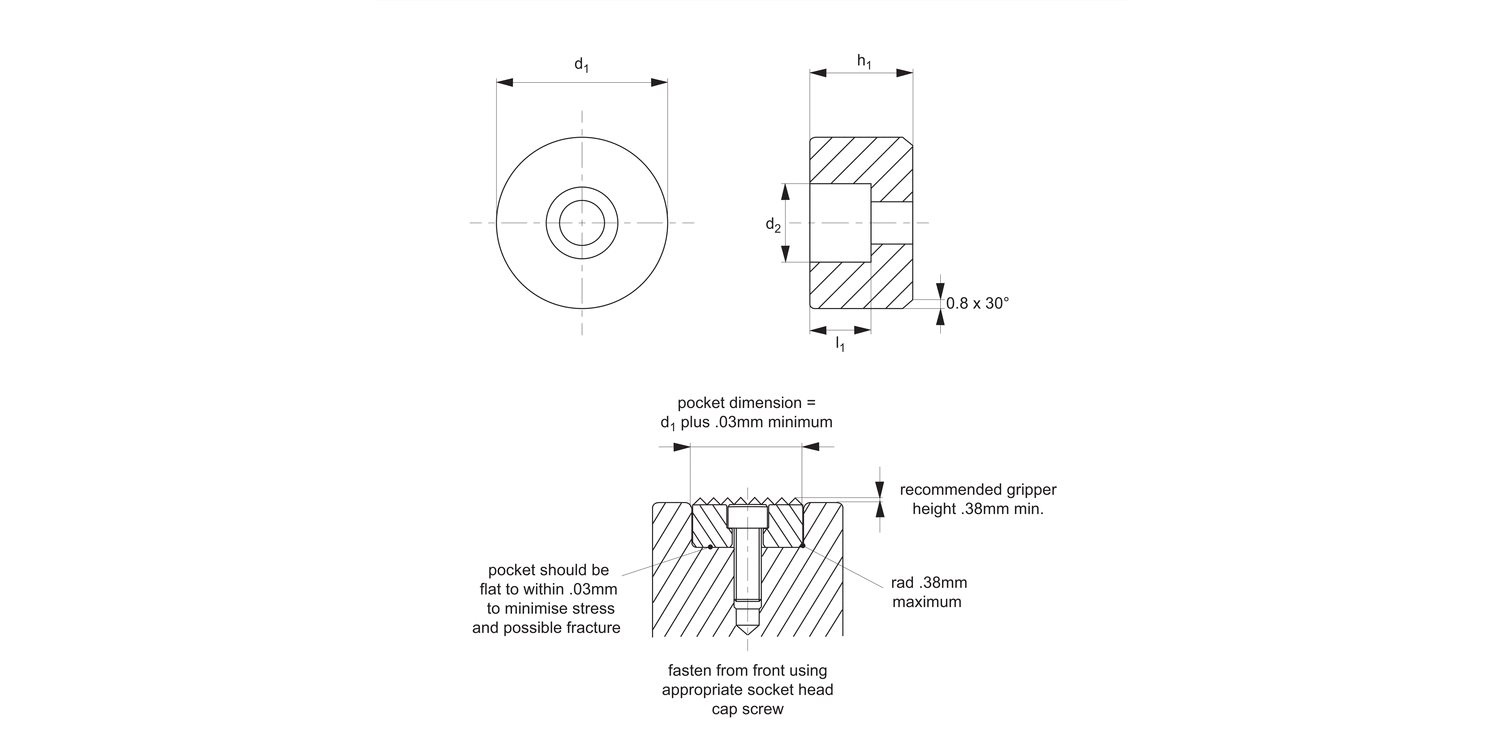

Counterbored hole for front mounting with a socket head cap screw. Note installation recommendations in technical diagram.
