Combination Toggle Clamp
position and clamp

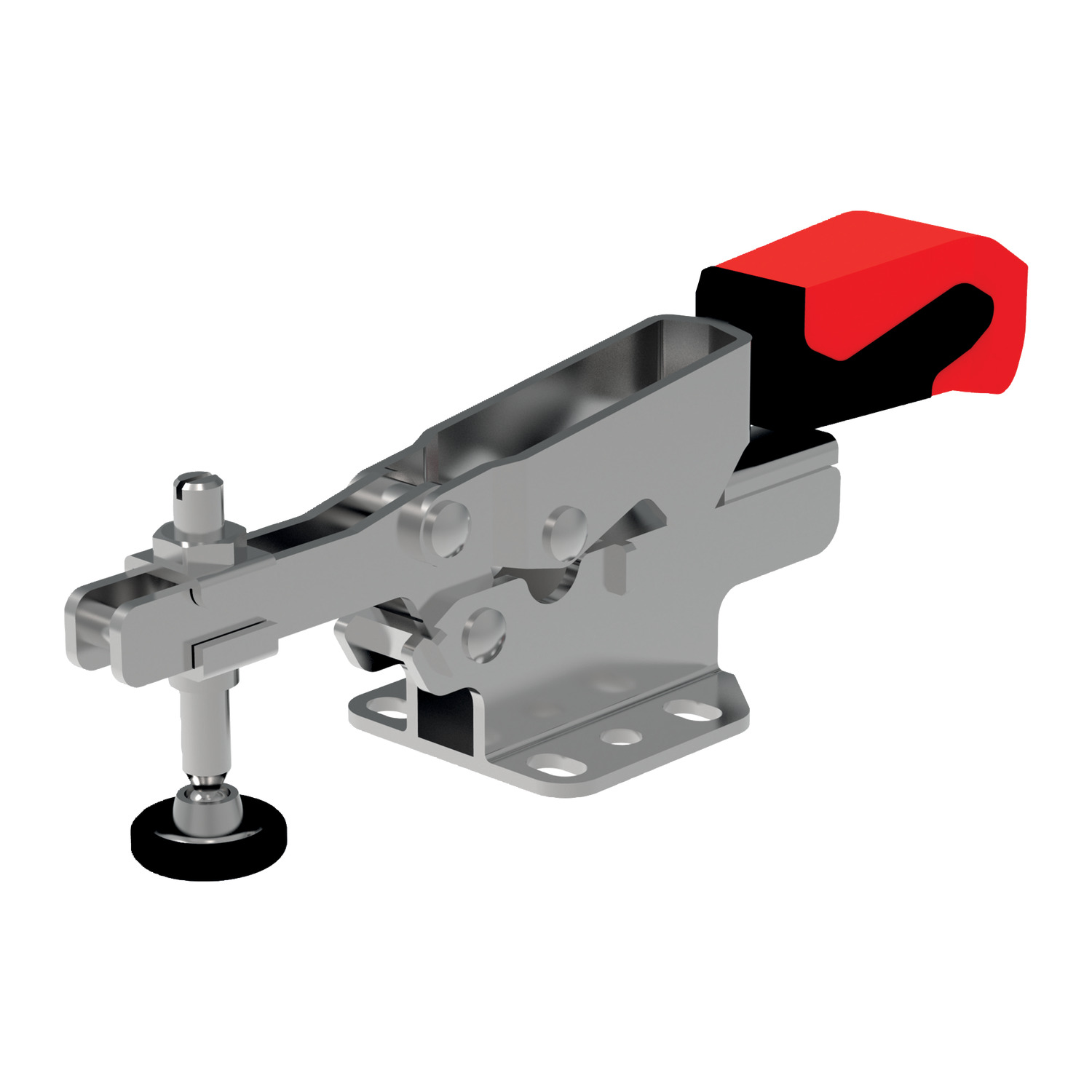

42605 Auto-Adjust Toggle Clamp
open clamping arm - horizontal base, material: Steel, zinc plated
Order No.
42605.W0020

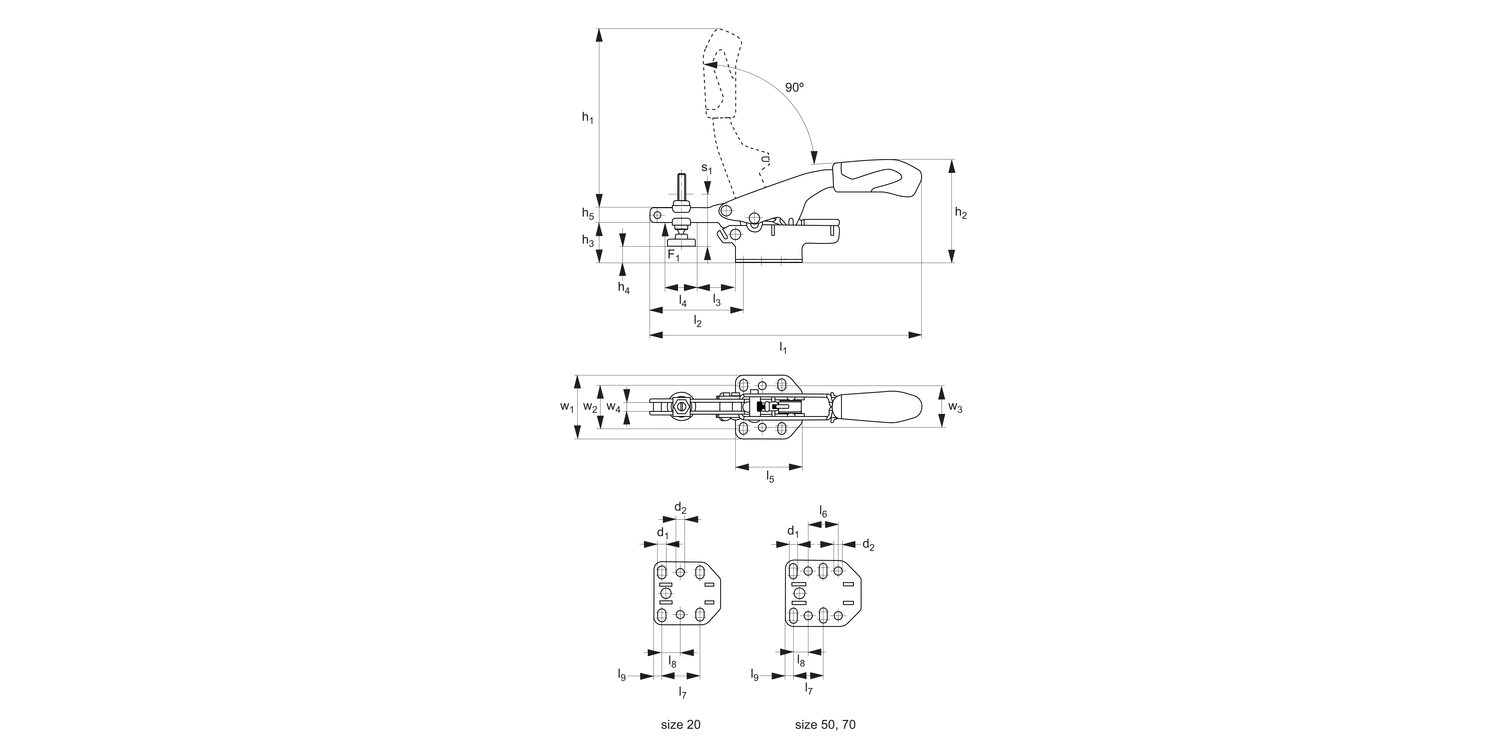

Size
20
F1
kN
2
Automatic height compensation s1
20
d1
5.5
d2
5.5
h1
121
h2
70
h3
27
h4
min.
-7.0
h4
max.
11.0
h5
10
Weight
g
345
l1
184
l2
63
l3
22.0
l4
26.0
l5
45.0
l6
-
l7
26.0
l8
12.7
l9
5.3
w1
42.5
w2
26-32
w3
28
w4
6.1
Clamping screw
M 6x49
Height compensation
max.
35
£ 42.98 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 42.98 | 0% |
| 10-14 | £ 38.68 | 10% |
| 15-24 | £ 36.53 | 15% |
| 25-49 | £ 34.38 | 20% |
| 50+ | £ 30.09 | 30% |
Technical & Application
Material
Body: steel, zinc plated.
Ergonomic soft feel oil-resistant handle with large grip area.
Supplied complete with zinc-plated clamping screw (with rubber pad).
Technical Notes
Automatically adjusts to suit workpiece height.
