42613 Auto-Adjust Push-Pull Toggle Clamp

Name: 42613.W0025
Brand: WC
SKU: 42613.W0025
Price: 46.73 EUR
Availability: OutOfStock

horizontal base, material: Steel, zinc plated

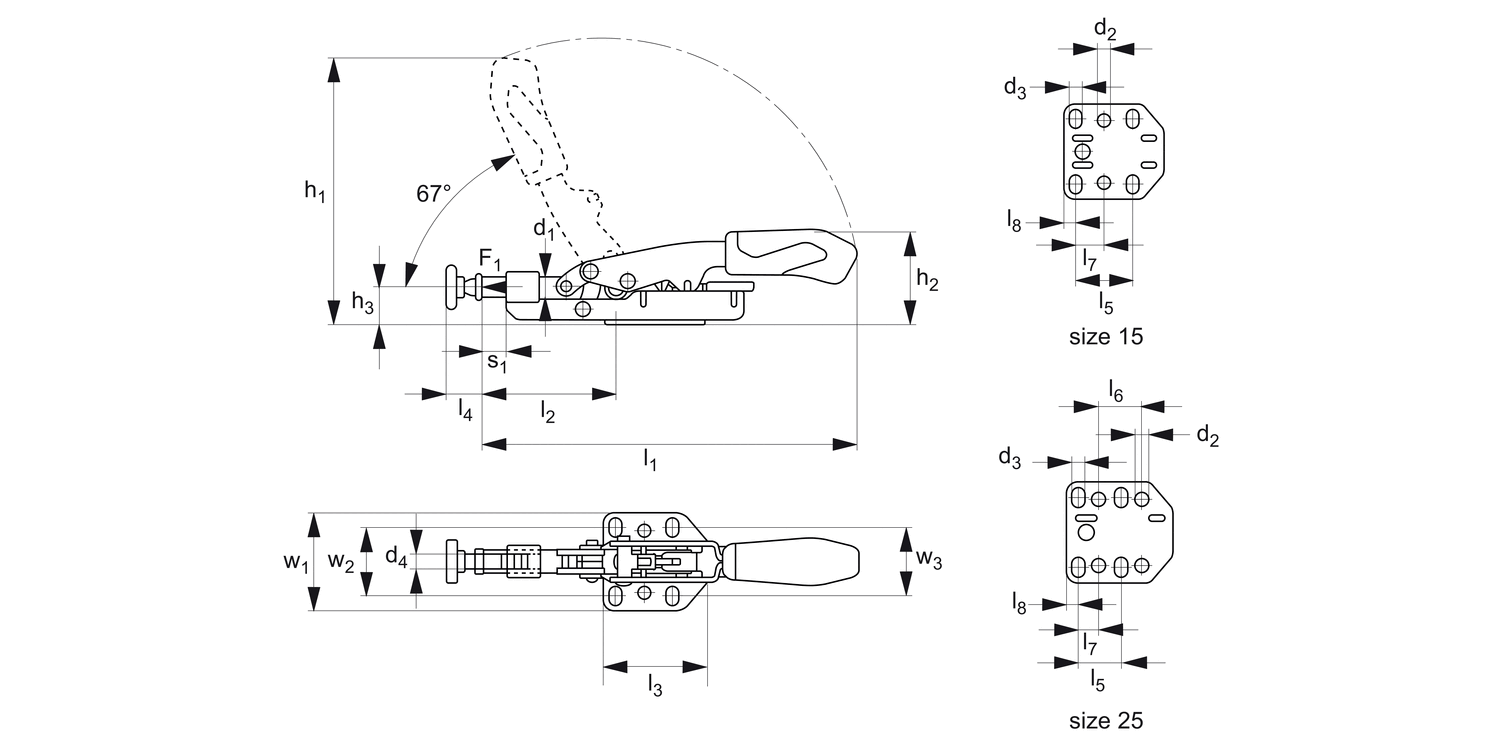

Article properties

Order No.

42613.W0025

Size

F₁ kN

Automatic height compensation s₁

d₁

11.8

d₂

6.5

d₃

6.5

d₄

M 8

h₁

207

h₂

h₃

23.2

Weight g

550

l₁

256

l₂

72-98

l₃

63.5

l₄ min.

l₄ max.

l₅

25.4

l₆

25.4

l₇

12.7

l₈

6.3

w₁

57.0

w₂

32-44

w₃

Clamping screw

M 8x50

Height compensation max.

See full product selection

£ 46.73 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	£ 46.73

Download product datasheet

Technical & Application

Material

Body: steel, zinc plated.
Ergonomic, soft feel and oil-resistant handle with large grip area.
Supplied complete with zinc plated clamping screw (with rubber pad).

Technical Notes

Automatically adjusts to suit work-piece height.
Temperature range -10°C to +80°C.
