79570 Pull Handles, Collapsible

Name: 79570.W0520
Brand: WC
SKU: 79570.W0520
Price: 43.26 GBP
Availability: OutOfStock

material: Steel

Article properties

Order No.

79570.W0520

Type

With Plastic Grip

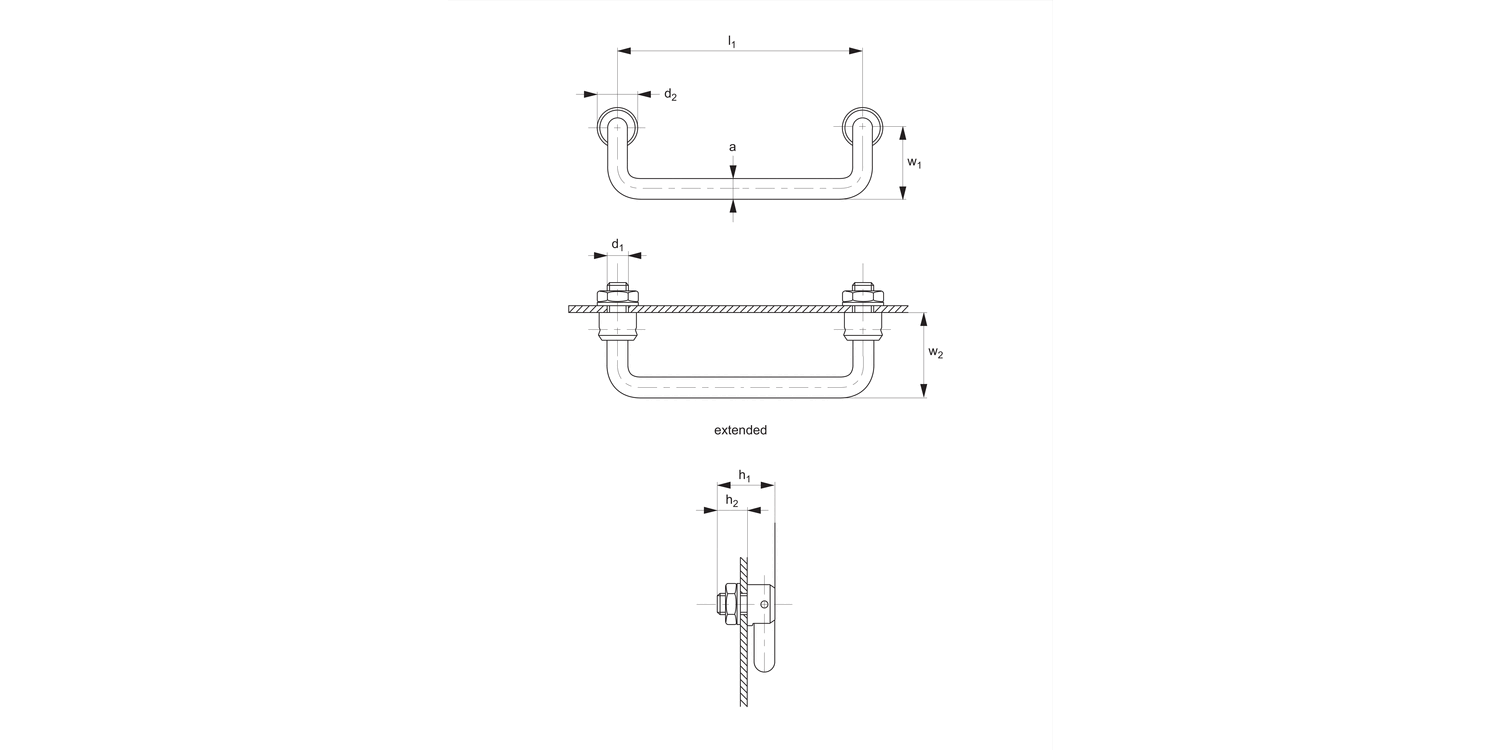

l₁

120

d₁

M10 x 1

d₂

h₁

h₂

Ø10

w₁

w₂

See full product selection

£ 43.26 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.95.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-2	£ 43.26	0%
3-4	£ 41.10	5%
5-9	£ 38.93	10%
10+	£ 36.77	15%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Round steel bar, precision ground and chromium plated, mirror finish. Plastic grip.

Technical Notes

Spring-arrest in both extended and retracted positions. Supplied with suitable nuts and washers.
Minimum stress resistance to 1000N per pair due to one-piece shank.

Product Datasheets

79570 Pull Handles, Collapsible24 June 2025, 15:39 / 194.46 kB

Pull Handles - Spring Loaded24 June 2025, 15:34 / 1.08 MB

Pull Handles24 June 2025, 15:31 / 4.23 MB

Grips, Handles & Handwheels24 June 2025, 15:32 / 11.95 MB

Design Elements24 June 2025, 15:33 / 69.38 MB
