79580 Pull Handles, Collapsible

Name: 79580.W0120
Brand: WC
SKU: 79580.W0120
Price: 38.45 EUR
Availability: OutOfStock

material: Polyamide

Article properties

Order No.

79580.W0120

Type

Spring Loaded

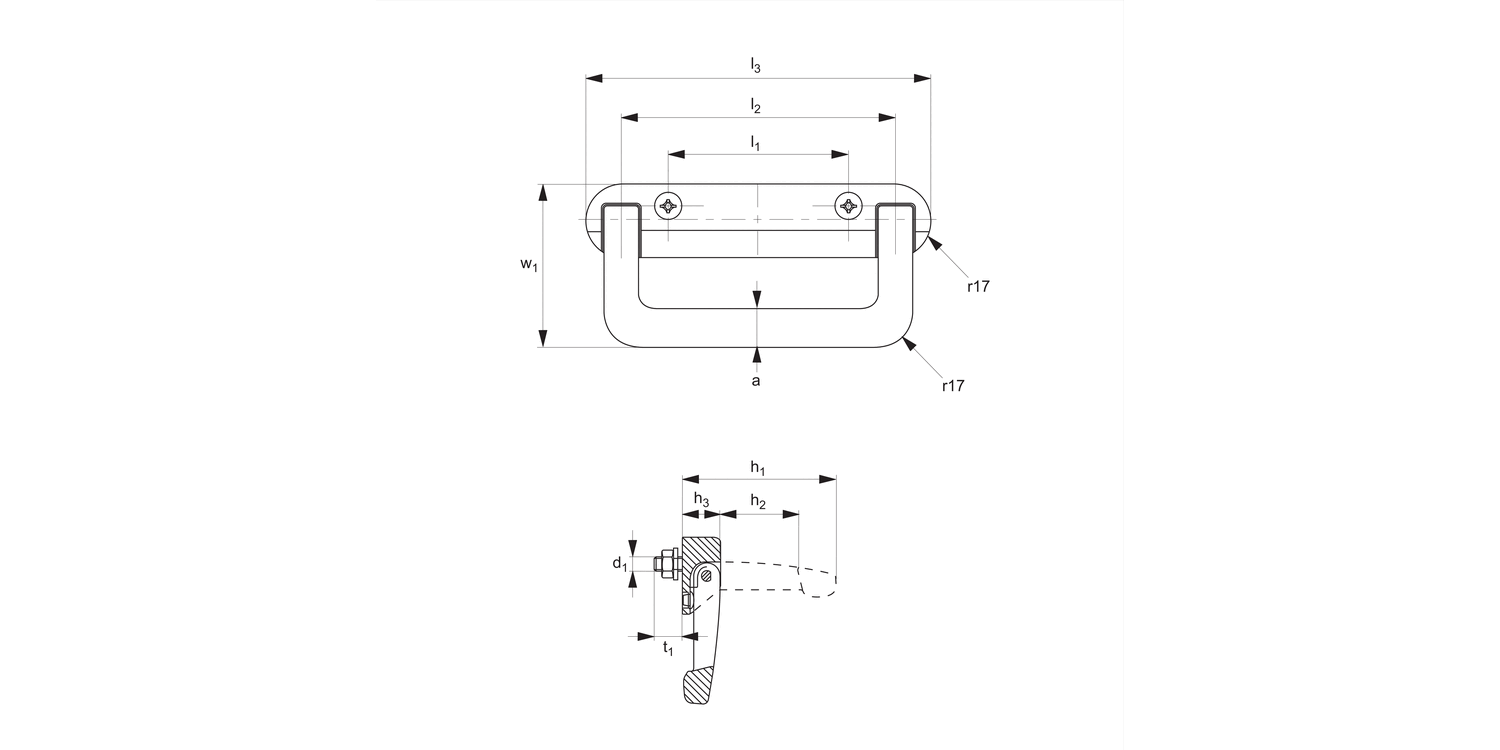

l₁

l₂

120

l₃

154

d₁

M 6

h₁

h₂

h₃

w₁

See full product selection

£ 38.45 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-2	£ 38.45	0%
3-4	£ 36.53	5%
5-9	£ 34.61	10%
10+	£ 32.68	15%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Polyamide, glass reinforced plastic PA 6, black, semi-gloss. Arbors and springs from stainless steel. With screws to DIN9656, M 6x30, suitable nuts & washers.

Technical Notes

Minimum stress resistance 300N. Stability under load 500N.

Tips

Springs back automatically.
