Cam Latch Flexi-System
cylinder lock - padlockable
A1161 Cam Latches - Flexi-System
padlock wing handle - fixed grip - zinc, material: Die cast zinc
Order No.
A1161.AW0310
Type
Black Coated
d1
33
h1
19
d2
21
lh
18
Finish
black coated
£ 7.07 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 7.07 | 0% |
| 20-49 | £ 6.36 | 10% |
| 50-99 | £ 6.01 | 15% |
| 100-499 | £ 5.30 | 25% |
| 500+ | £ 4.60 | 35% |
Technical & Application
Material
Body & Handle: die cast zinc, pocked black powder or chrome plated.
Not supplied: CAM - order separately.
Technical Notes
Order cam separately.
Cams: see suitable cam A0203, A0224 and A0240. Select "without projection" cam type.
Dimensions ch and cl relate to cam. Use formula to calculate ch (required cam off-set), and refer to cam selection chart;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see product table below).
Rods & Guides: to achieve 3-point latching - A0303, A0321, A0325.
Tips

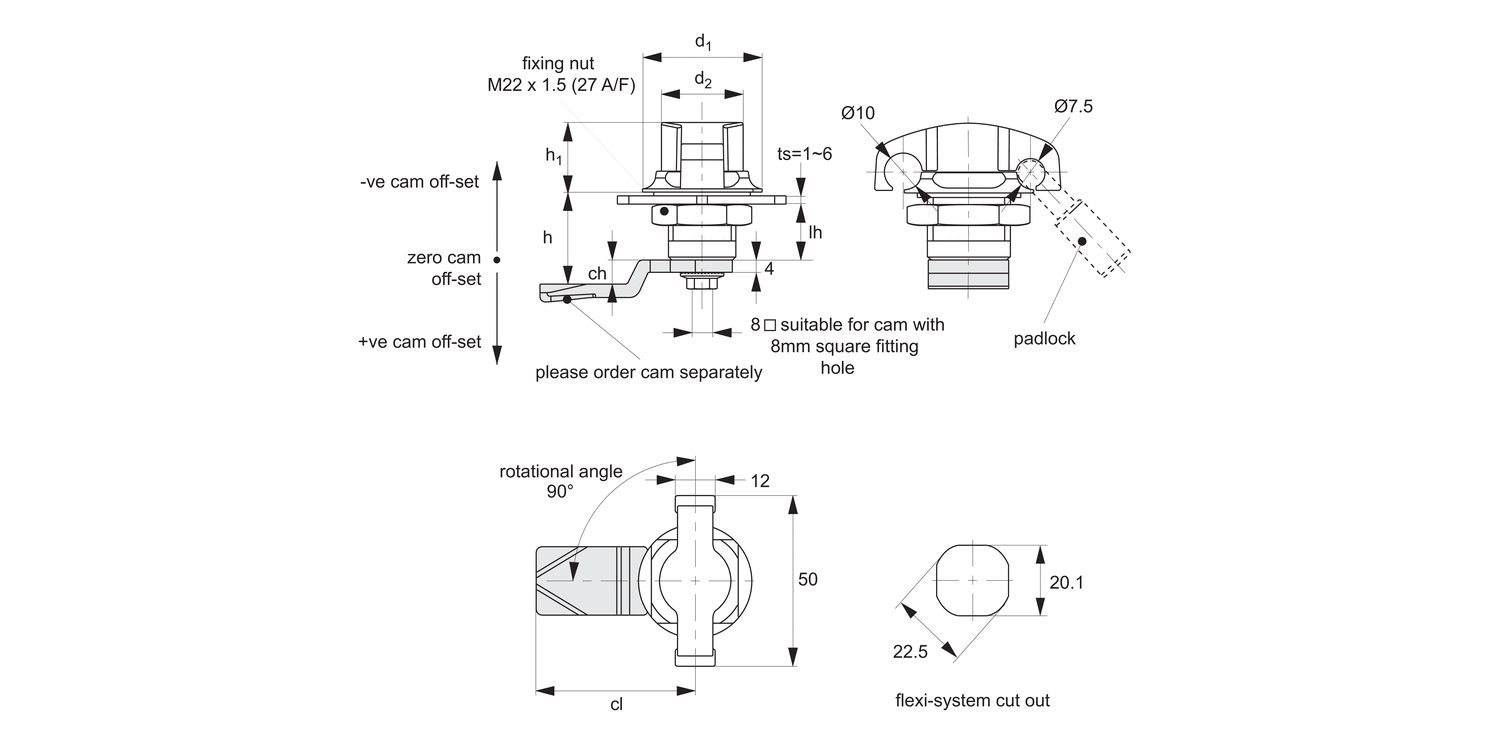

The wing knob can be locked by two sizes of padlock max. shackle dia. 7.5mm or 10mm. See technical diagram (padlock not supplied).
Panel thickness (ts) is 1 to 6mm max.
Important Notes
Sold subject to pack quantity.
Product Datasheets
CAD files
Application images
Alternative products you may wish to consider
