Cam Latch Flexi-System
insert driver - stepped - extd

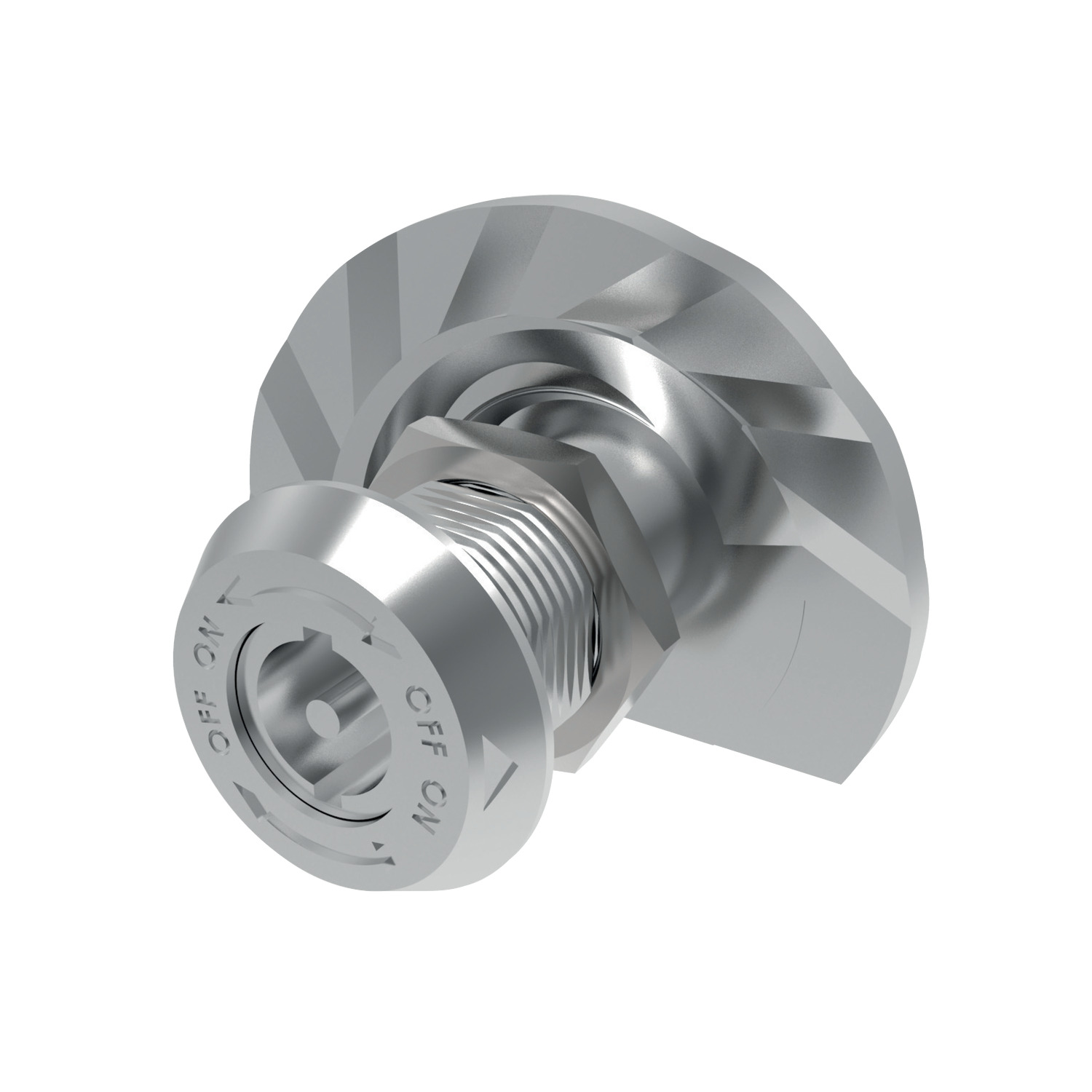

A1241 Cam Latches - Flexi-System
insert driver - stepped cam - extended body - zinc, material: Die cast zinc
Order No.
A1241.AW0311

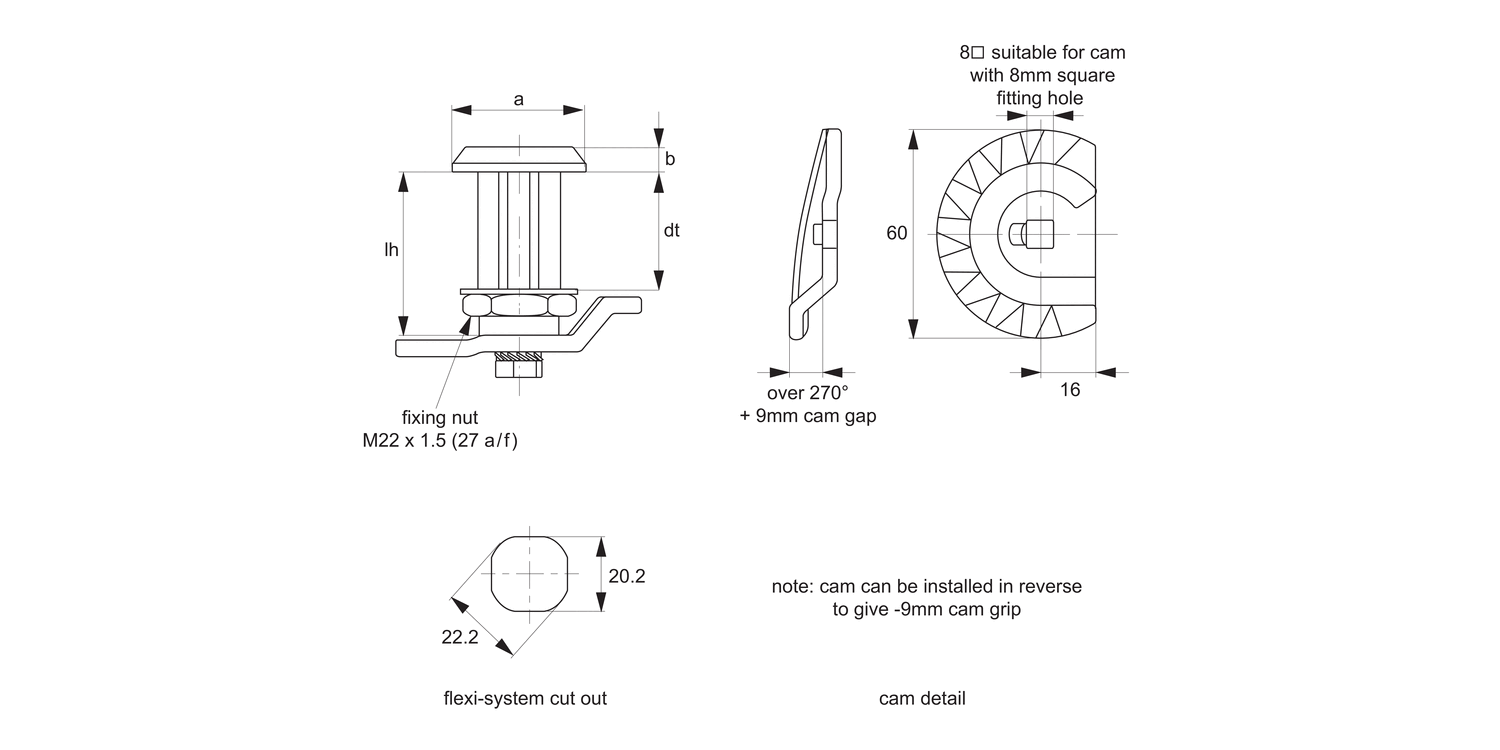

Insert driver
Square 7
lh
40
dt door thickness
max.
30
a
32
b
6
£ 7.15 per unit (click for quantity discounts)
Ready to despatch 6
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 7.15 | 0% |
| 20-49 | £ 6.44 | 10% |
| 50-99 | £ 6.08 | 15% |
| 100-499 | £ 5.36 | 25% |
| 500+ | £ 4.65 | 35% |
Technical & Application
Material
Body: die cast zinc, chrome plated. Insert fitted with O'ring to achieve IP54 rating.
Supplied with: Nut: steel, zinc plated.
Sealing washer: PU & rubber.
Stepped cam: die cast zinc, 9mm step over 270° rotation, 60mm dia.
Not supplied: KEY - order separately.
Technical Notes
Order keys separately. Suitable keys - A0102.
Tips
Stepped cam ideal for air conditioning units, sound proof or isolation doors. Very tight closure of door possible, due to stepped cam over a 270° rotation.
Important Notes
Sold subject to pack quantity.
