Compression Latch
flexi system
A1580 Compression Latch - Flexi System
insert driver - fixed grip - zinc, material: Zinc
Order No.
A1580.AW0223
Insert type
Triangle 7
Lock type
With Security Cover

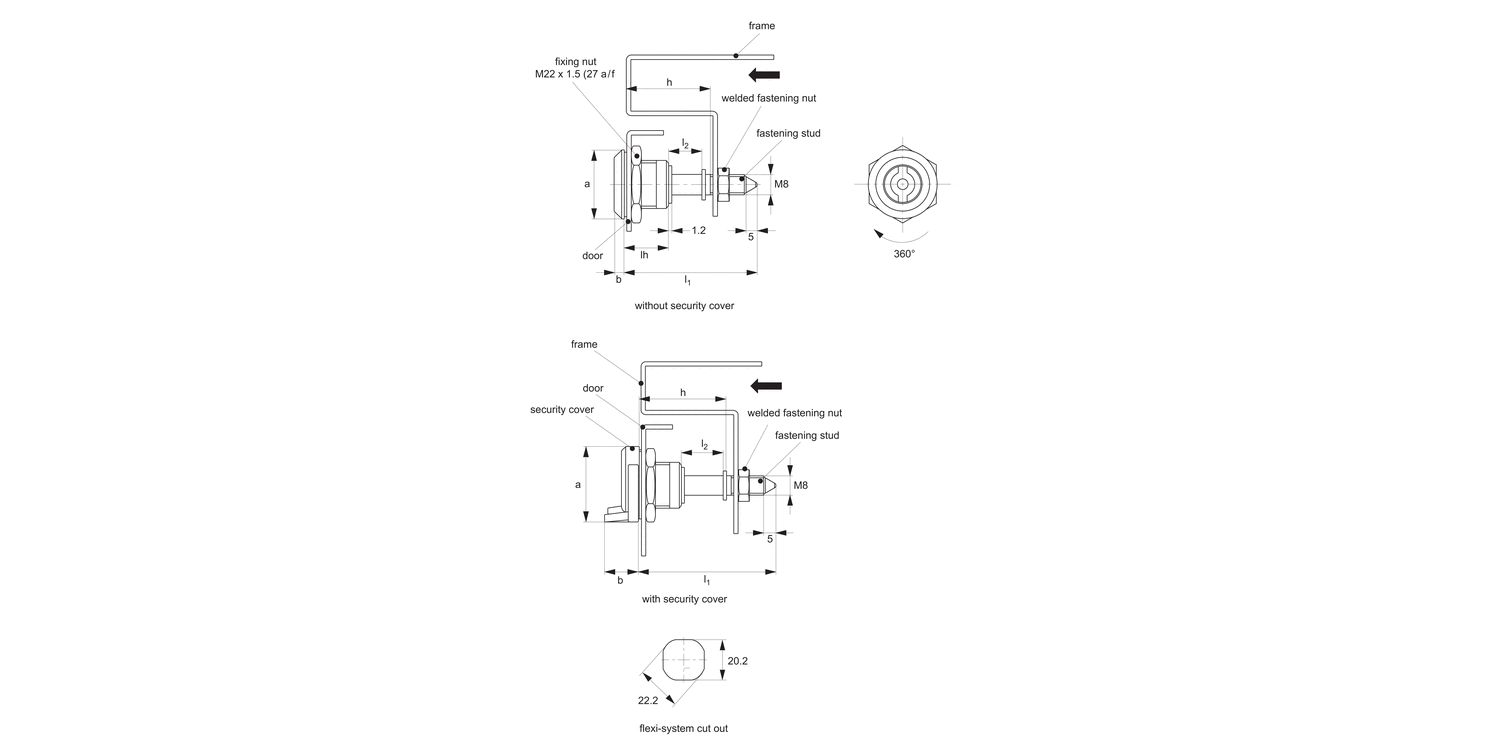

a
29
b
13
lh
18
l1
40
l2
2.5
h
23
£ 5.23 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 5.23 | 0% |
| 20-49 | £ 4.71 | 10% |
| 50-99 | £ 4.45 | 15% |
| 100-499 | £ 3.92 | 25% |
| 500+ | £ 3.40 | 35% |
Technical & Application
Material
Body: die cast zinc, bright chrome plated.
Insert: steel.
Not supplied: KEY - order separately.
Technical Notes
Keys

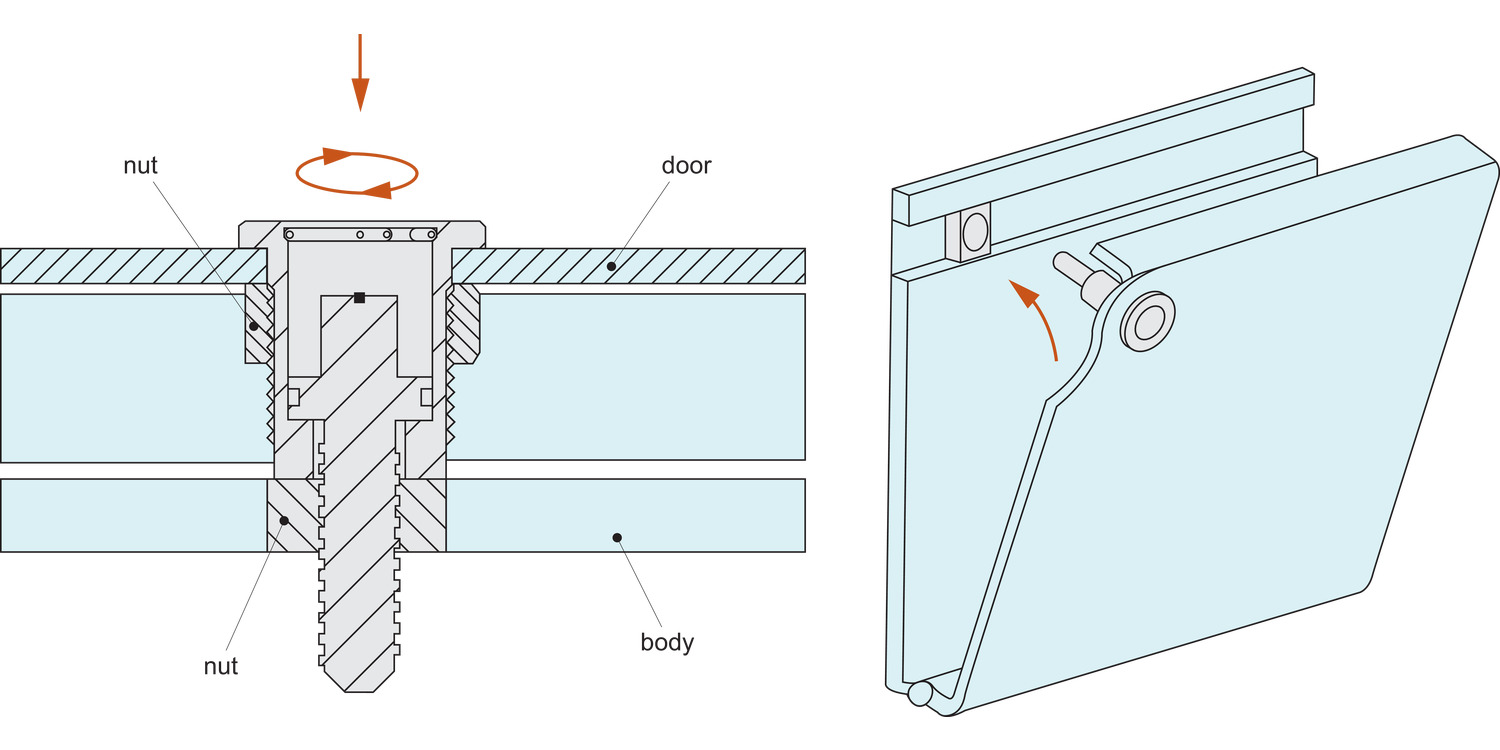

Insert driver compression latch enabling tight securing of enclosure door. Via welding a fastening nut (M 8) to the enclosure frame the fastening stud can be engaged and turned until the enclosure door is adequately tightened and secured (use triangle 7 key A0102.AW0060 to activate driver).
Tips
Security cover type can be secured with wire or cable tie for tamper evident security.
h = grip length.
Product Datasheets
Application images
