A1801 Compression Lock - T-handle - Flexi-System
T-handle - fixed grip - zinc, material: Die cast zinc
£ 15.13 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 15.13 | 0% |
| 20-49 | £ 13.62 | 10% |
| 50-99 | £ 12.86 | 15% |
| 100-499 | £ 11.35 | 25% |
| 500+ | £ 9.83 | 35% |
Technical & Application
Material
Body & handle: die cast zinc, nanometer coated.
Supplied with: Key.
Not supplied: CAM - order separately.
Technical Notes
Order cam and key separately.
Cams: see suitable cam A0203 and A0224. Select "without projection" cam type.

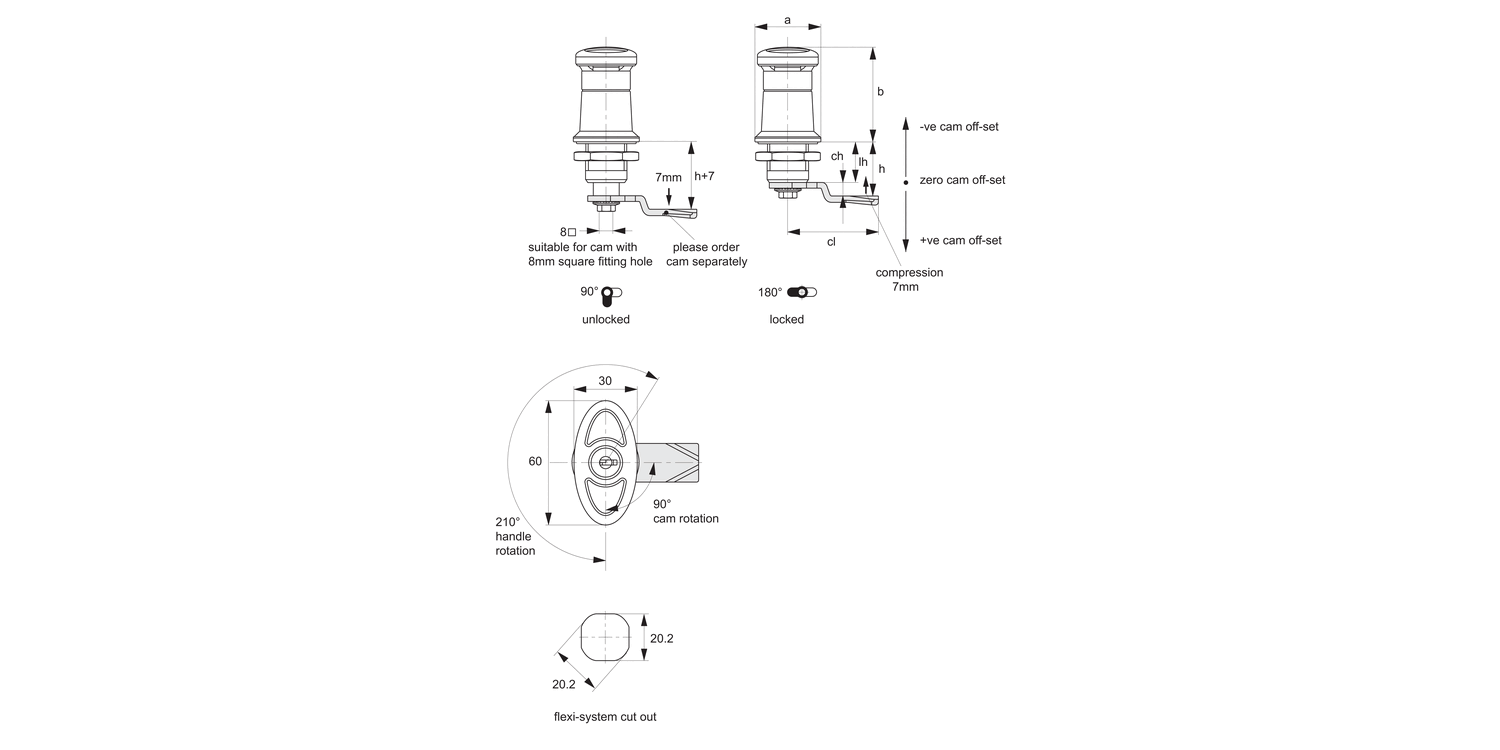

Dimensions ch and cl relate to cam. Use formula to calculate ch (required cam off-set), and refer to cam selection chart;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see product table below).
Keys: see A0102.
Tips
Compression locks provide sealing of enclosures to reduce vibration and to provide noise isolation.
Action:
210° handle rotation, 90° cam rotation.
