Lever Catches
finger tip control

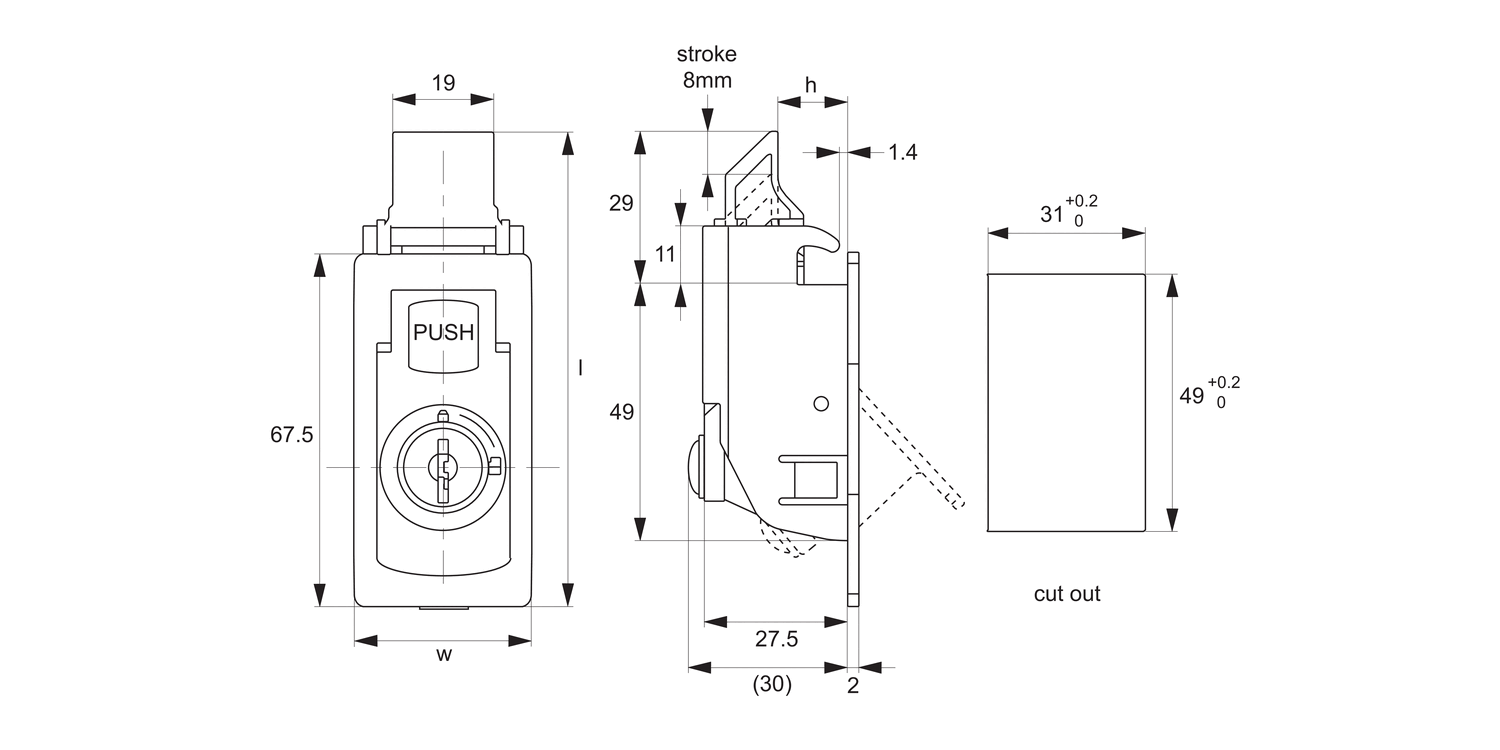

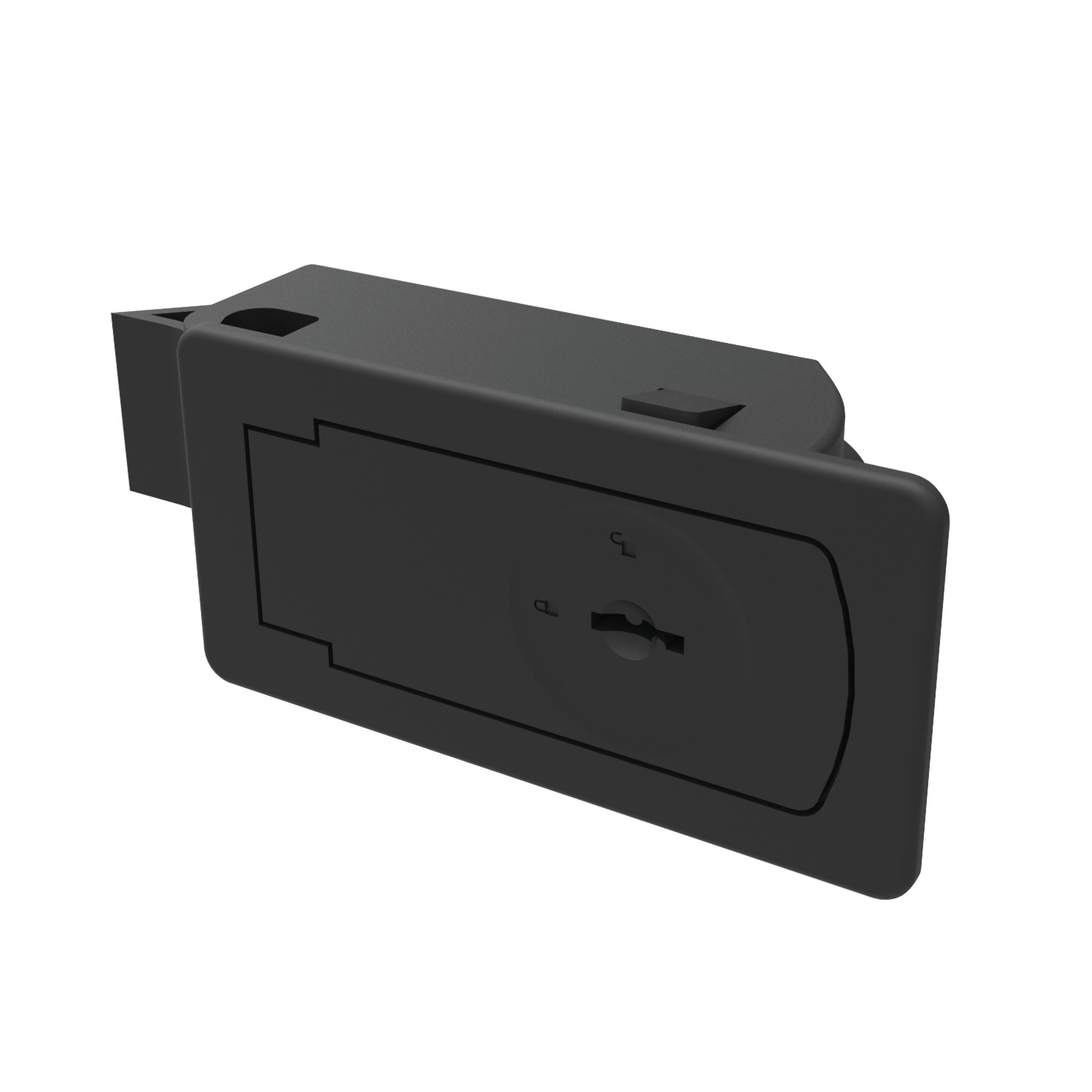

E2036 Touch Latches - Flush
snap-in installation - with secondary lock, material: Polyamide
Order No.
E2036.AW0010
Type
With Lock
Panel thickness
1.4
h grip length
13.3
l
90.55
w
34
Catch stroke
8
£ 3.77 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-49 | £ 3.77 | 0% |
| 50-99 | £ 3.39 | 10% |
| 100-199 | £ 3.02 | 20% |
| 200-499 | £ 2.83 | 25% |
| 500-999 | £ 2.64 | 30% |
| 1000+ | £ 2.26 | 40% |
Technical & Application
Material
Polyamide, plastic (PA), black
Supplied with: Keys: two per lock.
Tips
Insert key, turn 90° to release handle, depress handle as indicated to lift handle and release cam. Ideal for small metal machinery covers. Cam has stroke of 8mm.
