Magnetic Touch Latches
overlay doors

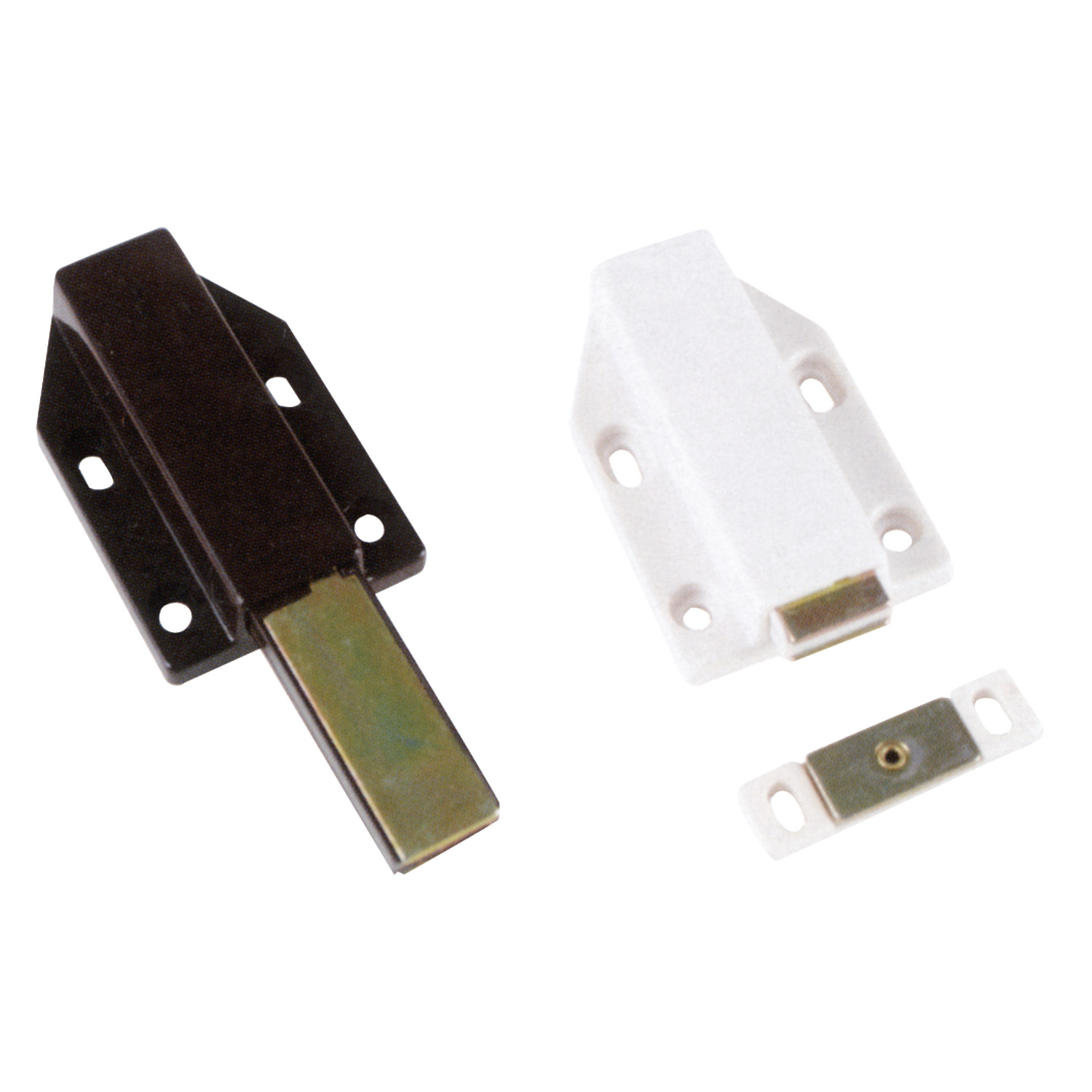

E5250 Magnetic Touch Latches
extended stroke - for overlay doors, material: Plastic
Order No.
E5250.AC0010
Finish
White
Magnetic force
kgf
2.4
Weight
g
53
£ 5.70 per unit (click for quantity discounts)
Ready to despatch 73
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-49 | £ 5.70 | 0% |
| 50-99 | £ 5.13 | 10% |
| 100-249 | £ 4.85 | 15% |
| 250-499 | £ 4.56 | 20% |
| 500+ | £ 4.28 | 25% |
Technical & Application
Material
Body: ABS plastic.
Latch and catch plate: steel, yellow zinc chromate.
Technical Notes

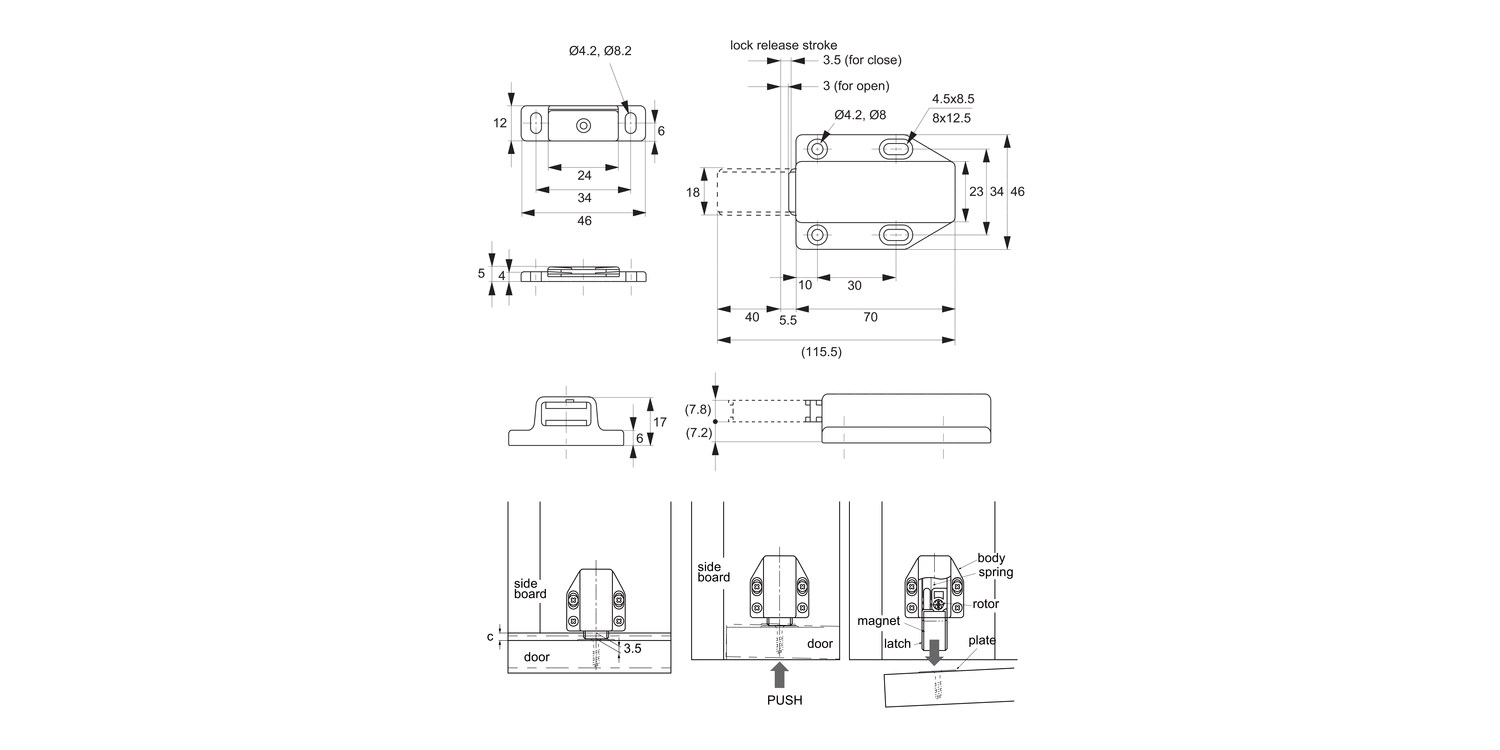

Push to open/close. For overlay push to open/close doors, a 3,5mm gap between door and cabinet frame is required for push space.
Tips
E5250 has an extended/long stroke of 40mm to ensure full and positive movement of door upon actuation.
