Toggle Latches
adj. with secondary lock, s/s
J0540 Toggle Latches
adjustable with secondary lock, stainless steel, material: Steel or Stainless Steel
Order No.
J0540.AC0030
Finish
Stainless steel

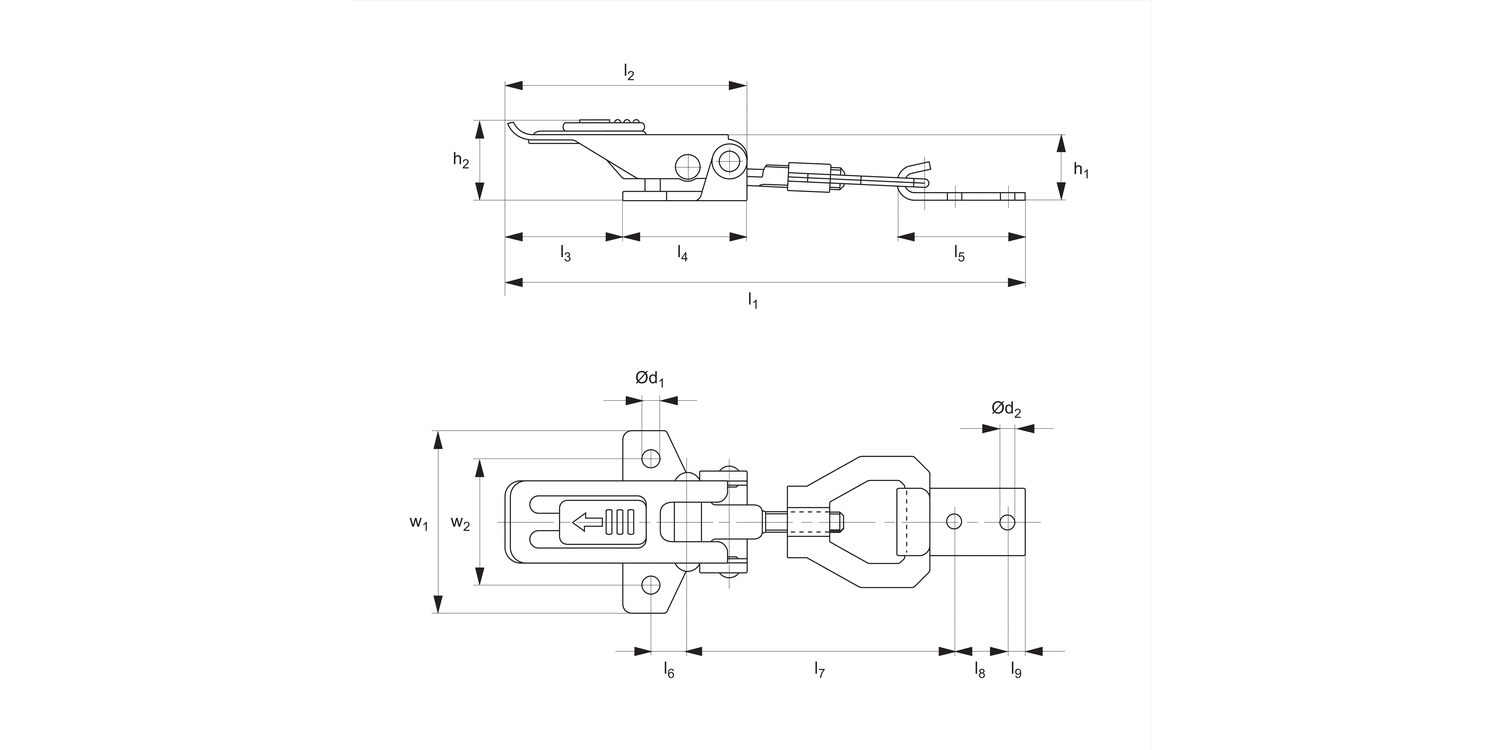

l1
138 to 150
w1
52
h1
18
Ø d1
5.2
Ø d2
4.1
h2
22
l2
67.5
l3
33
Weight
g
105
l4
35
l5
36
l6
10
l7
68 to 80
l8
15
l9
5
w2
36
w3
19
Load
max.
N
1100
Tension
max.
N
2500
£ 11.67 per unit (click for quantity discounts)
Ready to despatch 226
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 11.67 | 0% |
| 20-49 | £ 9.92 | 15% |
| 50-99 | £ 8.75 | 25% |
| 100-199 | £ 7.59 | 35% |
| 200-499 | £ 7.00 | 40% |
| 500+ | £ 5.84 | 50% |
Technical & Application
Material
Steel, Fe P02 + P12, UNI5866, zinc plated. Or stainless steel AISI 304, UNI x5crNi.
Technical Notes
Supplied with counter strike.
Draw length adjustable through turns of threaded draw rod, giving 12mm length of adjustment.
