Disk Dampers
bi-directional

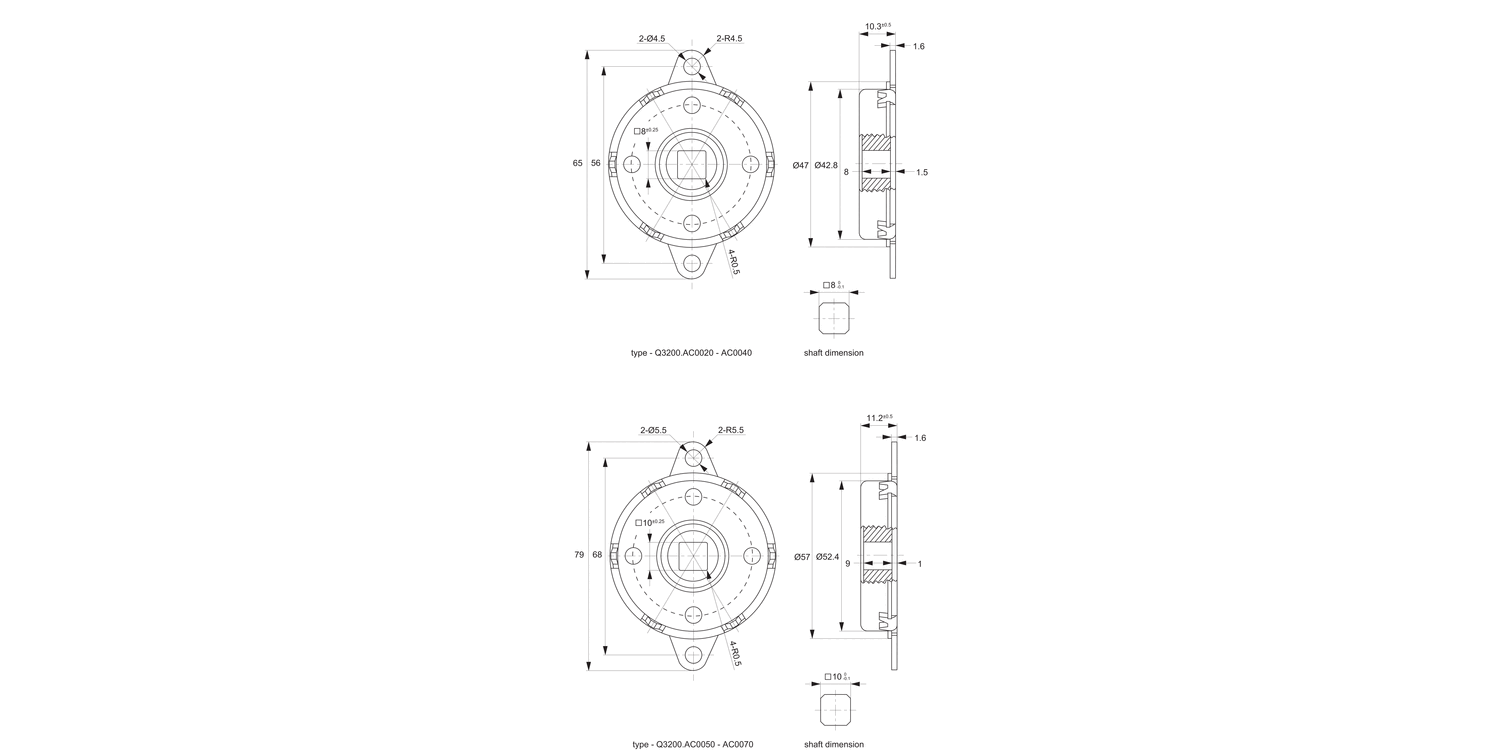

Q3200 Disk Dampers
bi-directional - continuous rotation - up to 47 Kgf.cm, material: Iron
Order No.
Q3200.AC0020
Damping torque
±0.5
Nm
2
Damping direction
Bi-directional
Weight
g
75
£ 37.73 per unit (click for quantity discounts)
Ready to despatch 169
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 37.73 | 0% |
| 5-9 | £ 35.84 | 5% |
| 10-19 | £ 33.96 | 10% |
| 20-49 | £ 32.07 | 15% |
| 50+ | £ 28.30 | 25% |
Technical & Application
Material
Body: iron (SPFC).
Shaft: nylon (with glass).
Oil: silicone.
Important Notes
Temperature range -10° to 50°C.
Rotational speed 20rpm at 23°±3C°
Rotational speed 50rpm max.
Cycle rate 12 cycle/min.
Dampers are both clockwise and counter clockwise.
Damper can only take torque load.
Product Datasheets
Application images
