Disk Dampers
bi-directional
Q3240 Disk Dampers
uni-directional - continuous direction - up to 55 Kgf.cm, material: Iron
Alternative products you may wish to consider
Damping torque
±0.5
Nm
4.0
Damping direction
Clockwise
Weight
g
94
£ 17.93 per unit (click for quantity discounts)
Damping torque
±0.5
Nm
4.0
Damping direction
Counter-clockwise
Weight
g
94
£ 17.93 per unit (click for quantity discounts)
Damping torque
±0.5
Nm
5.0
Damping direction
Clockwise
Weight
g
94
£ 17.93 per unit (click for quantity discounts)
£ 17.93 per unit (click for quantity discounts)
Damping torque
±0.5
Nm
5.0
Damping direction
Counter-clockwise
Weight
g
94
£ 17.93 per unit (click for quantity discounts)
Damping torque
±0.5
Nm
6.0
Damping direction
Counter-clockwise
Weight
g
94
£ 17.93 per unit (click for quantity discounts)
Damping torque
±0.5
Nm
7.0
Damping direction
Clockwise
Weight
g
94
£ 17.16 per unit (click for quantity discounts)
Damping torque
±0.5
Nm
7.0
Damping direction
Counter-clockwise
Weight
g
94
£ 17.16 per unit (click for quantity discounts)
Damping torque
±0.5
Nm
Damping direction
Weight
g
| Price & Availability | Article | Damping torque ±0.5 Nm | Damping direction | Weight g | ||||||||||||||||||
| Q3240.AC0040 | 4.0 | Clockwise | 94 | |||||||||||||||||||
£ 17.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Damping torque
±0.5
Nm 4.0 Damping direction Clockwise Weight
g 94 | ||||||||||||||||||||||
| Q3240.AC0140 | 4.0 | Counter-clockwise | 94 | |||||||||||||||||||
£ 17.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Damping torque
±0.5
Nm 4.0 Damping direction Counter-clockwise Weight
g 94 | ||||||||||||||||||||||
| Q3240.AC0050 | 5.0 | Clockwise | 94 | |||||||||||||||||||
£ 17.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Damping torque
±0.5
Nm 5.0 Damping direction Clockwise Weight
g 94 | ||||||||||||||||||||||
| Q3240.AC0060 | 6.0 | Clockwise | 94 | |||||||||||||||||||
£ 17.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Damping torque
±0.5
Nm 6.0 Damping direction Clockwise Weight
g 94 | ||||||||||||||||||||||
| Q3240.AC0150 | 5.0 | Counter-clockwise | 94 | |||||||||||||||||||
£ 17.93 per unit (click for quantity discounts) Ready to despatch 17 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Damping torque
±0.5
Nm 5.0 Damping direction Counter-clockwise Weight
g 94 | ||||||||||||||||||||||
| Q3240.AC0160 | 6.0 | Counter-clockwise | 94 | |||||||||||||||||||
£ 17.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Damping torque
±0.5
Nm 6.0 Damping direction Counter-clockwise Weight
g 94 | ||||||||||||||||||||||
| Q3240.AC0070 | 7.0 | Clockwise | 94 | |||||||||||||||||||
£ 17.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Damping torque
±0.5
Nm 7.0 Damping direction Clockwise Weight
g 94 | ||||||||||||||||||||||
| Q3240.AC0170 | 7.0 | Counter-clockwise | 94 | |||||||||||||||||||
£ 17.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Damping torque
±0.5
Nm 7.0 Damping direction Counter-clockwise Weight
g 94 | ||||||||||||||||||||||
Technical & Application
Material
Body: iron (SPFC).
Shaft: nylon (with glass).
Oil: silicone.
Technical Notes
When inserting shaft, insert by rotating shaft in opposite direction to the dampening direction.
Damper can only take torque load.
Important Notes
Temperature range -10° to 50°C.
Rotational speed 20rpm at 23°±3C°.
Rotational speed 50rpm max.
Cycle rate 12 cycle/min.
Dampers are both clockwise and counter clockwise.
Shaft: recommended shaft size Ø10, hardness HRC55, roughness 1.02 or lower
Product Datasheets

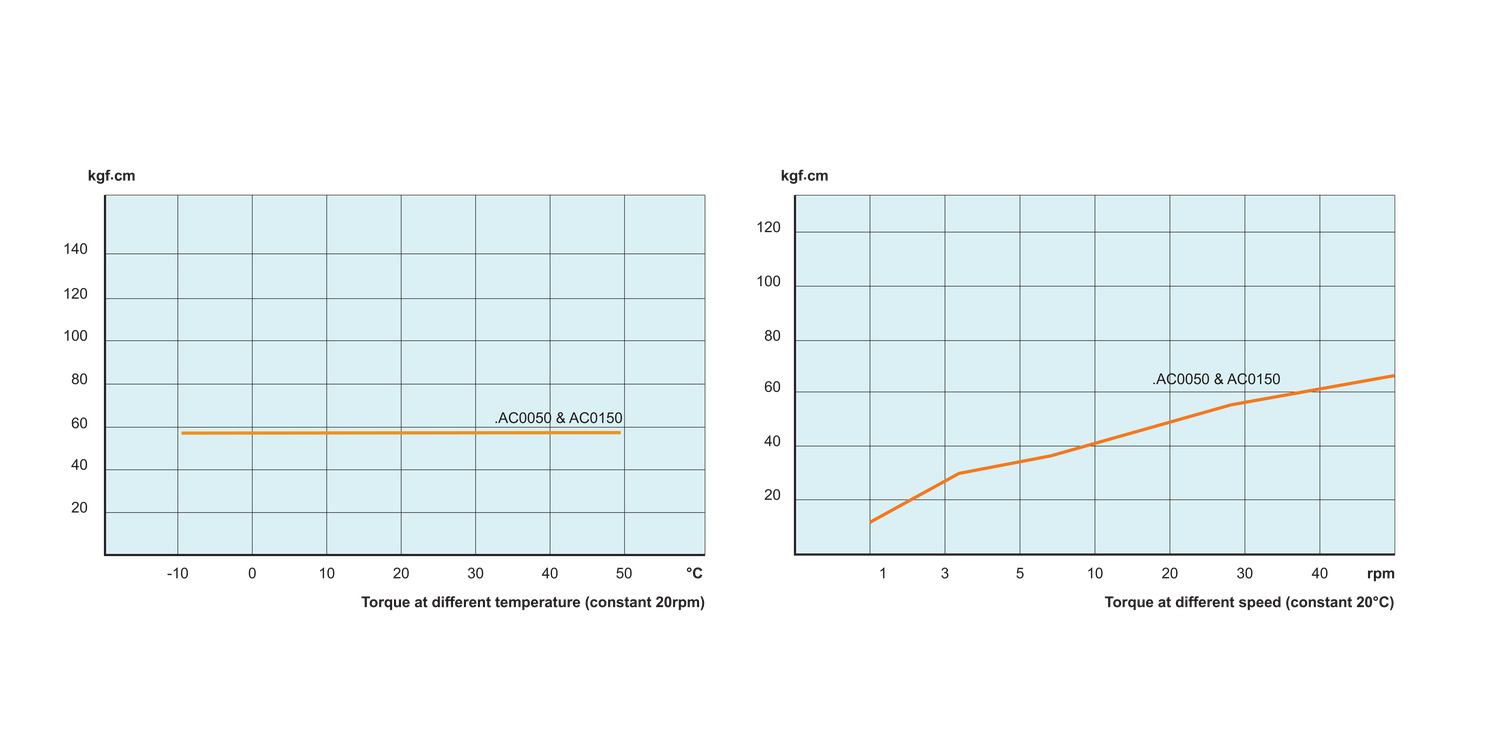

Application images
