Disk Dampers
bi-directional
Q3200 Disk Dampers
bi-directional - continuous rotation - up to 47 Kgf.cm, material: Iron
Alternative products you may wish to consider
£ 37.73 per unit (click for quantity discounts)
£ 12.56 per unit (click for quantity discounts)
£ 12.56 per unit (click for quantity discounts)
£ 12.56 per unit (click for quantity discounts)
£ 13.64 per unit (click for quantity discounts)
£ 14.00 per unit (click for quantity discounts)
Damping torque
±0.5
Nm
Damping direction
Weight
g
| Price & Availability | Article | Damping torque ±0.5 Nm | Damping direction | Weight g | ||||||||||||||||||
| Q3200.AC0020 | 2 | Bi-directional | 75 | |||||||||||||||||||
£ 37.73 per unit (click for quantity discounts) Ready to despatch 169 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Damping torque
±0.5
Nm 2 Damping direction Bi-directional Weight
g 75 | ||||||||||||||||||||||
| Q3200.AC0030 | 3 | Bi-directional | 75 | |||||||||||||||||||
£ 12.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Damping torque
±0.5
Nm 3 Damping direction Bi-directional Weight
g 75 | ||||||||||||||||||||||
| Q3200.AC0040 | 4 | Bi-directional | 75 | |||||||||||||||||||
£ 12.56 per unit (click for quantity discounts) Ready to despatch 14 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Damping torque
±0.5
Nm 4 Damping direction Bi-directional Weight
g 75 | ||||||||||||||||||||||
| Q3200.AC0050 | 5 | Bi-directional | 75 | |||||||||||||||||||
£ 12.56 per unit (click for quantity discounts) Ready to despatch 35 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Damping torque
±0.5
Nm 5 Damping direction Bi-directional Weight
g 75 | ||||||||||||||||||||||
| Q3200.AC0060 | 6 | Bi-directional | 75 | |||||||||||||||||||
£ 13.64 per unit (click for quantity discounts) Ready to despatch 11 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Damping torque
±0.5
Nm 6 Damping direction Bi-directional Weight
g 75 | ||||||||||||||||||||||
| Q3200.AC0070 | 7 | Bi-directional | 75 | |||||||||||||||||||
£ 14.00 per unit (click for quantity discounts) Ready to despatch 19 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Damping torque
±0.5
Nm 7 Damping direction Bi-directional Weight
g 75 | ||||||||||||||||||||||
Technical & Application
Material
Body: iron (SPFC).
Shaft: nylon (with glass).
Oil: silicone.
Important Notes
Temperature range -10° to 50°C.
Rotational speed 20rpm at 23°±3C°
Rotational speed 50rpm max.
Cycle rate 12 cycle/min.
Dampers are both clockwise and counter clockwise.
Damper can only take torque load.
Product Datasheets

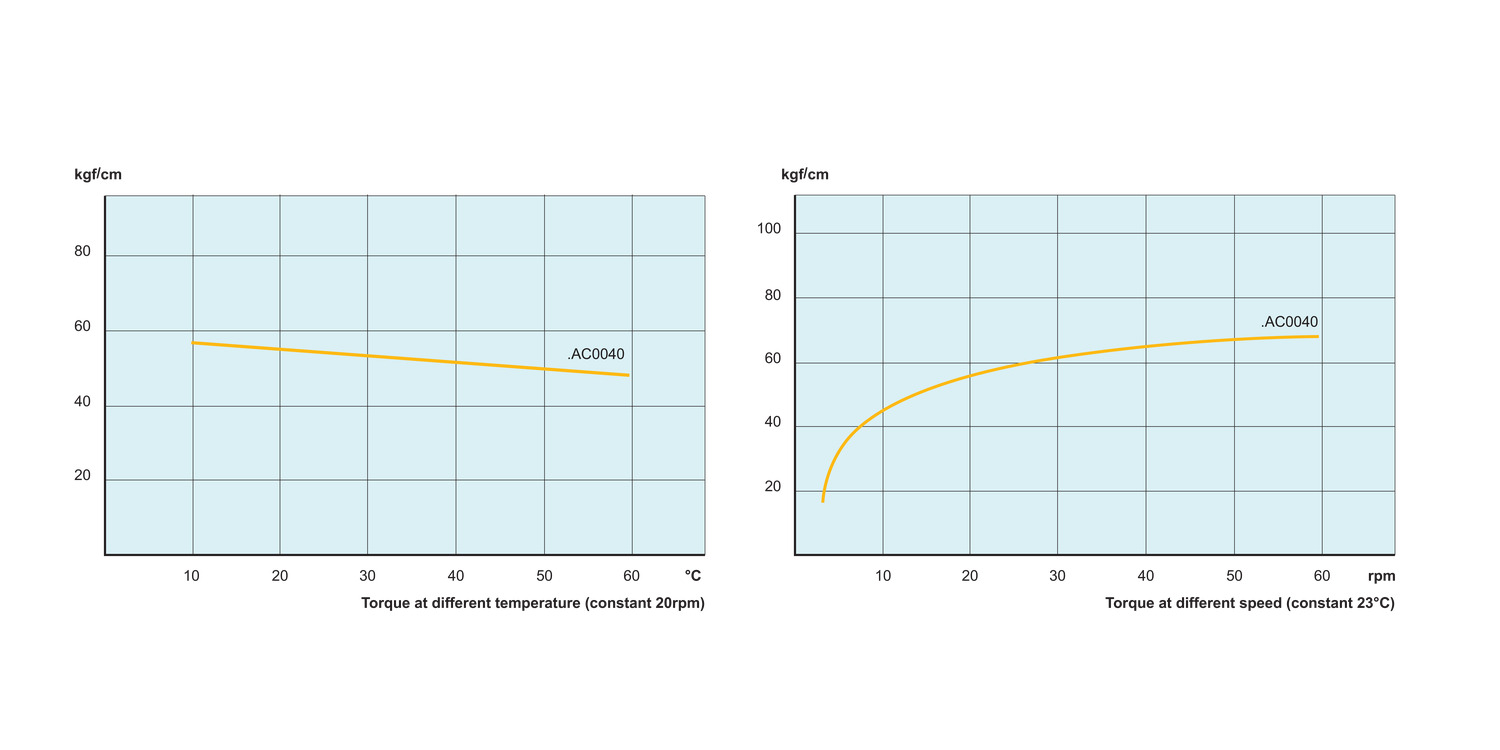

Application images
