Swing Handles
with rod control
B2088 Swing Handles - with Rod Control
40mm euro cylinder lock - padlockable - zinc or polyamide, material: Zinc or polyamide
Alternative products you may wish to consider
Body
Polyamide
Handle
Zinc
Lock type
40 Euro
Key type
Keyed Alike
l
160
Padlockable
No
w
34
lh
23
a
122
b
196
dm stroke
15
Body
Handle
Lock type
Key type
l
Padlockable
w
lh
a
b
dm stroke
| Price & Availability | Article | Body | Handle | Lock type | Key type | l | Padlockable | w | lh | a | b | dm stroke | ||||||
| B2088.AW0310 | Polyamide | Zinc | 40 Euro | Keyed Alike | 160 | No | 34 | 23 | 122 | 196 | 15 | |||||||
Ready to despatch 0 Need more? Please call us.
Body Polyamide Handle Zinc Lock type 40 Euro Key type Keyed Alike l 160 Padlockable No w 34 lh 23 a 122 b 196 dm stroke 15 | ||||||||||||||||||
Technical & Application
Material
Type One: Body & Handle: die cast zinc, black powder coated.
Type Two: Body: Polyamide PA6, black. Handle: die cast zinc, black powder coated.
Cylinder lock: die cast zinc, chrome plated.
Rod Control Mechanism: die cast zinc.
Supplied with: Keys: two per lock.
Not supplied: Cam: order separately.
Technical Notes
Order cam separately.
Cams: see suitable cam A0215. Select "without projection" cam type.

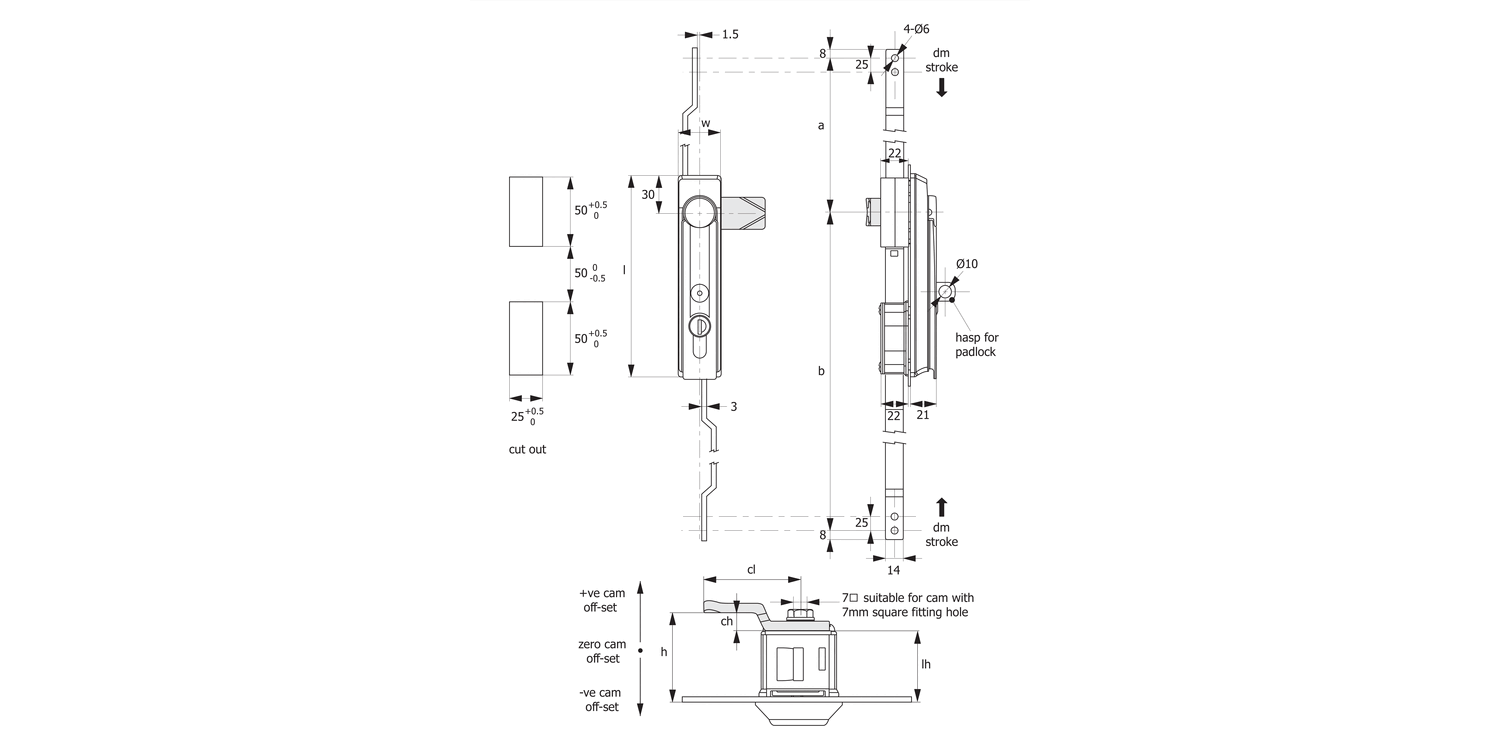

Dimensions ch and cl relate to cam. Use formula to calculate ch (required cam off-set), and refer to cam selection chart;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see product table below).
Rods & Guides: to achieve 3-point latching - A0303, A0321, A0325.
Tips
90° degree handle rotation combines with rod latch to open or close. All die cast metal construction provides higher strength than standard models. Ideal for electrical cabinets, telecom racks or enclosures max. panel thickness of 1 to 4mm. For use inside of cabinet gasket. Universal left/right.
